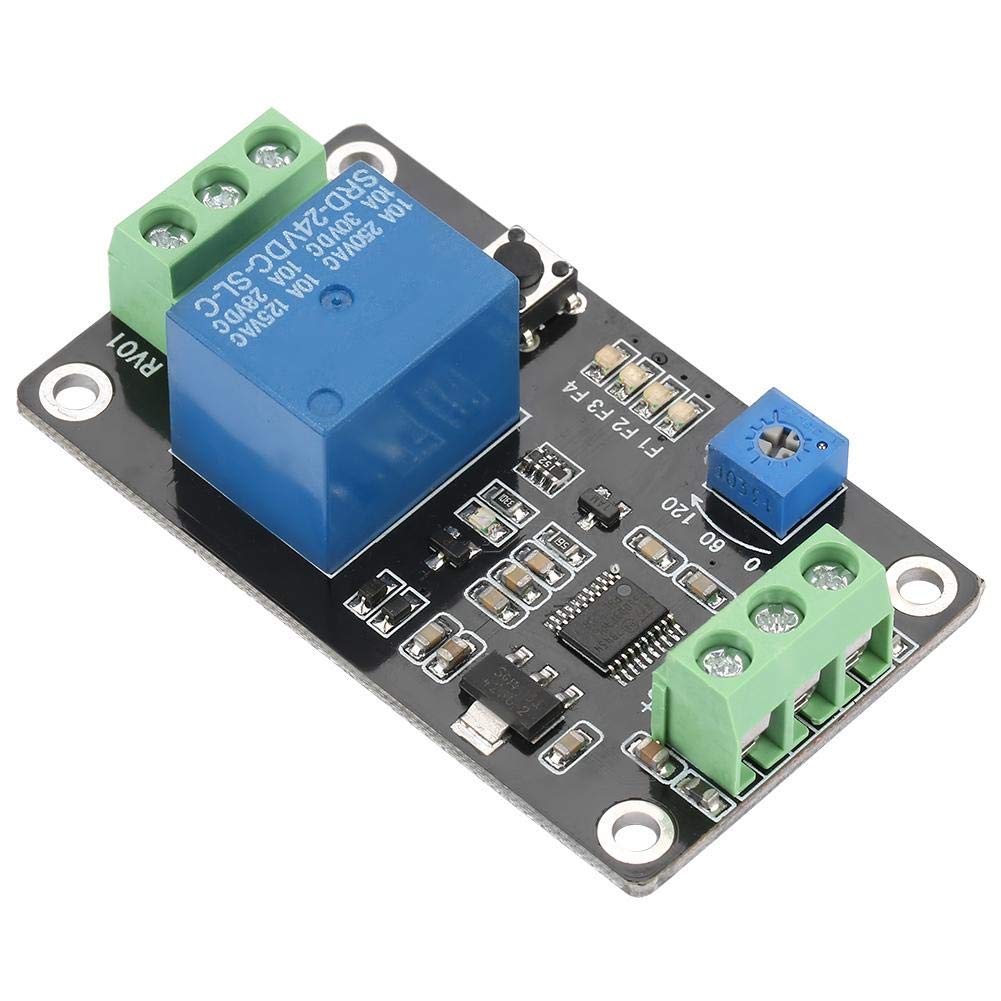

Timer Relay Timer Adjustable Delay Module Self-Locking Trigger Delay Controller On Delay Off Switching Module (DC24V)

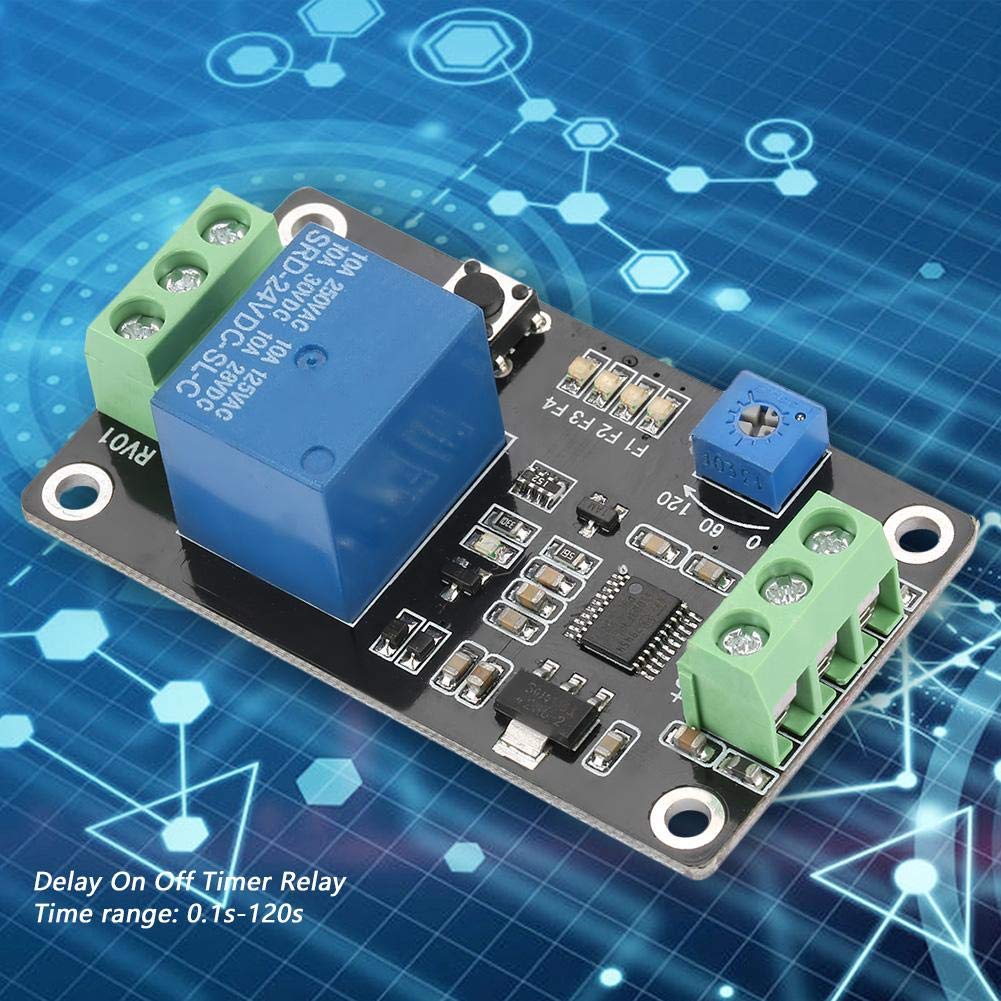

• SETTABLE DELAY TIME: The delay time can be arbitrarily set between 0.1 seconds and 120 seconds.

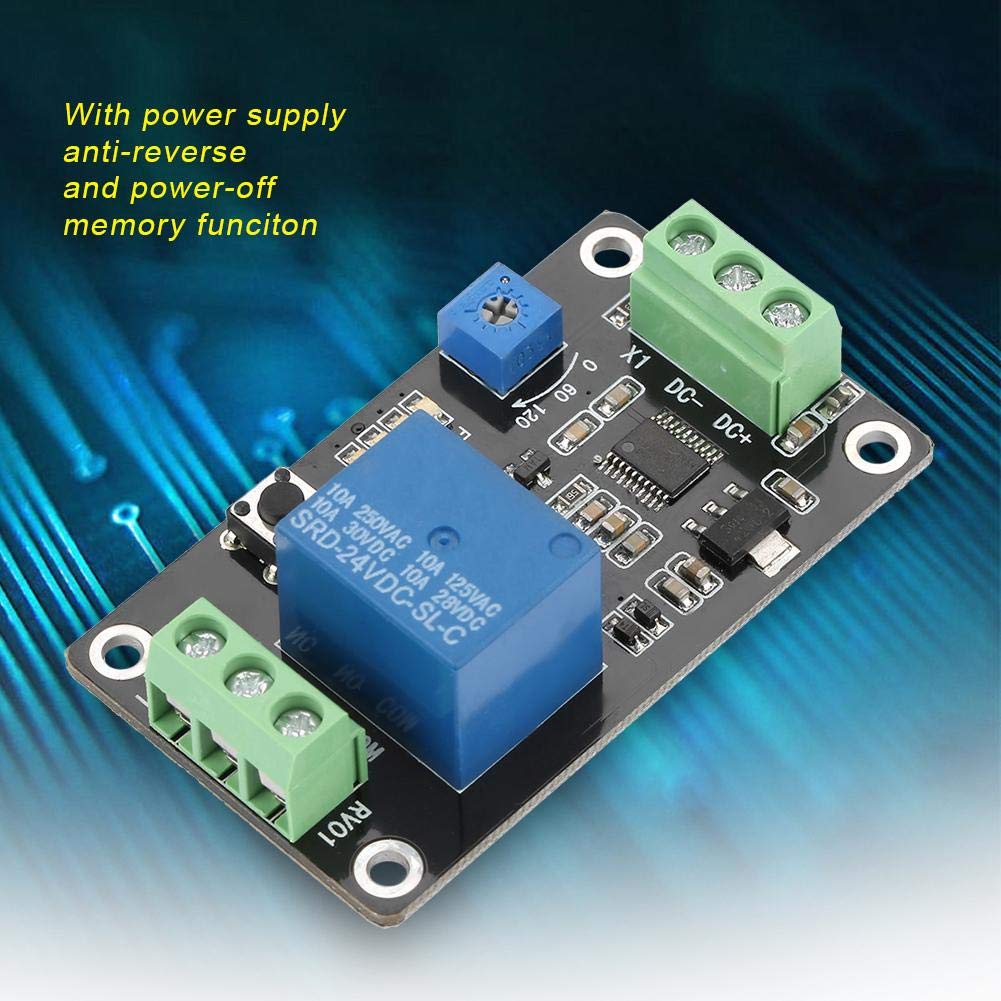

• ANTI-REVERSE FUNCTION: The module is also characterized by its power supply anti-reverse function, capable of preventing damages to the module.
• NO LOST PARAMETERS: The parameters can be saved, and the setting contents are not lost when the module is powered off.
• PRESET WITH 4 FUNCTIONS: The timer delay module is preset with 4 functions: delay ON, delay OFF, self-locking and trigger delay function, so as to meet various application needs.
• STABLE APPLICATION: High-quality components, stable performance and simple operation, widely used in a variety of control situations that require delay self-locking.

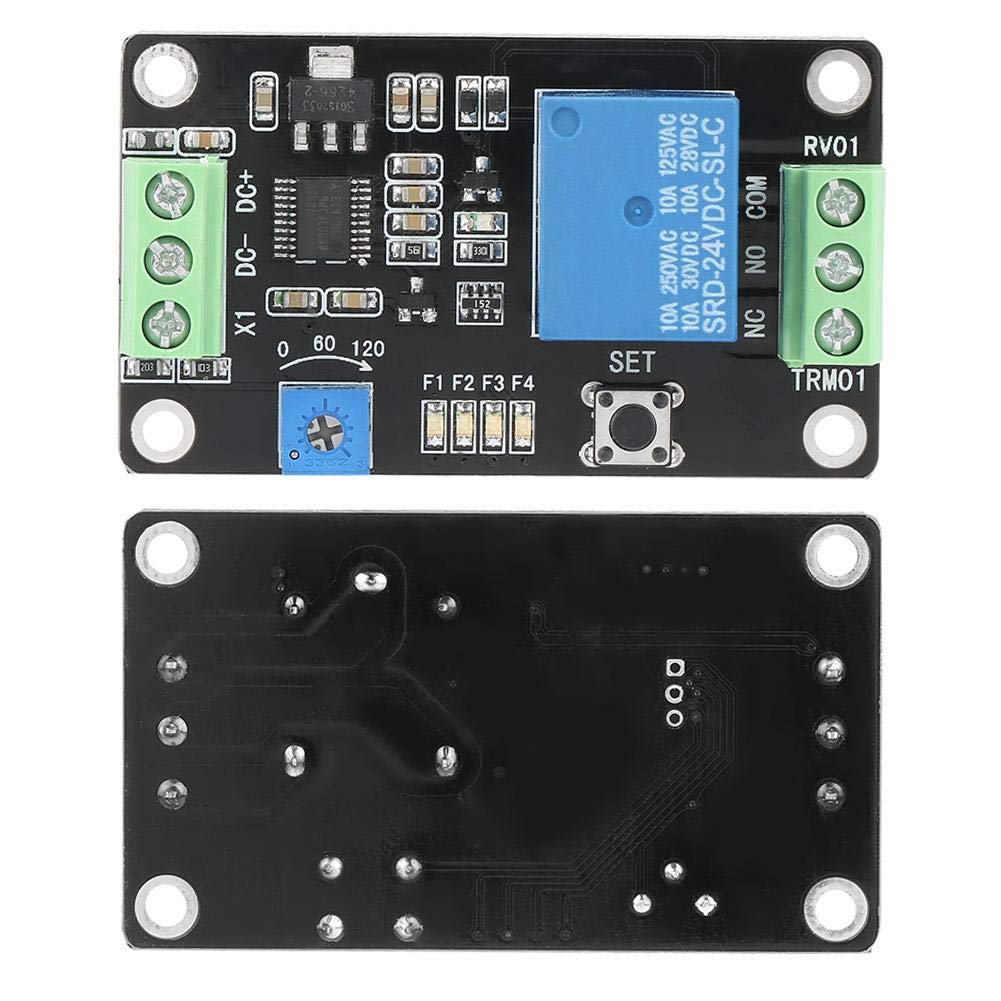

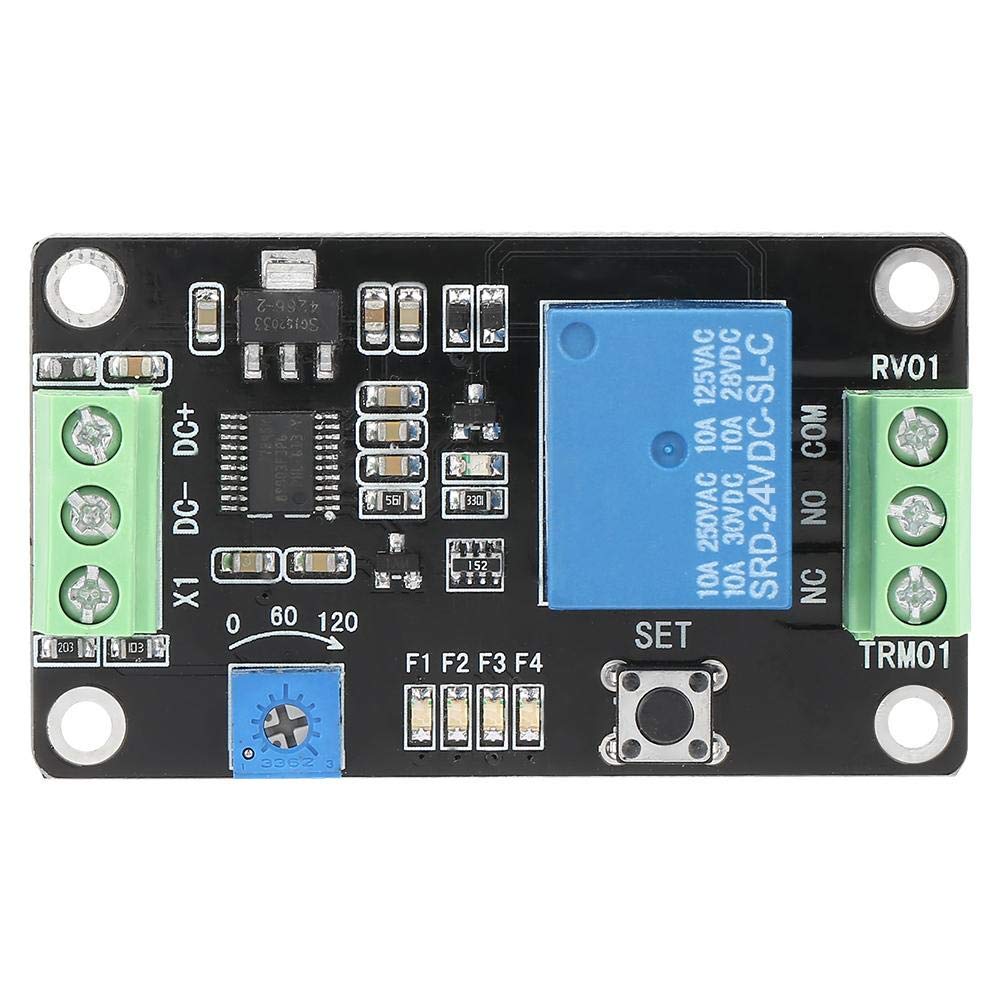

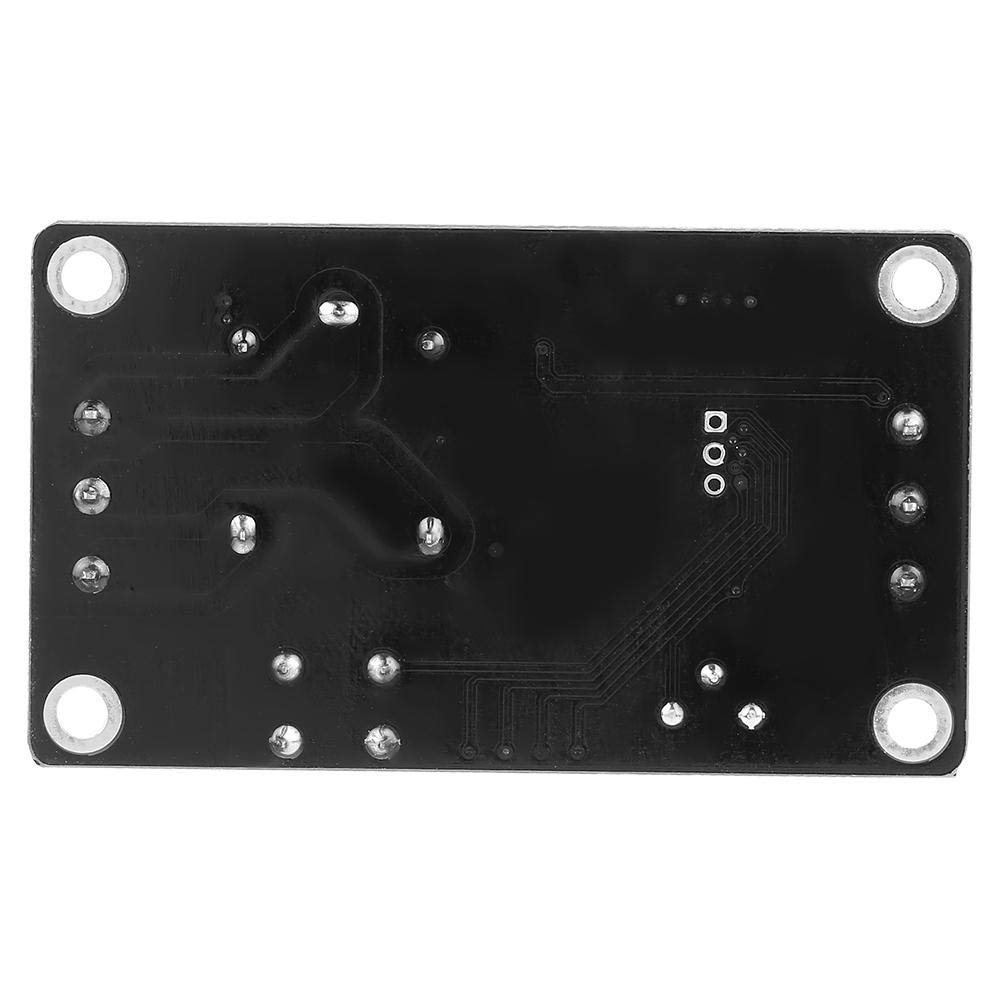

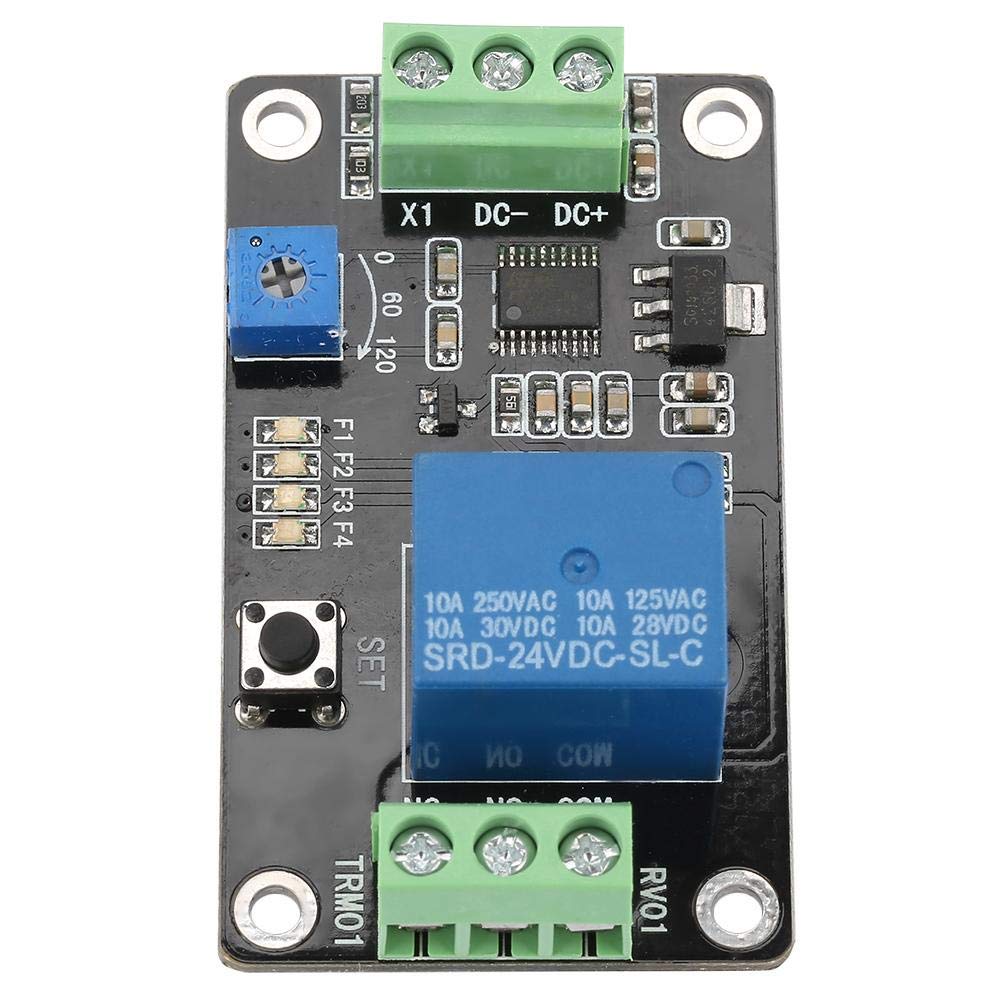

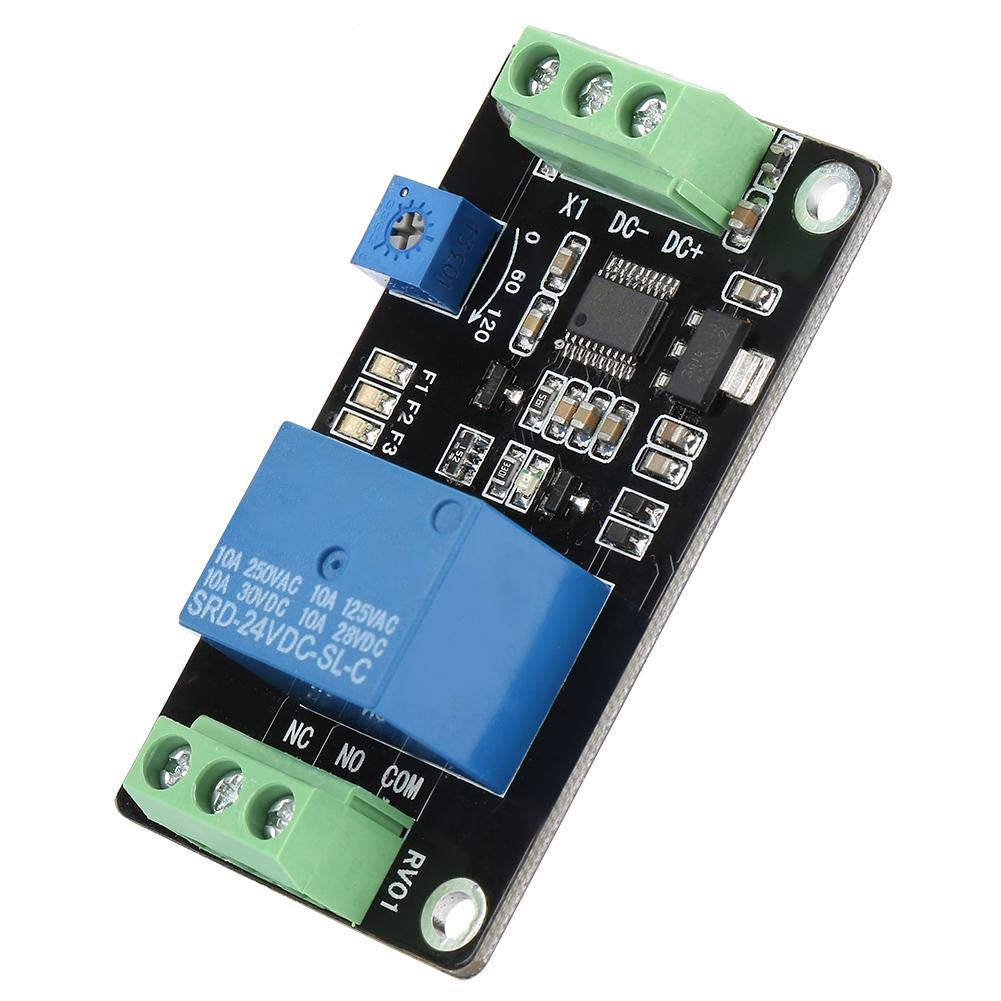

Specification: Working voltage: DC 5V, 12V, 24V (Optional) Working current: <80mA at 5V (<1mA when the relay is not operating) <35mA at 12V <1mA when the relay is not operating) <18mA at 24V (<1mA when the relay is not operating) Load capacity: -normally open port: DC 0-30V/10A, AC 0-250V/10A -normally closed port: DC 0-28V/10A, AC 0-125V/10A Working temperature: -20~60 (limit range -30~70) Size: 60*35*20mm / 2.36*1.38*0.79in Package weight: Approx. 23g Module function: Function F1: Power-on delay pull-in: After the delay of T1 from the start of power-on, the relay pulls in and sends a high-level pulse signal to the X1 interface at any time. This function resets and restarts. Function F2: The power-on delay is disconnected: the relay is closed when the power is turned on. After the T1 time is closed, the relay is disconnected, and a high-level pulse signal is given to the X1 interface at any time. This function is reset and restarts. Function F3: Self-locking relay mode: a high-level pulse signal is sent to the relay X1 interface, the relay is closed, and a high-level pulse signal relay is turned off. Function F4: Level trigger mode: When the power is turned on, the relay is disconnected, and a high level signal is sent to the X1 interface. The relay immediately picks up. After the X1 port signal disappears, the relay still pulls in. When the pull-in time T1 arrives, the relay turns off. Package list: 1 * Delay Timer Relay
