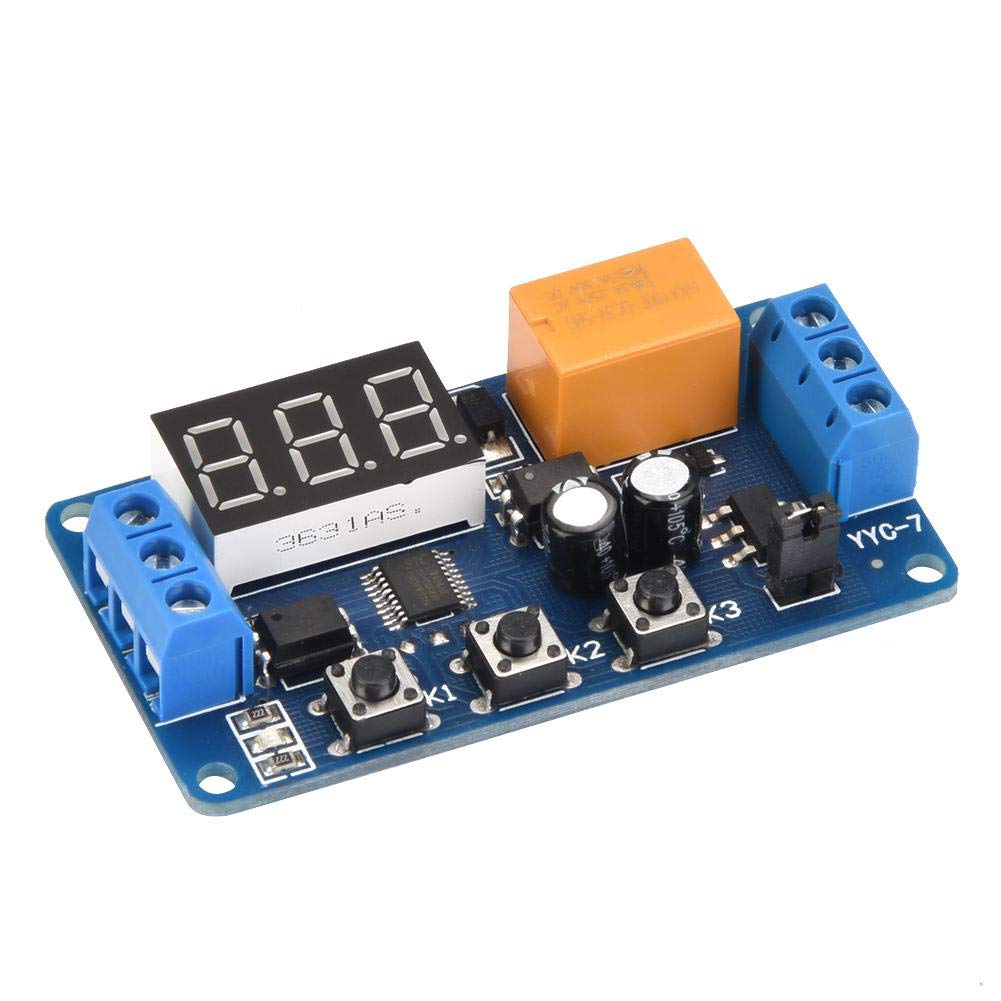

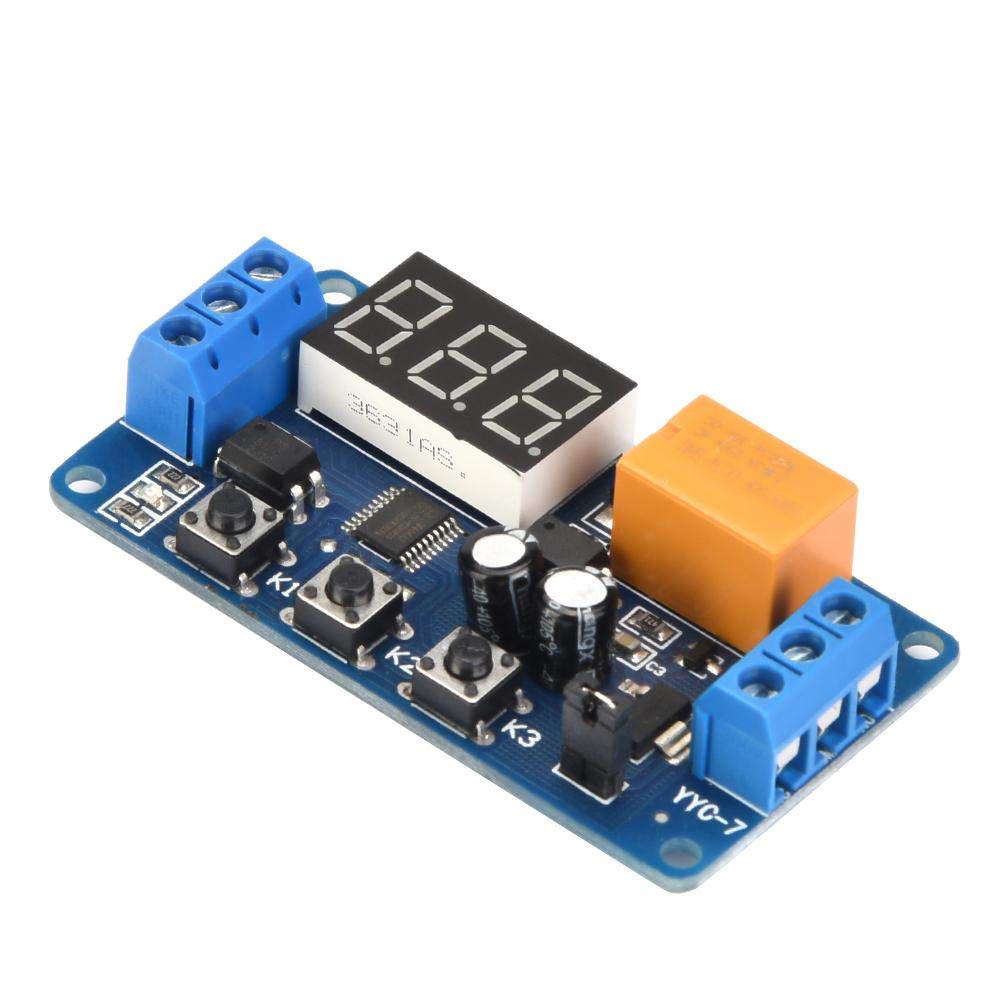

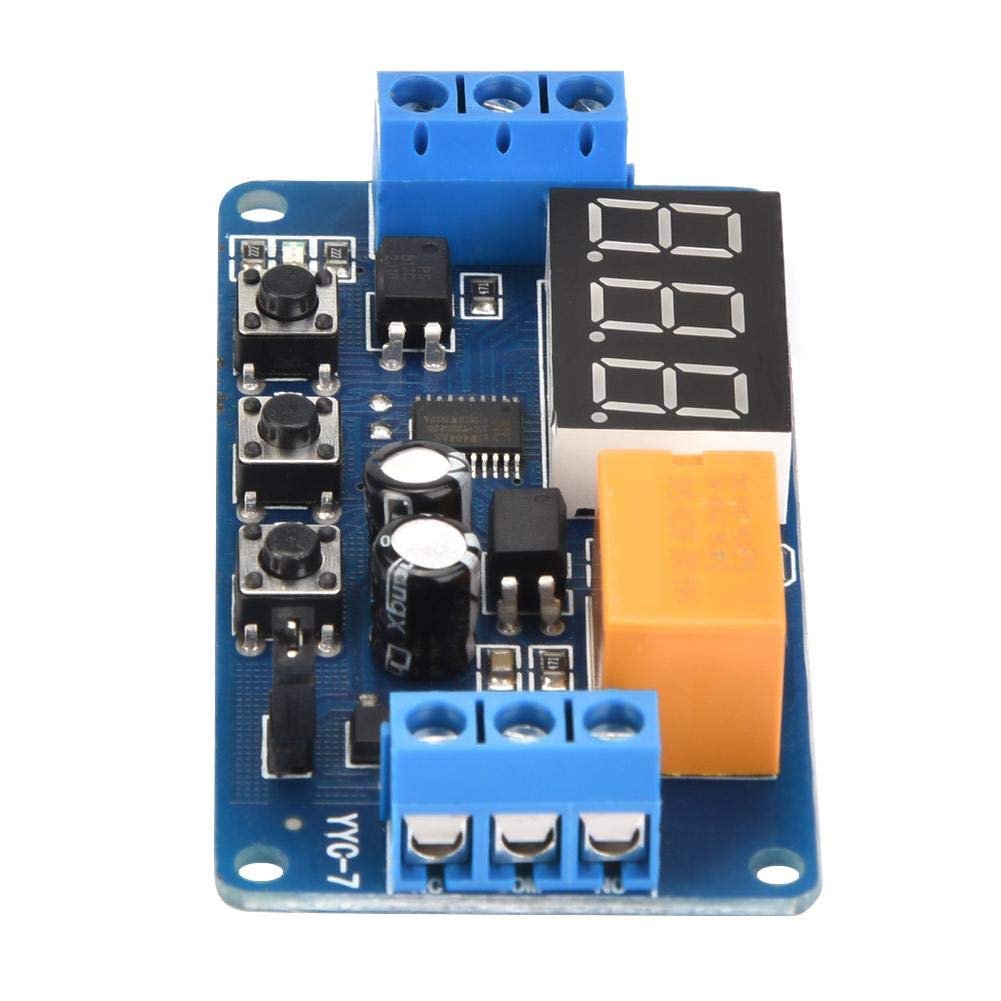

Vikye Adjustable Cycle Timer Control Relay, DC 3V~7V, Time Delay Switch Module, 3A, Normally Open, PCB Mount

• [Power Supply Methods] Commonly used 3.7V lithium batteries, 5V power banks, and a switching power supply can be used to power this board.

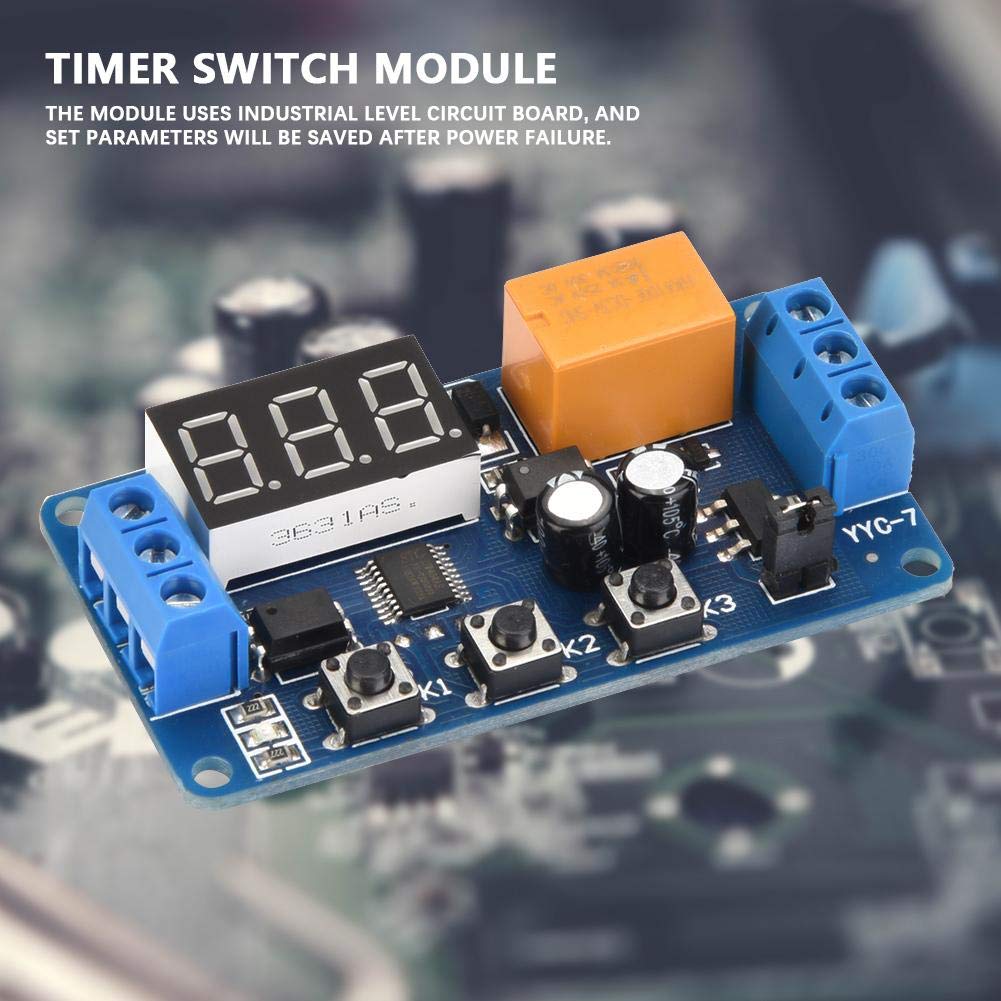

• [Function of the relay module] This delay relay can be operated with a low voltage of at least 3 V. The optical coupling isolation at the output improves the interference suppression capability. The module uses an industrial circuit board and the set parameters are saved after a power failure.

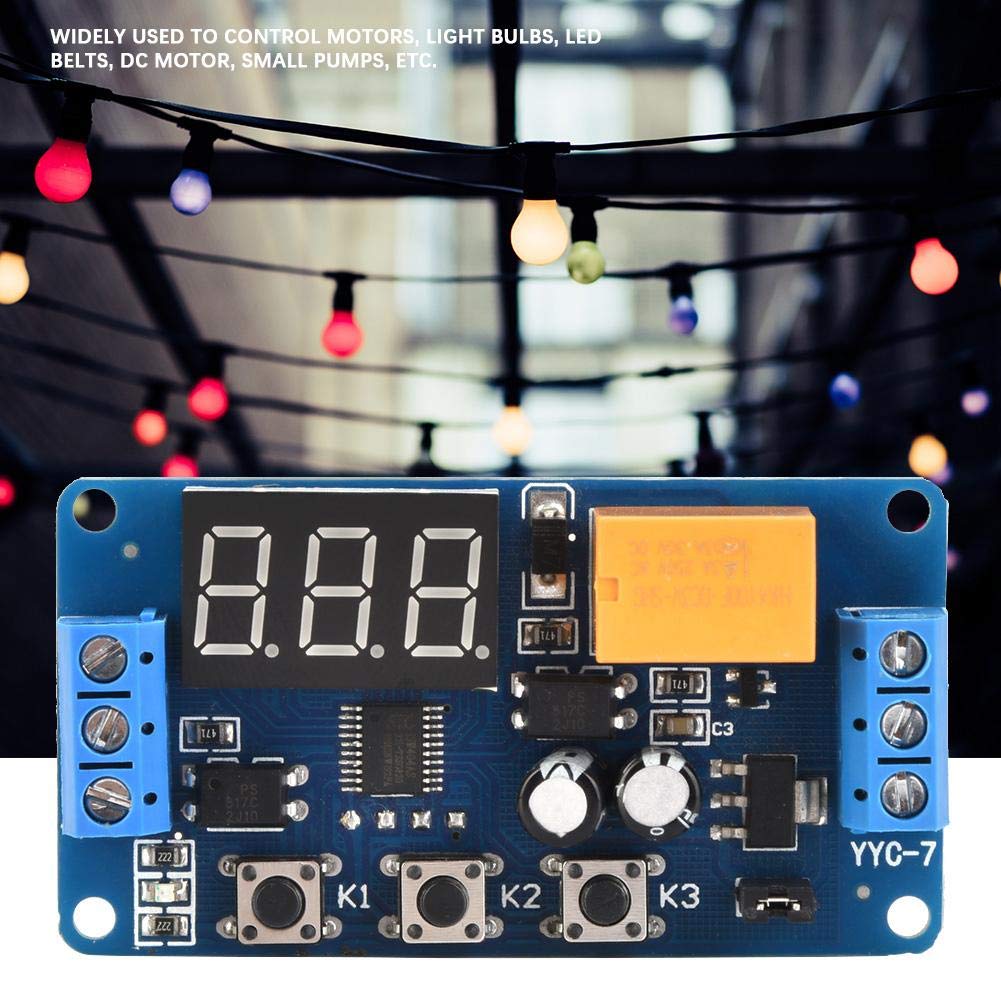

• [Scope of Application] Widely used to control motors, light bulbs, LED belts, DC motors, small pumps, etc.

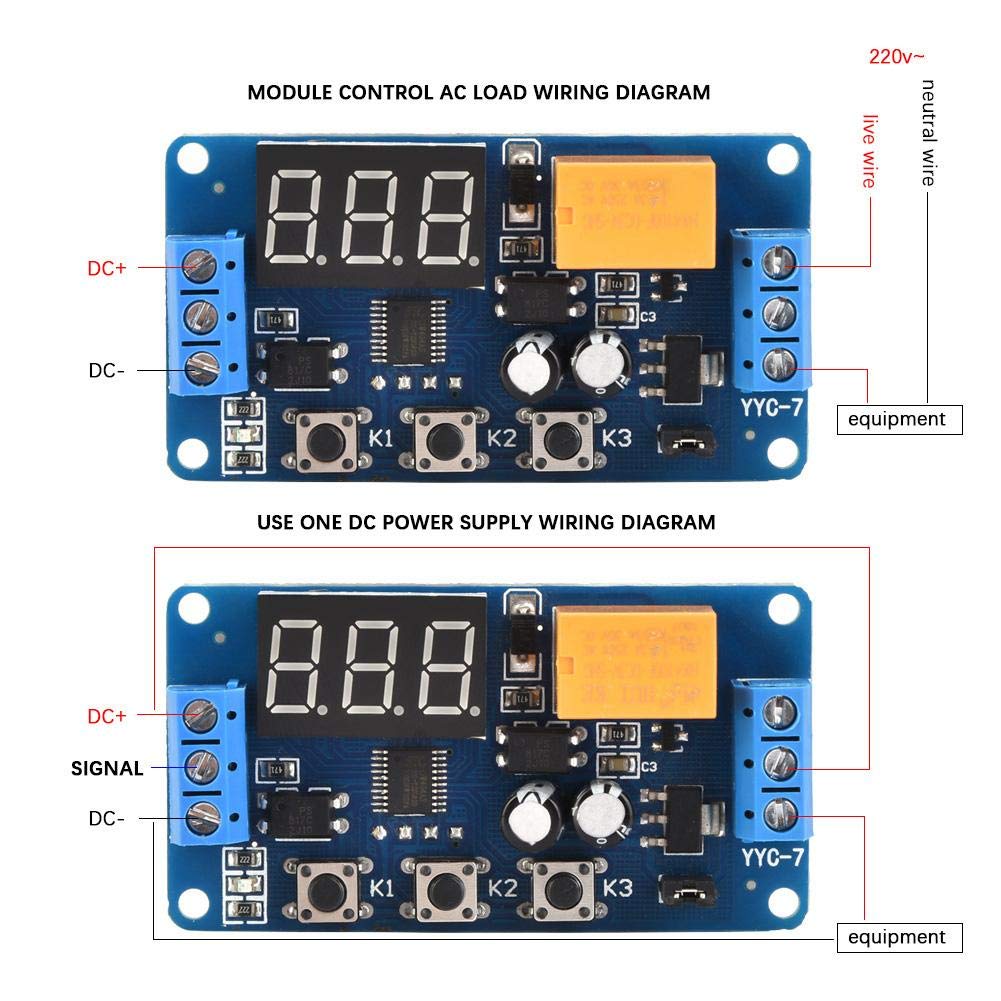

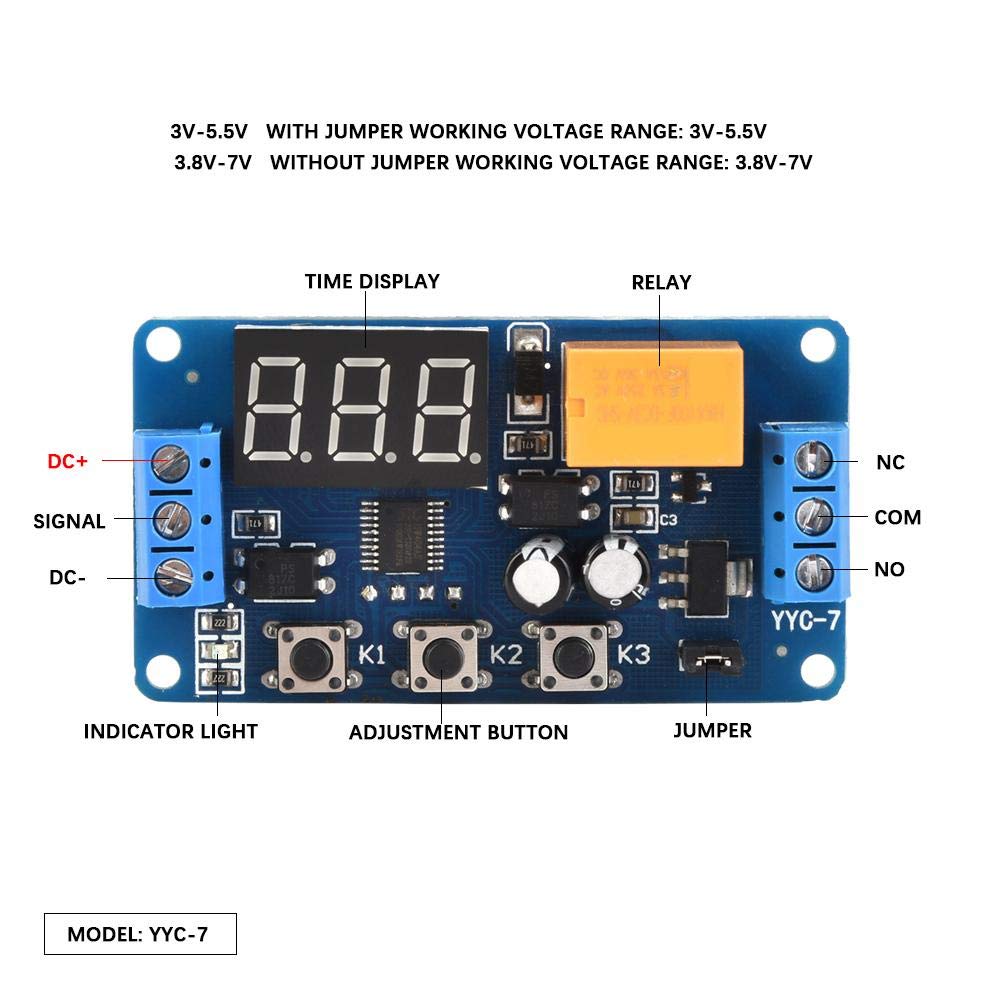

• [Specifications] Working current: DC 3V ~ 7V, voltage range with jumper: 3 V ~ 5.5 V, voltage range, without jumper: 3.8 V ~ 7 V, signal source: DC 3V ~ 12V (normally positive trigger of the power supply, button, Use PNP sensor, PLC signals, etc.), output capacity: can control devices within DC 30V3A or AC 220V3A, quiescent current: 15mA, working current: 30mA.
• [Quality Assurance] The quality of our products is guaranteed and can be used without hesitation. If you have any questions during use, please feel free to contact us.

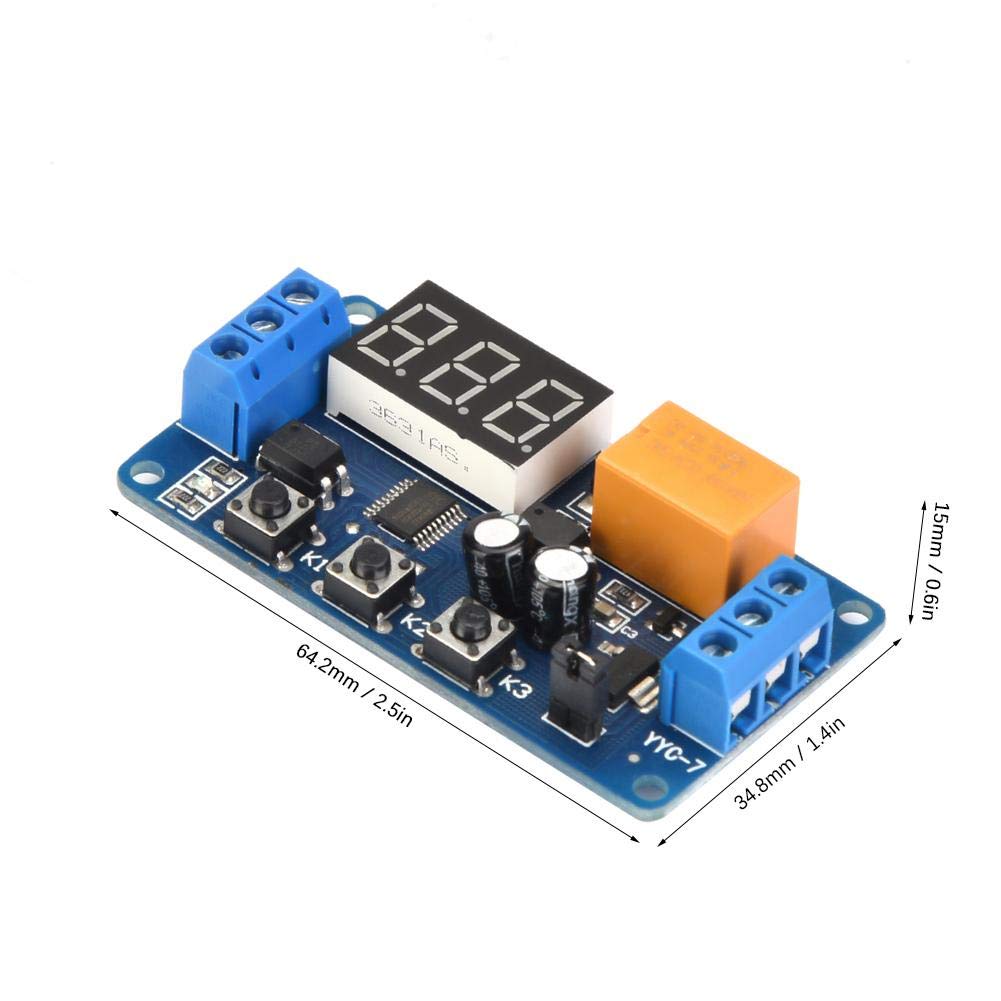

Specification: Working current: DC 3V~7V Voltage range with jumper: 3 V~5.5V Voltage range without jumper: 3.8V~7V Signal source: DC 3V~12V (commonly use power supply positive trigger, button, PNP sensor, PLC signals, etc.) Output capacity: Can control equipment within DC 30V3A or AC 220V3A Quiescent current: 15mA Working current: 30mA Service life: >100,000 times Operating temperature: -40℃~85℃ Size: 64.2*34.8*15mm / 2.5*1.4*0.6in Weight: 22g / 0.8oz (approx.) Package list: 1 * Module
