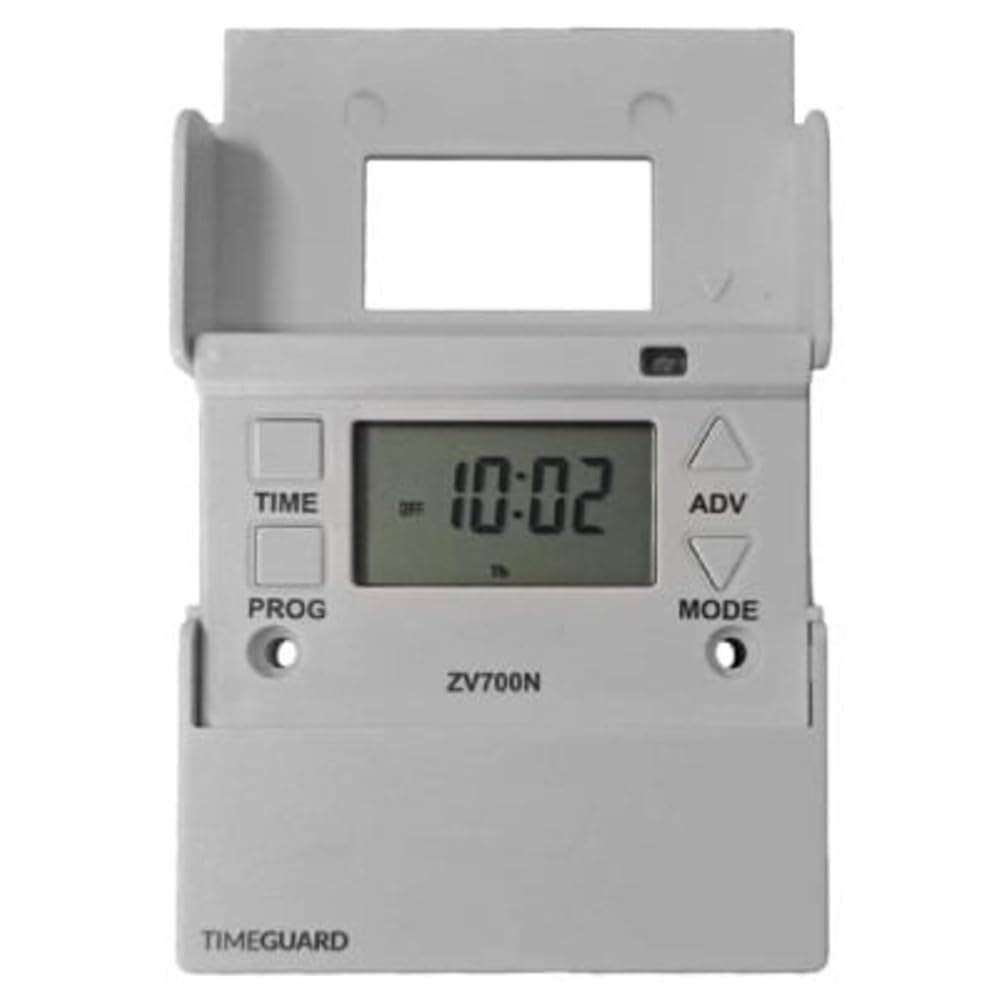

Timeguard ZV700N Programmable Security Light Switch with Optional Dusk Start

• 6 different time periods (5 day plus 2 day or 7 day programming) displayed on an easy-view blue illuminated screen. Auto mode: The light output will be controlled by the programmed times
• Photocell mode: The light output will only come on when the light level drops, if it is within a programmed times. Random mode: On a random basis, it can change the ON/OFF times programmed by up to 30 minutes earlier, or later than programmed
• Manual mode: The light output is controlled by the Adv button, not the programmed times. Automatic summer/winter time changeover. Fits a standard flush or surface mount BS wall box min 25mm
• No neutral required. Can be connected 1 way or 2 way. Internal battery powers the switches controls, therefore the lamps will not flicker when a minimum load is connected. Note: FLA01 strip light adaptor or the ZV900 load controller may be required in certain installations (sold separately)
• Switch rating: 0 - 50W LED Extendable up to 200W with ZV900 (sold separately), 40 - 400W Filament, 11 - 150W Low Energy (Min bulb size 11W), 18 - 76W Fluorescent
• IP20 rated - for indoor use only. UKCA & CE certified
• Dimensions: 87mm tall x 87mm wide x 24mm deep (projection) 14mm rear projection. 60.3mm fixing centres (standard UK 1 gang)

The ZV700N combines the function of a manual light switch, with the option of automatic timed control of lighting on a weekly basis available at the press of a button. There is a further option of starting an automatic lighting period at dusk, but ending it with a timed off, and a random on/off option, based around programmed times. Designed for 2-wire systems with minimum load restrictions.
