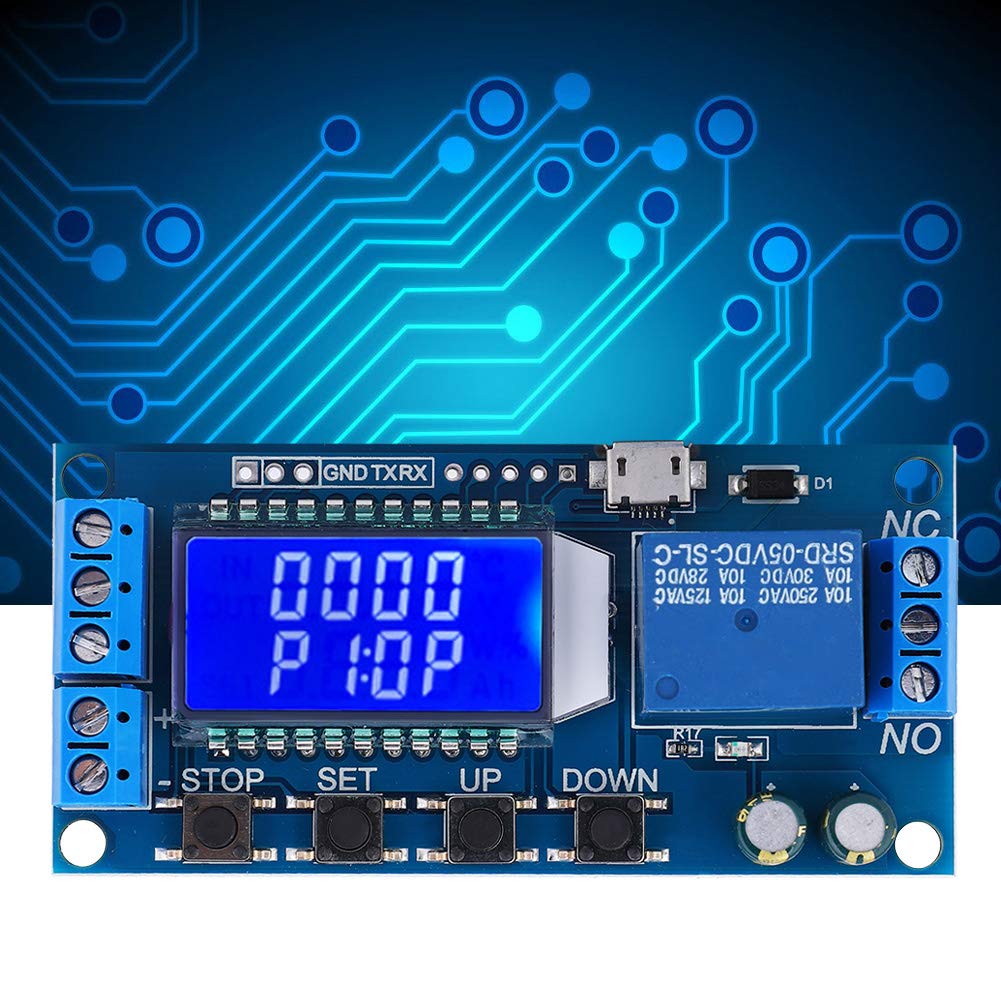

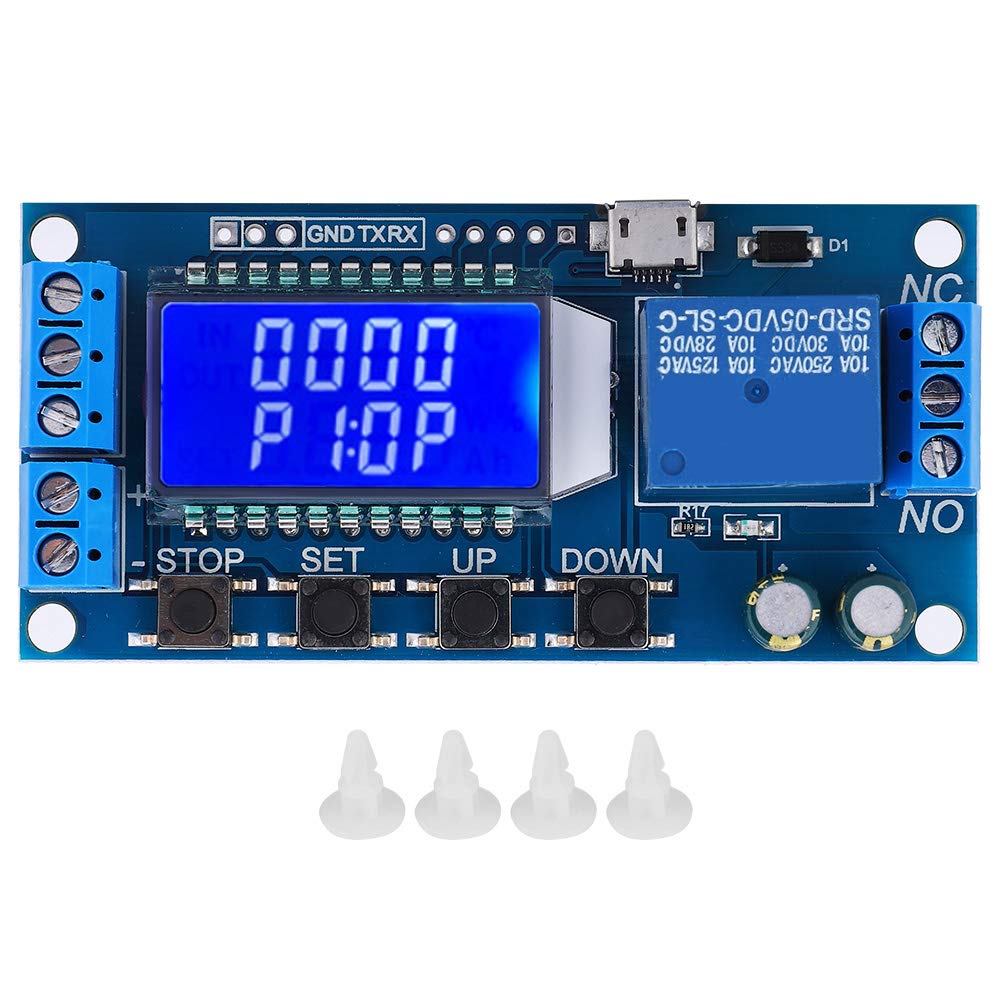

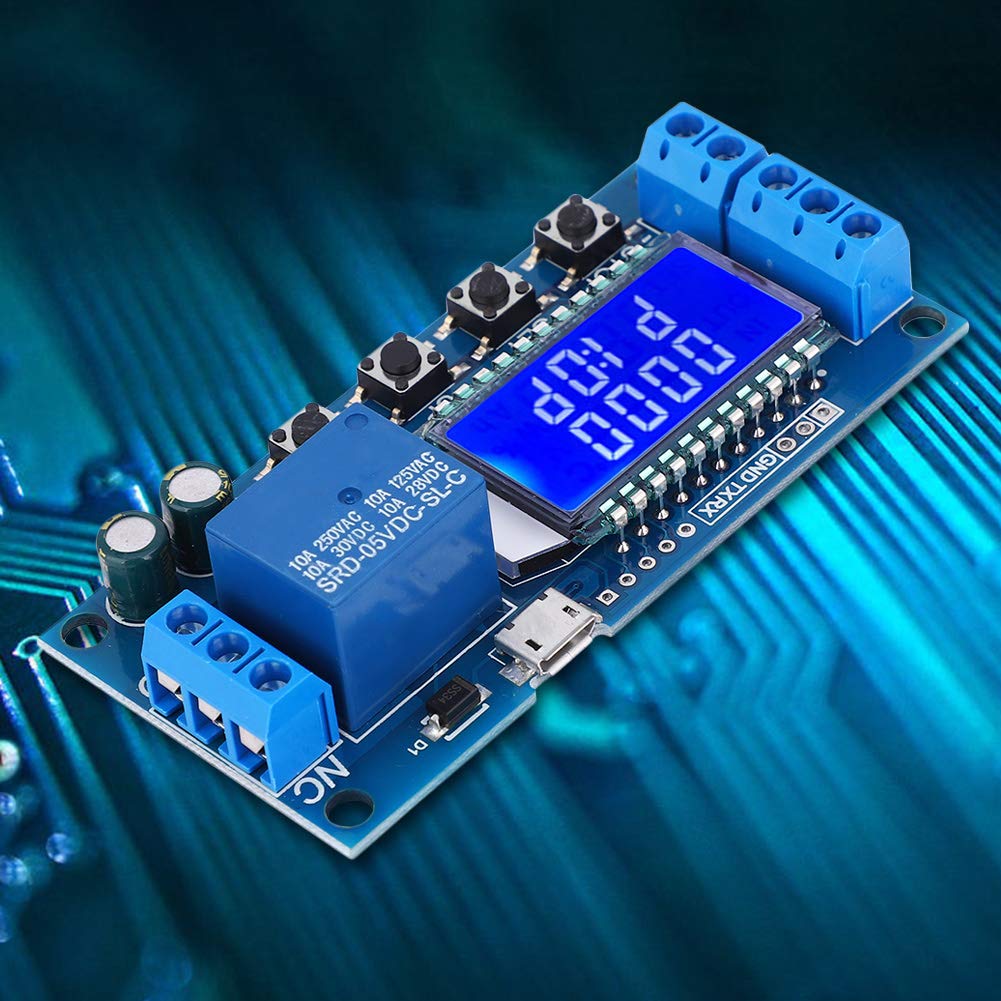

Time Delay Relay Module, 5V 12V 24V Timer Relay Delay Off Cycle Timer 0.01s‑9999min with LCD Display

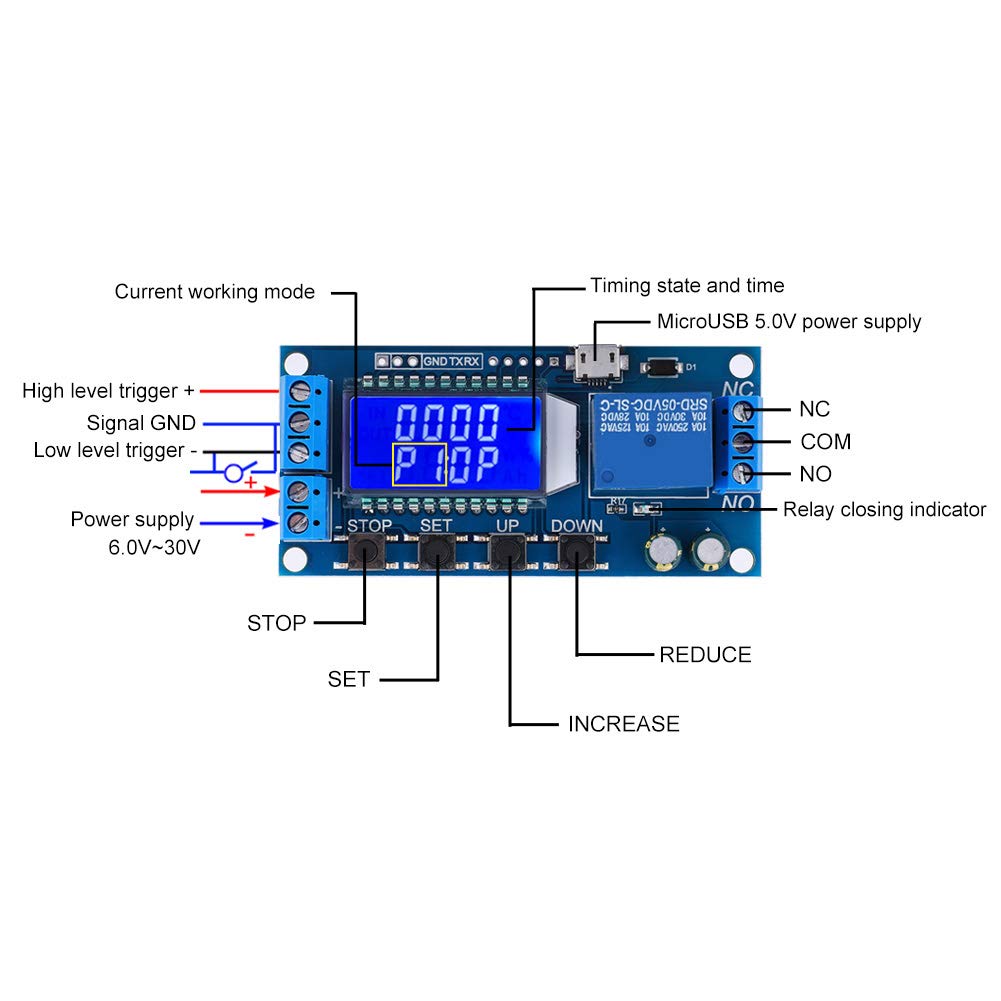

• Large Display: The timer supports UART data upload and parameter settings. You can set different 0P, CL, LOP parameters. These parameters are independent and stored separately, with LCD displays. The current mode and parameters can be clearly displayed
• Sleep Mode: You can add sleep mode to the timer. After enabled, there is no operation within 5 minutes, and the LCD backlight will be automatically turned off. Any button wakes up on the screen

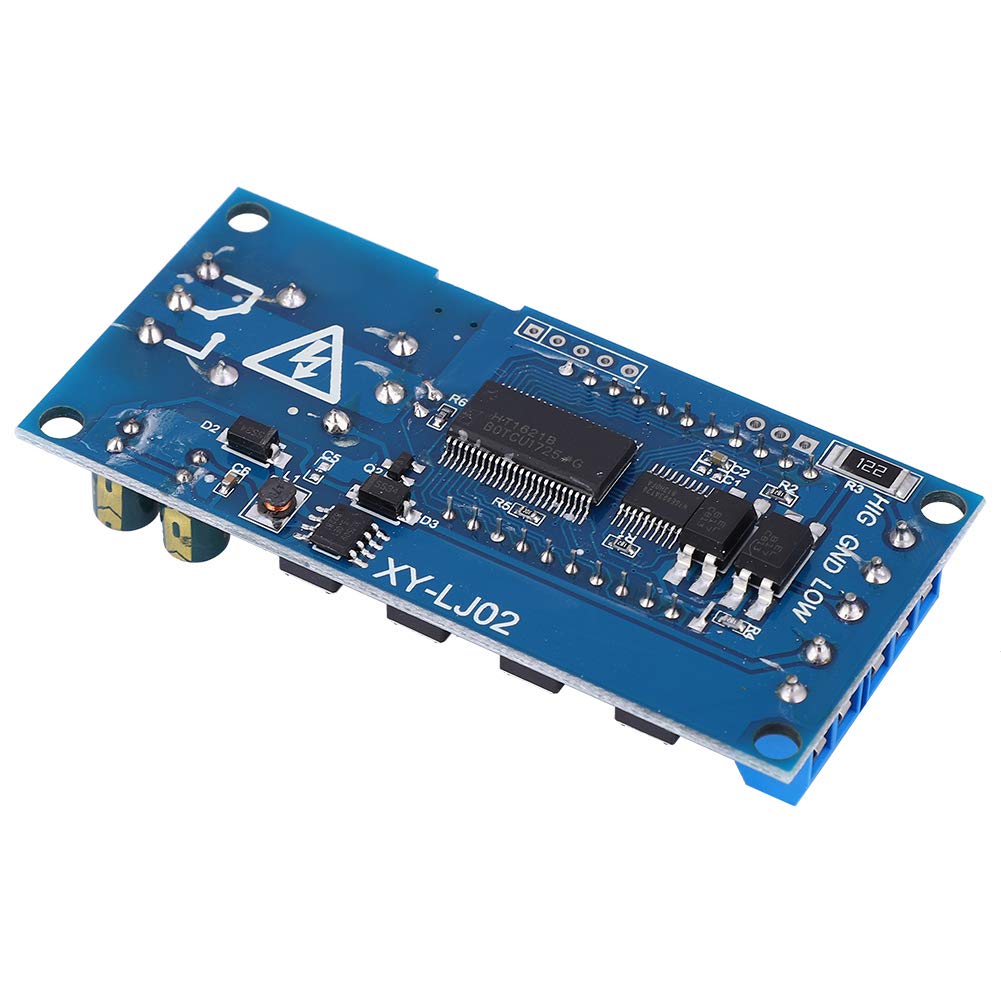

• Anti Interference: The delayed relay module adopts industrial -grade circuit board and isolate the optocoupler to enhance the anti -interference ability
• Using Safe: The delayed timer is suitable for a wide power supply voltage 6 to 30V, supports Micro USB 5.0V power supply, which is very convenient to use. Automatically save all parameter settings when the power failure to ensure your use of safe

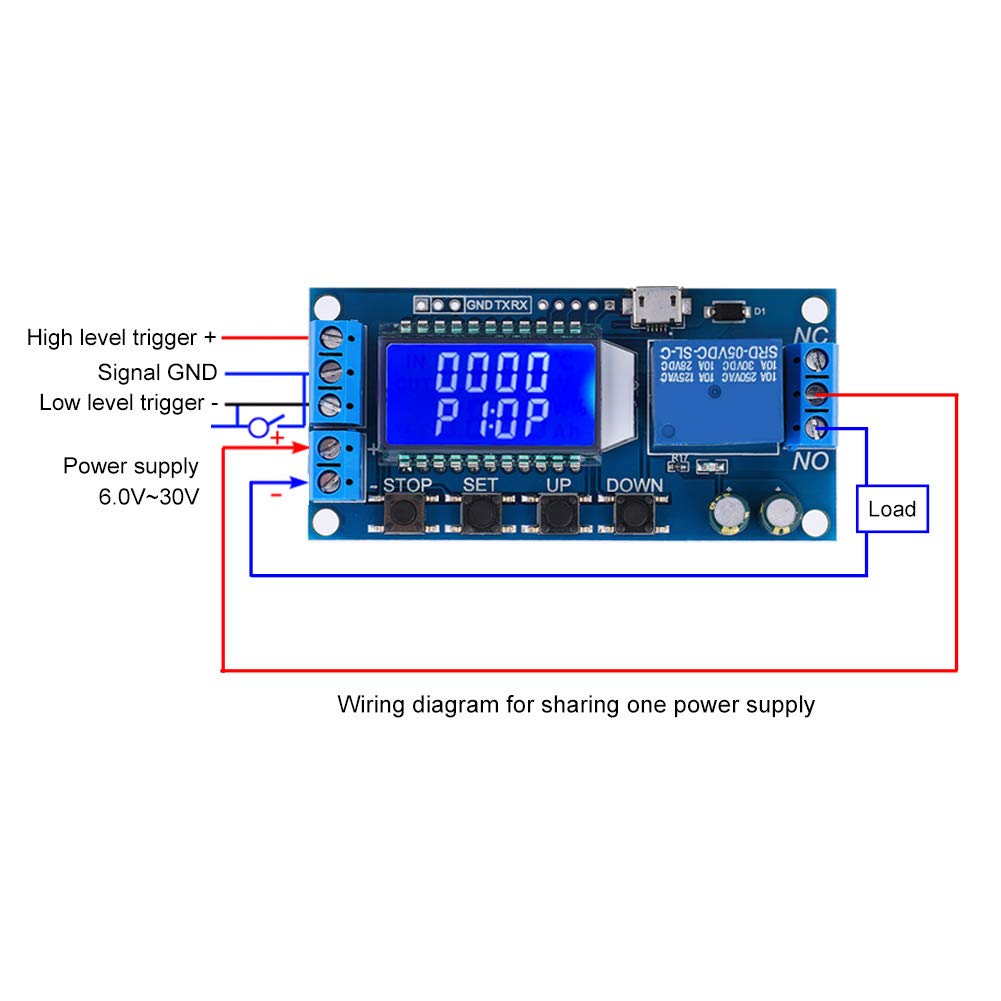

• Practical: The timer relay supports high -level or low -level triggers, switching quantity control, a button emergency stop function (stop button), and has reverse connection protection, suitable for most applications

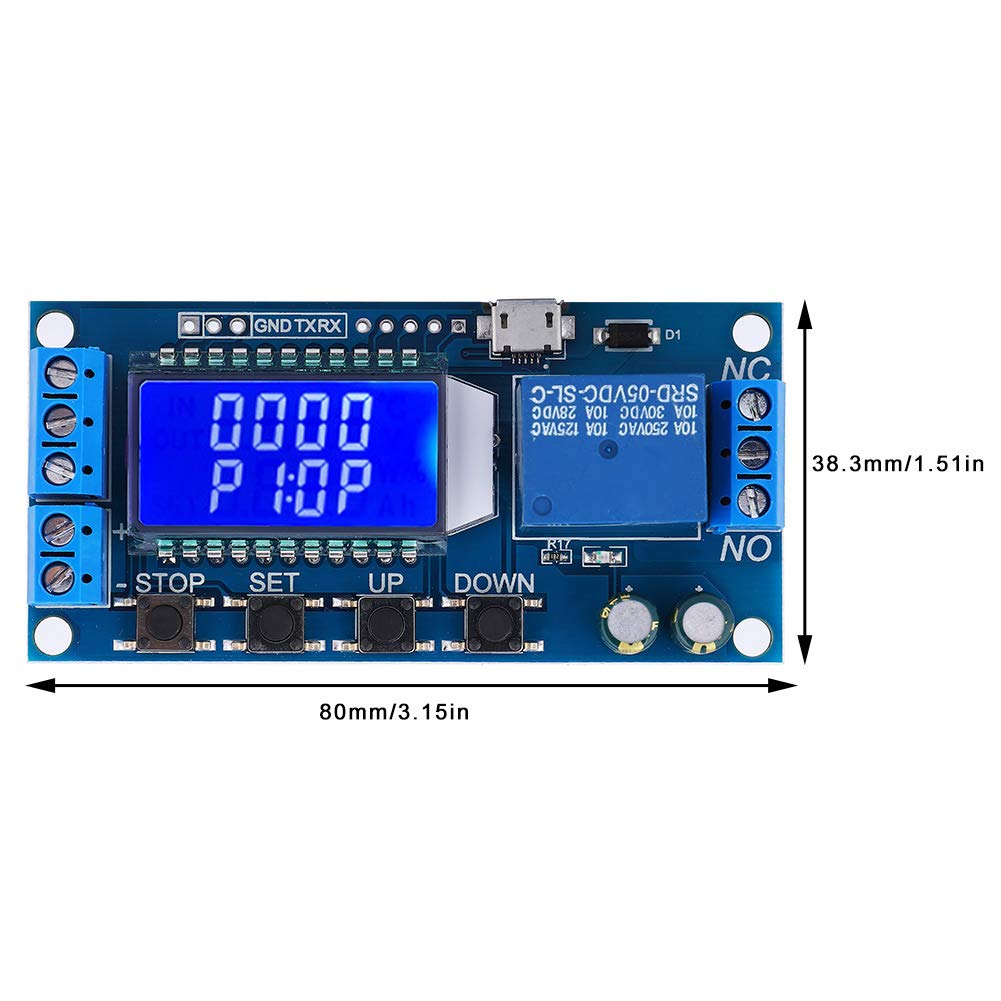

Specification: Item Type: Delay Relay Module Working Voltage: 6--30V Timing Range: 0.01s-9999min continuously adjustable Trigger Source: High Level Trigger (3.0V~24V), Low Level Trigger (0.0V~0.2V), Switching Quantity Control (Passive Switch) Output Capability: Can control devices within 30V 5A or within 220V 5A Quiescent Current: 15mA Operating Current: 50mA Service Life: >100,000 times Working Temperature: -40~85°C Size: 88x3.8x1.9cm / 3.15x1.5x0.75in How to Choose Timing Range: In the OP/CL parameter modification interface, short press the STOP button to select the timing range Additional Function: a) Auto sleep function: In the running interface, press or hold the STOP button to activate or deactivate the auto sleep function (L-P select on to start the sleep function, off to turn off the sleep function); b) Relay function selection: In the operation interface, the relay function is activated or deactivated by short pressing the STOP button, 'on' meets the conduction condition, the relay is normally turned on, and 'OFF' meets the conduction condition, and the relay is not turned on; 'OFF' In the state, the system flashes 'OUT'; c) Parameter view: In the running interface, short press the SET button to display the current parameter settings of the system, which does not affect the normal operation of the system; d) Display content switching: In P-5 P-6 mode, switch the display content (run time/cycle number) by short pressing the DOWN button; Package List: 1 x Delay Relay Module
