TiLTA WLC-T03-K4 Nucleus-M Partial Kit IV Wireless Lens Control System (Nucleus-M Partial Kit IV) (batteries NOT included)

• The wireless range of both the hand unit and hand grips is 1,000 feet and with the planned upcoming transmission upgrade, the range can reach up to 1 ¼ miles! This makes it ideal for drone or car-mounted shots. The hand grips can be attached to the included rosette mounts for handheld operation and can also be attached to top bar-based gimbals with the included Nucleus-M Hand Grip to Gimbal Adapters or to ring-based gimbals with the optional Nucleus-M Hand Grip Universal Gimbal Ring Adapters.
• The motors are designed to clamp onto 19mm or 15mm rods (with the included rod bushings). This clamp-on design allows you to easily attach and detach the motors without needing to remove any other accessory from your setup. Every motor has a 0.8 mod, 35 tooth, 32 pitch gear attached, which is the standard gear size for cinema lenses. The torque of the Nucleus-M Motor at 14.8V is 2.5N·m

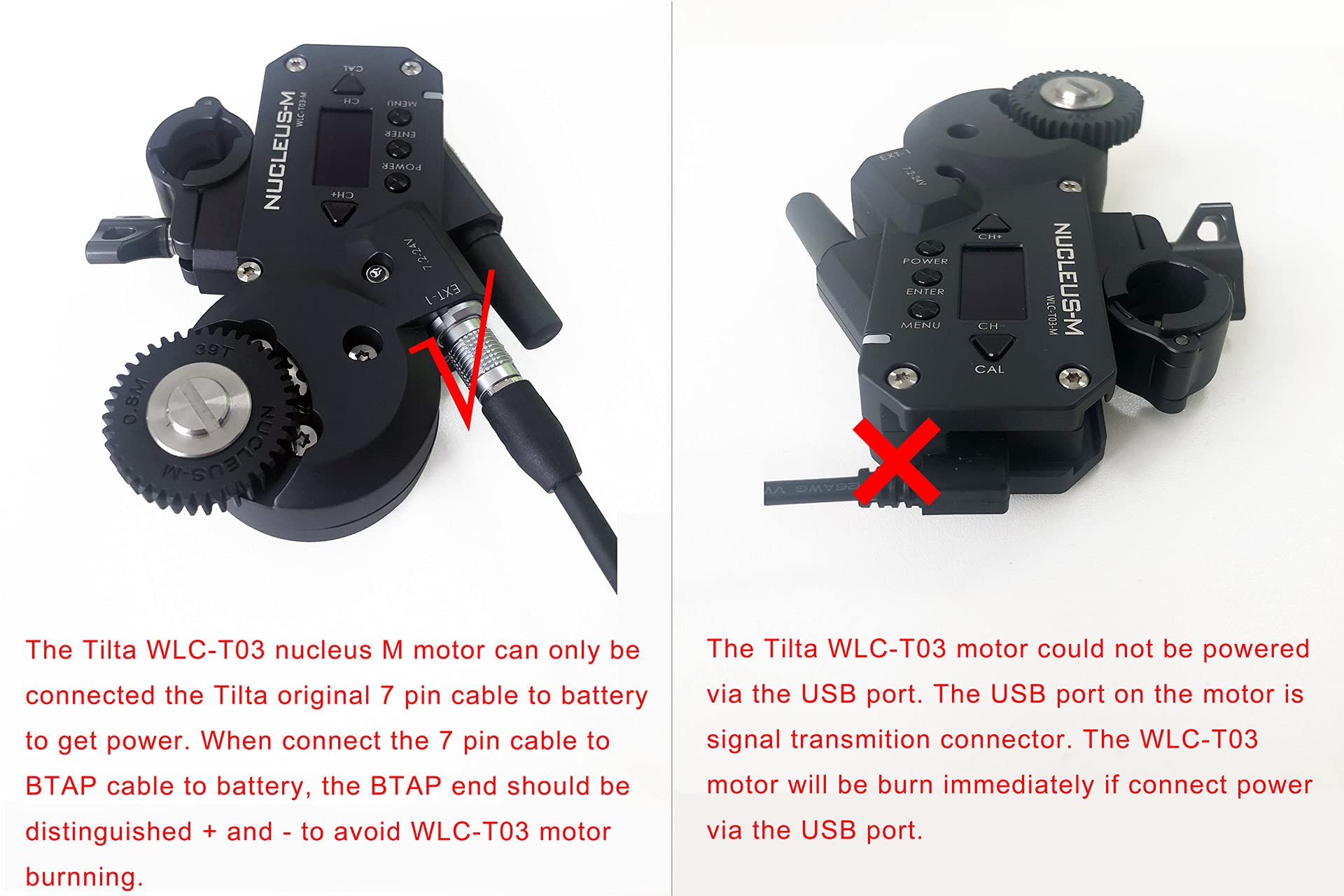

• To power the motors, only one power port on your camera rig needs to be used. Simply plug the P-tap power cable into one of the motors and then daisy chain power to the rest of the motors with the short 7-pin to 7-pin cables. The motors can be powered through a power source that has a voltage output ranging from 7.2V-24V.

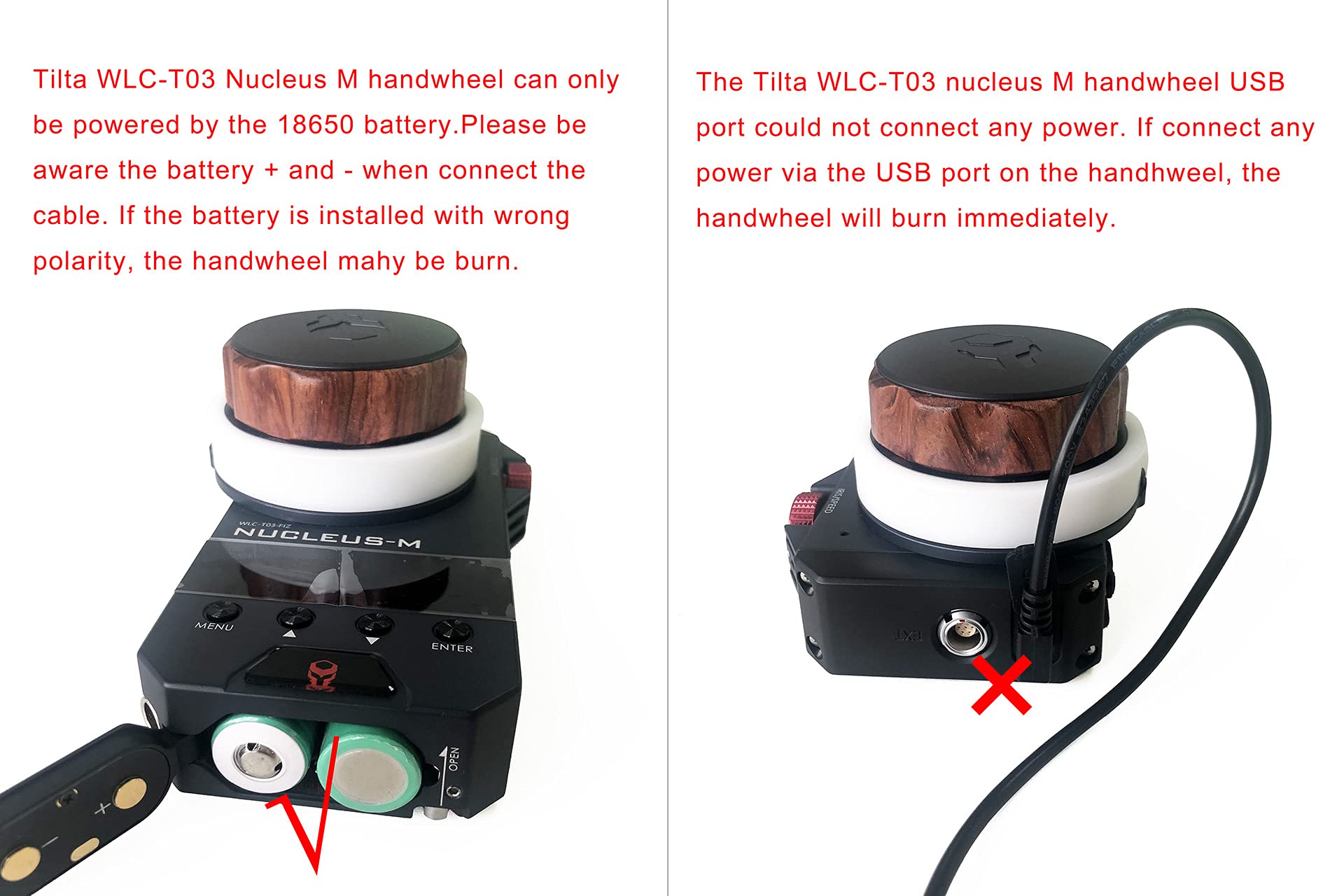

• The hand unit each powered with two 18650 rechargeable batteries (batteries NOT included). When fully charged, the batteries in the hand grips last up to 2 days, while in the hand unit they last up to 10 hours. Remote start/stop is possible by plugging a compatible Nucleus-M R/S cable into the open 7-pin port of a motor. This then gives you R/S capabilities through the hand unit and/or the handles.
• ** PLEASE NOTE: The R/S cables we offer for our wooden handles ARE NOT compatible with the Nucleus-M since the engineering and pin configurations are completely different. Using the wooden handle R/S cables are not safe to use with the Nucleus-M. Only use cables that have been developed by us exclusively for the Nucleus-M system.

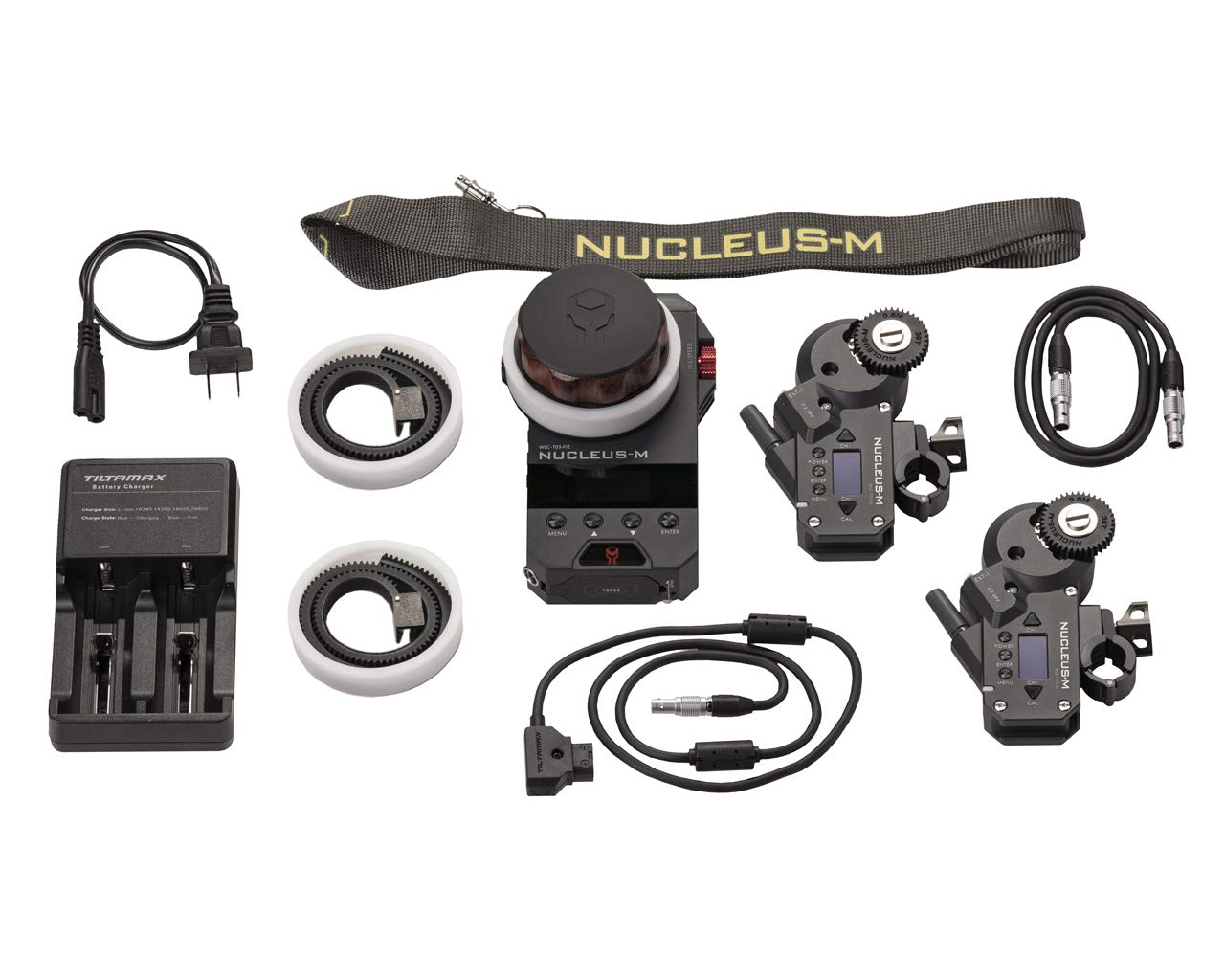

Packing list: Partial Kit IV (1) Wireless FIZ hand unit (2) Brushless wireless motor with 19mm rod support and 15mm rod bushings (1) 55cm 7-pin to 7-pin motor connection cable (1) Photographic Lens Follow Focus Adapter (1) 74cm 7-pin to P-tap motor power cable (1) Follow focus marking disks (1) Wireless FIZ hand unit strap (1) 18650 quad battery charger (batteries NOT included)
