Tihebeyan LCD Display Digital Multimeter, 6-70V Multi-fuction Meter Battery Capacity Voltmeter Meter Monitor, Battery Indicator Monitor Module Electric Quantity Detector Reader for Vehicle Car

• [Multi-functional Tester] The Battery Capacity Voltage Meter can measure the battery voltage
• [functional Tester]The tester can also show you the capacity with percentage.

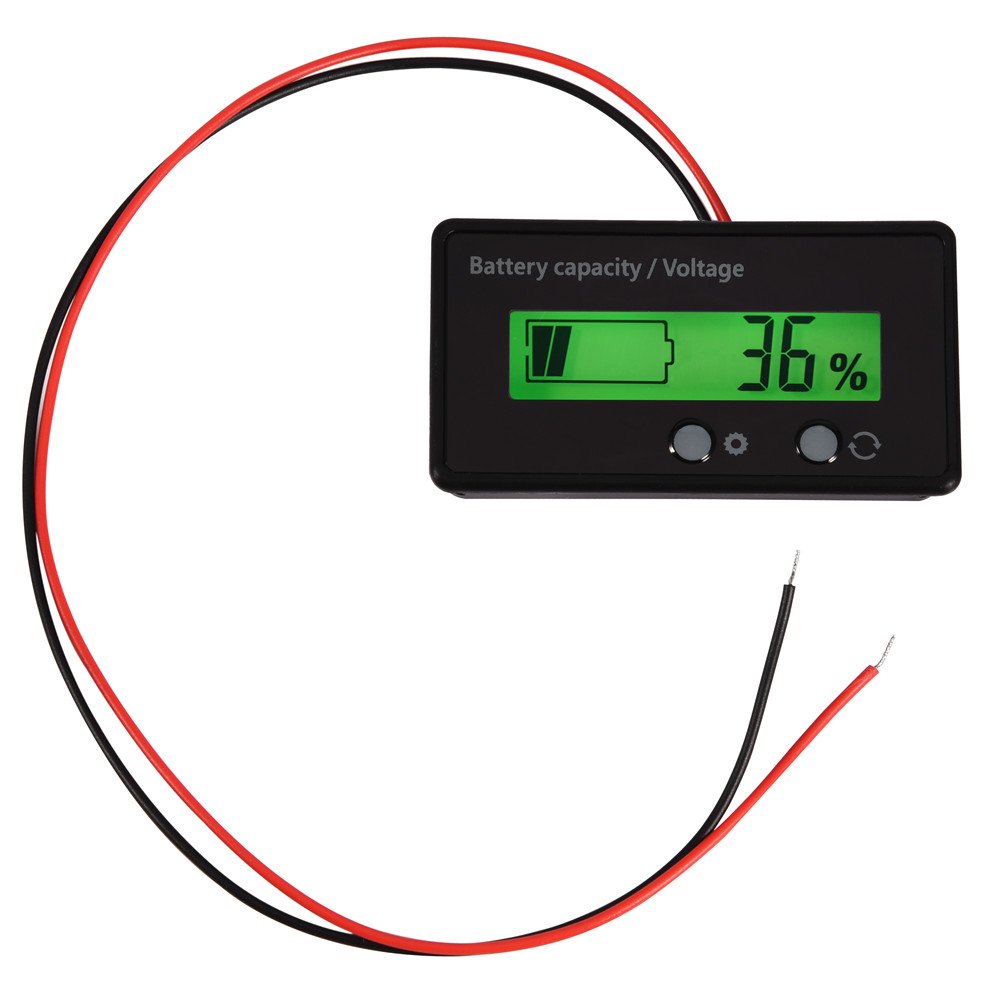

• [Bright LCD Display] The battery monitor is designed with high quality LCD screen with green back lit, offers clear and bright display from every angle and can be seen clearly in night.
• [High Quality] The equipped with a PVC film is waterproof. Long service life button with comfortable hand feeling. Built with buckle, free of screw installation.
• [Versatile Uses] Battery meter can be applied to portable mobile equipment, electron mobile, balance car, cleaning machine, measuring equipment etc.

Features: Battery capacity and voltage meter. LCD screen with green backlit.Long service life button with comfortable hand feeling. Equipped with a PVC film, the is waterproof. Built with buckle, free of screw installation. Universal battery capacity meter, need to set up by yourself. Functions: 1. Manually battery percentage / voltage / power off 2. Automatic recycling display battery capacity / voltage per 2 seconds (Settable) 3. 10s delay auto off (Settable) 4. Double discharge curve selection (Settable) Setting Instruction: 1. Long press the Set key, power supply to the product, enter the setup interface 2. Press the Set key to select the battery specification (Lead acid battery(P), Lithium battery (L), Fe battery(F)) 3. Short press the Function key to select the number of battery strings (increasing for set button, decreasing for function button) 4. Long press the Function key to set s mode. Specifications: Color: Black Material: HTN / PCB Weight: 18g Size: Approx. 61.3¡Á33.3¡Á13.5 / 2.4¡Á1.3¡Á0.5in Voltage: 6-70 (V) Applicable scope: Battery or battery equipment Storage temperature: -10 ~ 50¡æ Package Included: 1 ¡Á Battery Capacity Voltage Meter with Connecting Cable Note: 1. Please allow small errors in the dimensions due to accidental imprecise manual measurement. 2. For this electronic product, please care don't touch the water when you use it, or the circuit will be damaged and has a shorter service life.
