TIENFOKOTATA 4 Pairs 3-in-1 Passive Video Audio Power Balun,BNC to RJ45 Cat5e/Cat6 Transceiver,AHD/TVI/CVI/CVBS,1080P for HD Security Surveillance

• 3-in-1 Single-Cable Solution: The passive audio-video balancer (combining audio, video, and power) transmits video, audio, and power simultaneously over a single Cat5e/Cat6 cable, eliminating the need for multiple cables and reducing installation costs by up to 60%. Ideal for closed-circuit television (CCTV) surveillance systems.
• Wide Compatibility: The passive video balun supports all major HD formats, including AHD, TVI, CVI, CVBS, and 960H. It supports resolutions ranging from 720p to 8 megapixels and is compatible with mainstream DVR/NVR systems.

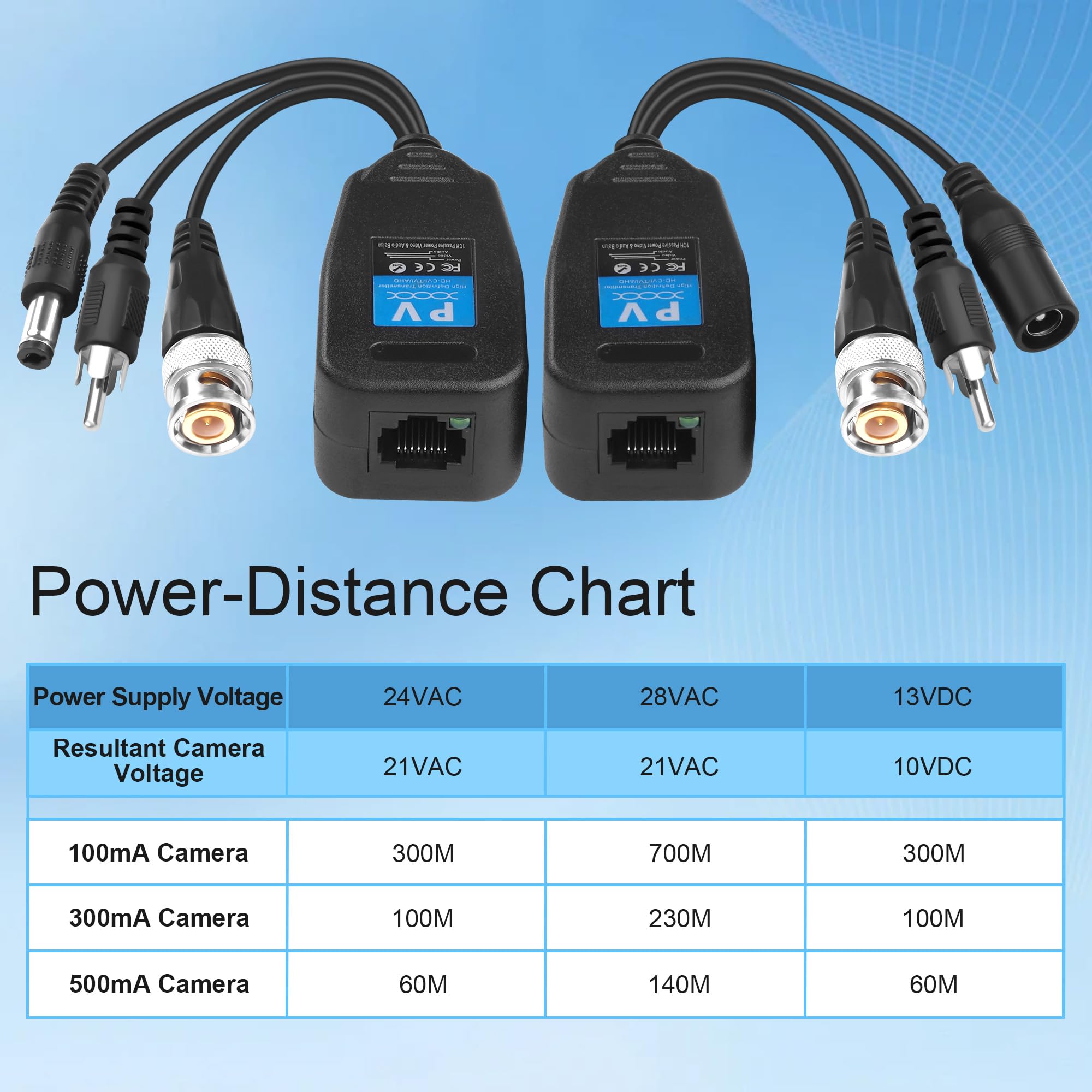

• Long-distance transmission: The video balun transmitter uses Cat5e/Cat6 Ethernet cables to deliver stable video, audio, and power transmission over distances of up to 300 meters. It is ideal for home and commercial security camera systems in properties, warehouses, parking lots, and commercial buildings.
• Plug-and-Play: The balanced transformer for CCTV video transmission over Cat5e/Cat6 features a passive design, simplifying wiring and reducing hassle. Simply connect the device to begin transmission. No complex configuration is required.
• Reliable and Durable: Video and Audio Balanced Power Transformer with BNC and RJ45 Connectors, featuring gold-plated BNC connectors with anti-oxidation properties to ensure stable signal quality.

Product Specifications: Product Name: Passive Audio/Video Balancer (3-in-1: Audio, Video, and Power) Transmission Distance: Video & Audio: 0–300 meters / Power: 0–150 meters Cable Type: UTP CAT5/5E/6 Connector Types: BNC, RJ45, RCA, DC 5.5×2.1 Video: Transmits BNC video signals via Cat5e/Cat6 network cables, replacing coaxial cables Audio: Synchronously transmits RCA audio signals; supports bidirectional audio Power: Simultaneously transmits DC power (typically 12V); a single network cable handles both power and signal transmission Compatible Formats: AHD/CVI/TVI Compatible Resolutions: 720P/960P/1080P Input Voltage: DC 12–36V (input and output voltages are the same) Dimensions: 6.5 × 3.2 × 2.5 cm (cable length: 12 cm) Housing Material: ABS Compatible Formats: AHD/CVI/TVI/CVBS Supported Resolutions: 720P/960P/1080P Operating Temperature: -10°C to 60°C Packaging Specifications: 4 pairs of passive audio-video balancers (3-in-1: audio, video, and power)
