THREEPHASE WATTMETER ENERGY METER RAIL MOUNT kW AC 220/230V POWER CURRENT ZS2il mount S0-Cut surface kWh ZS2

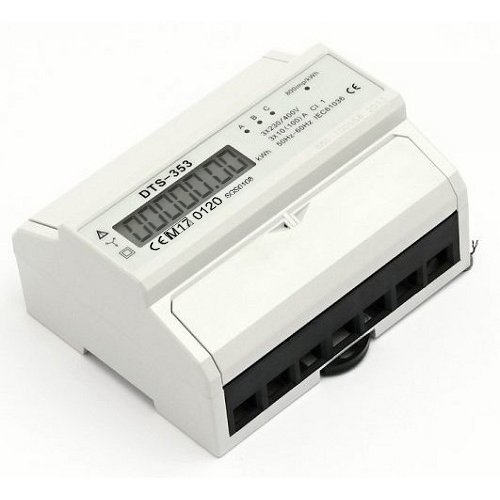

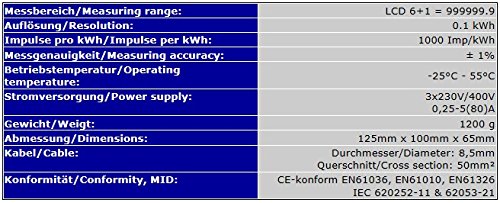

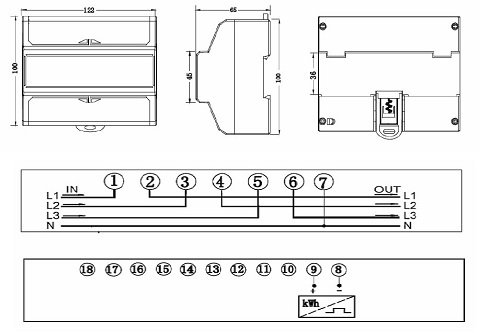

Product description Our DTS-353-MID is one of the few MID calibrated 400V Three-Phase Modular Watt-Hour Meter (10/100A) with digital display laid out for the fast installing on DIN rails and is therefore suitable for the installation in almost all fuse and distribution boxes. Ideally for the control of the used kWh houses, power sections or individual ranges. The kWh is conform to EN61036 and fulfills the CE requirements as well as EN61010 and EN61326. It belongs to the highest accuracy class 1. The total power consumption can be determined due to its 6+1 digit display on a single view. Technical specifications: Voltage operation range: 3x 230V/400V 10/63A, 50/60Hz, 3-Phase Accuracy class: 1 Installation:DIN rail (DIN EN50022) / 7TE: 125mm (DIN 43880) Impulse rate: 1000/kWh Impuls length: 90ms Display: 6 + 1= 999999.9 kWh Dimension: 125mm x 100mm x 65mm General data: Current consumption: <10VA, 2W Voltage operation range: 184-265 VAC; 0,1 ~ 63A Starting current Cos-Phi=1: 20mA Impulse contant: 1000imp/kWh Frequency range: 50Hz or 60Hz +- 10% Temperature range: -20°C to +55°C Relative air humidity: to 75% - at short time value 95% Optical coupler (SO DIN 43864) Manual: http://www.my-messgeraet.com/JOM/index.php/suche?searchword=ZS2&ordering=newest&searchphrase=all&limit=30 Legal Disclaimer The offered article is not a toy in the meaning of the toy guideline (2009/48/EG appendix I, 2C + D) and is exclusively intended for persons in the age of at least 14 years.
