Thomson Ph+N Ideal T2-40kA Modular Surge Arrester

• Surge protection phase + neutral, standard NF EN 61643-11
• Classic screw mounting
• Protection level: ? 1.2 kV
• Complies with NF EN 61643-11 standard

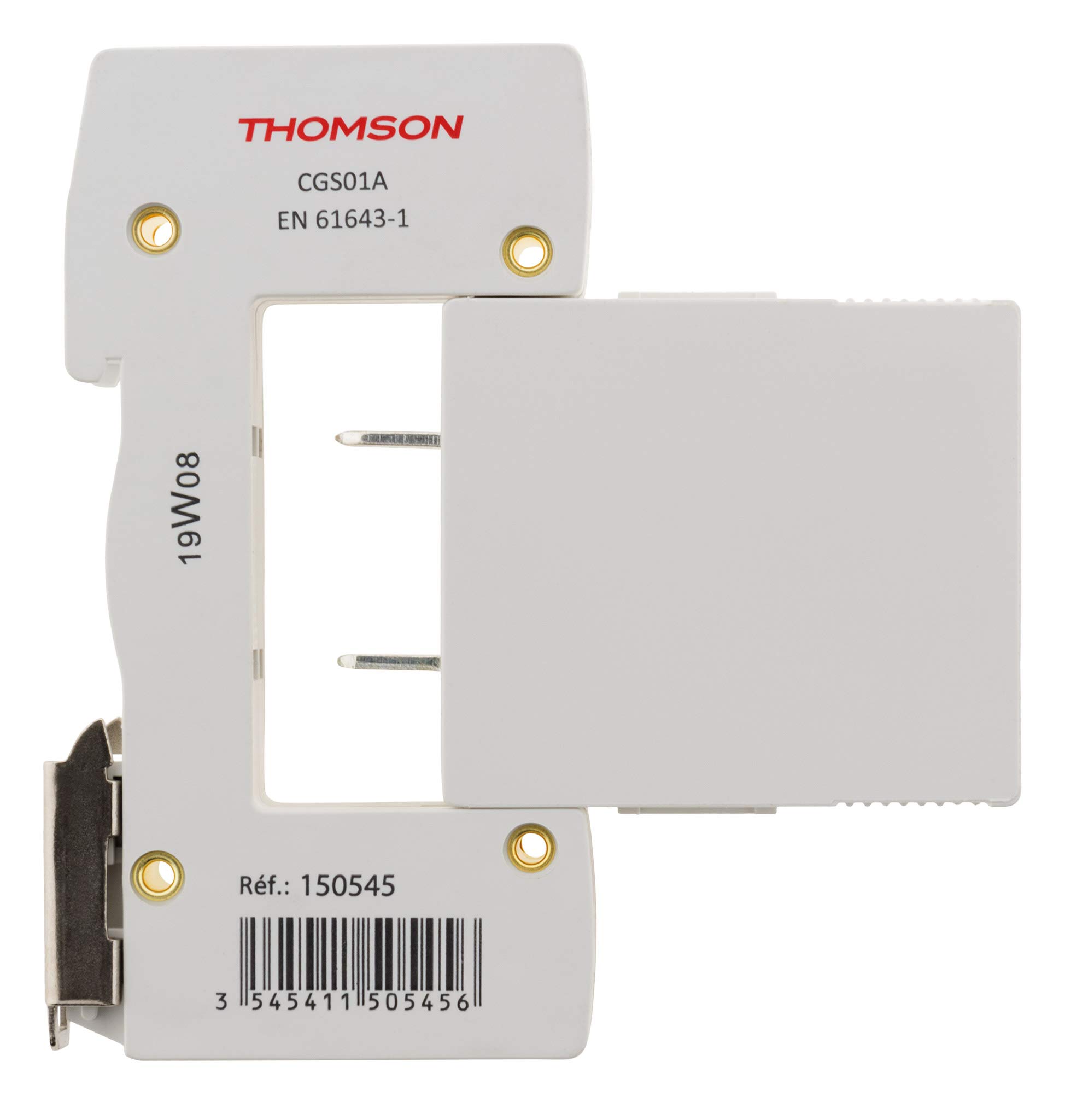

• Retractable cartridge with power indicator

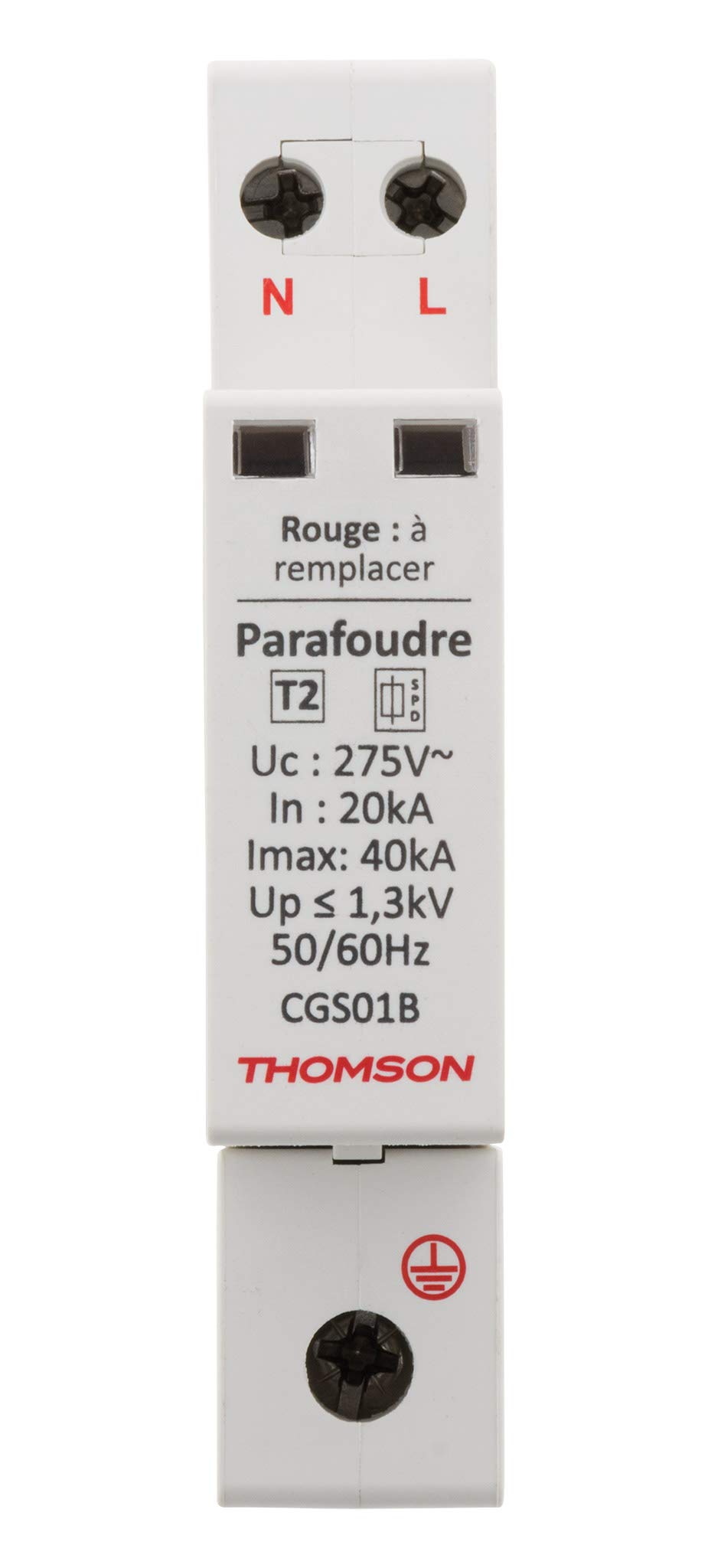

Modular surge arresters are mandatory according to NF-C15-100 in regions with high lightning density. The surge protector limits surges by dissipating energy to the earth. This modular surge arrester is ideal for T2 housings and features a retractable cartridge with power indicator. Protection to combine: circuit breaker 32 A. Technical data: max. 40 kA, in 20 kA, complies with EN 61643-1, rated voltage 275 V~/50 Hz, mains type 230 V~, neutral power: TT, TN, max. Continuous speed voltage. (Uc): 275 V ~, Rated discharge current (In): 20 kA, Maximum discharge current (Imax): 40 kA, Protection level (Up): 1.3 kV, Disconnect indicator: 2 mechanical indicators, Maximum short-circuit current (lcc, lsccr):10kA.
