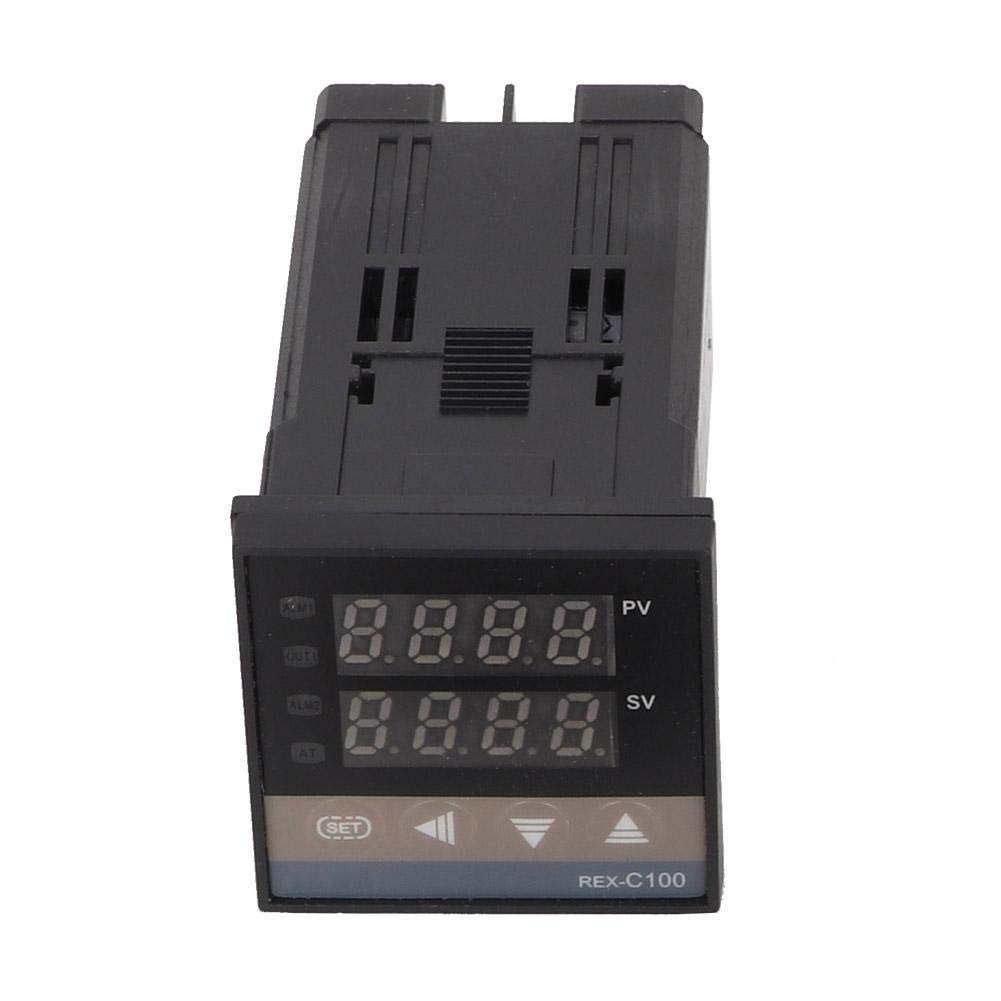

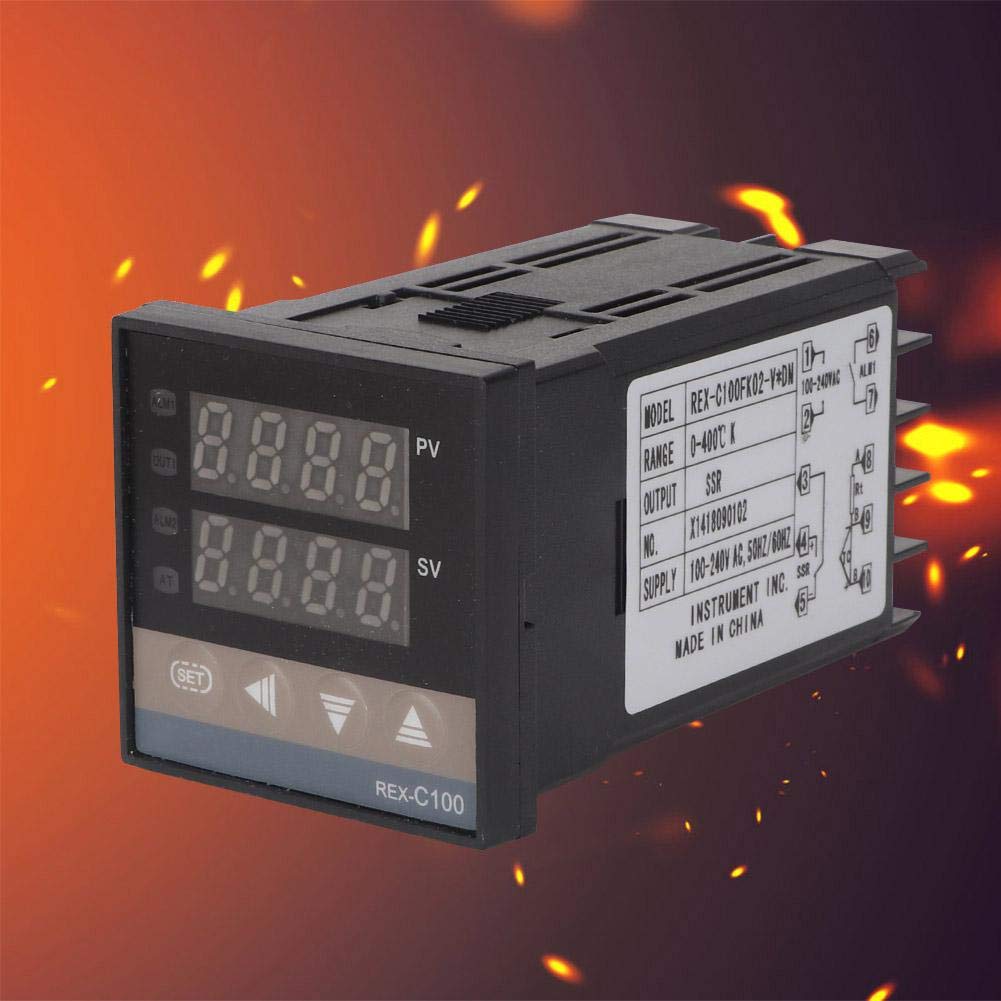

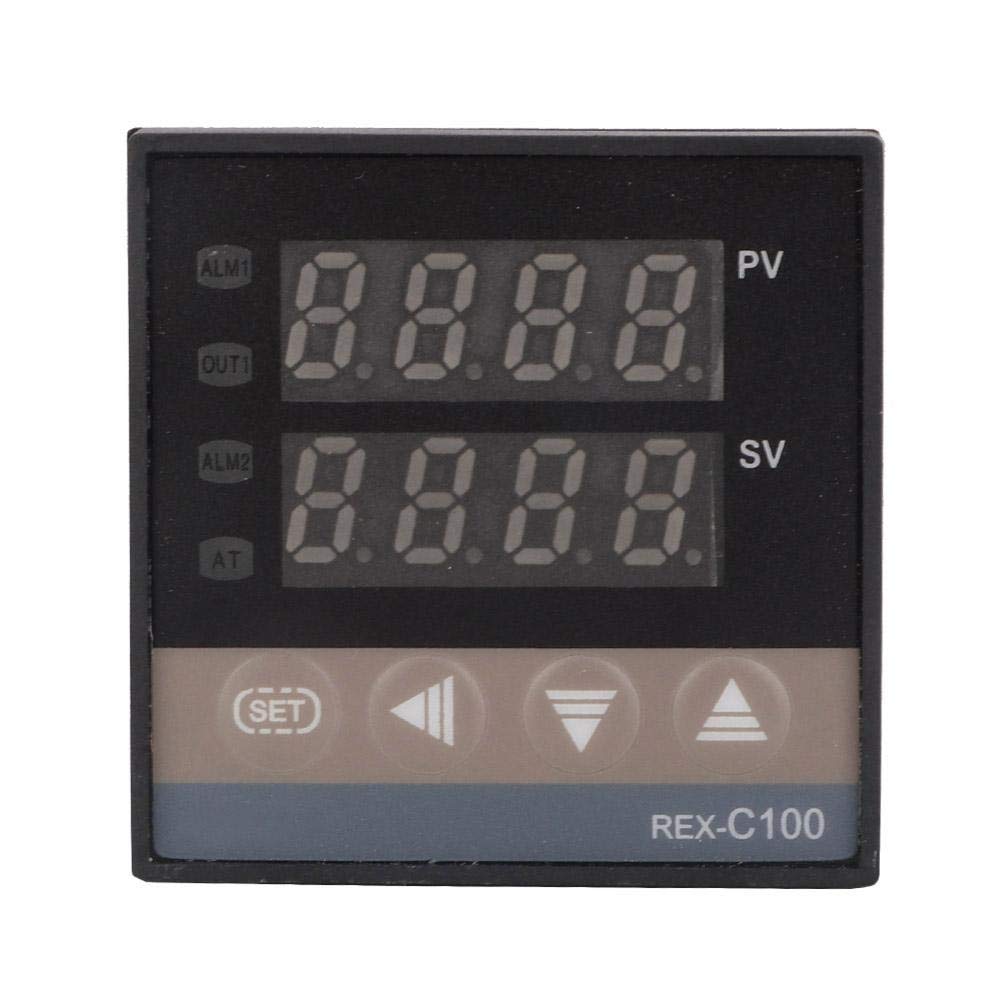

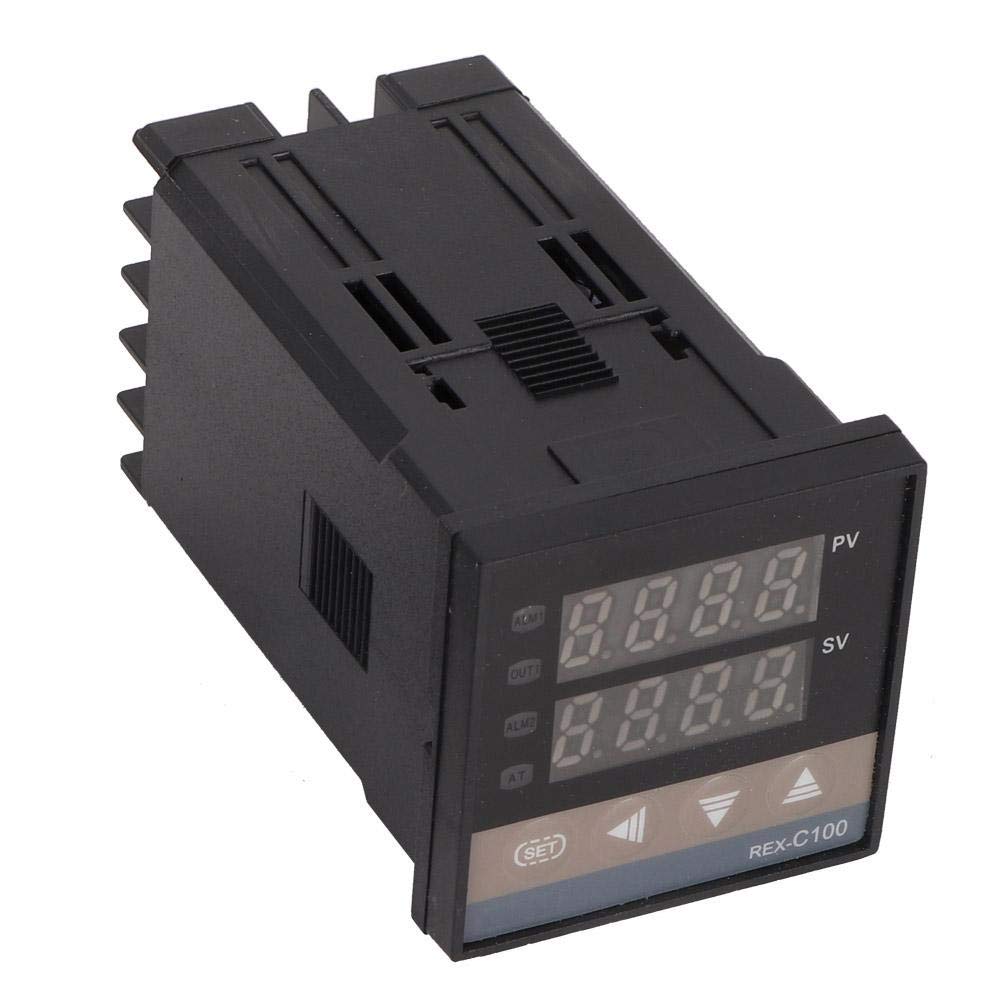

Thermostat, 0-400℃ LED PID AC110V-240V Temperature Controller Digital Thermostat Kit Used in Electric Power,Chemical Industry,Injection Molding,Food,Incubator

• ★ 【Professional Technology】: This temperature controller is adopted industrial-grade professional self-tuning PID technology, compared with the traditional PID control, it has a rapid temperature control, fast response, small overshoot and high precision.
• ★ 【Practicality】: It's a useful temperature controller for controlling temperature intelligently and it can help the operator get good effect by simple

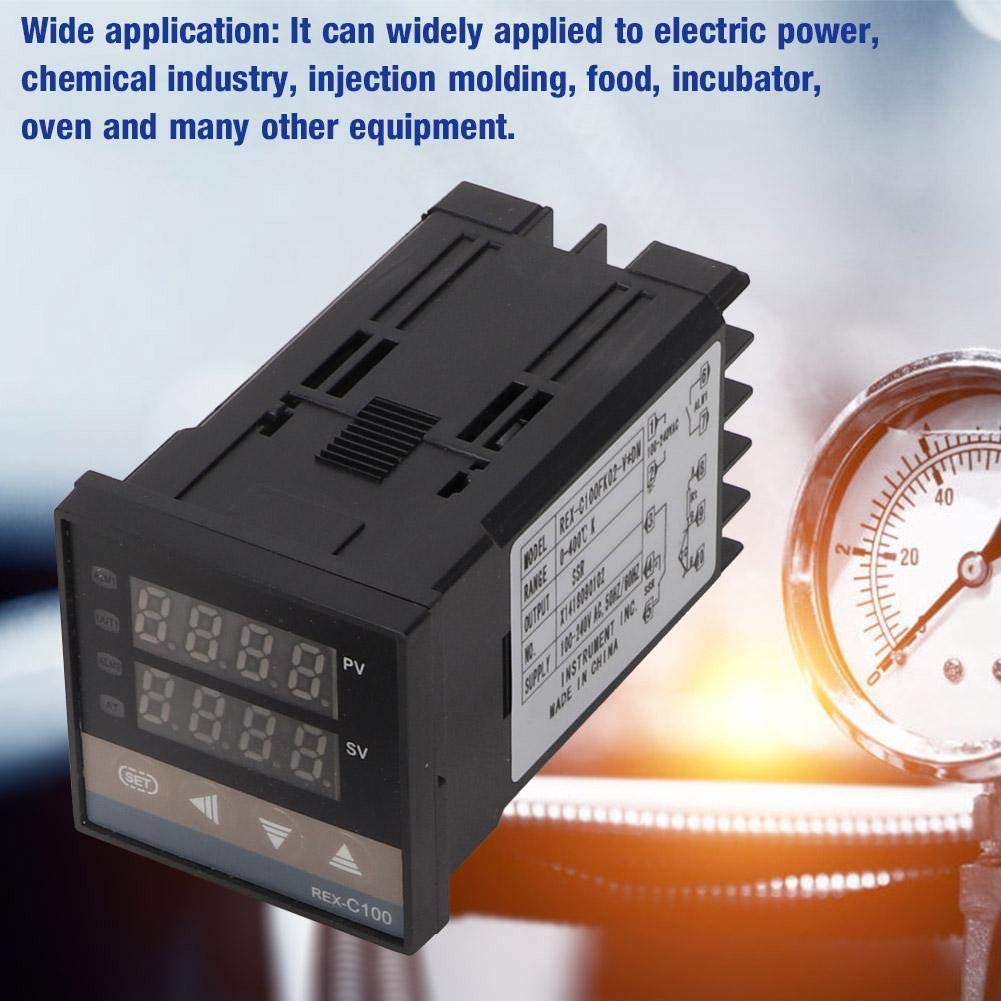

• ★ 【Wide application】: This temperature controller can widely applied to electric power, chemical industry, injection molding, food, incubator, oven and many other equipment.

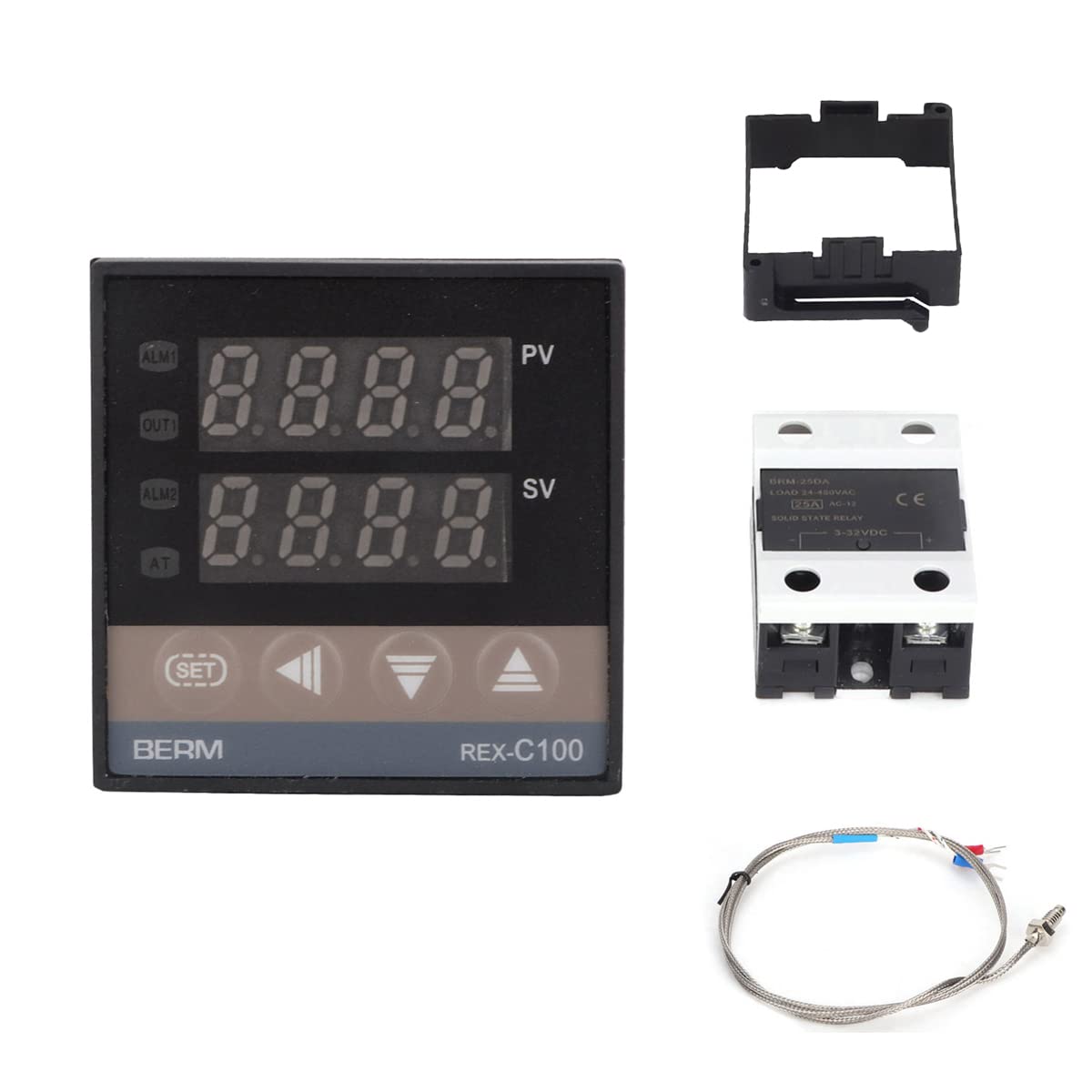

• ★ 【What You Get】: In this thermostat kit, it includes 1pcs REX-C100 PID temperature controller, 1pcs K thermocouple / temperature sensor and Max25A SSR.
• ★ 【Precision Measurement】: The probe has high sensitivity to ensure accurate measurement. This multi-functional controller has special microprocessor switching power supply and SMT.

Specification: EX - C100 thermostat Model :REX-C100FK02-V*AN DN Measurement accuracy:±0.5%FS End to end compensation tolerance: 0 ~ 50℃can be through the software to modify±2℃ Resolution: 14 bits Sampling cycle: 0.5 seconds Power supply: AC 110-240v 50/60hz Process value (PV), set value (SV) Output, alarm and self-setting can be indicated: by LED PIN control (including ON/OFF, stepper PID and continuous PID) Delayed output: contact capacity 250V AC 3A (resistance load) Alarm output: none Proportional band (P) : 0 ~ full range (ON/OFF control set to 0) Temperature measurement range: 0 ~ 400℃ Insulation resistance: > 50M ohm (500V DC) Insulation resistance: 1500V AC/min Insulation resistance: power consumption <10VA Environment Temperature : 0 ~ 50℃ Non-corrosive gas environment: 30 ~ 85% RH Temperature input type: k-type thermocouple Appearance size: 48 * 48 * 110mm / 1.9 * 1.9 * 4.3in K thermocouple probe cable Length: 1 m Diameter of sensor: 4.5mm Temperature range: 0 ~ 1300℃ Internal insulation: glass fiber External shielding: insulation shielding Maximum 25A SSR (solid state relay) Output voltage range: standard Output current: 25A Input voltage: DC 3-32v Output voltage: 24-380v AC Weight: 208 g / 7.3 oz(approx.) Package list: 1 x REX-C100 PID temperature controller 1 x K thermocouple/temperature sensor 1 x Max25A SSR
