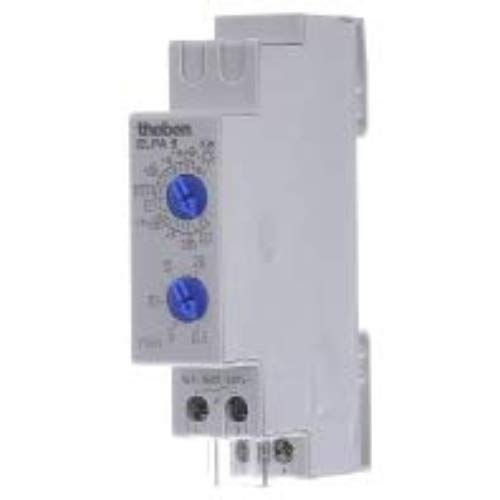

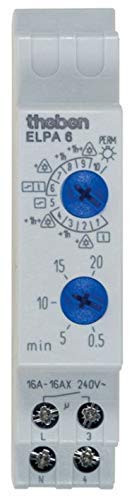

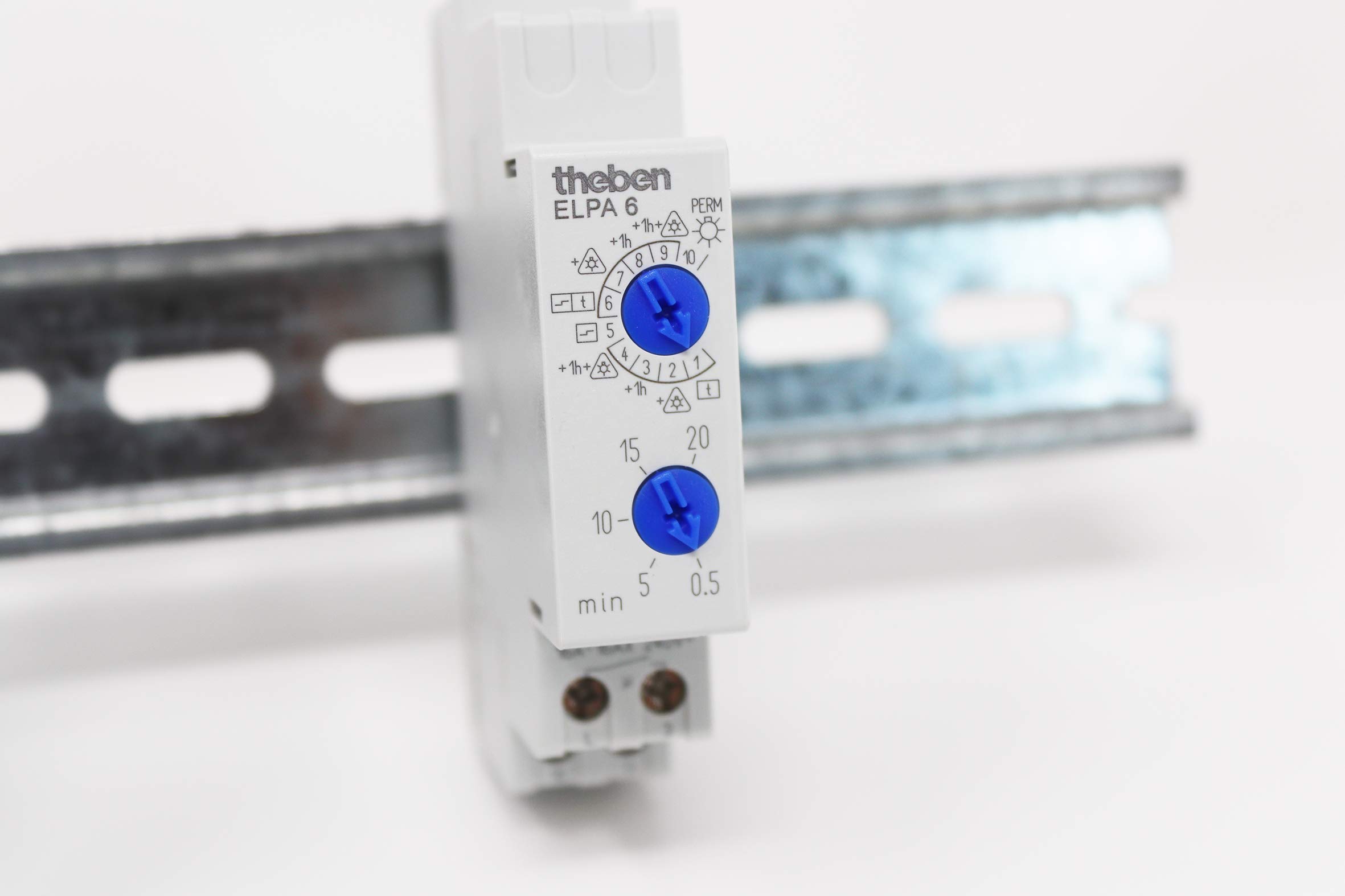

Theben Elpa 6 0060002 Electronic Stair Light Timer Switch with 10 Selectable Functions

• Theben Elpa 6 stair light timer switch
• Stair light timer switch
• Theben
• 0060002 ELPA 6

Box contents: 1 piece. With multi-function, zero-through circuit. Switching time continuously adjustable from 0.5 - 20 min, zero through circuit to protect the relay contact, the zero through circuit also protects the bulb, i.e. the life of the bulb is extended, multifunctional device with 10 selectable functions, adjustable on the front of the device: off. warning double flashing) according to DIN 18015-2 to avoid sudden darkness. The function can be switched on and off on the front of the device, 60 minutes long-term function can be activated via long button pressure, the function can be switched on and off on the front of the device, can be switched off immediately (stair light switch) or switched off prematurely (current shock switch, current shock switch with backfall delay), the function is on the device. Front selectable, continuous light; function: electronic; mounting type: DIN rail; width in division units: 1; installation depth: 60 mm; number of contacts: 1; number of openers: 0; number of changers: 0; control voltage 1: 220. 240 V240; Control voltage type 1: AC; Frequency of control voltage 1: 50..60 Hz; Rated switching current: 16 A; Return delay: 0.5..20 min; Button glow lamp current: 150 mA; Circuit type: 3 and 4 conductor circuit; off. Valalwarning: Flickering; post-switching: switchable + continuous light + time extension; supply voltage range: 220..240 V; voltage type of supply voltage: AC; max. Bulb load: 3600 W
