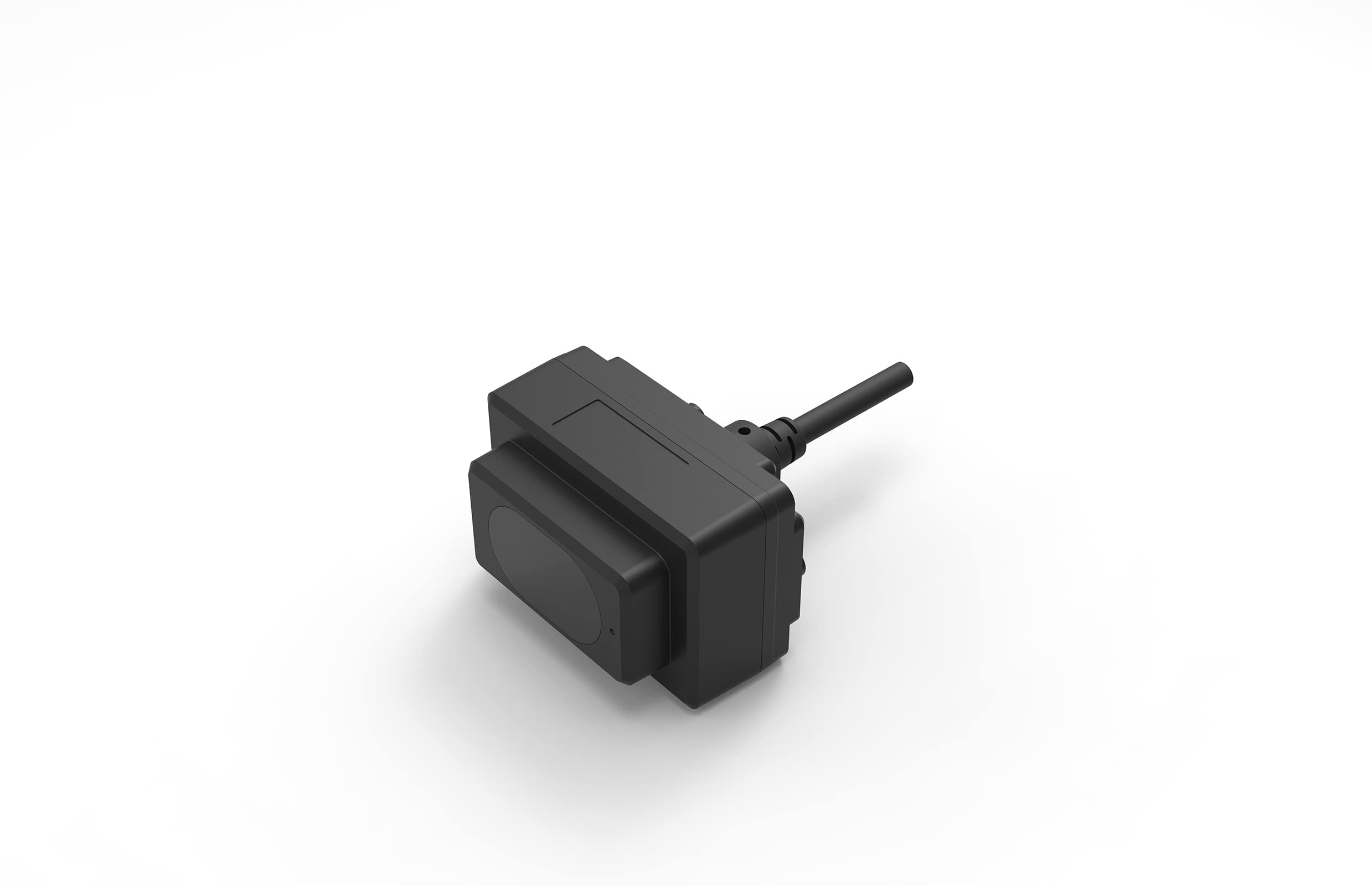

TFmini-s Lidar Sensor 0.1-12m Measurement Range Distance Single-Point Ranging Finder Module UART / I2C Compatible with Pixhawk,Arduino and Raspberry Pi for Drone/Robot Obstacle Avoidance

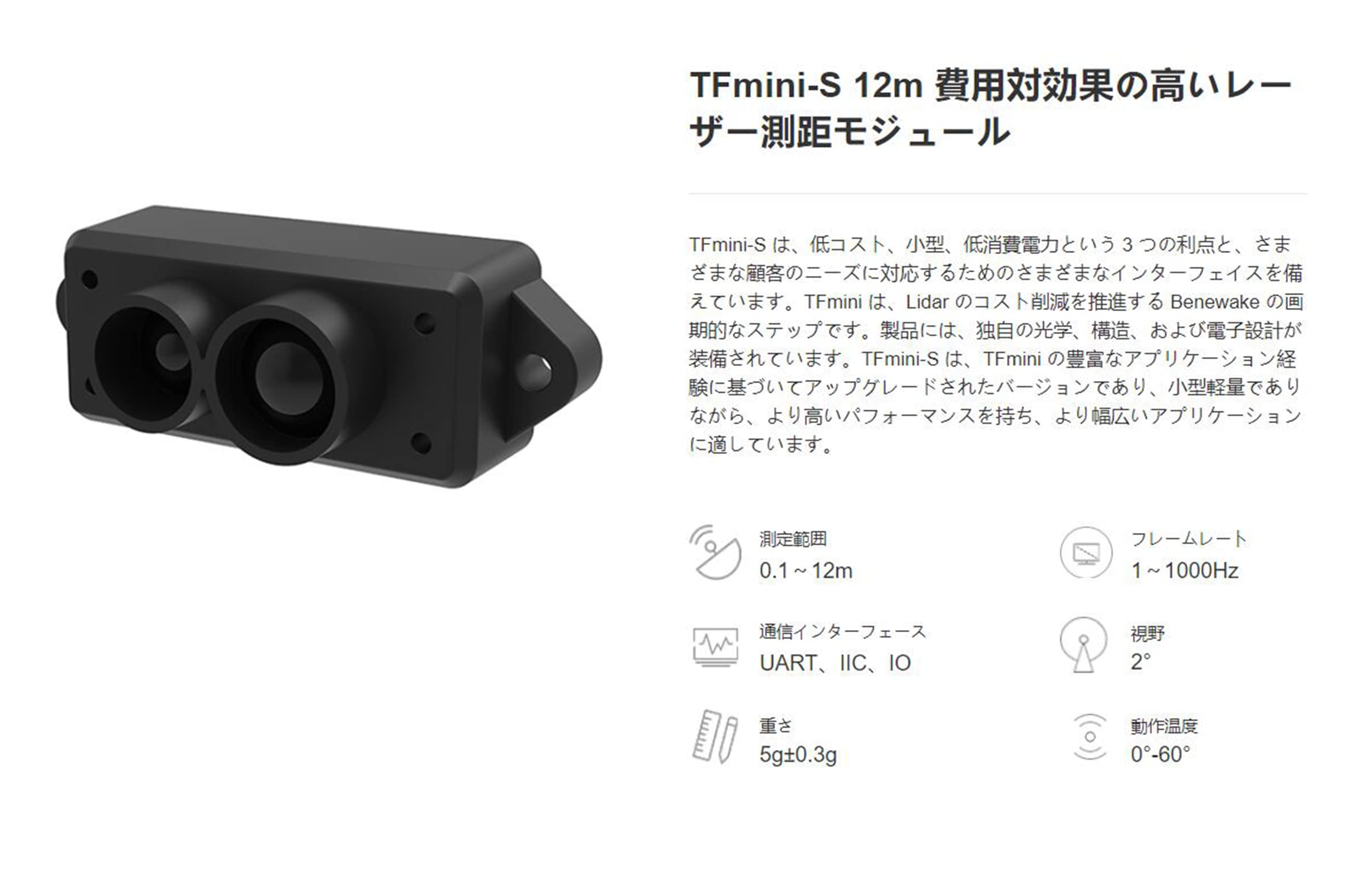

• [Upgraded TFmini Lidar Module] TFmini-s, based on TFmini, is a single-point short-range LiDAR sensor. Inherited characters of low cost, small size and low power consumption from TFmini,which greatly improved its performance
• [High Performance] TFmini-s accuracy can reach up to ±1% at full range distance of 12m,increasing the measurement frequency to 1000Hz. The dead zone is shortened to 10 cm improving accuracy and stability. Ambient light immunity is 70Klux and central wavelength is 850nm,but it only keep 5.3g at weight
• [Low Power Yet High Frame Rate] In low power consumption mode, the maximum power consumption can be lower than 100mW, reducing system power consumption and further prolonging LiDAR lifetime
• [Optional Commutication Interfaces] To improve applicability, TFmini-s supports common communication interfaces — UART, IIC and IO.TFmini-s version is UART by default. If you need IIC, please switch by yourself. It also compliant with CE,RoHs,and FCC certification
• Any technical issues after purchase please click on "WayPonDEV Tech" at the page and ask a question

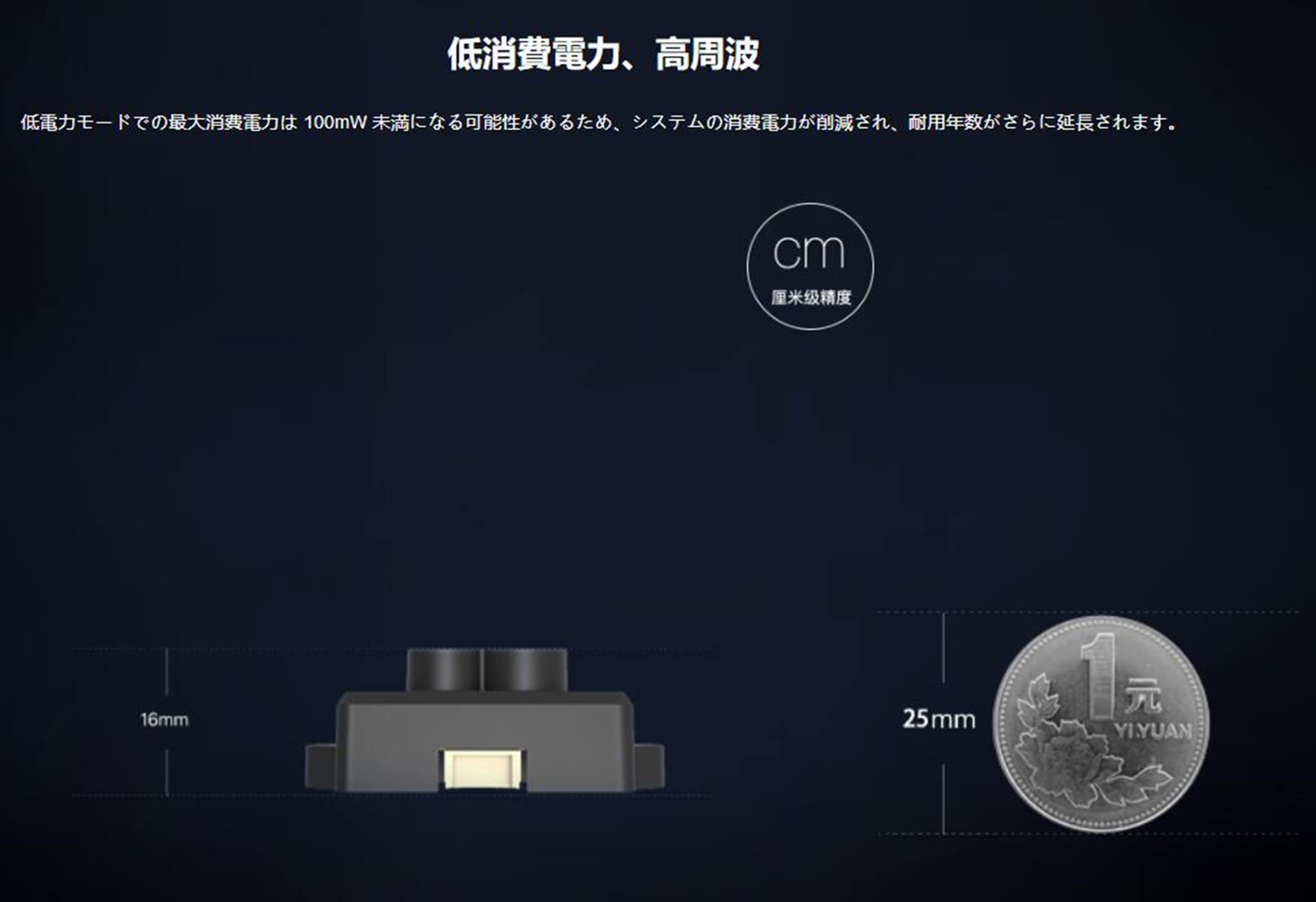

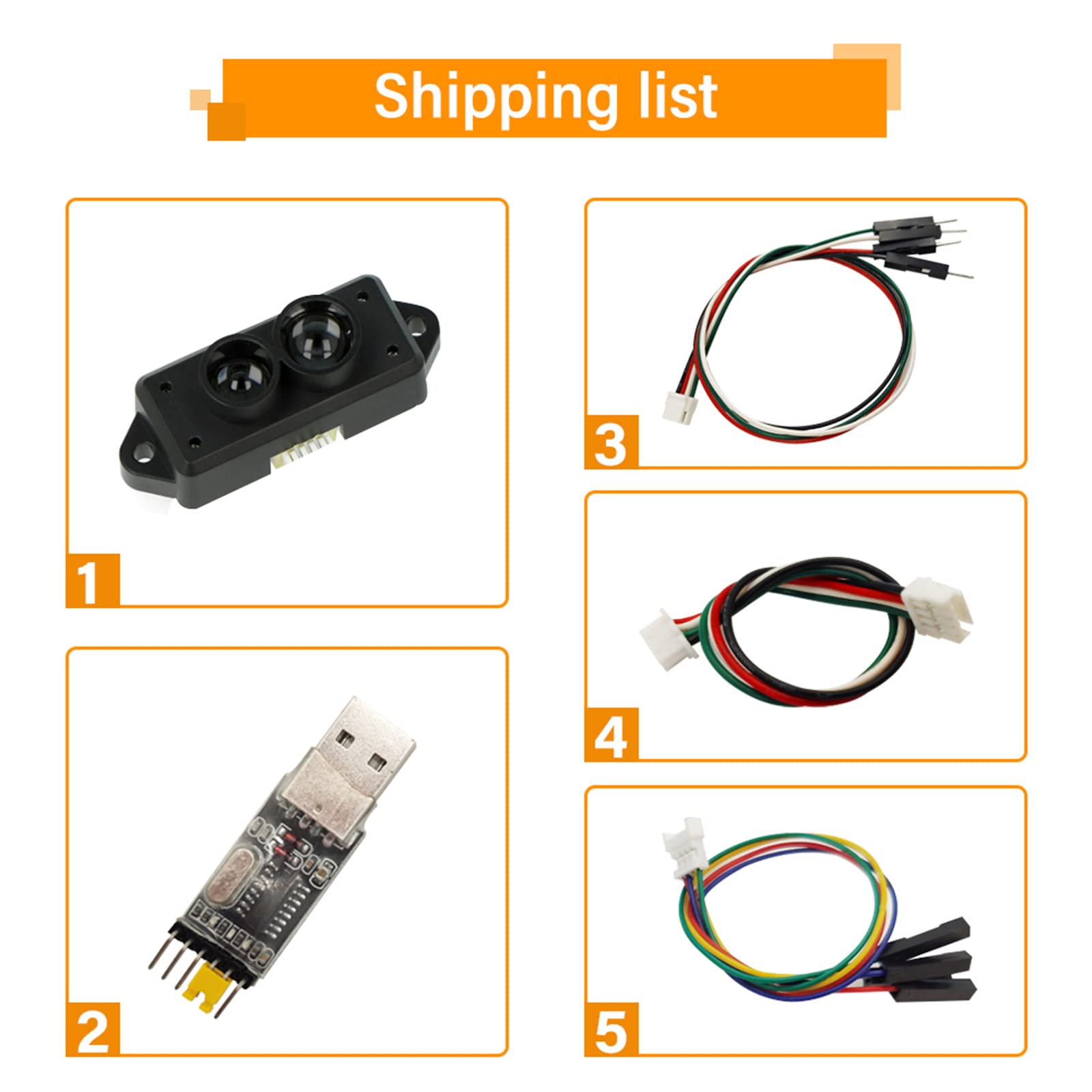

Performance: Operating Range : 0.1m~12m90%Reflectivity Accuracy: ±6cm@(0.1-6m), ±1% @ (6m-12m) Distance Resolution: 1cm Frame Rate: up to1000Hz(default:100Hz) Ambient Light Immunity: 70Klux Operating Temperature: 0℃~60℃ FOV: 2° Optical Parameters: Light Source: VCSEL Central Wavelength: 850nm Photobiological Safety: Class1 (EN60825) Electrical Parameters: Supply Voltage: 5V±0.1V Average Current: ≤140mA Power Consumption: ≤0.7W Peak Current: 200mA Communication Level: LVTTL(3.3V) Communication Interface: UART / IIC Hardware Spec: Size: 42mm*15mm*16mm(L*W*H) Housing material: ABS+PC Storage temperature: -20C~75C Weight: 5g±0.3g Cable length: 10cm Main application scenario: Pedestrian detection Vehicle detection Intelligent barrier gate and altimeter Package Including: 1 * TFmini-s UART / I2C Laser Range Finder Module 2 * Cable FQA Q:How to know whether a Lidar can be used under sunlight or not? A：With Ambient Light Immunity≤70Klux, lidar can only be used indoor and outdoor without sunlight like these short-range lidars TF-Luna, TFmini-s and TFmini Plus With Ambient Light Immunity＞70Klux,lidar can work normally under strong light environment like medium-range lidar TF02-Pro and long-range lidar TF03-100.
