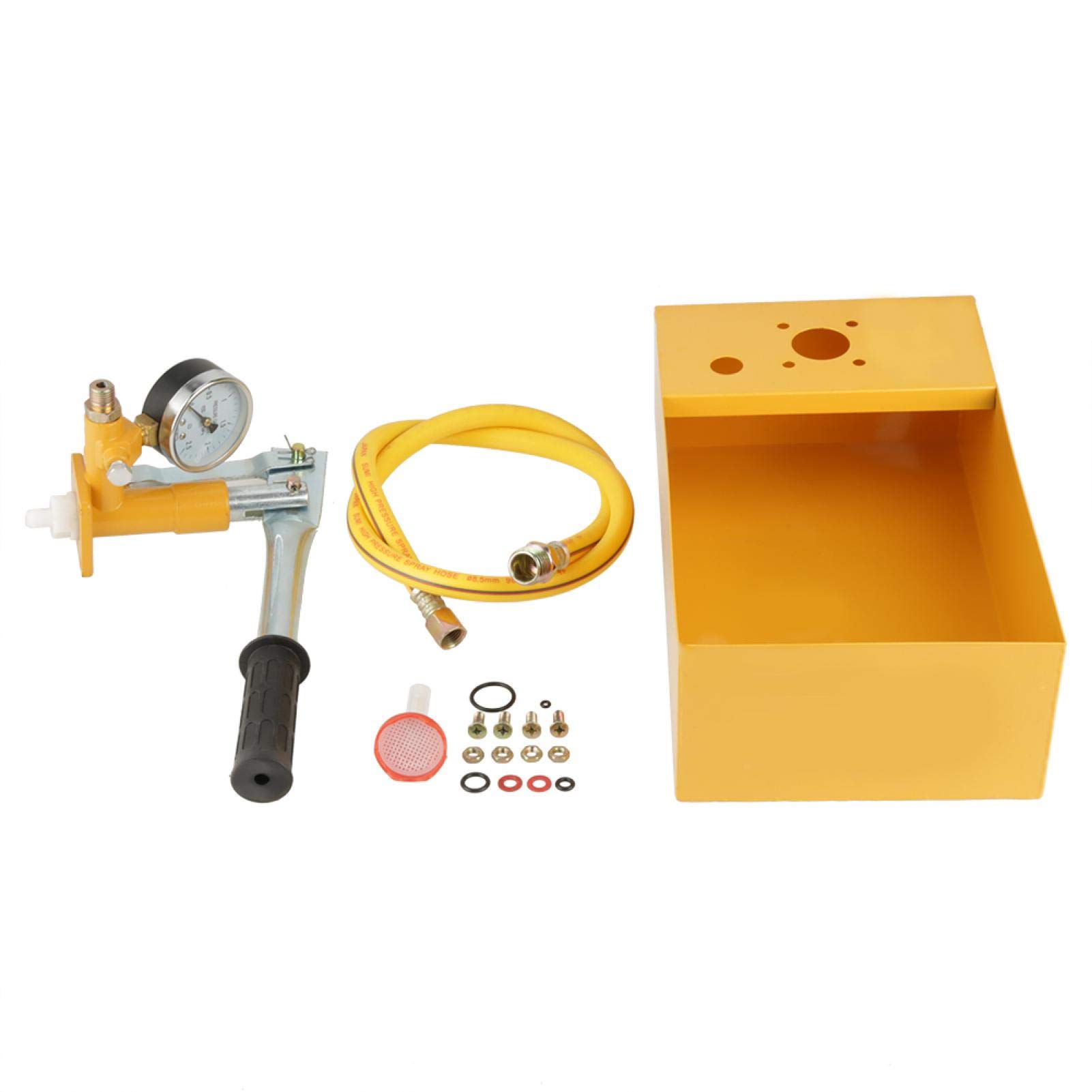

Focket Yellow Aluminum 2.5MPa Manual Hydraulic Pressure Test Pump for Pipeline, Vessels, Valves etc.

• 【HIGH QUALITY】This outer box of the water pressure test pump is made of high-quality aluminum material, which is more The pump is equipped with a large dial, which can read the value clearly. Thicker hydraulic hose feels better and Provide long term service.
• 【PRESSURE】The rate of the test pump is 13ml/time, the outer diameter of the pressure column is 2.8 cm/1.10 inches. Normal tap water pressure is 0.3MPa, the high-rise residential building is 0.4MPa, and water pipe pressure is generally pressurized to 0.8MPa-1.0MPa. (Tap water 0.1MPa 1KG pressure).
• 【WIDE APPLICATION】The manual pressure test pump is suitable for pressure testing of various pressure vessels, pipes, valves, etc. with water or hydraulic oil as the medium. Designed to pressure testing for leaks, including heating, refrigeration, oil, sprinkler and small bore pipeline systems.
• 【NOTE】In the test pressure to check the joints one by one, the inner wire joints, plugs can not have water seepage, plug the water directly affect the test pressure pump needle. Each plug and faucet and other interfaces can not have water leakage phenomenon.
• 【AFTER-SALES SERVICE】➢ Customer satisfaction is our top priority. If you have any questions about our test pump, please feel to contact us. We will reply you as soon as possible within 24 hours and provide you with a satisfactory solution 100%.

Specifications: Material: aluminum Pressure column outer diameter: 2.8cm / 1.10in Pressure: 2.5MPa 13ml / time Color: Yellow Weight: 2090g How to use? (Instructions) 1. Connect the water hose to the water pipe 2. Close the switch when the pipe is filled with water and the air is discharged 3. Fill the tank with water, and then tilt the plate up and down, began to test pressure 4. When the pressure gauge readings rise to the need for pressure, you can stop the pressure; 5. After stopping the pressure, if the pressure gauge does not drop on the pressure gauge, it can prove that the pipe pressure performance is good, on the contrary, it proves that the measured pipe sealing performance is not good, The specific steps of the test pressure are as follows: 1. The hot and cold water pipes connected together with the hot and cold water to form a circle, into a tube, and test the pump connected to any one outlet can be the pressure pointer is 0 pressure. When all the water pipes are fully welded before they can test pressure, in the pressure before the closure of all the plug, close the water inlet valve. 2. When measuring pressure, shake the jack until the pressure gauge pointer to 0.9-1.0 or so, that is the current pressure is 3 times the normal water pressure 3. Keep this pressure for a certain amount of time. Different water pressure measurement time is not the same, PPR, aluminum plastic PPR, steel PPR and other welded pipe is 30 minutes Package included: 1 x Test pump 1 set x Accessories
