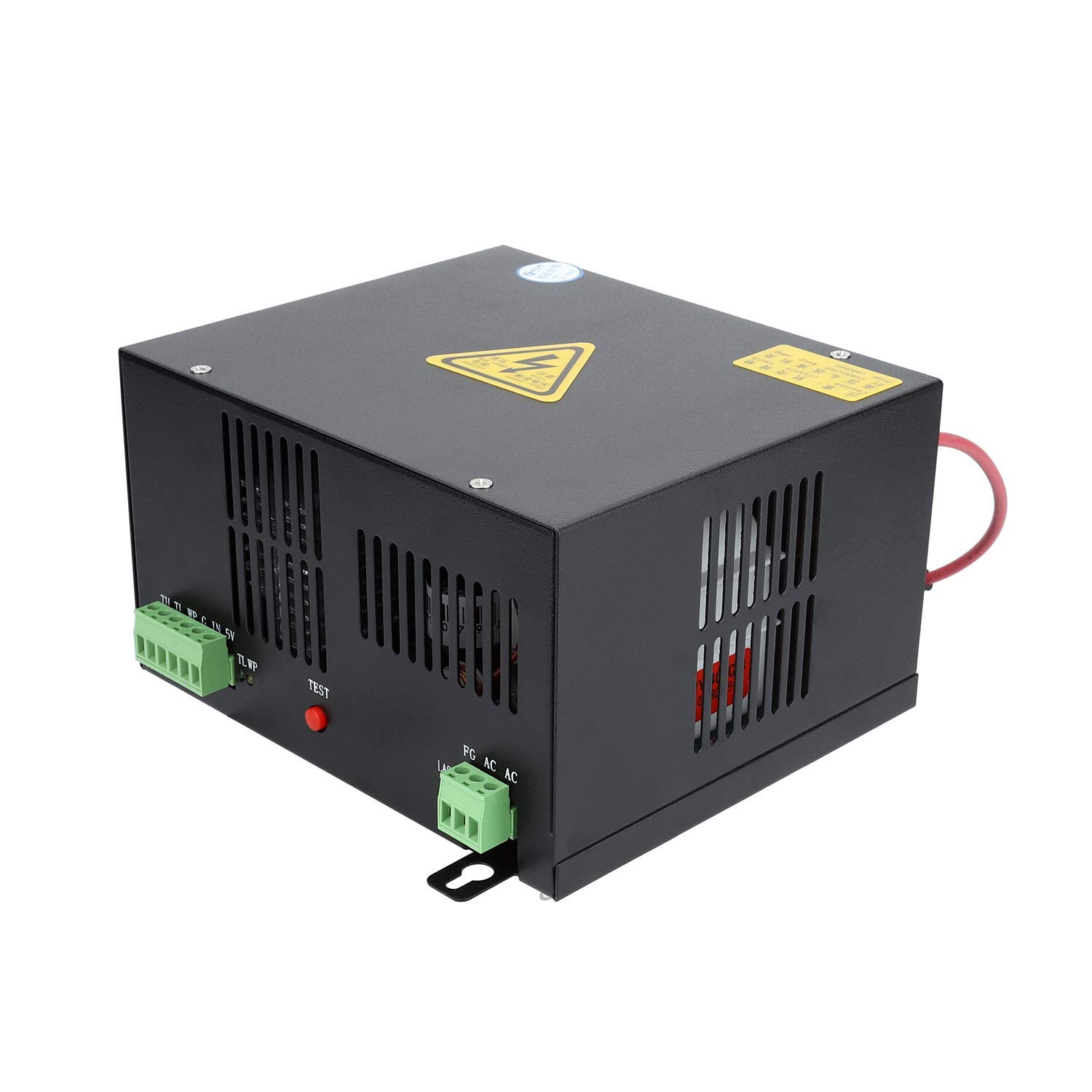

TEN-HIGH 40W Laser Power Supply for CO2 Laser Engraver Cutter

• 【GOOD COMPATIBILITY】: It can be applicable to 40W laser tube manufactured by various factories
• 【OPEN CIRCUIT PROTECTION FUNCTION】: Avoid the damge to lasr power supply due to laser tube burst
• 【LONGER SERVICE LIFE】: Has a cooling fan for longevity,make sure the power supply does not over heat
• 【QUICK RESPONSE】:Quick response speed(≤1ms) and effect,high performance,large cutting power,it also can prolong laser tube service life.

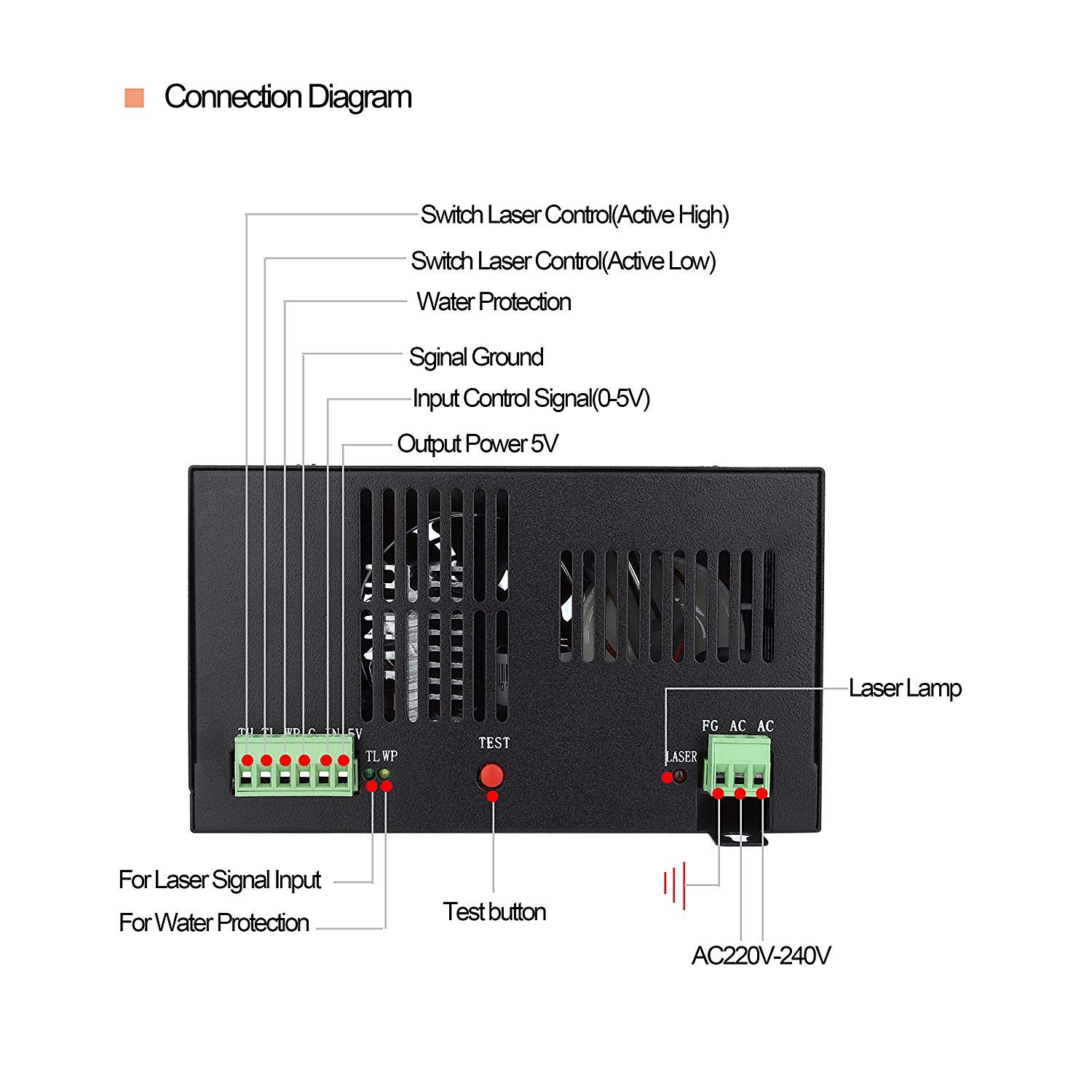

• 【EASY CONTROL】: The start and stop of laser can be easily controlled by TTL level.Works out of the box as expected for your laser engraver or laser cutter

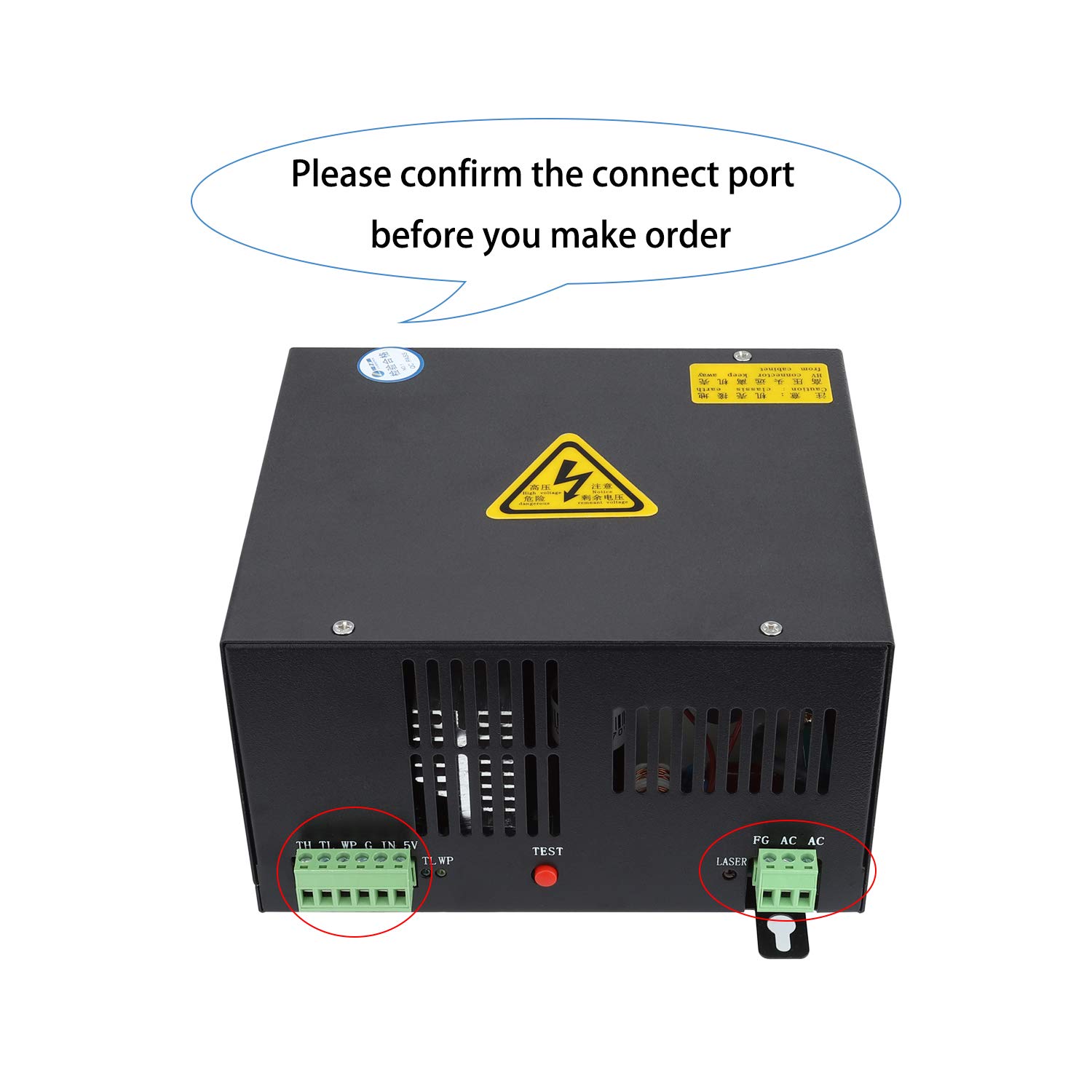

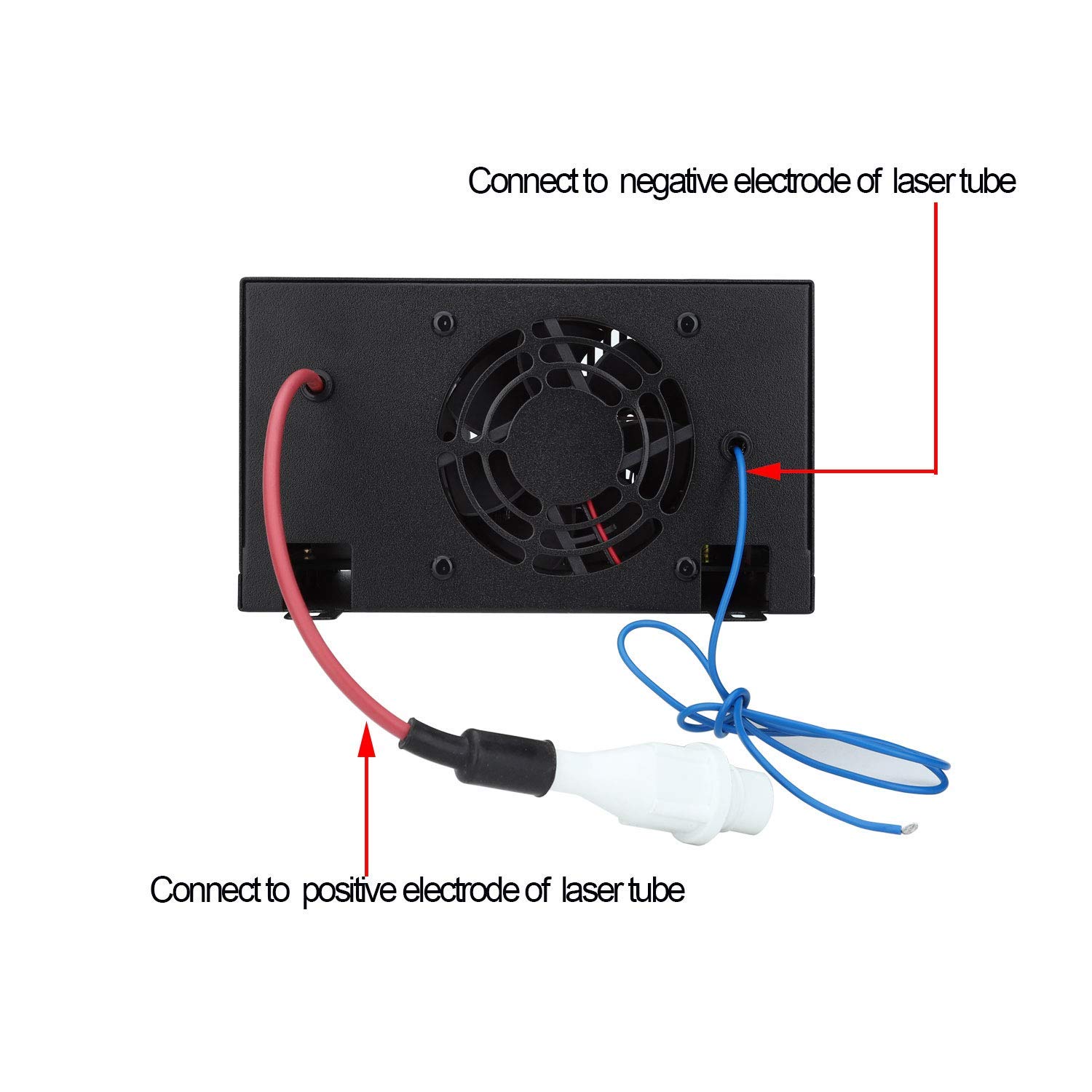

Feature: 1.The power supply has TTL signal indication, water through signal indication and laser output indication. 2.This power supply has the button to test output laser manually. 3.Application: Engrave and cut acrylic, fabric, double color sheet and rubber, etc. How to conne connect the laser power with co2 laser tube: 1.The high voltage (HV+) of the power supply must be connected to the anode (total reflection end) of the CO2 laser tube; 2.The negative of the power supply is connected to the cathode (laser output) of the CO2 laser tube via an ammeter (or directly). How to check whether the power supply is normal: When the power supply and the laser tube are connected correctly, the control line is removed. Press the 'TEST' test button. If the LASER lamp is on, the laser tube does not emit laser light, then the laser tube is broken; if the laser tube outputs laser, the laser power supply is normal; if the LASER lamp is not lit, the laser power supply is broken.
