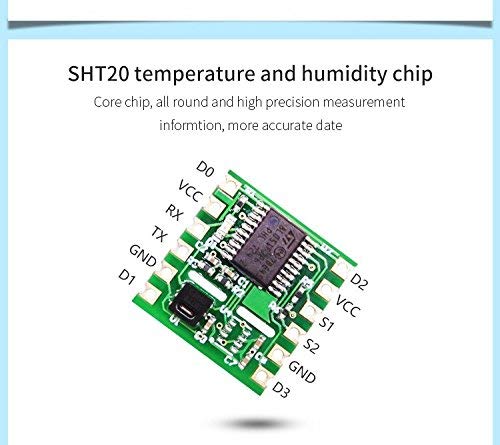

Temperature Module And Humidity Module Sensor WT-SHT20

• 1. High reliability and excellent long-term stability.

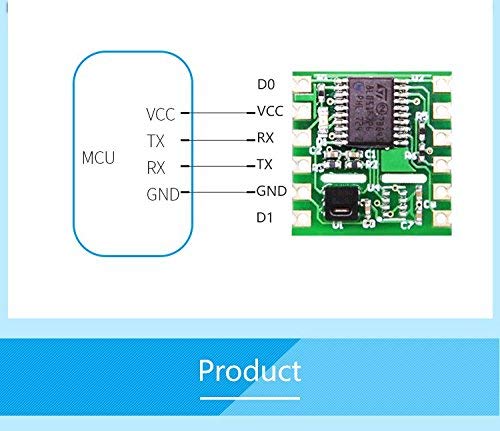

• 2. Full-scale calibration, two-wire digital interface, can be directly connected to the microcontroller, greatly reducing development time, simplifying peripheral circuits and reducing costs

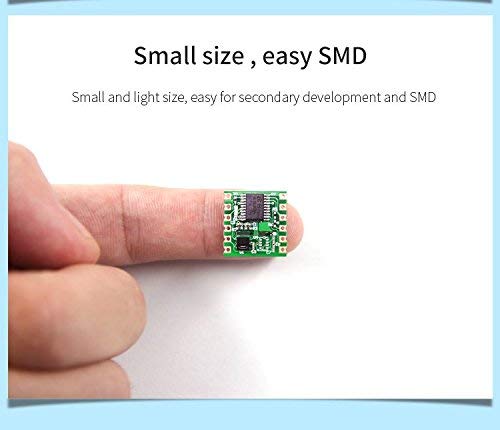

• 3. Small in size, fast in response, low in energy consumption, immersible, strong in anti-interference ability
• 4. Documents: Datasheet & Drive & Serial Port Tool offered freely
• 5.Help :Email : Javin@wit-motion.com Skype & Whatsapp & Wechat: (+86) 13005457470

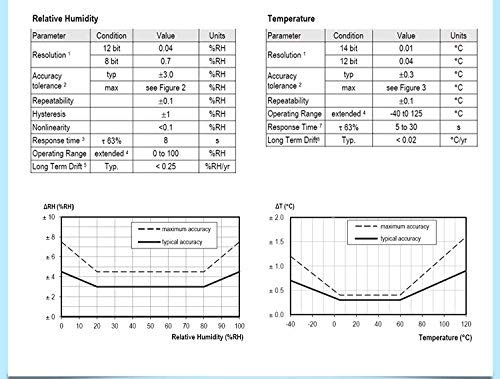

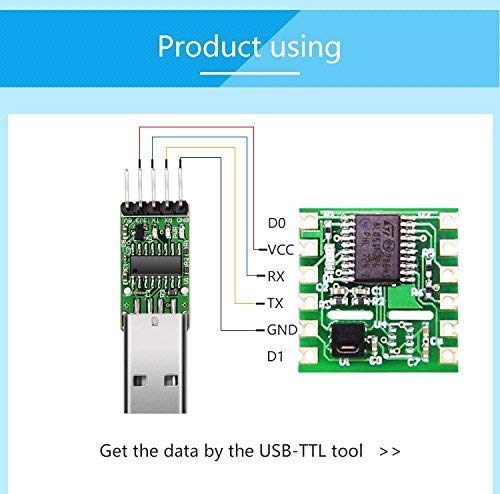

The link of Product Document is shown as below: http://wiki.wit-motion.com/english/doku.php?id=module Main Features: 1) Voltage: 2.1~3.3V 2) Current: 0.21mA（10Hz 3.3v） 0.08mA（0.1Hz 3.3v） 3) Size : 15.24mmx 15.24mm X 2mm 4) Pad pitch: up and down100mil (2.54mm), left and right 600mil(15.24mm). 5) Output content: temperature, humidity 6) Baud rate： 115200kps 7) Range: Temperature -40 ~ 125 ° C Humidity: 0 ~ 100 % RH 8) Measurement accuracy: Temperature ± 0.3 ° C Humidity: ± 3% RH 9) Data interface: serial port (UART/TTL) 10) Data format: digital output (ASCII code) 11) Return rate: 10 5 2 1 0.5 0.2 0.1HZ Optional Package: 1*WT-SHT20 sensor,
