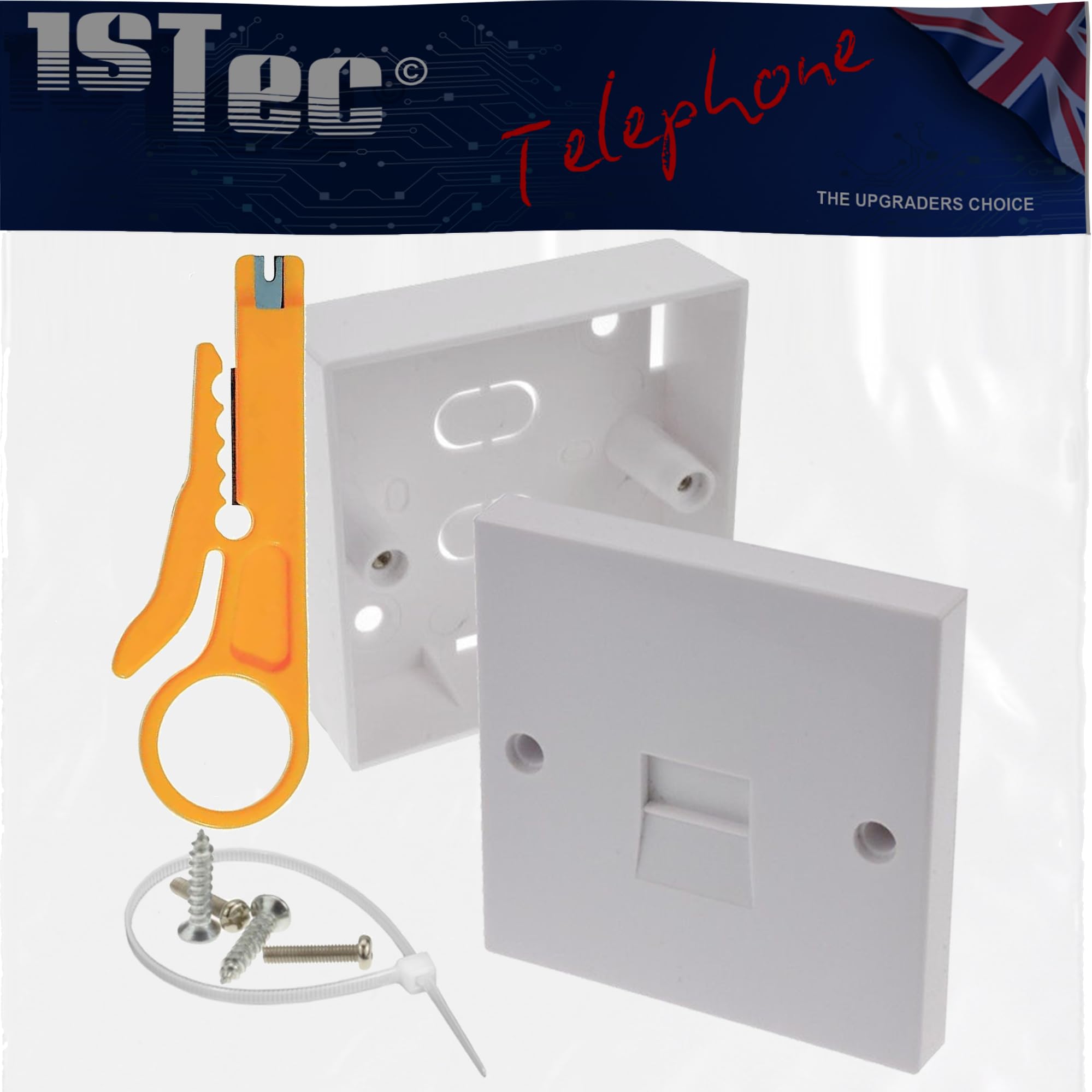

1STec 2/3a Surface Mount Telephone Extension Socket + Backbox + IDC Tool Line Jack for Creating Extra Phone Point Connections (2/3a + Back Box)

• STANDARD SURFACE MOUNT 2/3A - These are the smaller type Telephone Sockets that are used to install additional outlets on an existing system with a pre-installed Master socket

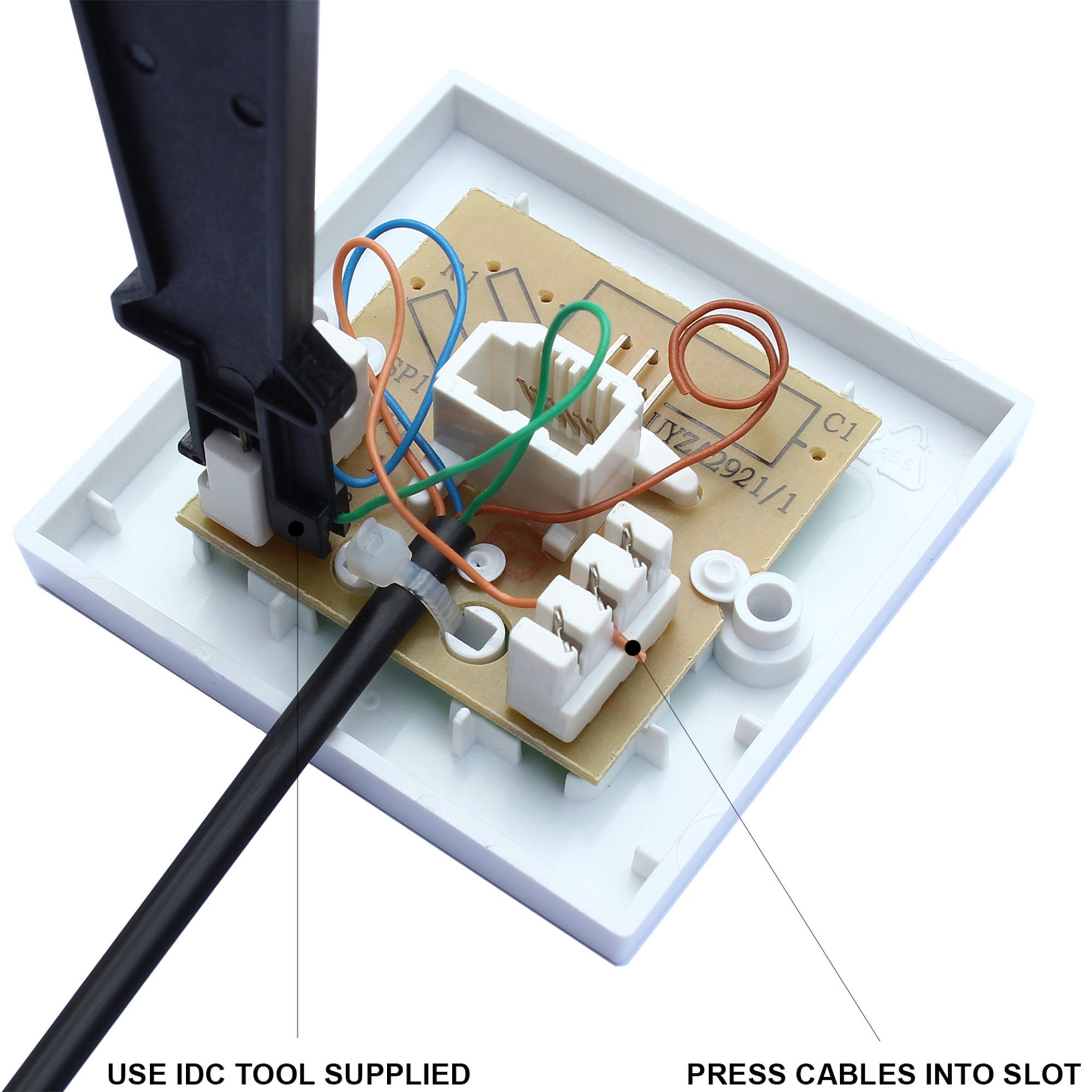

• PROFESSIONAL IDC CONNECTORS - Connect like the professionals by simply pressing the coloured conductors into position by simply pressing them down with the IDC tool included
• EASY STANDARD CONNECTIONS - Extensions are fed from connectors 2, 3 & 5 in a Master socket to numbers 2, 3 & 5 in the new Extension. You will not need connector 3 for Broadband
• USE SOLID CORE CW1308 CABLE - Insulation Displacement Connectors (IDC) are intended to accept solid core copper cable. There is no need to strip the conductors before insertion
• COMPACT TELEPHONE SOCKET - Measurements are approximately 68mm x 68mm x 29mm including the Back Box. These Plain Line Jacks are manufactured by Austin Taylor

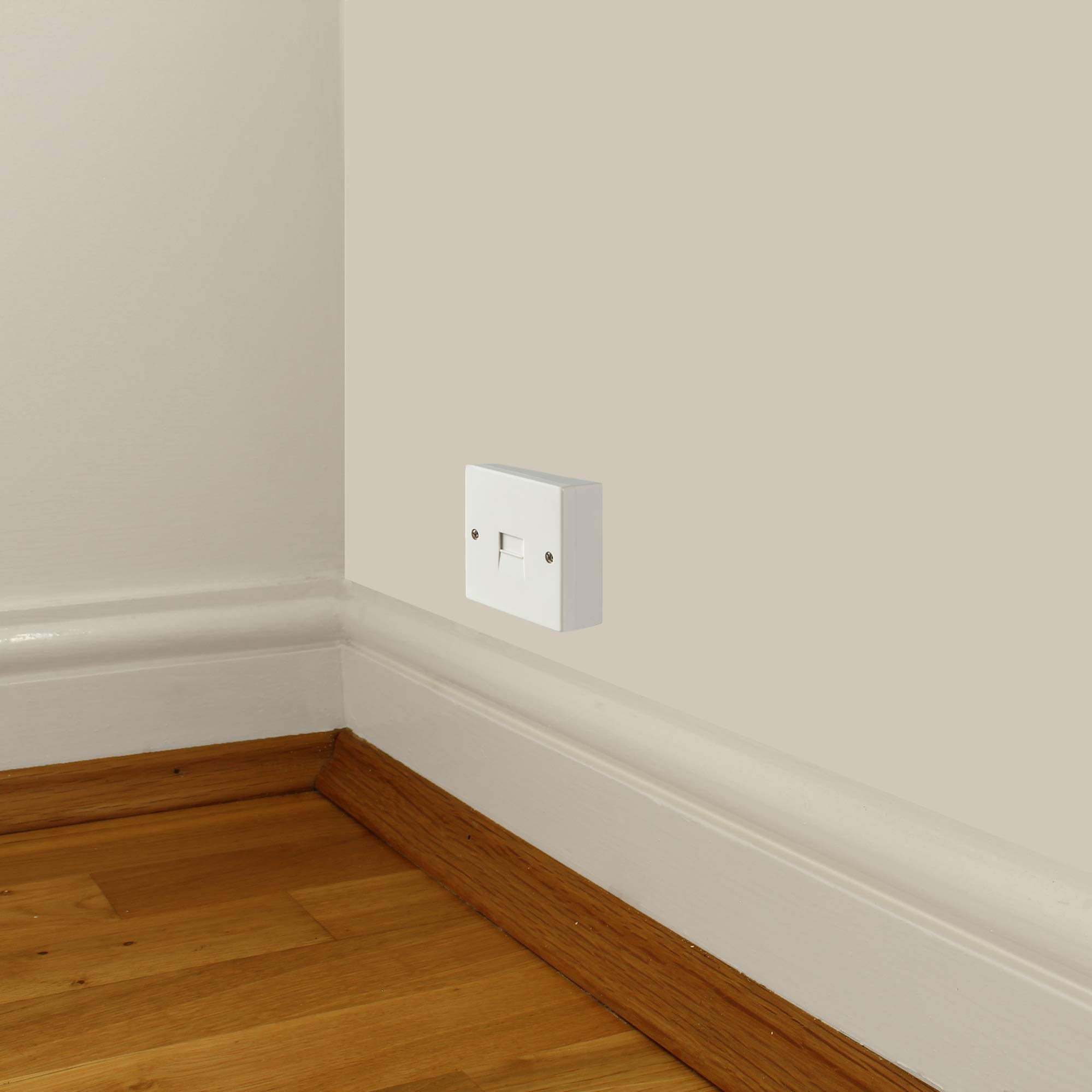

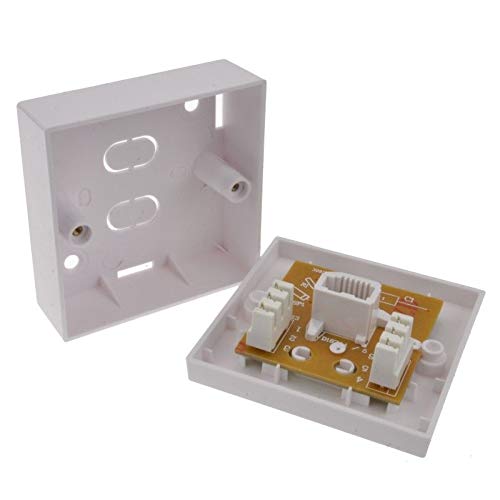

2/3A SECONDARY TELEPHONE EXTENSION SOCKET These are the smaller type of extension socket that are almost always surface-mounted. These do not fit a standard UK single back box but they are the standard BT extension socket size. Simply Mount the back box, decide on the cable entry position and break out a corresponding tab for the cable to enter the back box. Leave the cable about 6 to 8 inches long stripping back the outer PVC to reveal the inner cores. There is no need to strip the insulation on the inner cores. Lay the ends of the inner cores over the corresponding numbered IDC block before pressing them down with the tool, noting that the longer tip of the tool should be positioned towards the centre of the socket. Double check to make sure that every wire was successfully inserted to the bottom of the IDC connector and ensuring that none of them make an arch up and over the IDC cutters.
