Telegrtner Patch Panel Cat 6A 24-Port Shielded

• Telegärtner MPP24-HS J02023A0050 Patch Panel
• Patch Panel MPP24-HS
• Telegärtner
• J02023A0050 J02023A0050

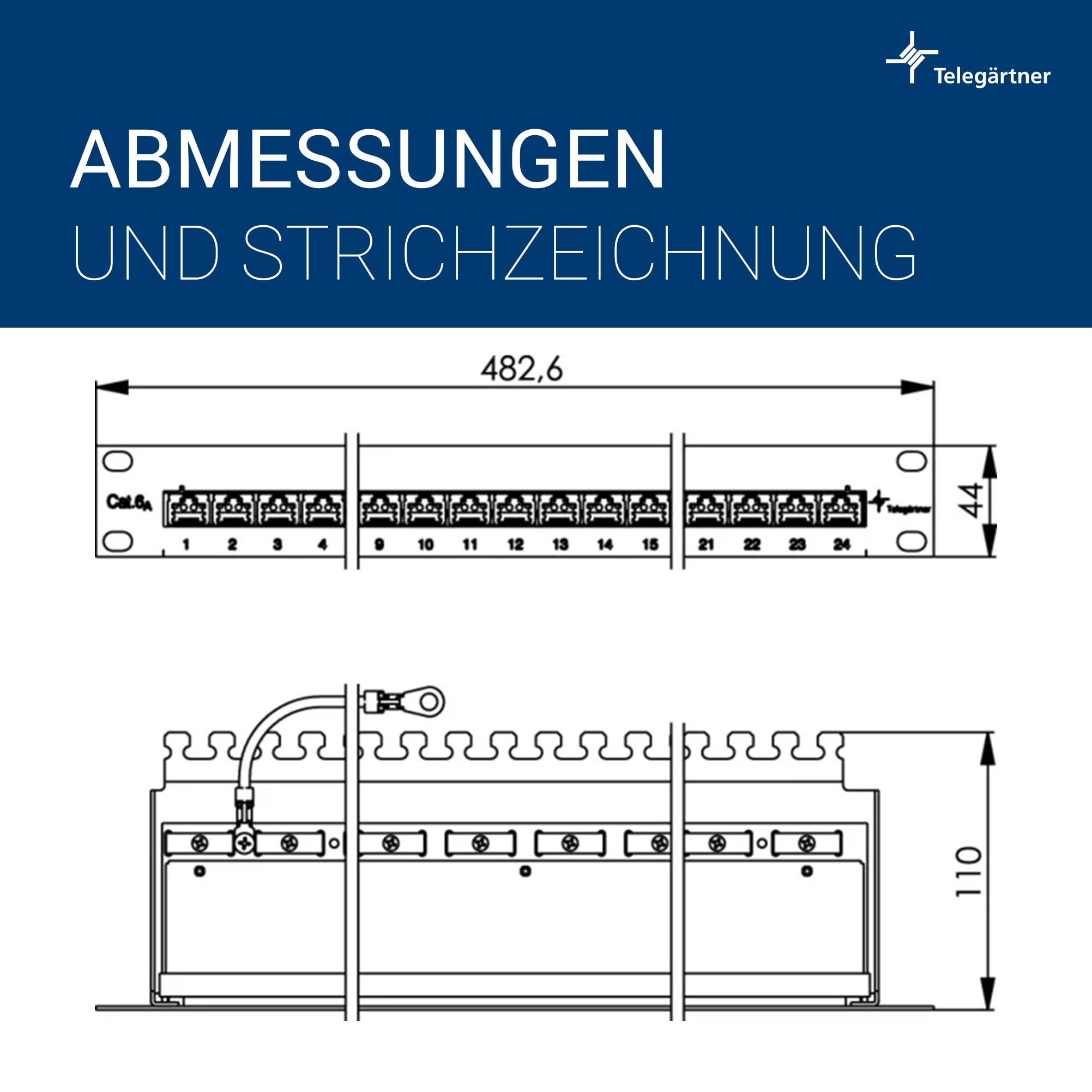

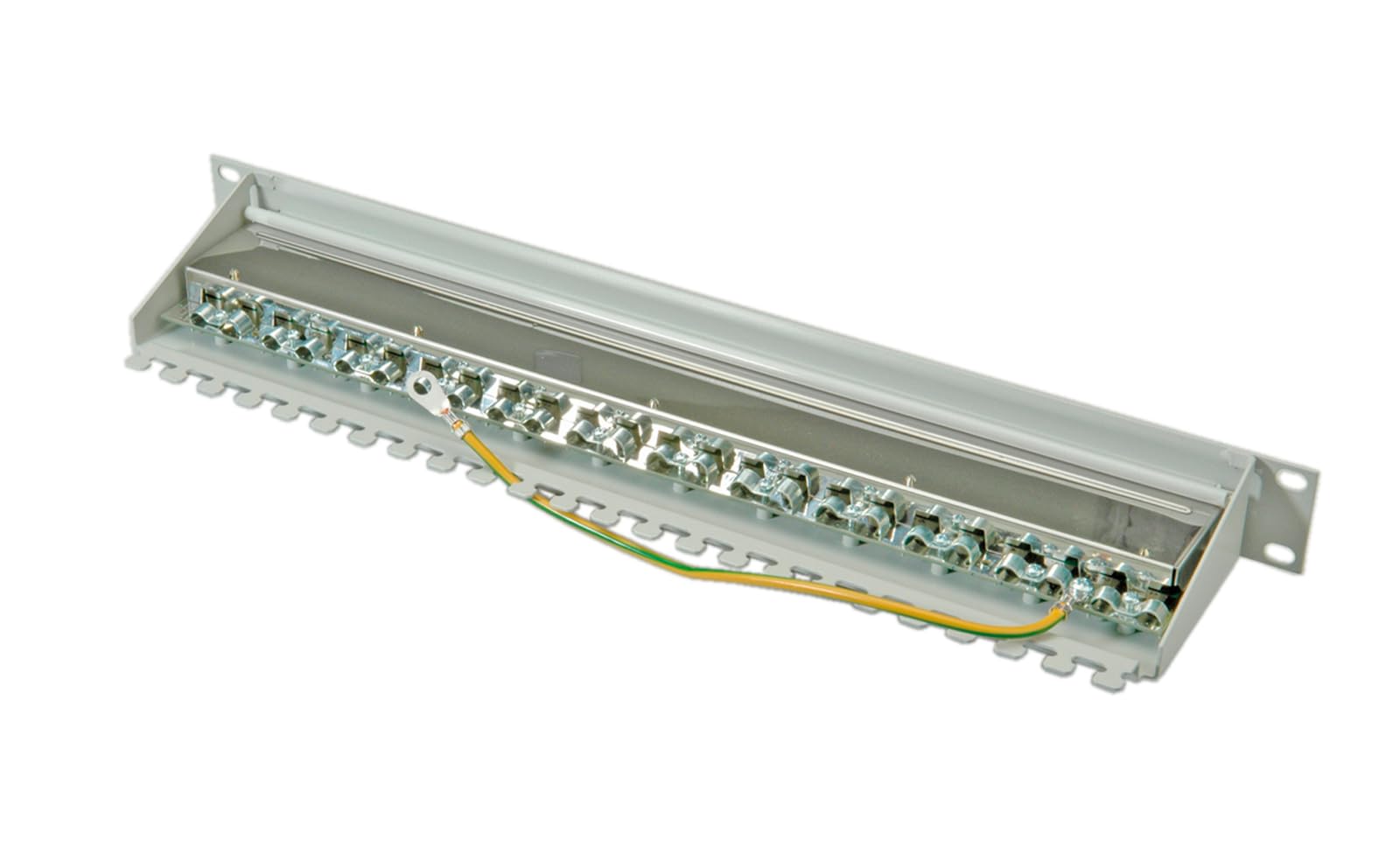

- 19-inch Patch Panel MPP24-HS K Cat.6A. - MPP24-HS Cat.6+. - 19-inch/10-inch rack mount unit 1 HU with 12, 16 or 24 RJ45 jacks assembled on one common PCB. - No special tooling required for mounting of cover (shielded type). - Printed circuit board is mounted horizontally. - Grounding using the enclosed earth connection cable (shielded types). - Cables are terminated via IDC (LSA Plus) terminals with colour coding acc. to EIA/TIA 568 A and B. - 360 degree shielding can be connected directly on the PCB on a large contact spot using screw clamps, without need of twisting the shielding braid (shielded type). - Risk of short-circuit between screening braid and data leads is minimized due to sufficient space between data terminals and screening contact. - Limit of 13mm max. of untwisted length of data leads can be easily achieved without restricting an easy installation. - Enclosed cable ties for strain relief of the cables without need of screws and special tools. - Modular jacks are numbered on the front panel. - Housing is made of steel and powder-laminated in light grey (RAL 7035); the cover is made of stainless steel. Weight & dimensions -Width: 482.6 mm -Height: 44 mm -Depth: 110 mm Network -Ports quantity: 24 -Connector(s): RJ-45 -Cable types supported: Cat6a Design -Product colour: Grey -Mounting: Rack mounting -Rack capacity: 1U
