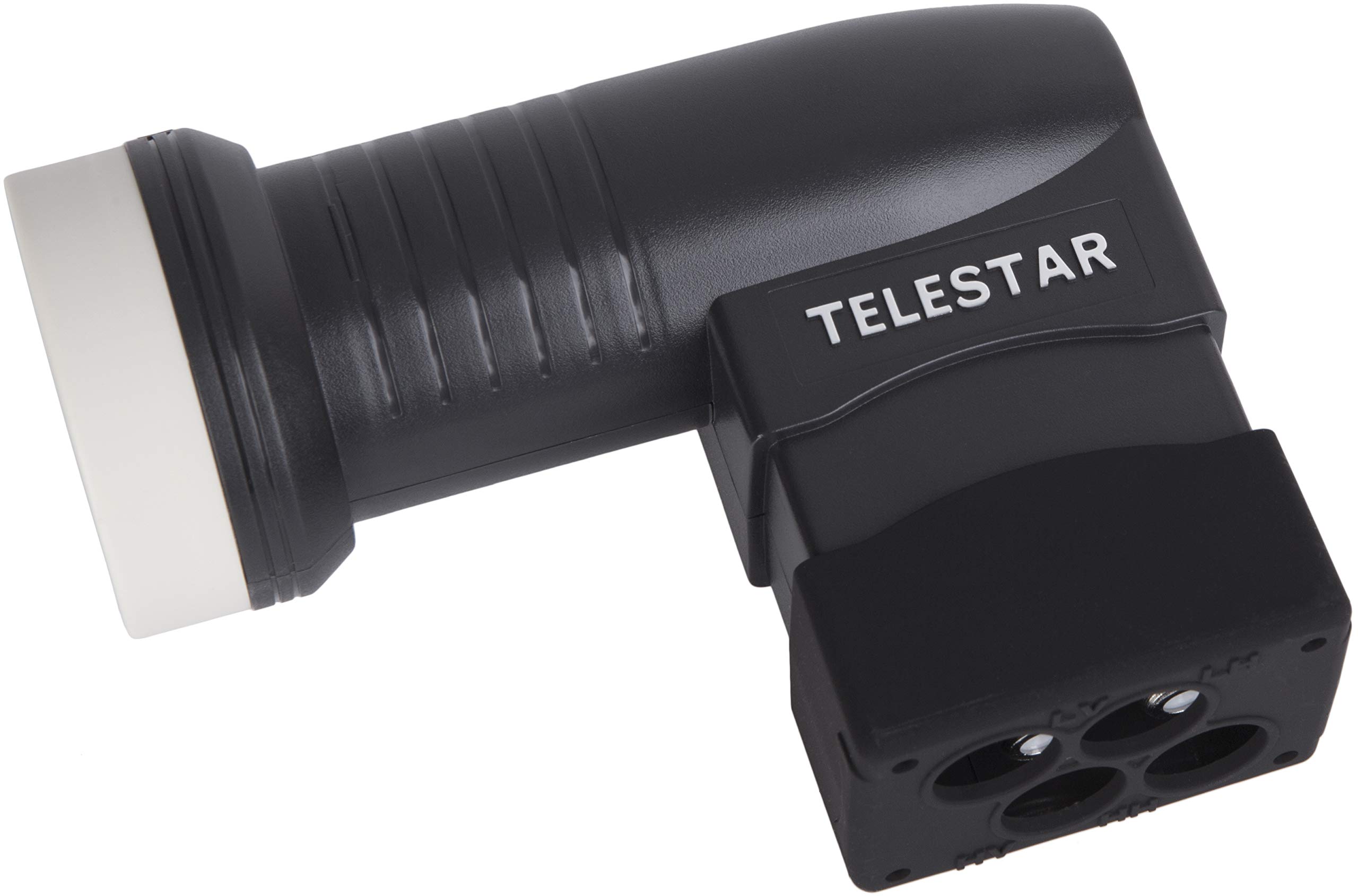

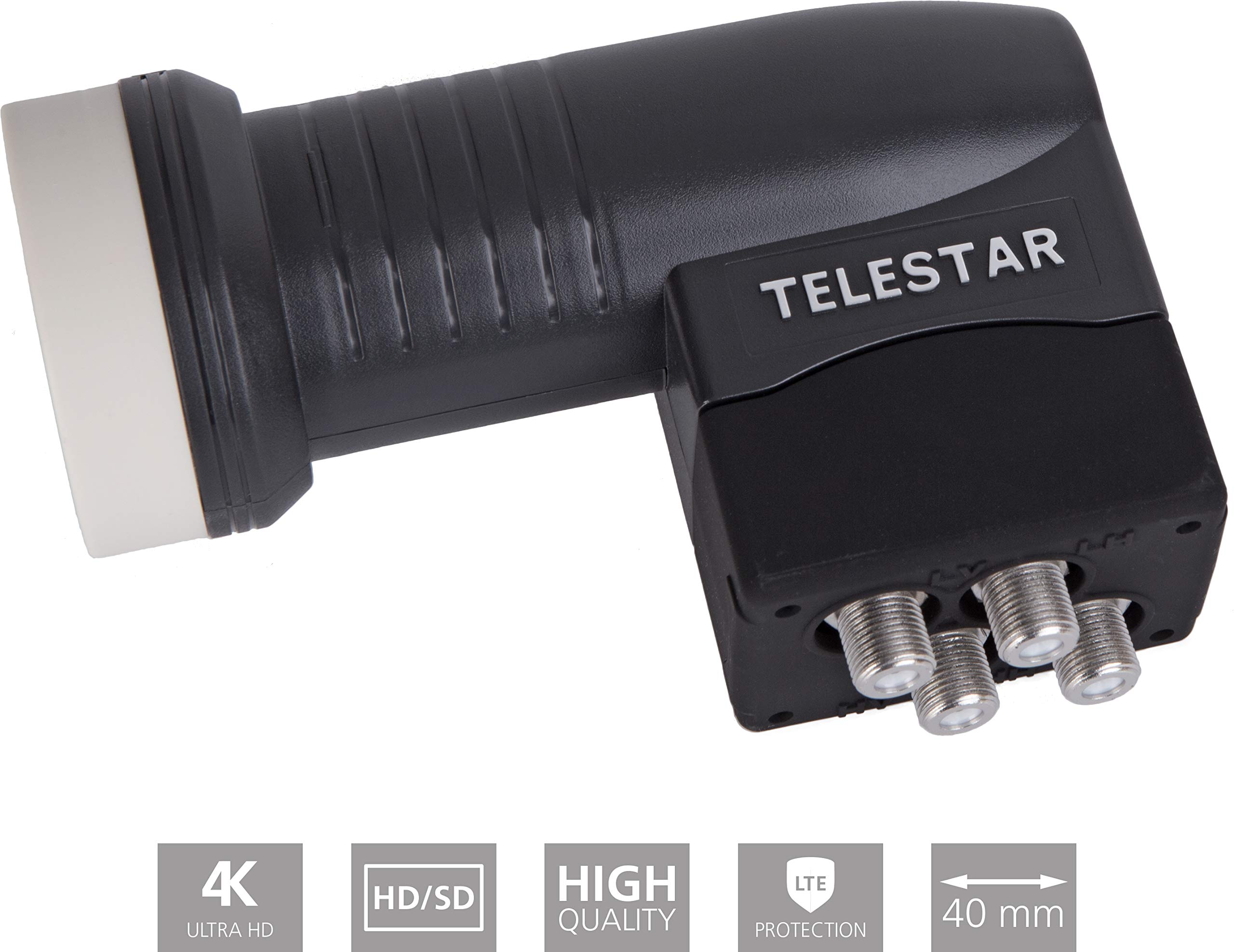

Tele-starling SkyQuatro HC Low Noice block (0.1 dB, Full-high-density, HDTV, SDTV, 3D, 250 mA) black

• High class Quattro LNB for receiving all satellite programs (SD, HD, Full HD, Ultra HD, 4k, 3D) for more than 4 users with multi-switch in the best quality

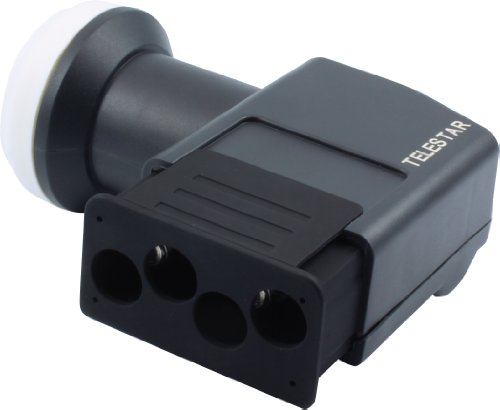

• The TELESTAR SKY HC LNBs are all equipped with an extendable weather protection for optimal protection of your connection cable
• The Skyquatro HC LNB is equipped with a low noise figure (noise figure: <0.1 dB) and thus delivers the best picture and sound quality. Mounting on any standard satellite dish with 40 mm feed reception.
• For more than 4 users (TV or satellite receiver) with multi-switch (distributor). Low power consumption

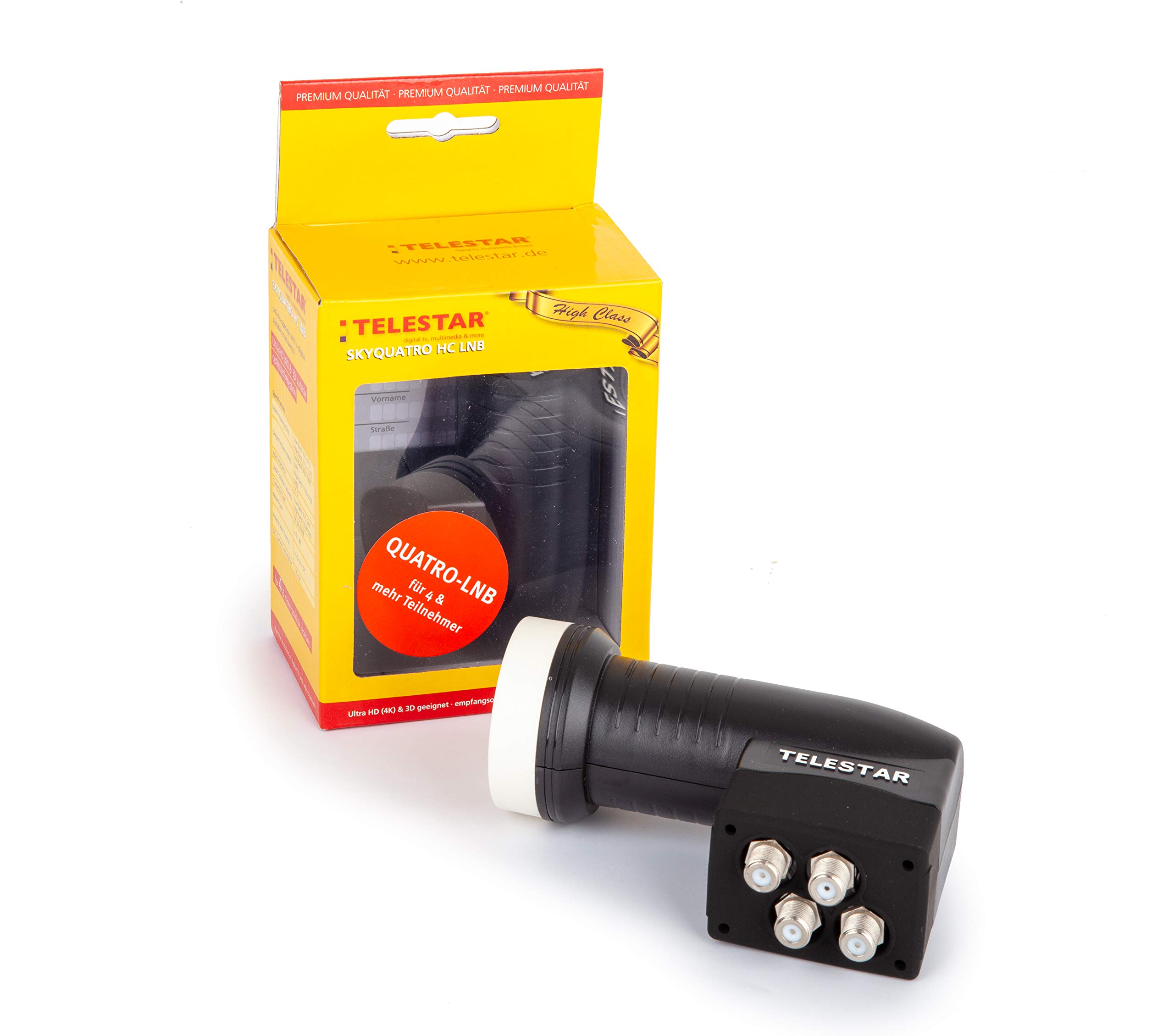

• Box contents: LNB, warranty card

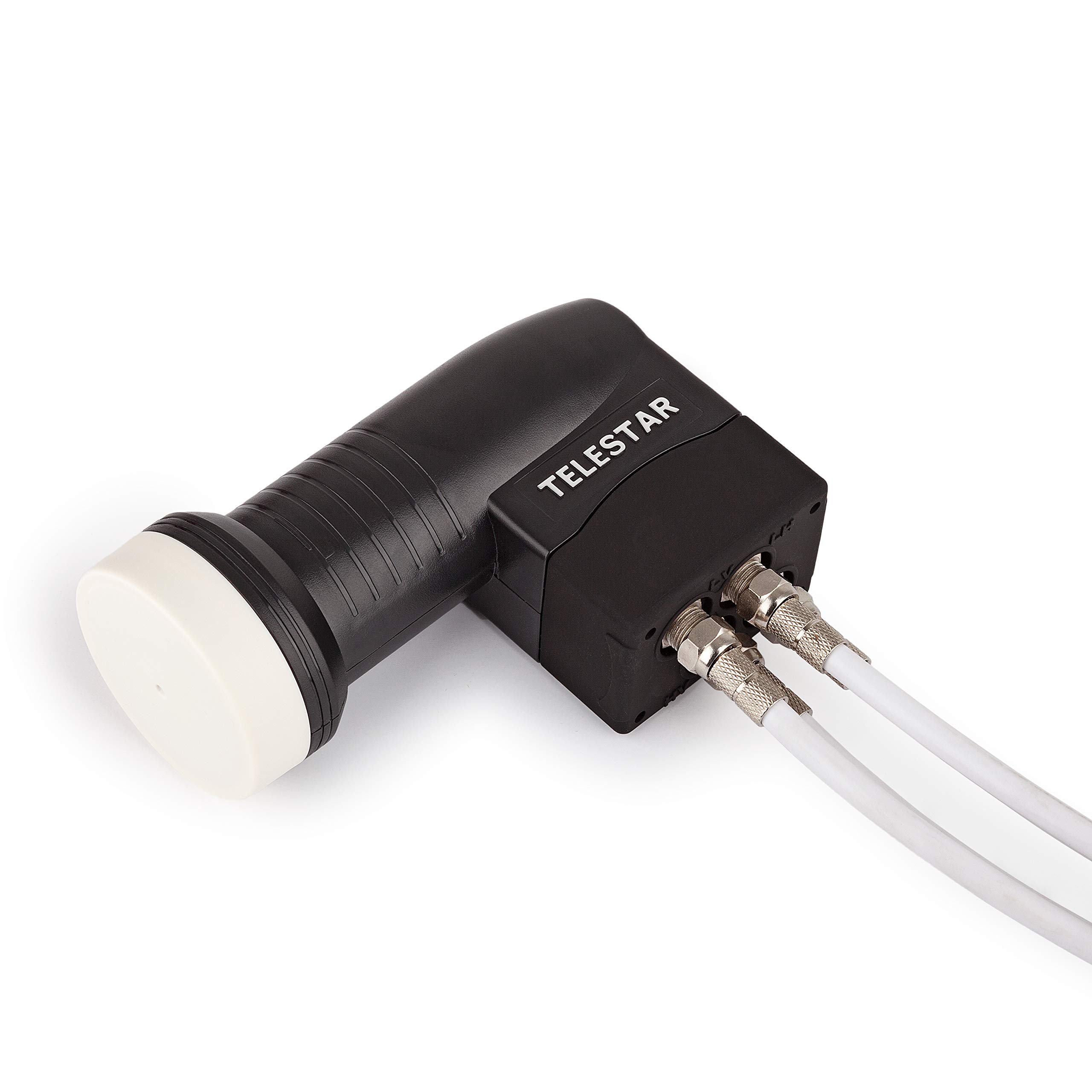

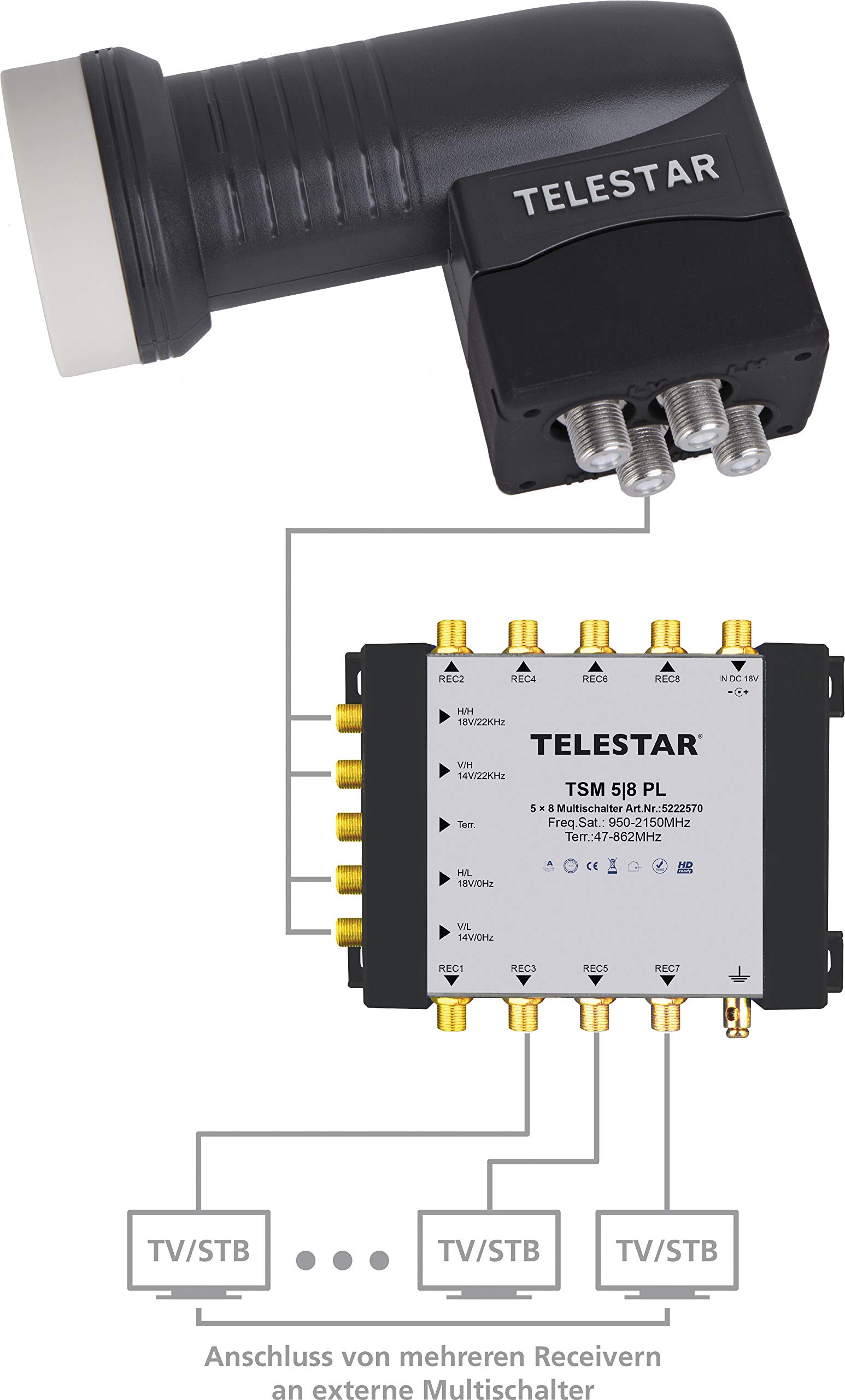

Description To enlarge please click on the picture TELESTAR SKYQUATRO HC LNB The high class QUATRO LNB from Telestar is characterised by its high quality and excellent reception values. You can use the LNB exclusively for connection to a multi-switch. For example, the TELESTAR Starswitch 5/8G for powering up to 8 satellite receivers or in conjunction with the TELESTAR Starswitch 5/8K and TELESTAR Starswitch 5/8G to supply up to 16 satellite receivers. Technical data: Input frequency: low band: 10.7~11.7, high band: 11.7~12.75. Output frequency: low band: 950~1950, high band: 1100~2150. Output impedance: 75 ohms LOF: Low Band: 9.75 GHz, High Band: 10.60 GHz. Gain: 55~70dB Noise factor: <0.1 dB. Frequency band switching: high band: 22 kHz, low band: 0 kHz. Power supply: 11~20V DC Power consumption: approx. 250 mA. Assembly example: Cables and plugs are not included. Thanks to the integrated weather protection, you can protect your connection cable. Simply pull the coaxial cable downwards the weather protection cap. Please click on the image to enlarge
