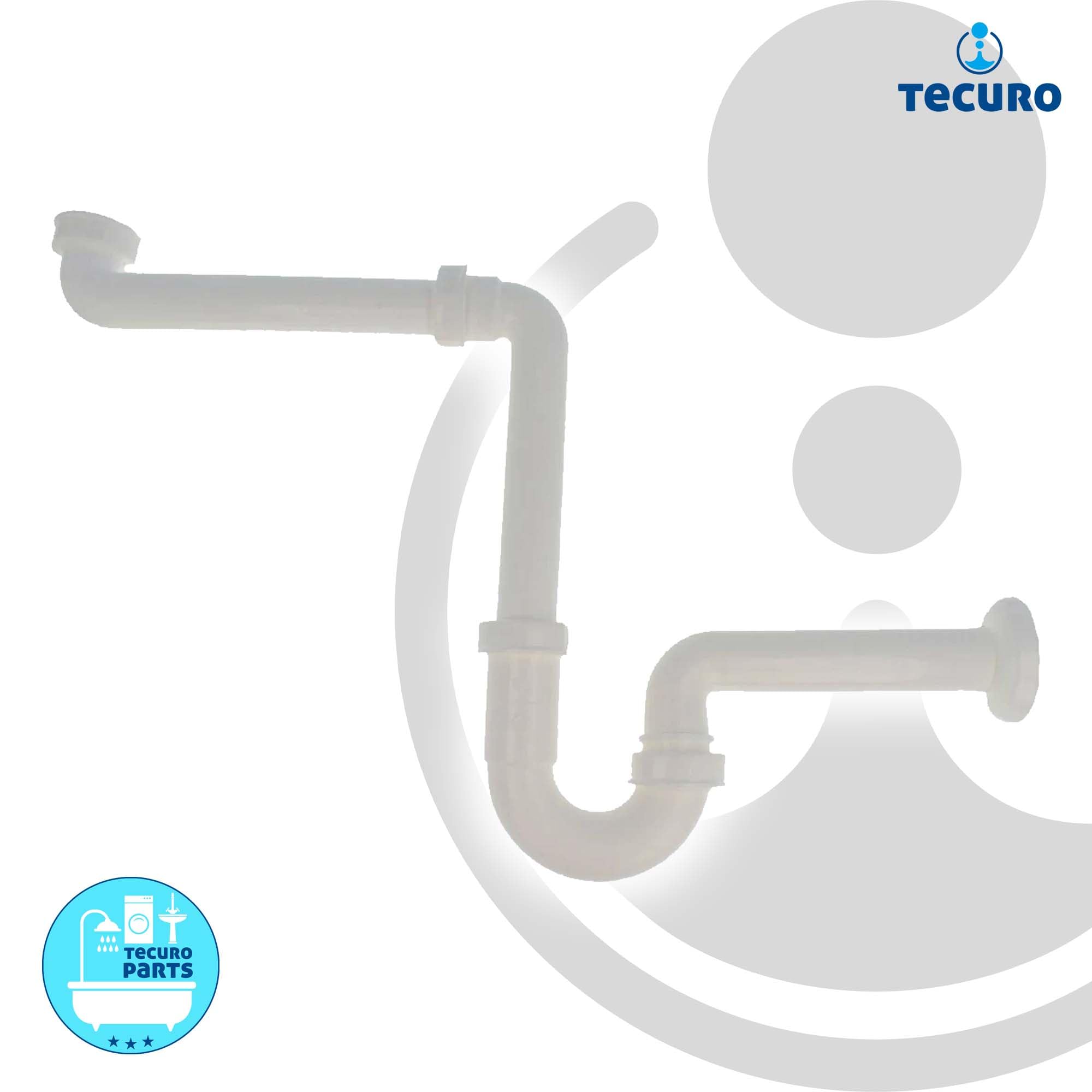

Tecuro Space-Saving Tubular Odour Trap for Washbasin

• Space-saving siphon/odour trap for washbasin installation
• This siphon is used when space is required under the washbasin for e.g. a base cabinet or low-pressure under-sink device.
• The functional principle is the same as a normal tube siphon, but from connection to the washbasin, the waste water is only directed to the back of the wall and then drained downwards over the siphon.

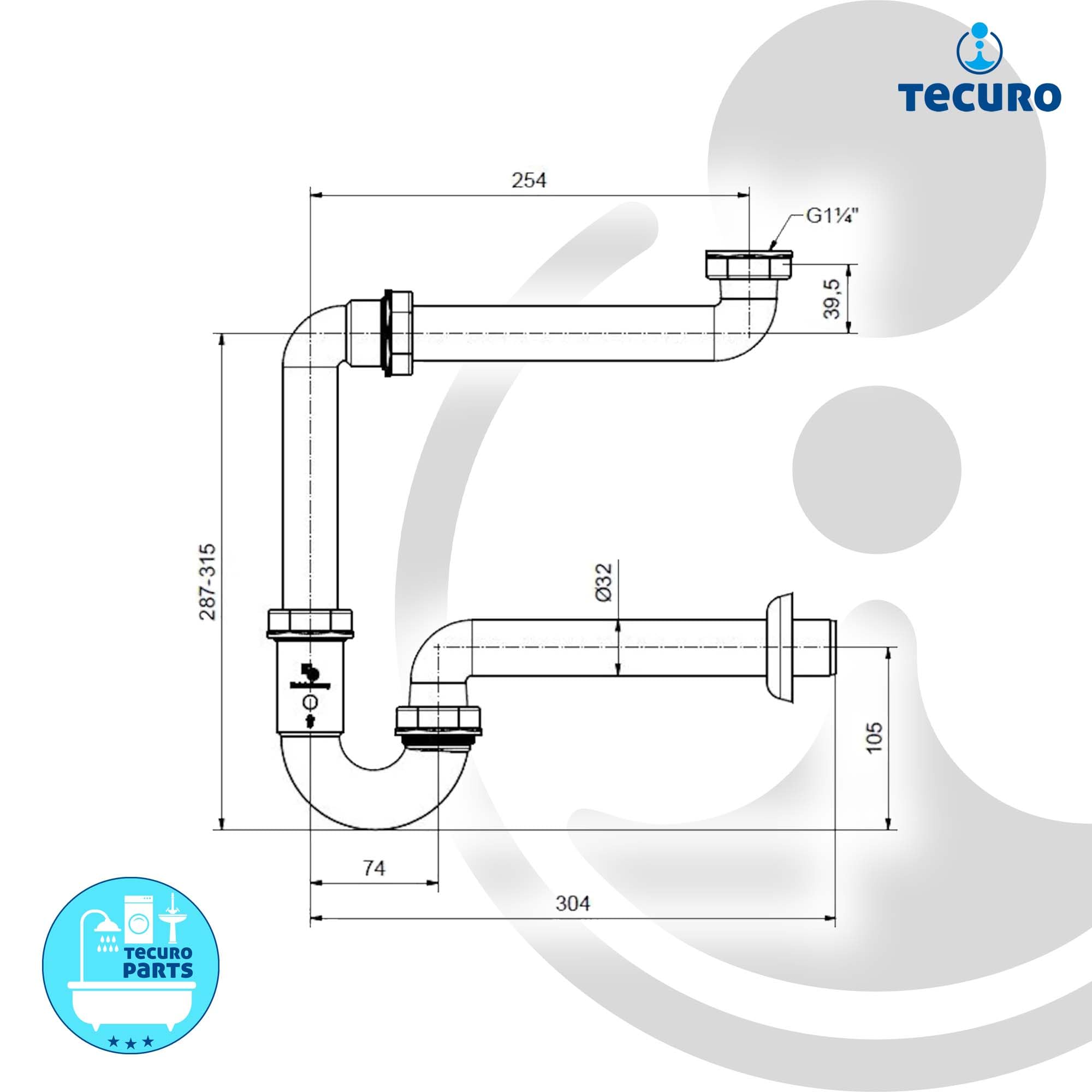

• 200 mm angle immersion tube, can be shortened // Wall connection: Ø 32 mm // Wall rosette: Ø 63 mm
• Material: plastic white (PP).

Space-saving siphon/odour trap for washbasin mounting. This siphon is used when space is required under the washbasin for e.g. under cabinet or low-pressure under-sink unit. Connection to washbasin drain (top): union nut 1 1/4 inch including seal (standard) pipe diameter: 32 mm 200 mm angle immersion pipe, can be shortened connection wall: diameter 32 mm wall rosette: diameter 63 mm material: white plastic. The functional principle is the same as a normal pipe siphon, but here the waste water is only taken to the wall from connection to the washbasin and then at the bottom via the siphon. Conversions for the measurements in inches can be seen in the conversion chart in the pictures.
