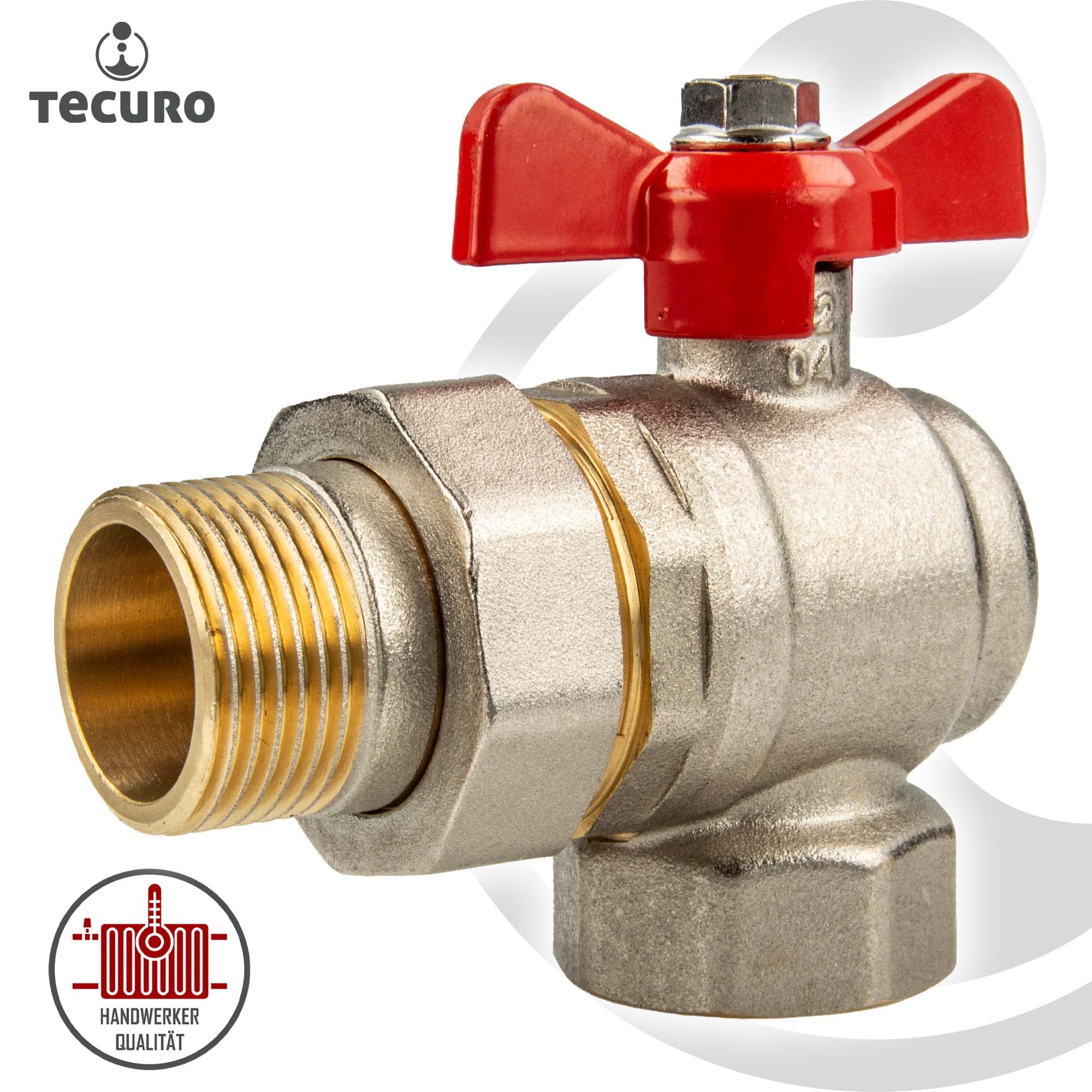

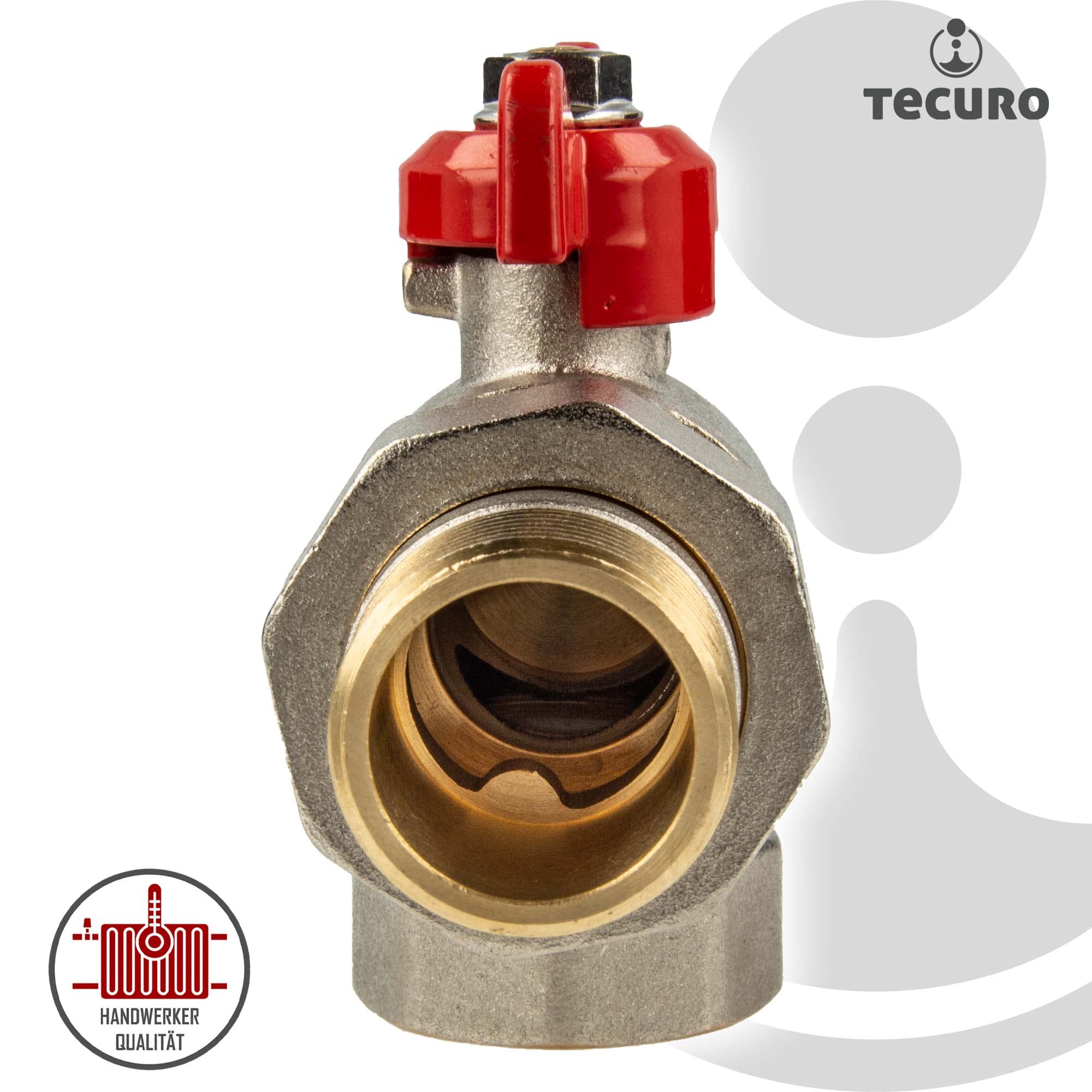

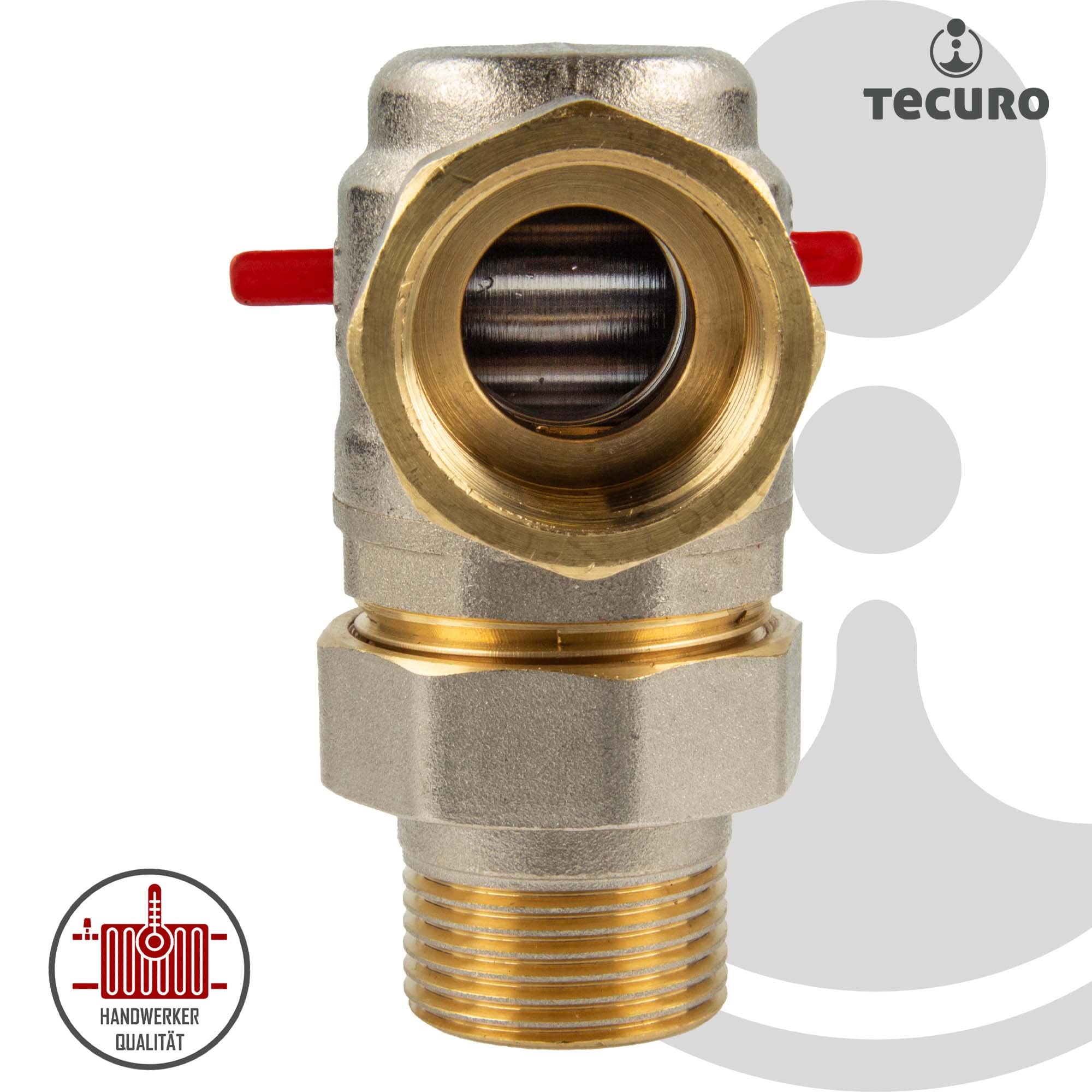

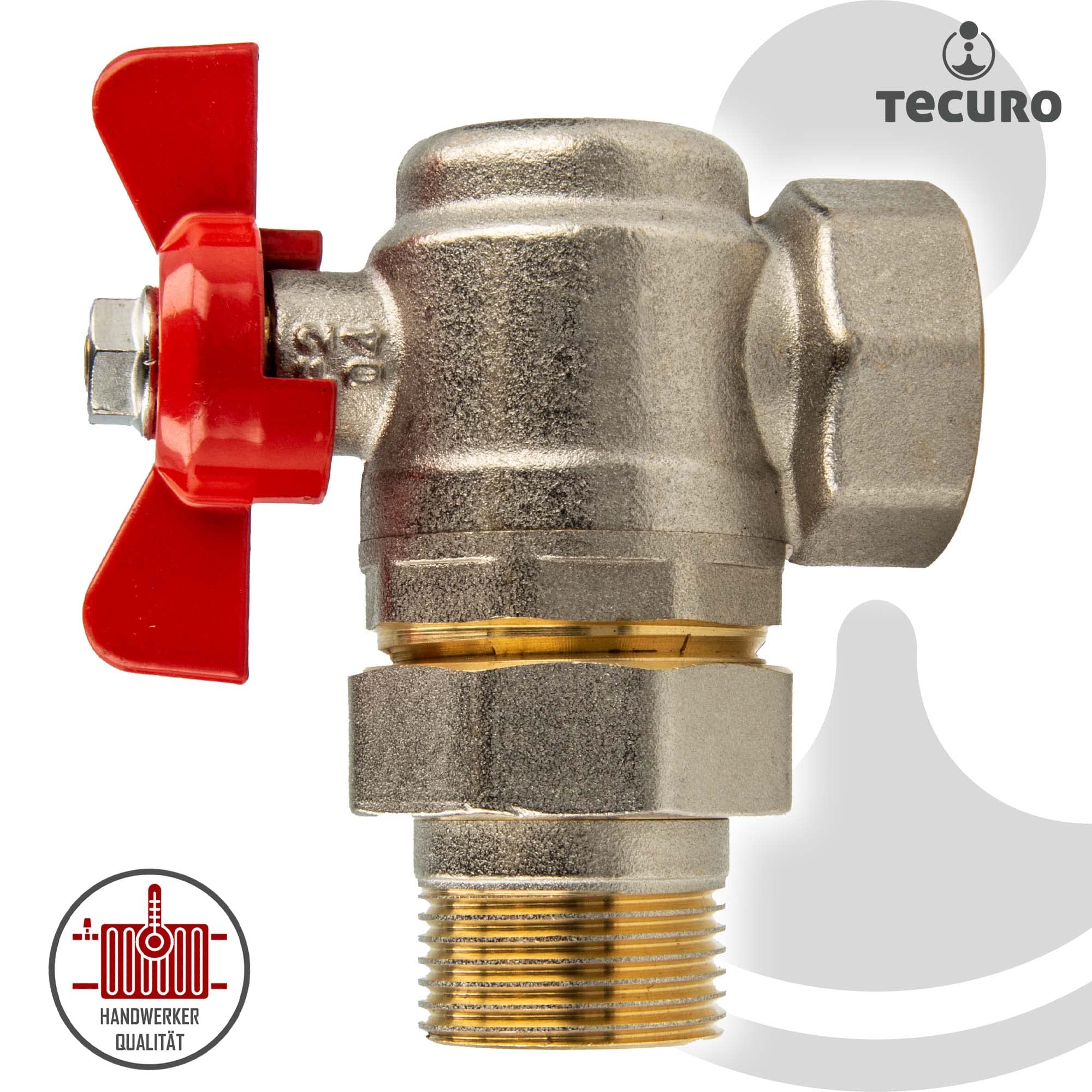

tecuro Angle ball valve with screw connection G 3/4 inch x internal thread Rp 3/4 inch, nickel-plated brass

• Tecuro angle ball valve with butterfly handle with union screw connection. Size: screw connection G 3/4 inch x IG Rp 3/4 inch

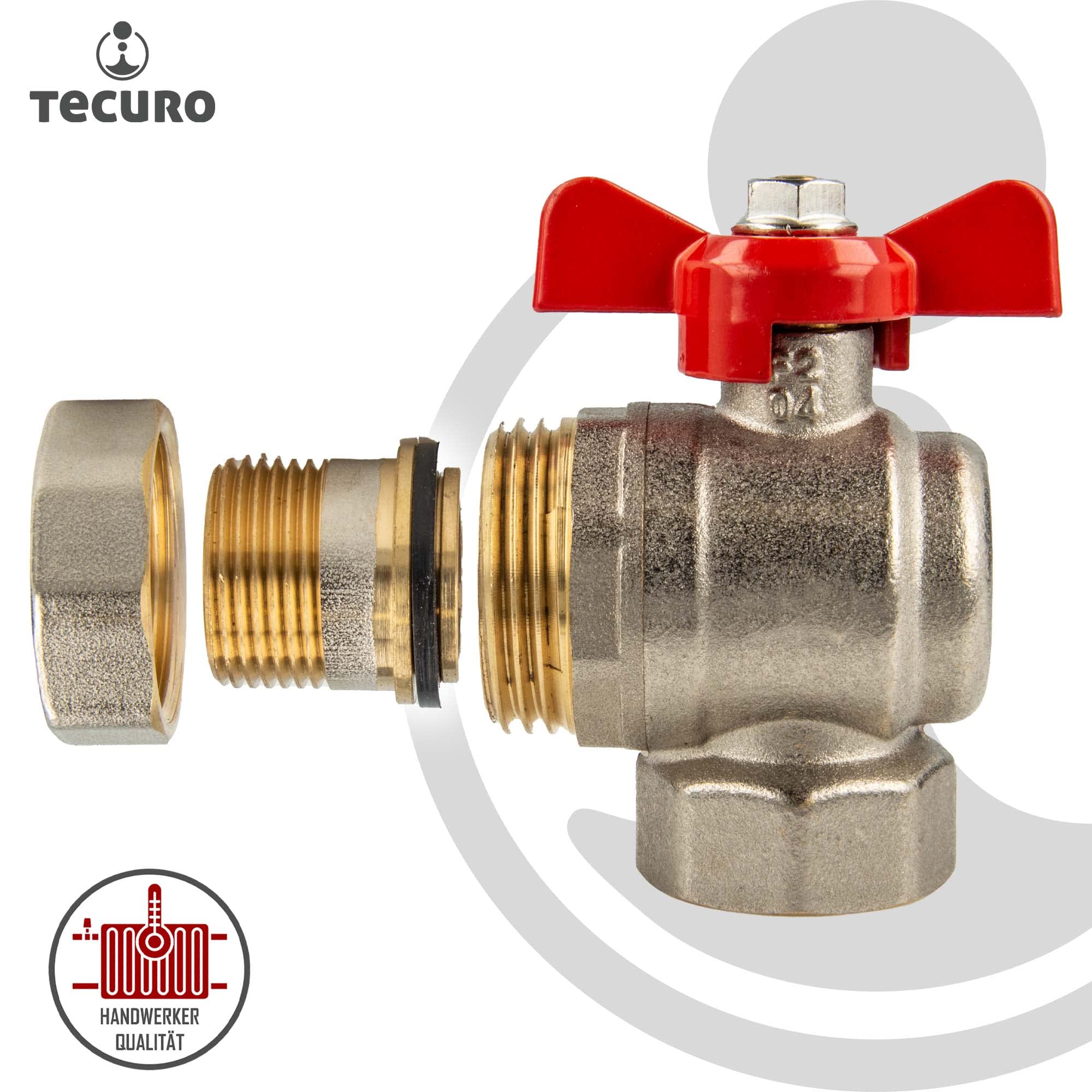

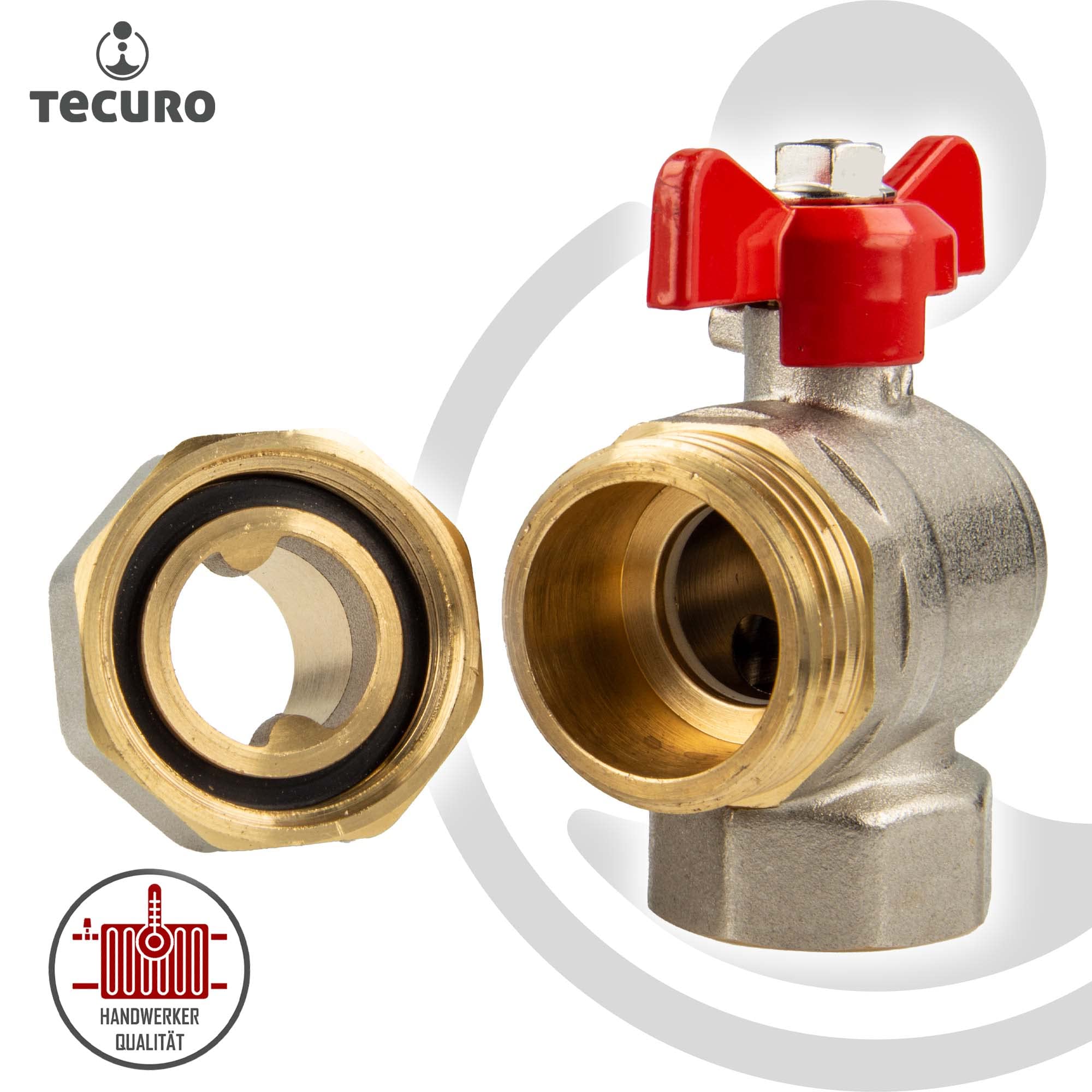

• Union screw connection with EPDM flat seal (flat sealing) // external thread, cylindrical (G) according to standard DIN ISO 228-1 // internal thread, cyl, indric (Rp) according to standard ISO 7/1 DIN EN 10226-1 or DIN ISO 228-1
• Metal wing handle in red. Reduced passage (1/2 inch = DN10, 3/4 inch = DN15, 1 inch = DN20)
• Temperature range -10 °C to + 110 °C depending on the operating pressure. Max. Operating pressure at 30 °C = 25 bar

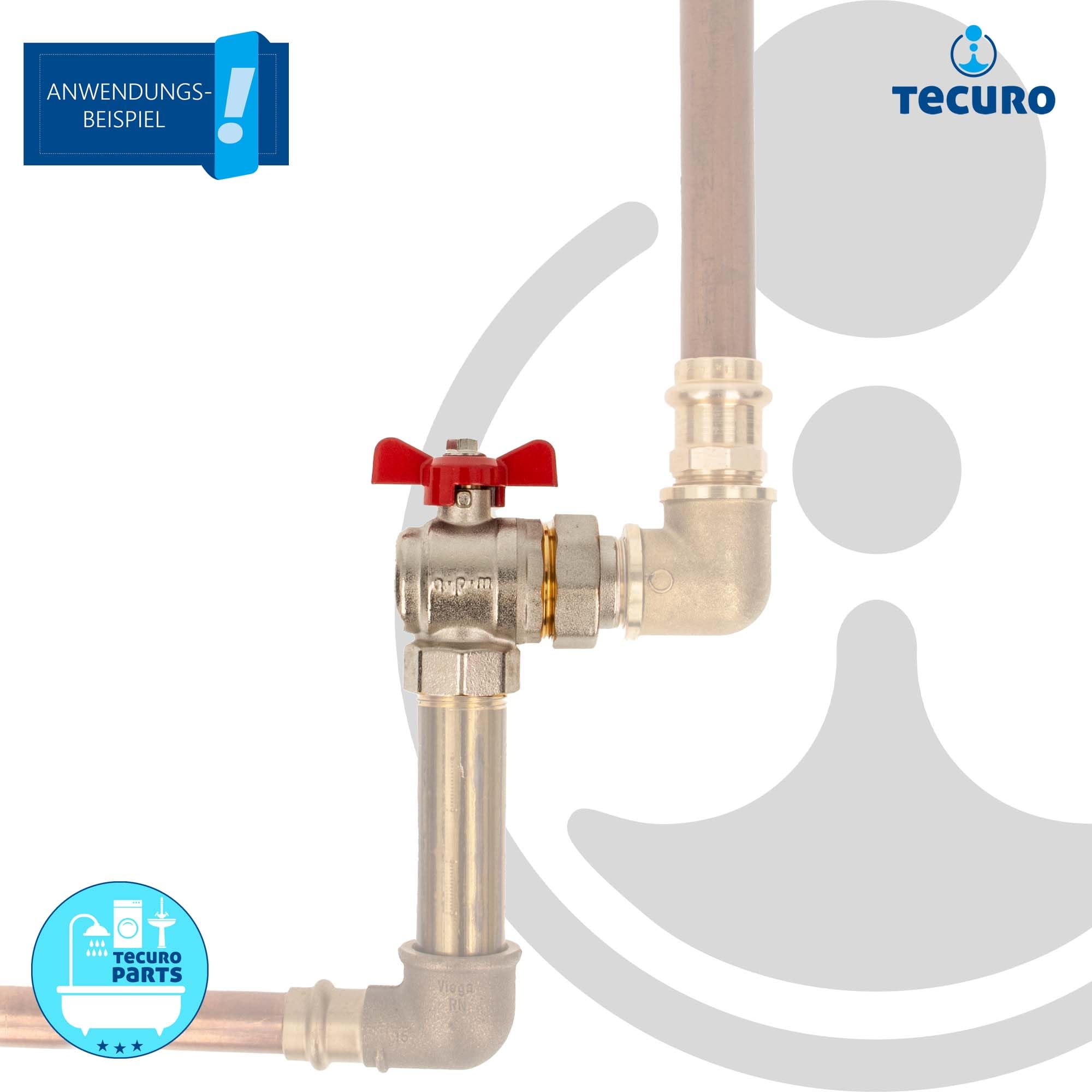

• Installation: horizontal or vertical possible. Material: nickel-plated brass. Not approved for drinking water installation

Brass Angle Ball Valve Butterfly Handle with Überwurfverschraubung/Flat sealingWith rubber sealing ringInternal thread x External thread according to ISO 228/1Butterfly Handle in RedFull BoreTemperature range -10 °C to + 110 °C depending on the operating pressureOperating Pressure at 30 °C = 25 barNickel-plated brassInstallation: horizontal or vertical.As an conversion inch Dimensions Please note the conversion chart in the pictures
