tecuro 429000FD - Screw connection 1 inch female / female thread - flat sealing - blank brass 1 inch

• Screw connection - flat sealing with fibre seal
• Design: 1 inch female / female thread
• Material: untreated brass CW617N - EN 12165 approved for drinking water installation

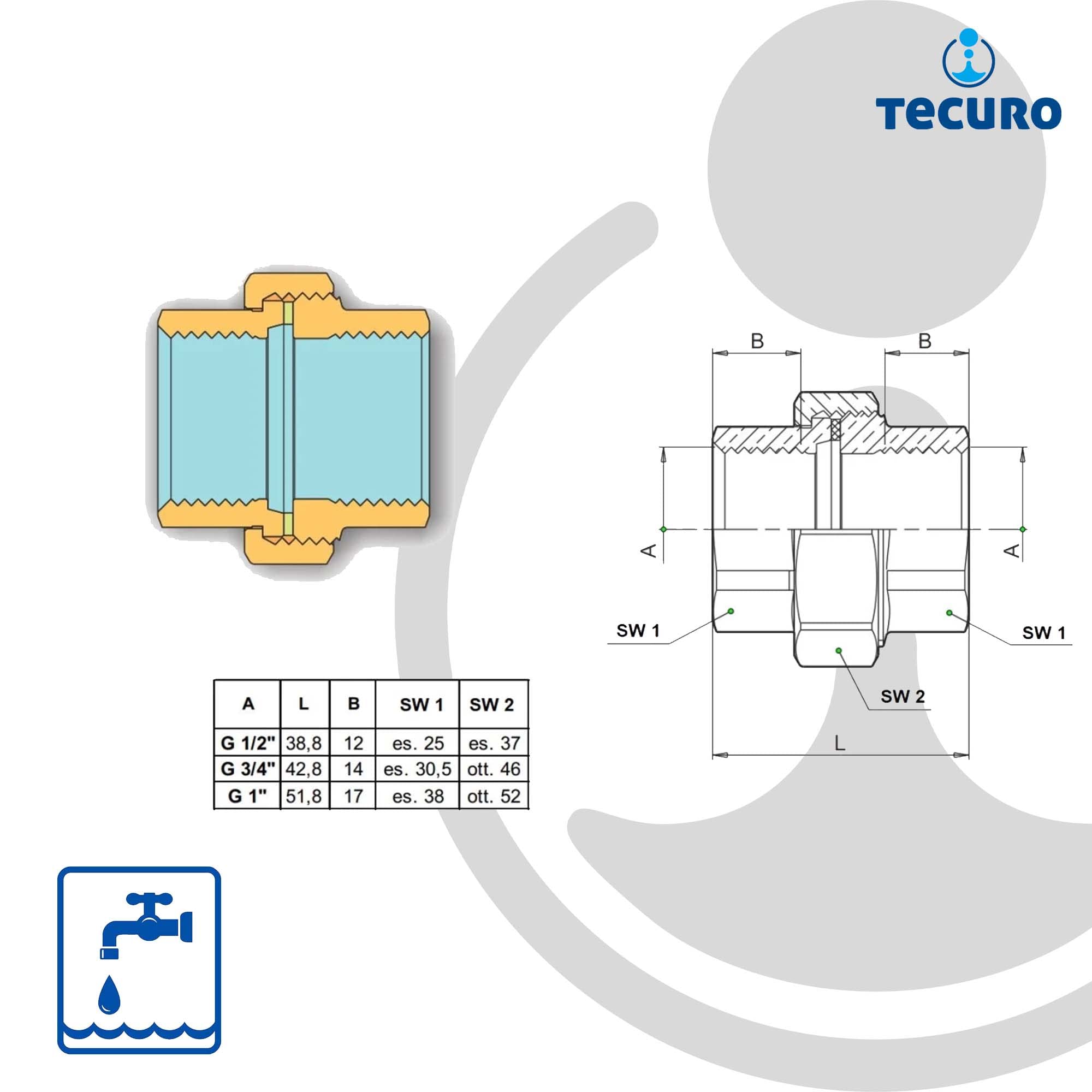

• Conversions for the measurements in inches can be seen in the conversion chart in the pictures
• The number and design you have selected will always be delivered, even if several / other items can be seen in photos for illustrative purposes

Screw connection IG x IG - flat sealing, design: 1 inch, material: untreated brass CW617N - EN 12165 approved for drinking water installation, seal: FASIT 202 mixture, max. Operating temperature: 180°C min. Operating temperature: -20 °C. Max. Operating pressure: 30 bar thread: ISO 228 internal thread. For conversion of the dimensions in inches please refer to the conversion chart in the pictures.
