TECPEL DCM-043 Digital AC/DC clamp meter, clamp transmitter, high resolution of 1mA

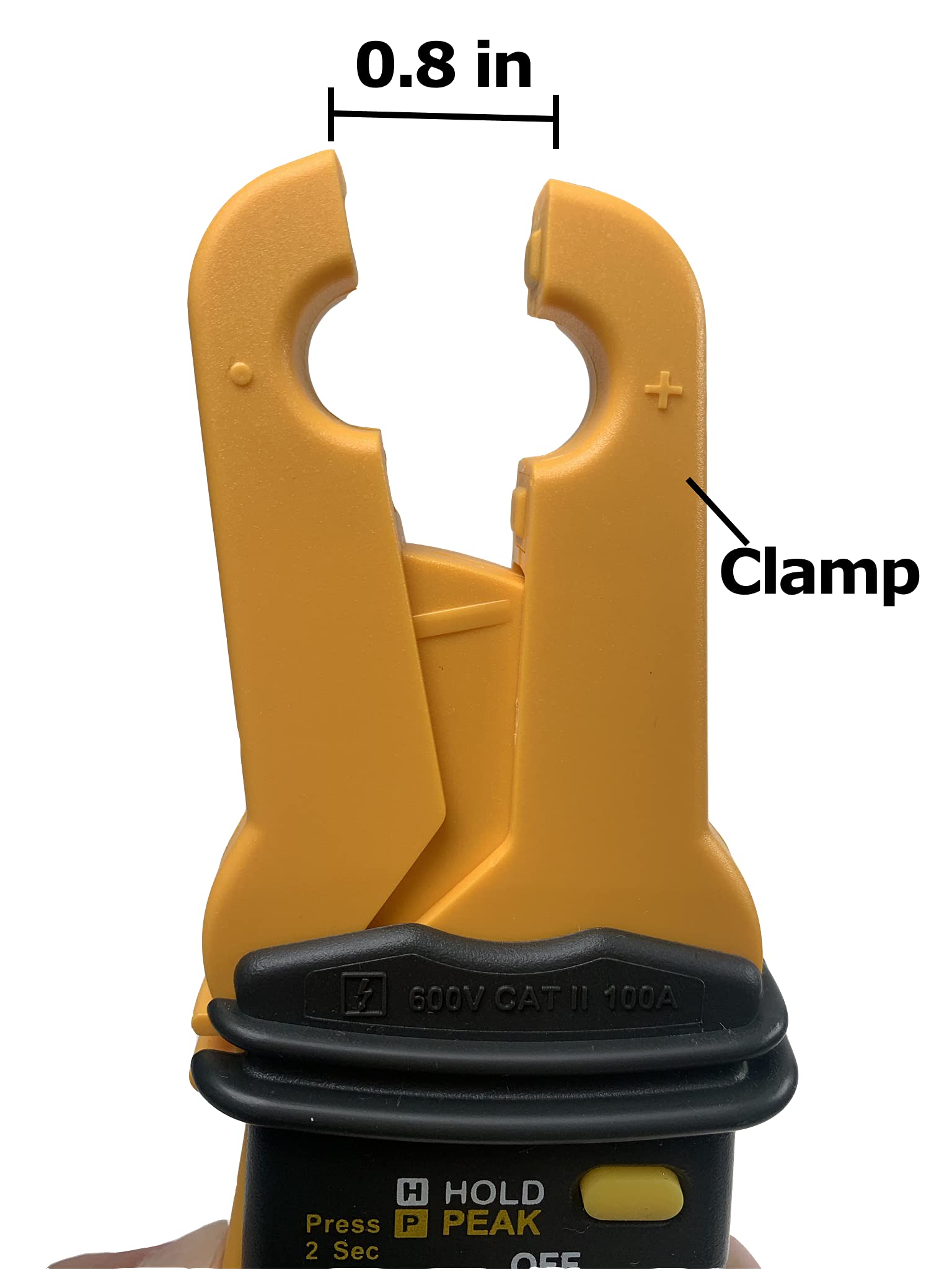

• TECPEL AC/DC clamp meter 12.5mm Clamp Opening size, With the high resolution of 1mA DCM-043

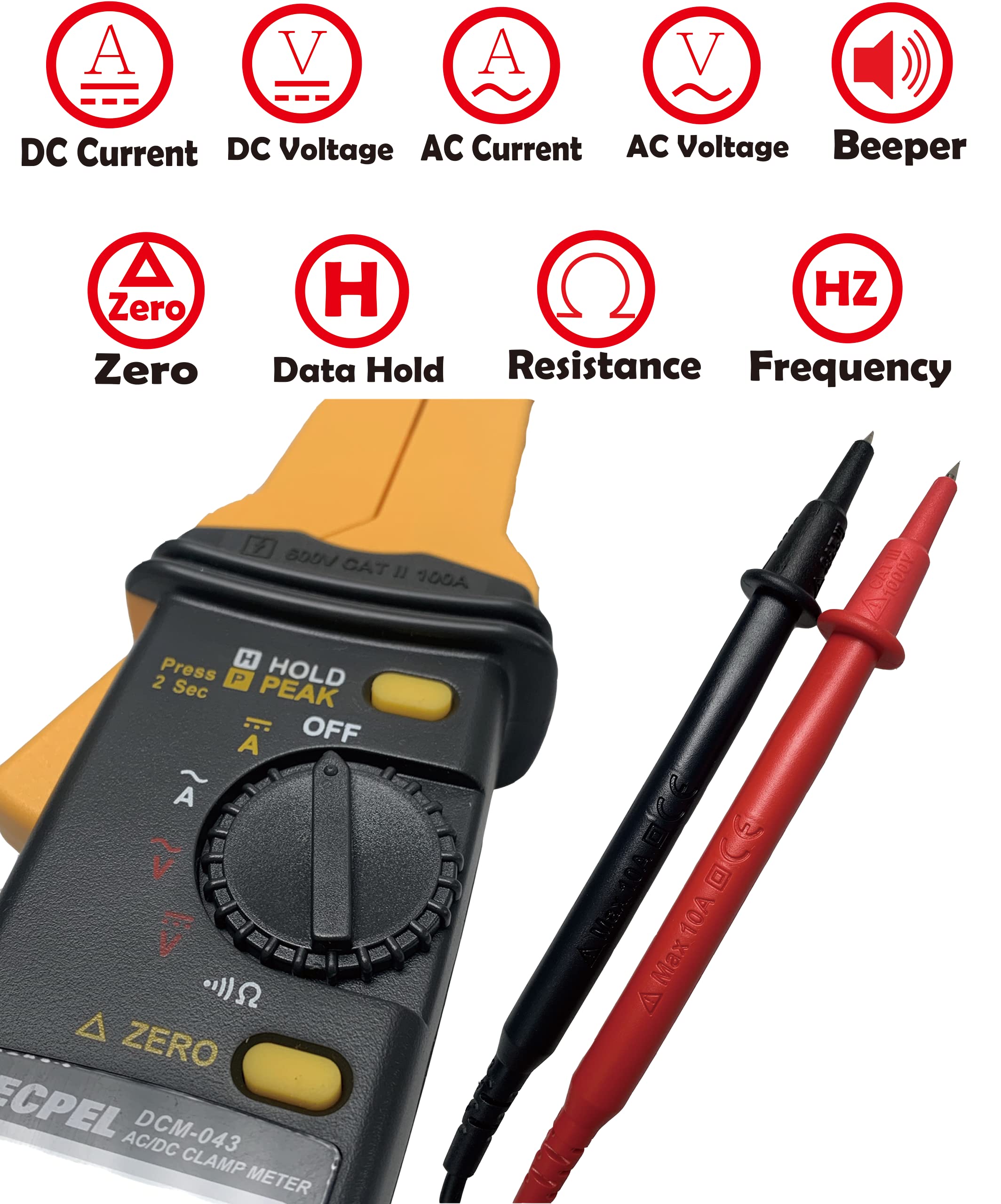

AC/DC Current clamp meter and Transmitter TECPEL DCM-043 a high resolution AC/DC clamp meter. With the resolution of 1mA and span of 100A, this current clamp transmitter is a great meter for circuit measurement or for car applications Features of Clamp meter DCM-043 1.Analog signal output function 2.High Resolution 1mA (0.001A) 3.Pocket size 4.4 digits display 5.Touch zero function 6.Auto-ranging 7.Auto power off 8.Peak hold function 9.Data hold function 10.IEC 1010 600V CAT II,300V CAT II Specifications : AC/DC Current Transmitter ( DCM-043) Function range Resolution Accuracy :AC A: 10A ~ 100A 1mA~10mA +/-2% Rdg+ 10 dgts DC A: 10A ~ 100A 1mA~ 10mA +/- 2.5% Rdg+ 10 dgts AC V: 600V 0.1V +/-1.5% Rdg+ 5 dgts DC V: 600V 0.1V +/- 1% Rdg + 2 dgts Ohms 10K Ohm 1 Ohm +/-1% Rdg + 3 dgts LCD Display: 4 digital liquid display Sampling Rate: 2 times/sec. Power requirement: Battery 1.5V, Size AAA x 2 Dimensions: 202 x 50 x 29 mm Weight: 180 g Jaw Opening Size: 12.5 mm Analog Output: 10 mV/Amp Frequency Response: 20K Hz Beeper: Active Sound Level Less than 100 O
