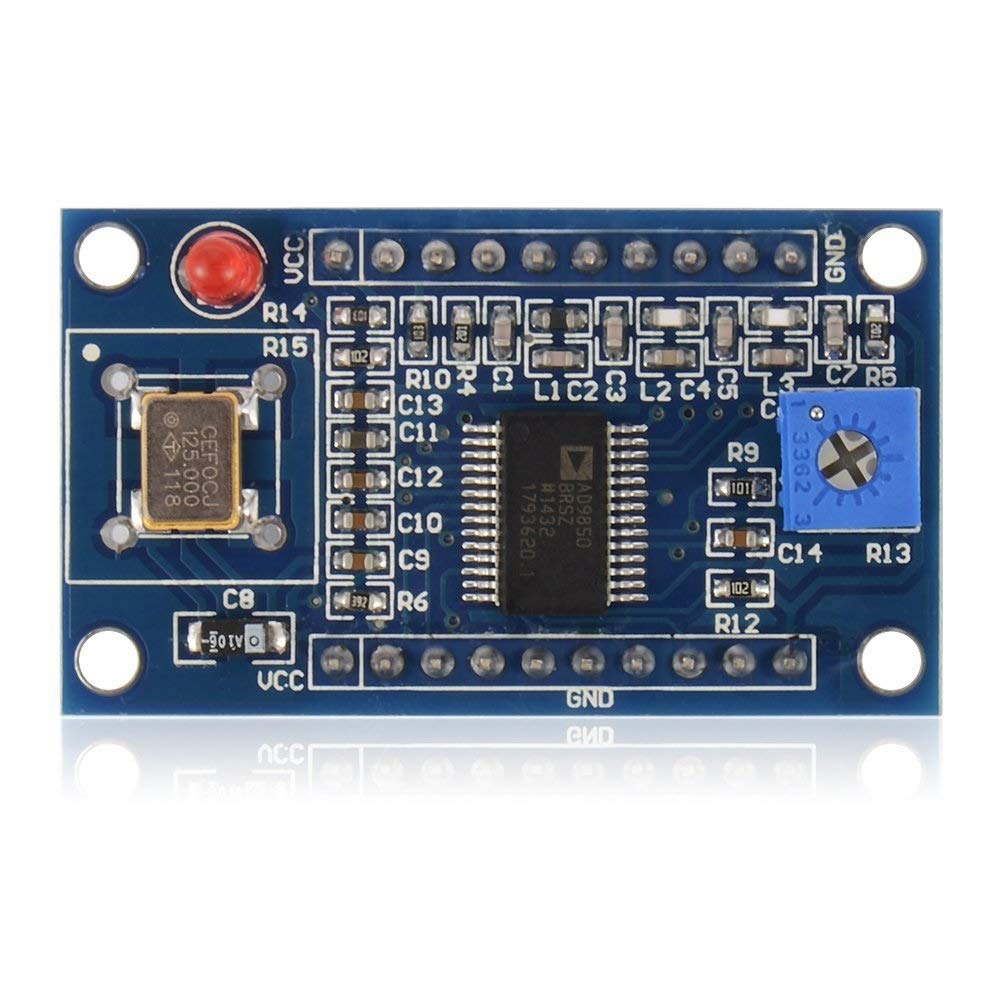

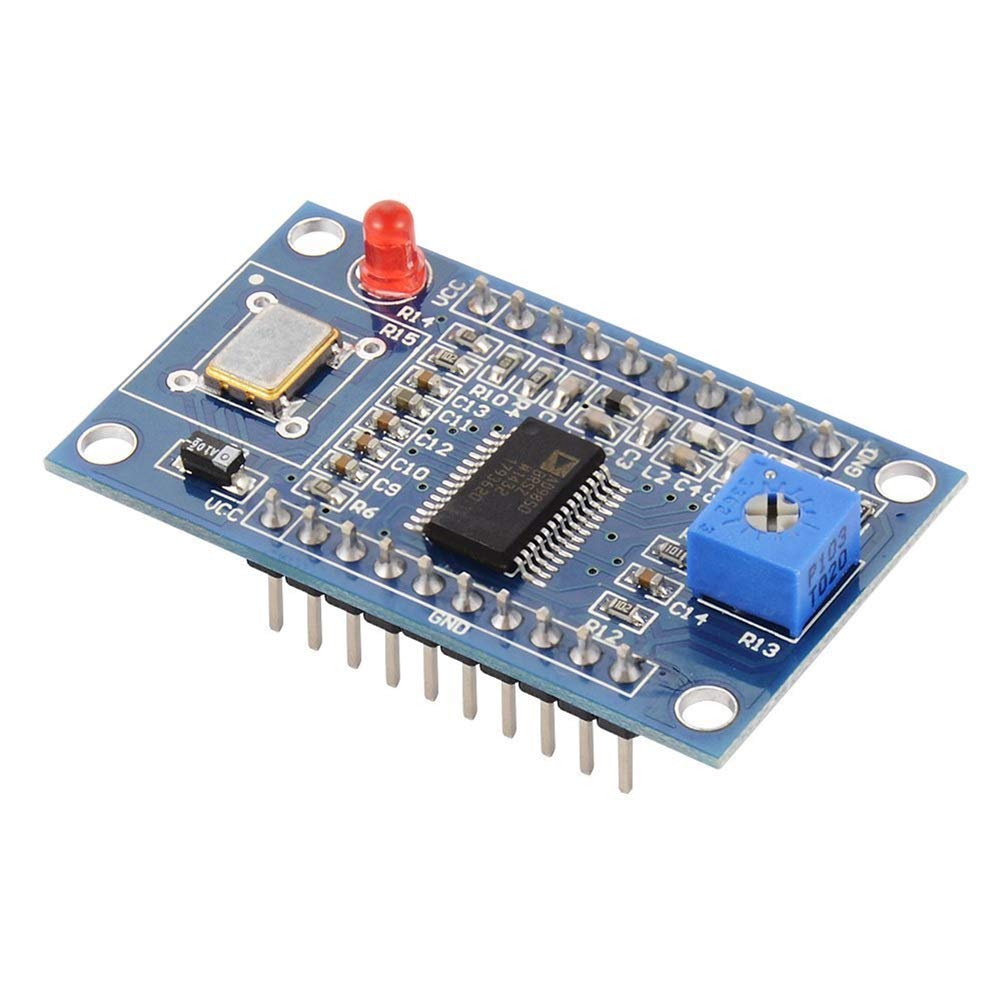

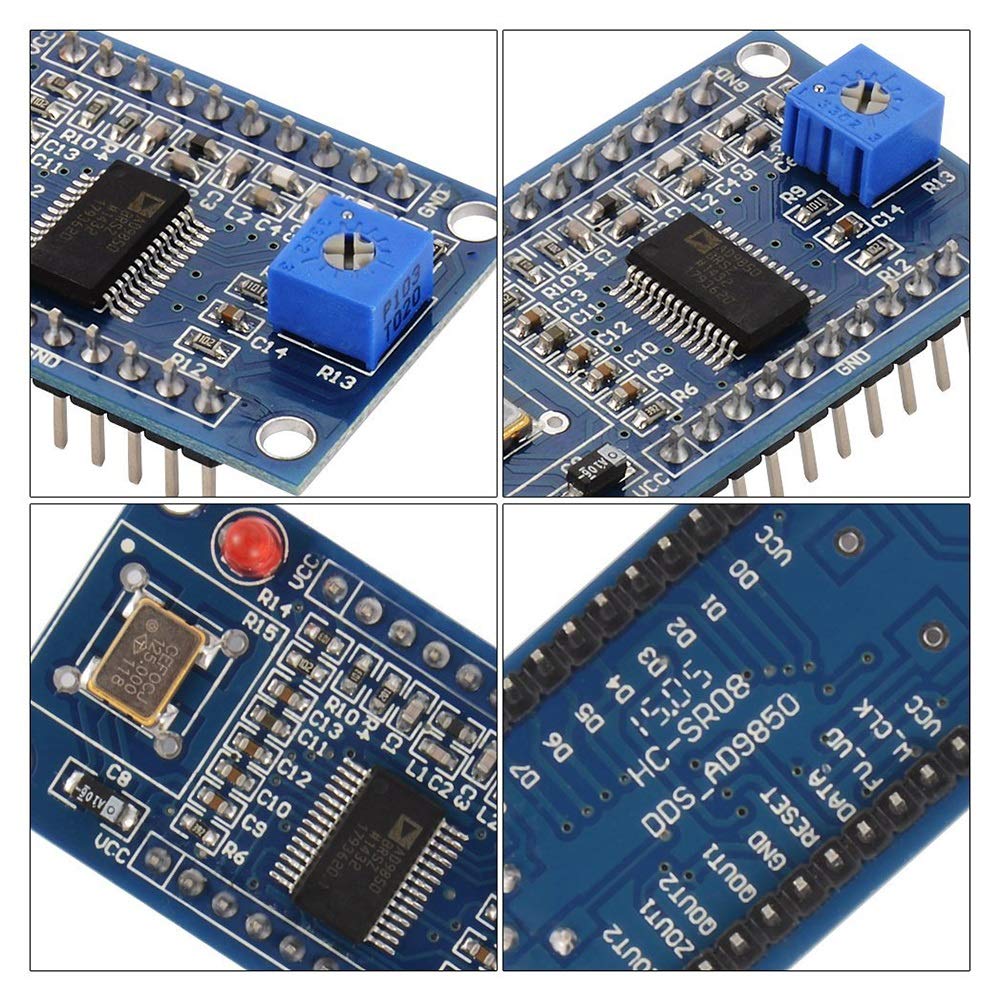

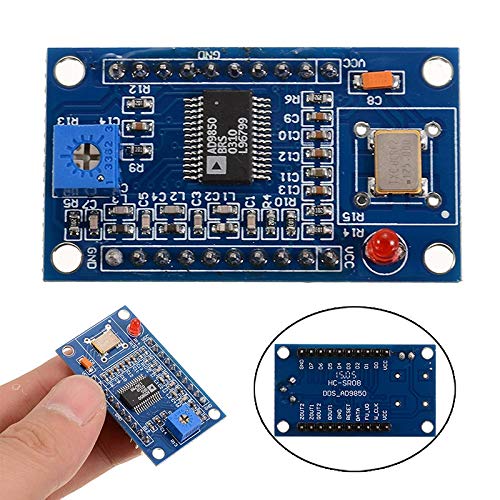

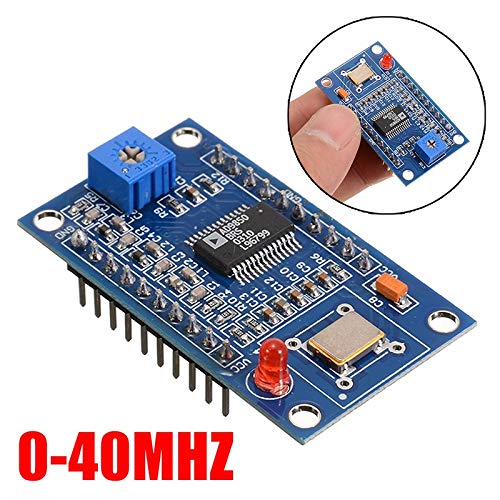

TECNOIOT AD9850 DDS Signal Generator Module 0-40MHz 2 Sine Wave And 2 Square Wave Output

• 【AD9850】AD9850 DDS Signal Generator Module 0-40MHz 2 Sine Wave and 2 Square Low-pass Filter Crystal Oscillator
• 【Compatible】 AD9850: 0-40MHz.2 sine wave and 2 square wave output. After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
• 【Design compact】Square Wave: 0-1MHz.Low-pass filter with 70MHz, so the waveform better than SN.Active AD9850 125MHz crystal oscillator modules.

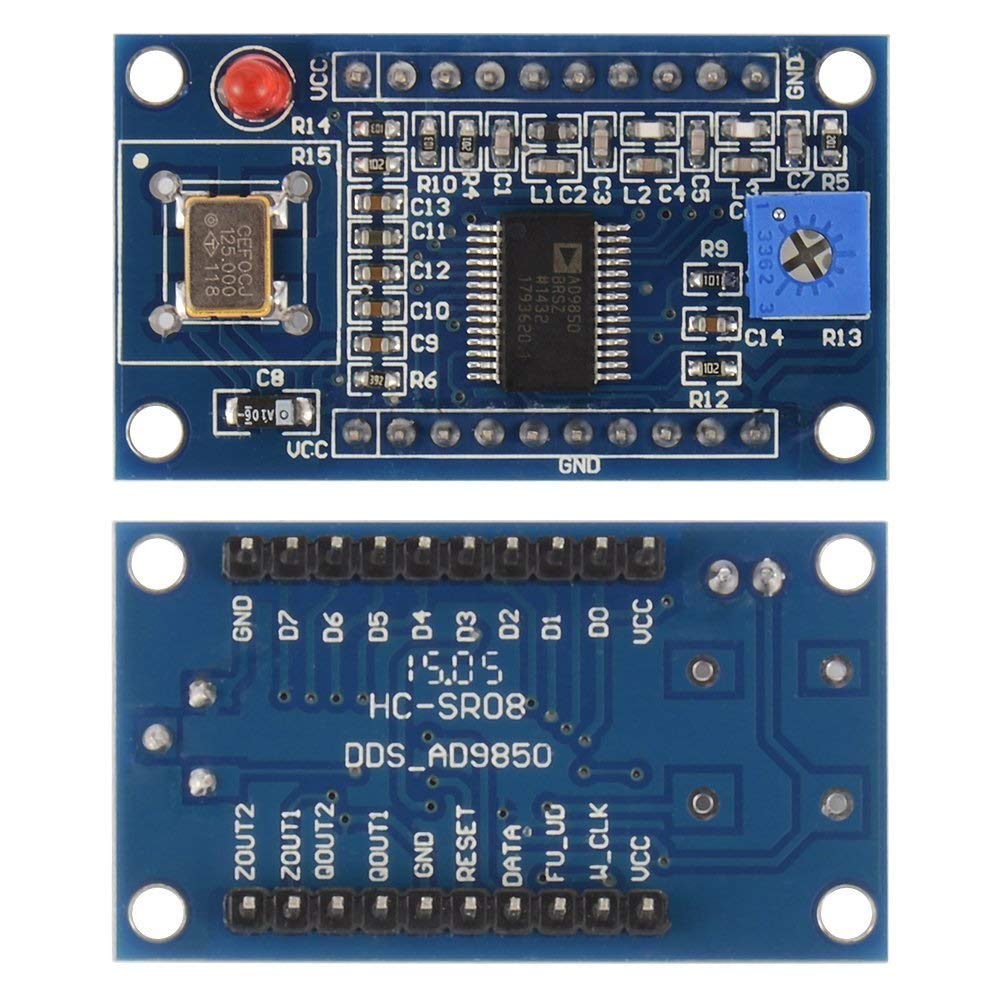

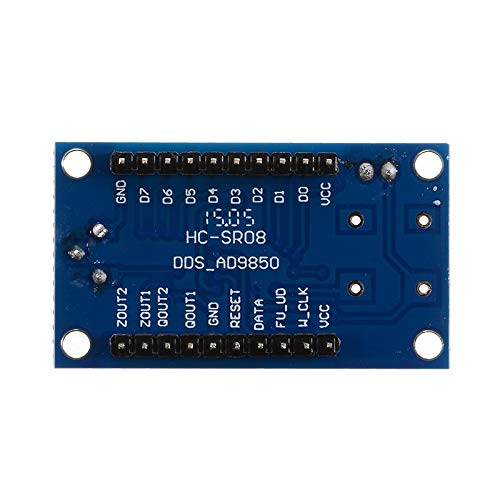

• 【Easy operation】Parallel and serial data input can be selected via a jumper.DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application.

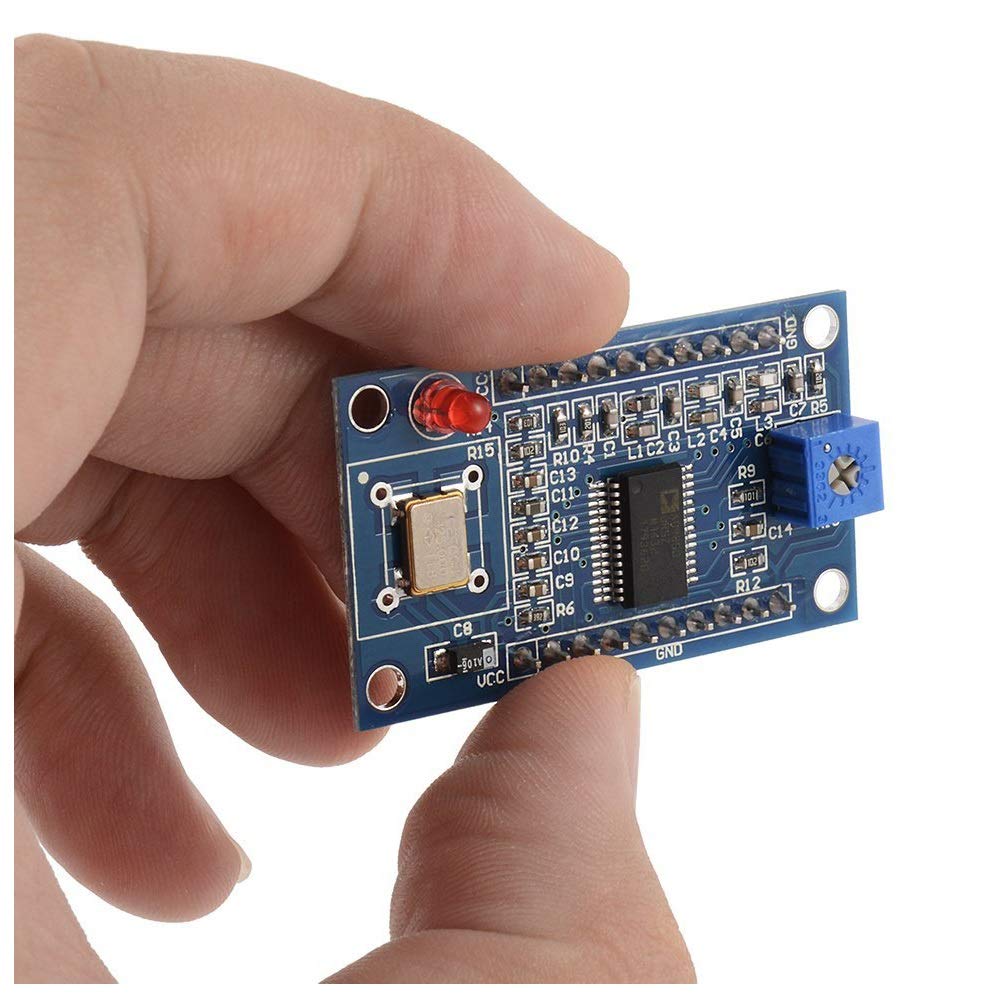

• 【High performance】Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different.Dimension:4.5cm x 2.6cm

AD9850 DDS Signal Generator Module 0-40MHz 2 Sine Wave and 2 Square Low-pass Filter Crystal Oscillator Specifications: 1. AD9850: 0-40MHz. 2. 2 sine wave and 2 square wave output. 3. After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean. 4. Square Wave: 0-1MHz. 5. Low-pass filter with 70MHz, so the waveform better than SN. 6. Parallel and serial data input can be selected via a jumper. 7. DA produced the benchmark pin (PIN12) leads for easy adjustment to do the magnitude of the output waveform Application. 8. Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different. 9. Active AD9850 125MHz crystal oscillator modules. 10. Dimension:4.5cm x 2.6cm Package Contains: 1pc x AD9850 DDS Signal Generator Module
