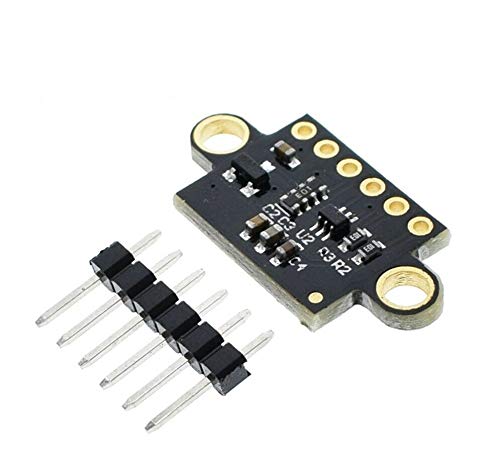

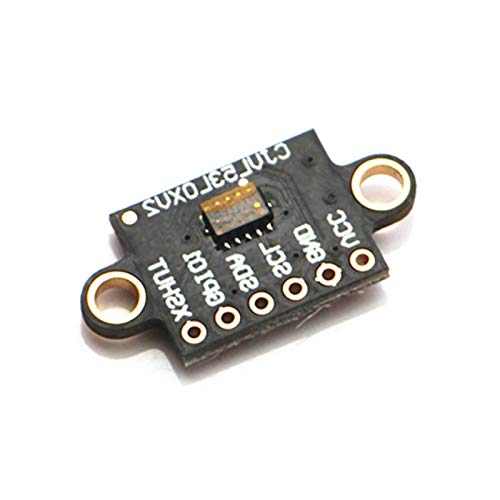

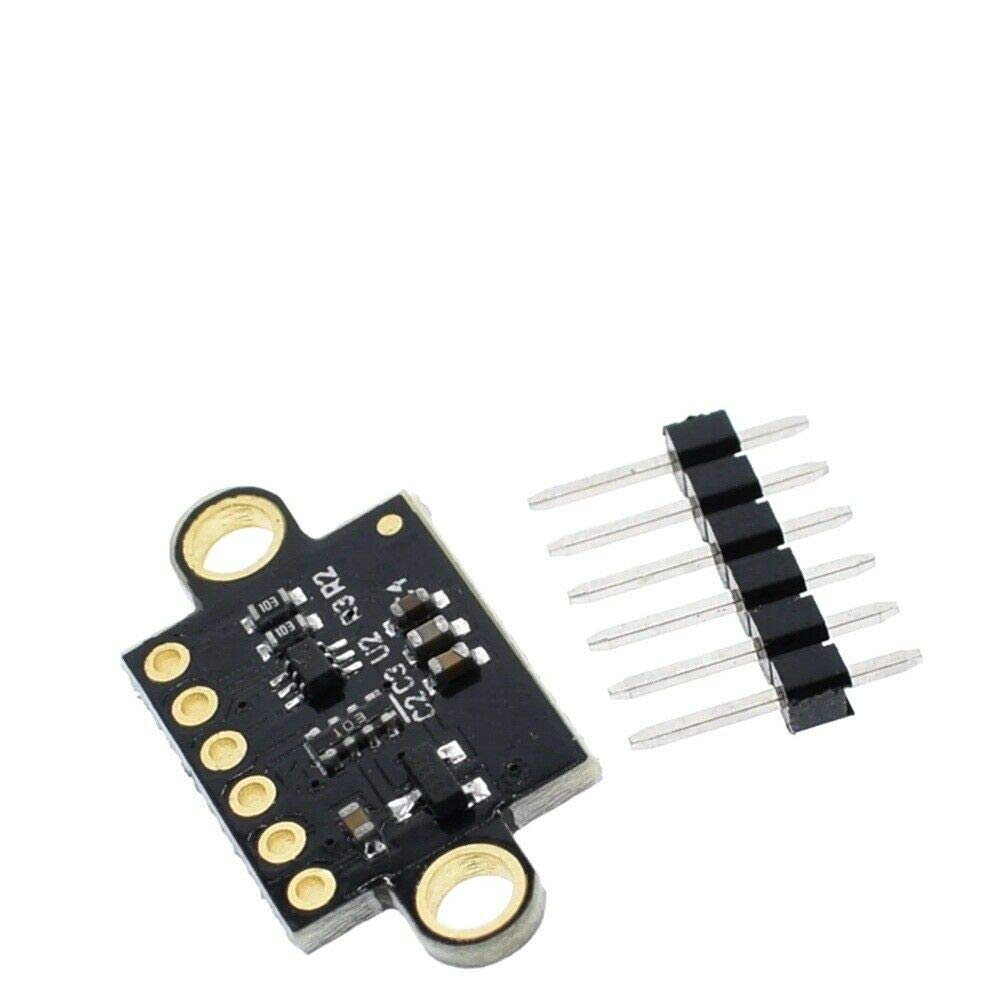

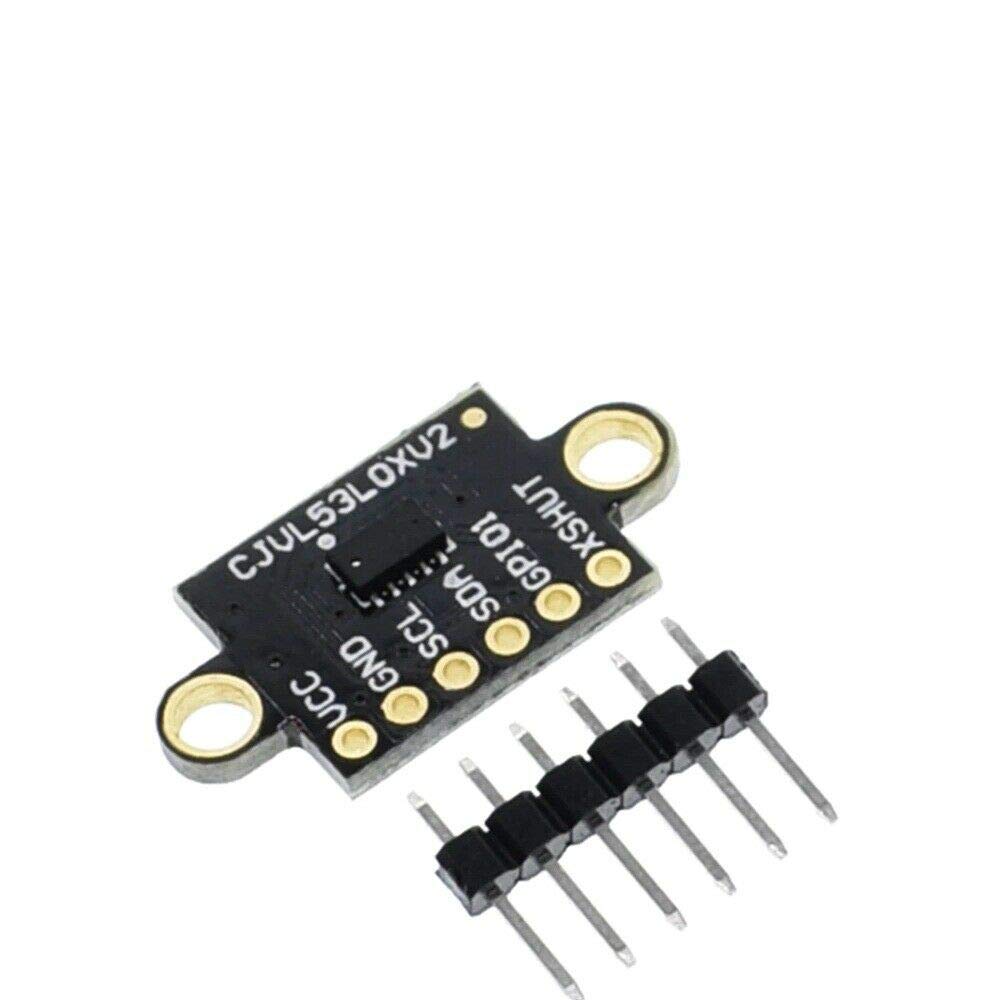

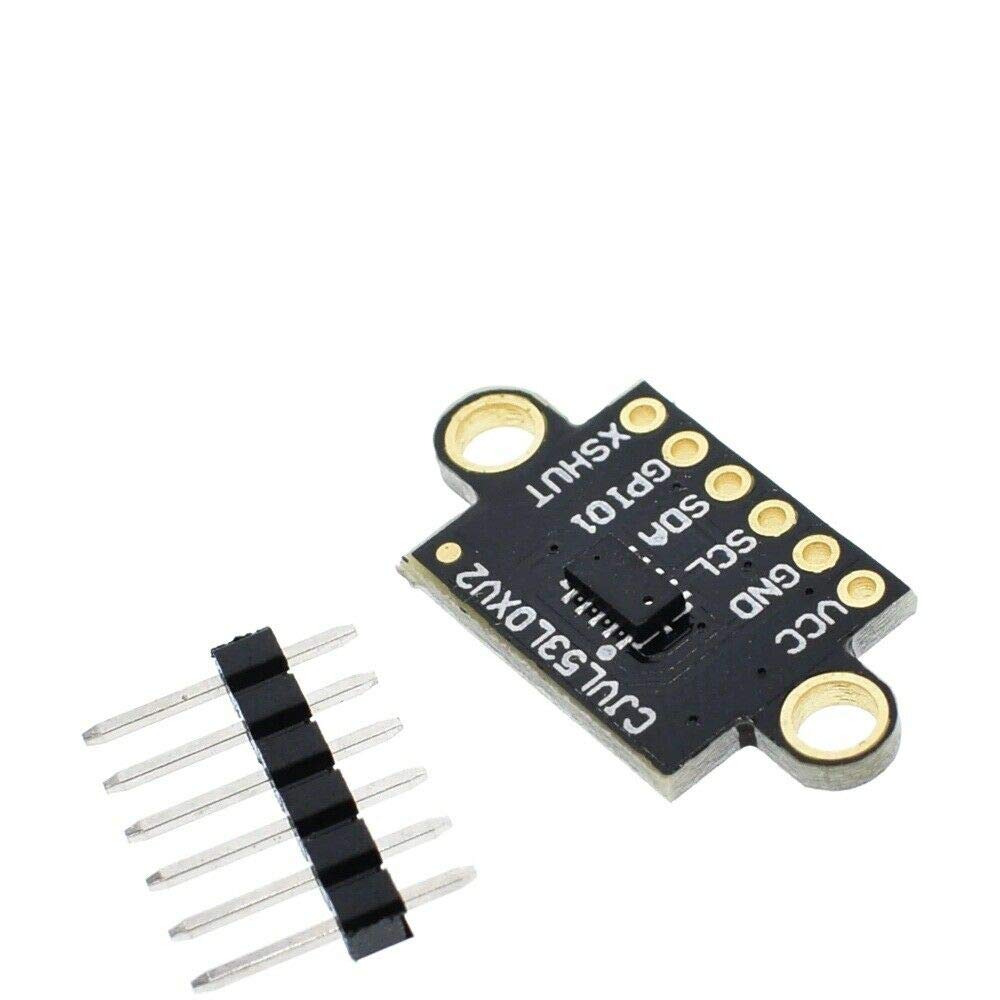

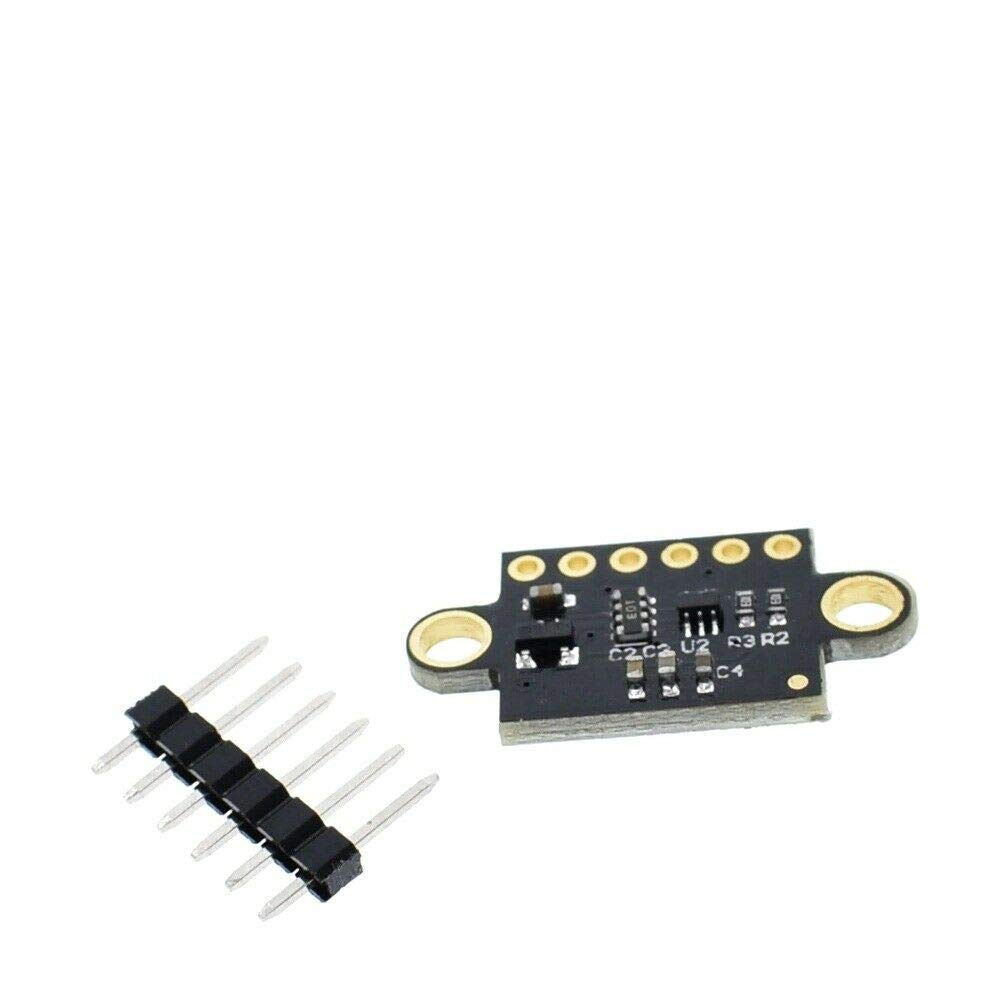

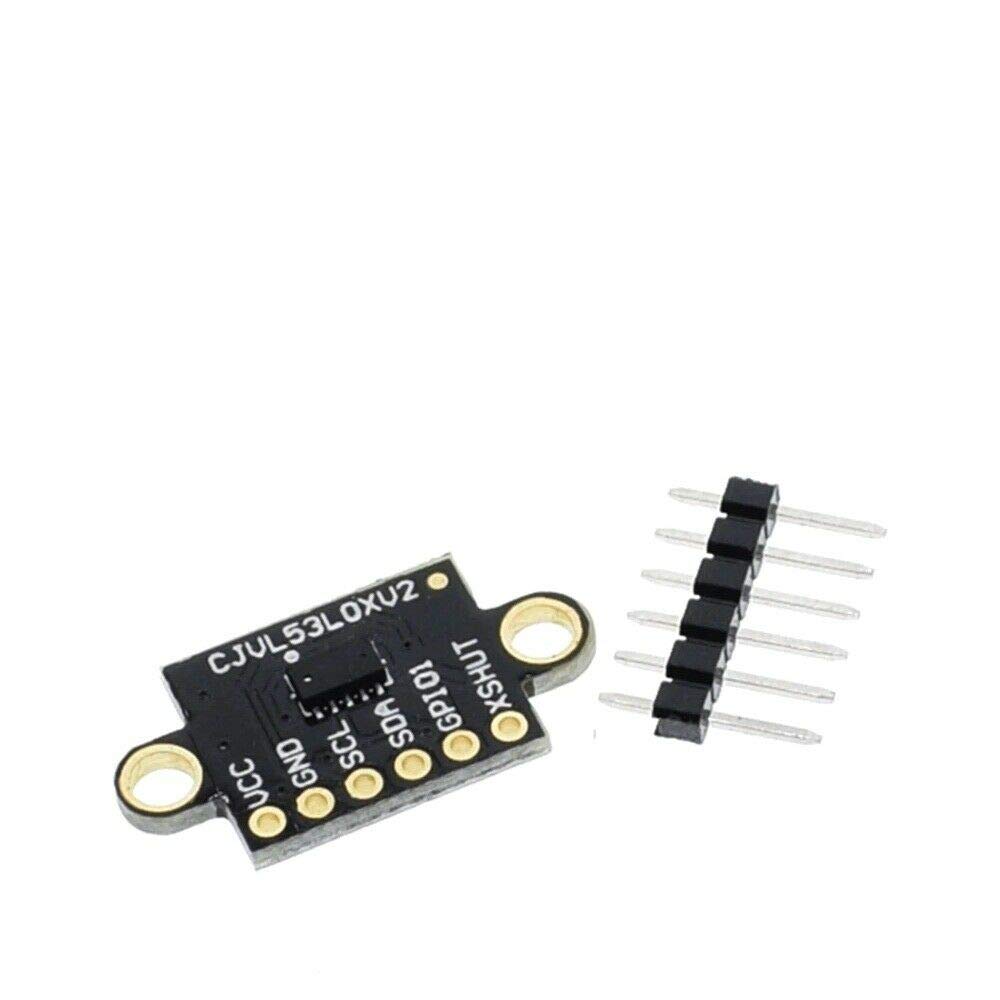

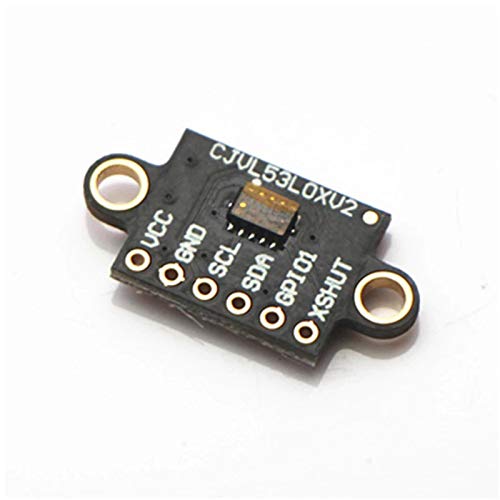

5pcs VL53L0X Time-of-Flight ToF Laser Ranging Distance Sensor 940nm GY-VL53L0XV2

X5pcs VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Distance Module I2C IIC for Arduino The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module. The VL53L0 uses ST's FlightSense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. PIN Description: VDD: Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.) VIN: This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I⊃2;C lines high to this level. GND: The ground (0 V) connection for your power supply. Your I⊃2;C control source must also share a common ground with this board. SDA: Level-shifted I⊃2;C data line: HIGH is VIN, LOW is 0 V SCL: Level-shifted I⊃2;C clock line: HIGH is VIN, LOW is 0 V XSHUT: This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted. Packet Contains: 5pcs x VL53L0X Laser Ranging Sensor
