5pcs MH-MX8 M18 Bluetooth MP3 Audio Receiver Lossless Decoder HiFi BLT 4.2 Stereo

• ?MH M18?MH M18 is a low power Bluetooth design solution, which supports the latest Bluetooth 4.2 transmission, lossless two channel stereo playback, and supports Bluetooth wireless transmission when the module is connected to Bluetooth, which is very convenient.
• ?Compatible?In an open environment, the Bluetooth connection distance can be up to 20 meters. Widely used in a variety of Bluetooth audio reception, a variety of audio DIY modifications.
• ?Compact Design?Bluetooth V4.2 version, supports Bluetooth automatic connection technology, supports lossless WAV/WMA/FLAC/APE/MP3 decoding, stereo two channel output.
• ?Easy to use?After turning on the module, the mobile phone will search for the Bluetooth name MH M18 and can play music after the Bluetooth connection.

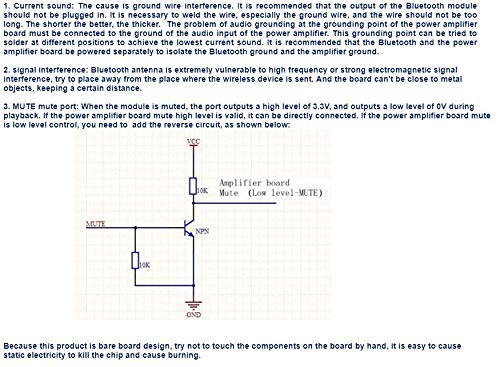

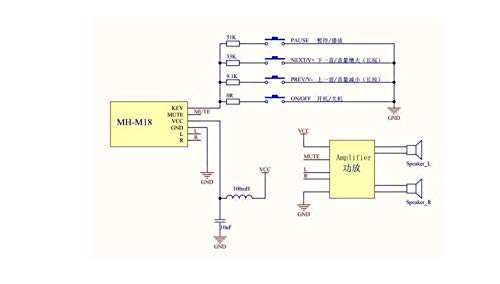

5pcs MH-MX8 M18 Bluetooth MP3 Audio Receiver Lossless Decoder HiFi BLT 4.2 Stereo MH-M18 is a power-low Bluetooth design solution that supports the latest Bluetooth 4.2 transmission, two-channel stereo lossless playback, and Bluetooth wireless transmission when the module is connected to Bluetooth, which is very convenient. In an open environment, the Bluetooth connection distance can be up to 20 meters. Widely used in a variety of Bluetooth audio reception, a variety of audio DIY modification. Function Description: Bluetooth V4.2 version, supports Bluetooth automatic connection technology, supports WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output. After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18, and can play music after connecting Bluetooth. Module blue indicator light: When the Bluetooth is not connected, the indicator light flashes quickly; When the Bluetooth connection is on, the indicator light is always on; When the Bluetooth is playing, the indicator light flashes slowly. MUTE mute control terminal: Used to control the power amplifier board. When muting, MUTE outputs a high level of 3.3V, and outputs a low level during playback. KEY button control: This function requires additional connection of resistors and buttons . Volume power off function: The default output is 100% volume. Press the button to control the volume increase and decrease. If the control volume is less than 15%, the volume output will be 15% after re-powering; if the control volume is greater than 15%, the original volume will remain unchanged after power-on. PCB size: 23*16*2.5mm (length, width and height) Pin pitch: 2.54mm (can be directly attached or soldered) Packet Contains: 5pcs x MH-M18 Bluetooth MP3 Audio Receiver
