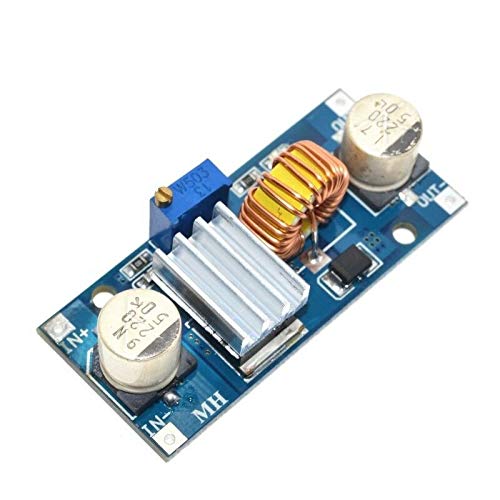

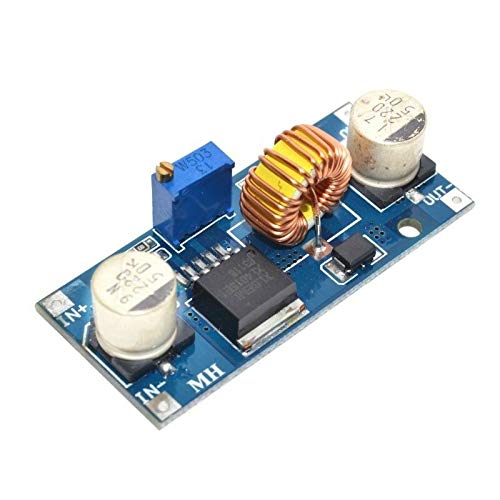

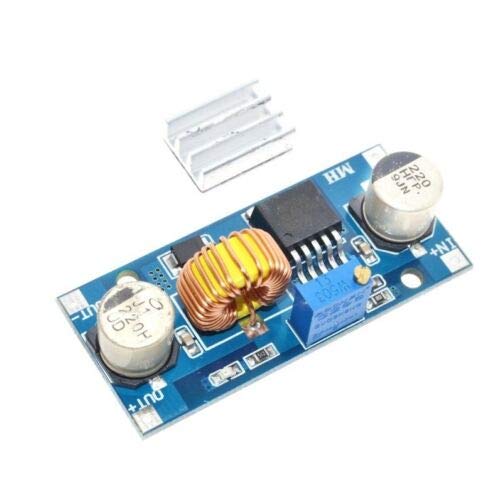

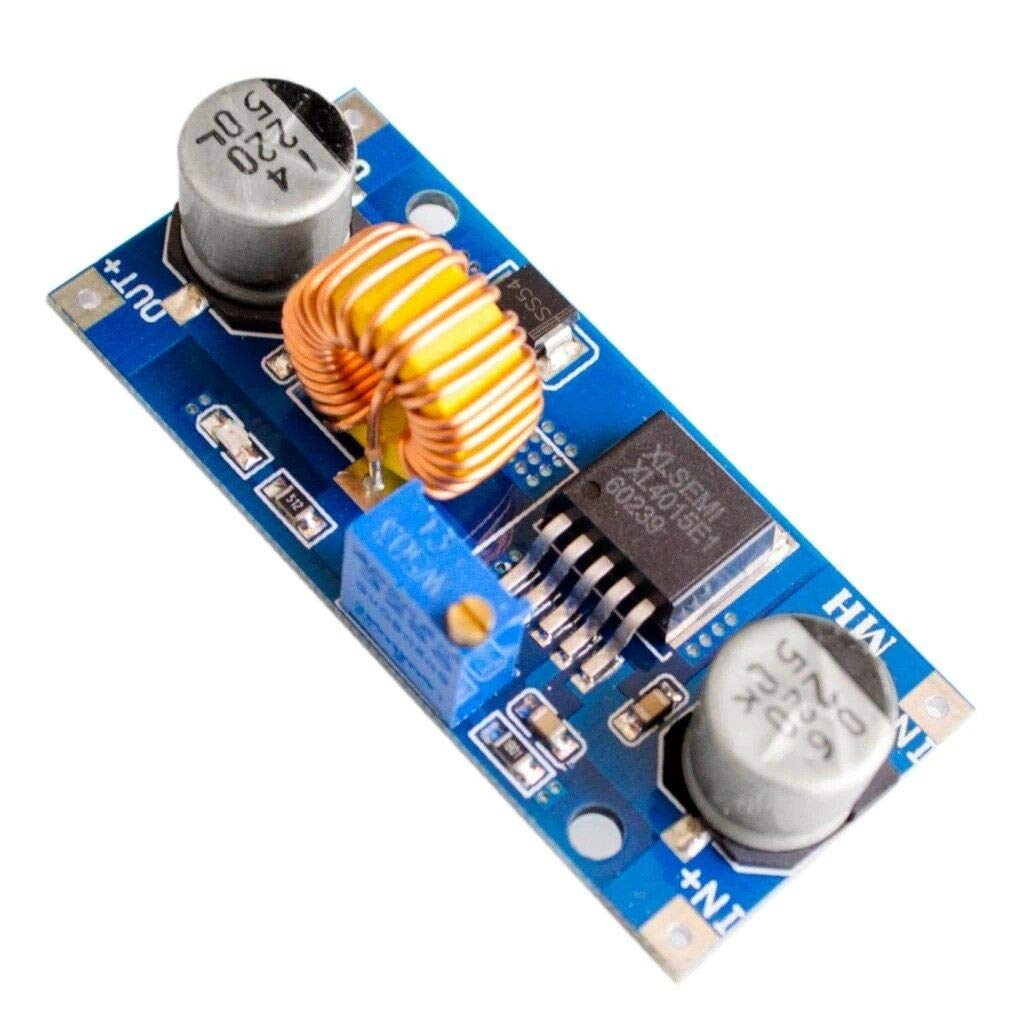

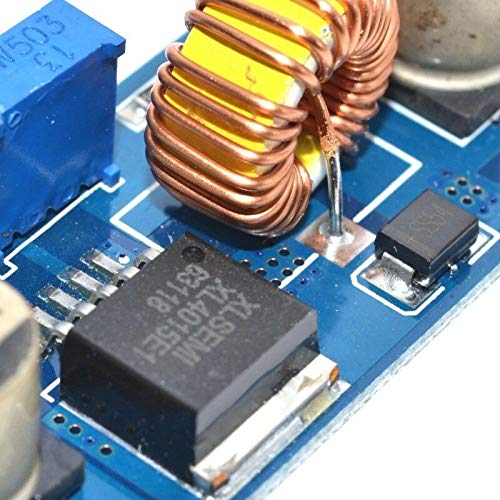

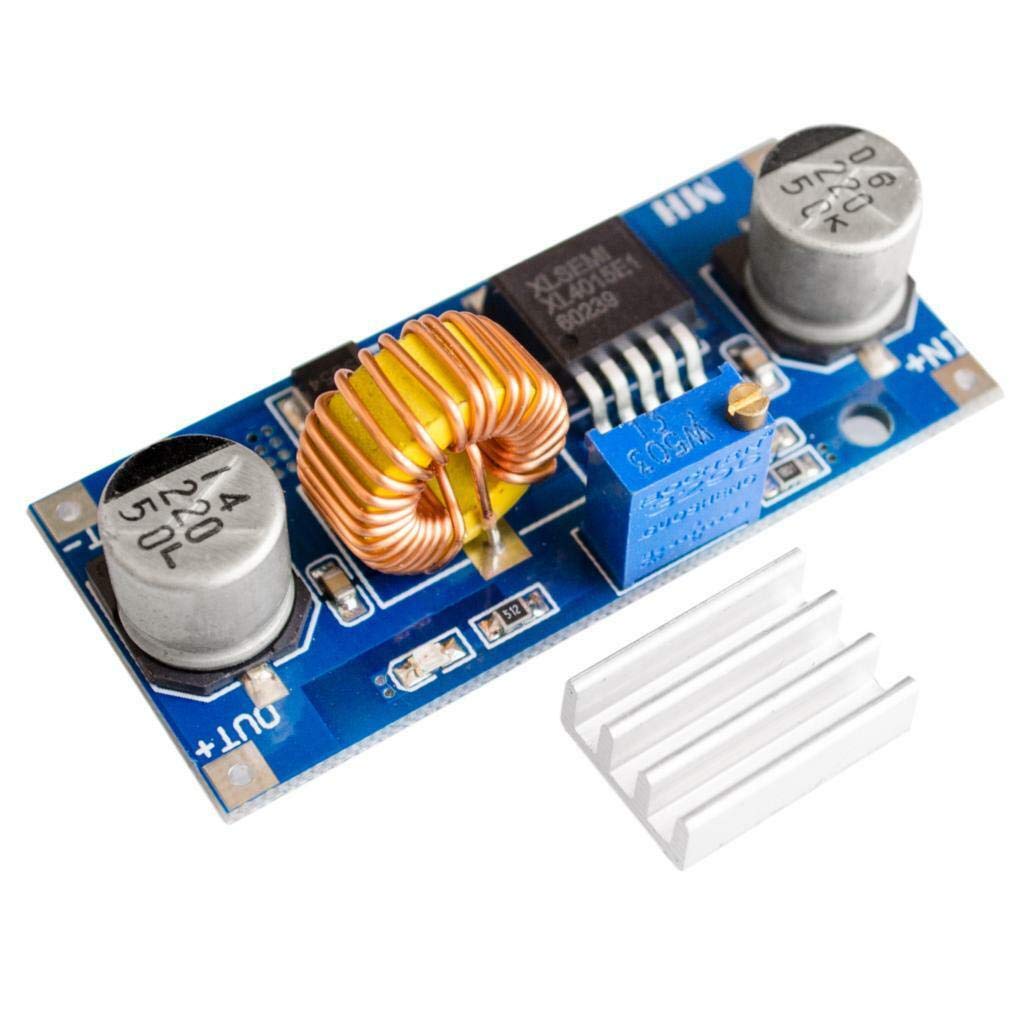

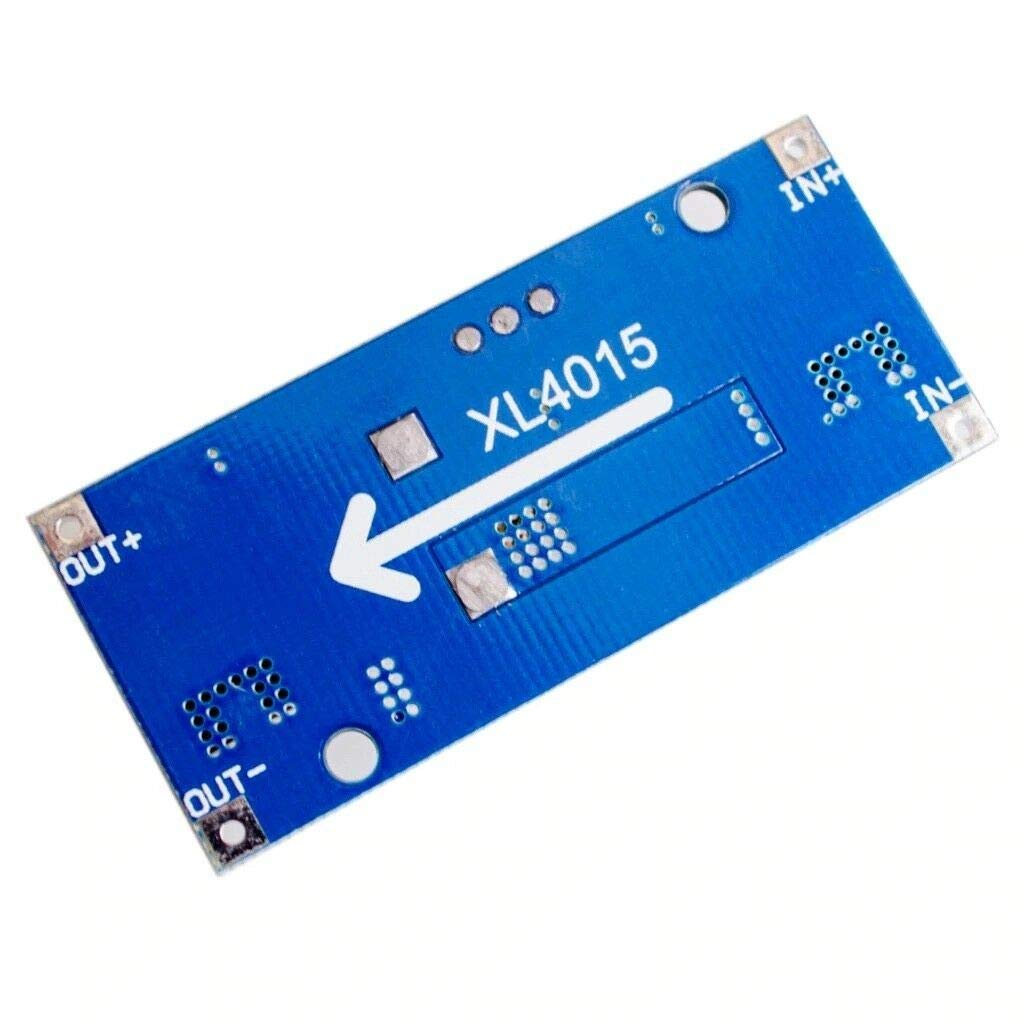

TECNOIOT 2pcs XL4015 DC-DC Step Down Adjustable Power Module 5A LED Lithium Charger

• 【XL4015】: The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer.
• 【INPUT VOLTAGE】: DIY adjustable regulated power supply, LCD Monitor and LCD TV,portable instrument power supply,telecom/networking equipment,24Vvehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, 36V buck to 24V etc.
• 【HIGH PERFORMANCE】:This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module,capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.
• 【Module highlights】:5A high power.high efficiency and low ripple with power indicator

x2pcs 5A Max DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Lithium Charger Step Down Module XL4015 DESCRIPTION: This linear module has constant voltage and constant current function (CC CV). and it has a good performance. When you use it as a charger. this module use good chip as core and it is stable. also its ripple is low to 50mV. Size: 51 * 26.3 * 14 (L * W * H) (mm) Operating Temperature: -40 ° to +85 ° Voltage Regulation: ± 2.5% Load Regulation: ± 0.5% Output ripple: 50mV (max) 20M bandwidth Switching frequency: 300KHz Conversion efficiency: 95% (the highest) Output current: adjustable maximum 5A Output voltage: 0.8V-30V Input voltage: 5V-32V Rectification: non-synchronous rectification Module Properties: non-isolated constant current and voltage module. Advantages: CC CV Low ripple When the module charges a battery, it first use constant current to protect the battery. check the curse above. PACKET CONTAINS: 2pcs x 5A Max Step-Down Buck Charging Board XL4015 Module
