TECNOIOT 2pcs GY-906 MLX90614 non-contact Infrared Temperature Sensor Module MLX90614ESF

• 【GY906】GY-906 MLX90614 non-contact Infrared Temperature Sensor Module MLX90614ESF IIC I2C

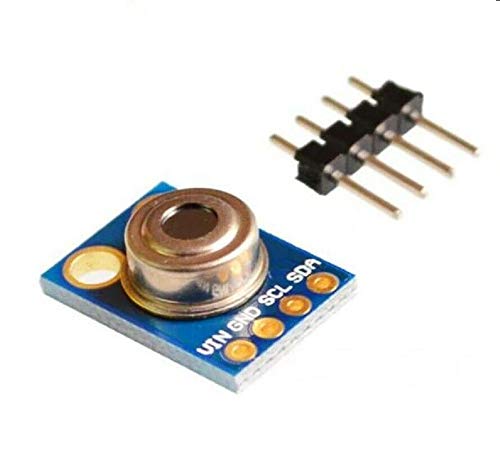

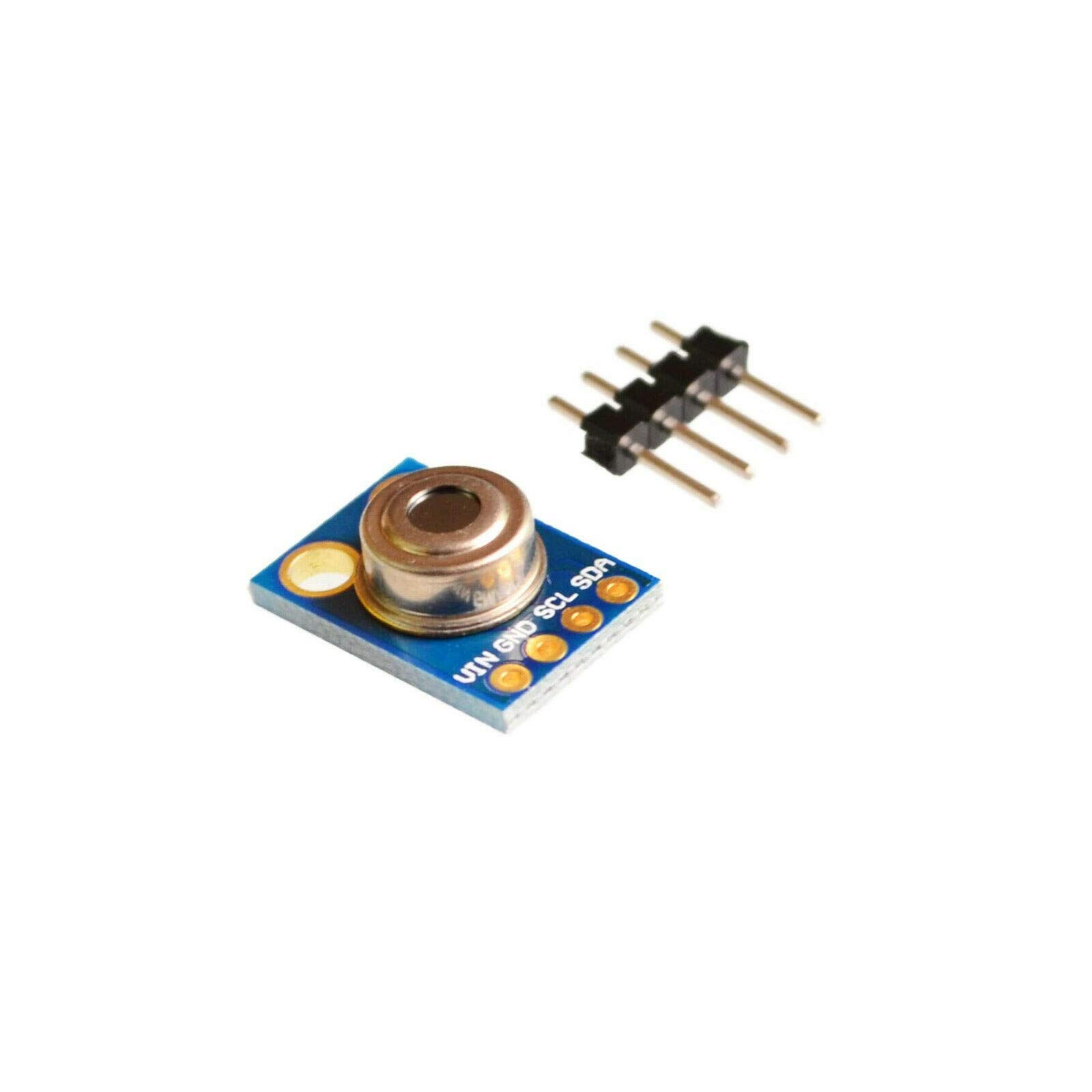

• 【Design compact】GY-906 MLX90614ESF is a non-contact infrared thermometer for Arduino, or any microcontroller that can communicate with it through it's I2C interface. This sensor comes with a breakout board with all of the components needed for operation and two types of pins.They are unsoldered.
• 【Easy operation】Small size, low cost; Mounted on a breakout board with two types of pins; 10k Pull up resistors for the I2C interface with optional solder jumpers; Easy to integrate. Measurement resolution of 0.02 DEGREE.
• 【Descripcion】Factory calibrated in wide temperature range: -40 ... + 125 C for sensor temperature and -70 ... + 380 C for object temperature. High accuracy of 0.5 C over wide temperaturerange (0 ... + 50 C for both Ta and To) High (medical) accuracy calibration.
• 【High performance】SMBus compatible digital interface; Customizable PWM output for continuousreading; Simple adaptation for 8 ... 16V applications. Sleep mode for reduced power consumption; Different package options for applications andmeasurements versatility;Automotive grade

X2pcs GY-906 MLX90614 non-contact Infrared Temperature Sensor Module MLX90614ESF IIC I2C GY-906 MLX90614ESF is a non-contact infrared thermometer for Arduino, or any microcontroller that can communicate with it through it's I2C interface. This sensor comes with a breakout board with all of the components needed for operation and two types of pins. They are unsoldered. Please indicate if you would like one or the other soldered. There are two solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but will not for most uses. Features: Small size, low cost Mounted on a breakout board with two types of pins 10k Pull up resistors for the I2C interface with optional solder jumpers Easy to integrate Factory calibrated in wide temperature range: -40 ... + 125 ° C for sensor temperature and -70 ... + 380 ° C for object temperature. High accuracy of 0.5 ° C over wide temperaturerange (0 ... + 50 ° C for both Ta and To) High (medical) accuracy calibration Measurement resolution of 0.02 ° C Single and dual zone versions SMBus compatible digital interface Customizable PWM output for continuousreading Simple adaptation for 8 ... 16V applications Sleep mode for reduced power consumption Different package options for applications andmeasurements versatility Automotive grade Packet Contains: 2pcs x GY-906 MLX90614 non-contact Infrared Temperature Sensor Module
