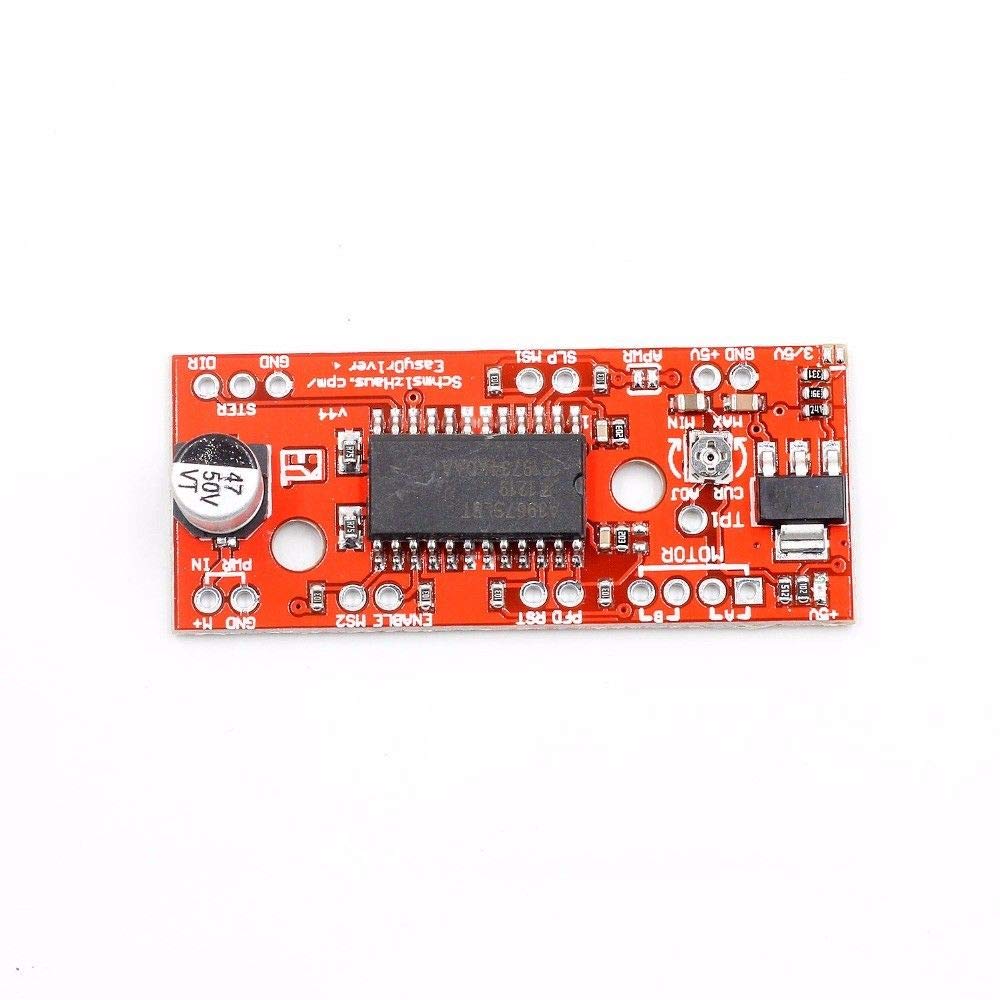

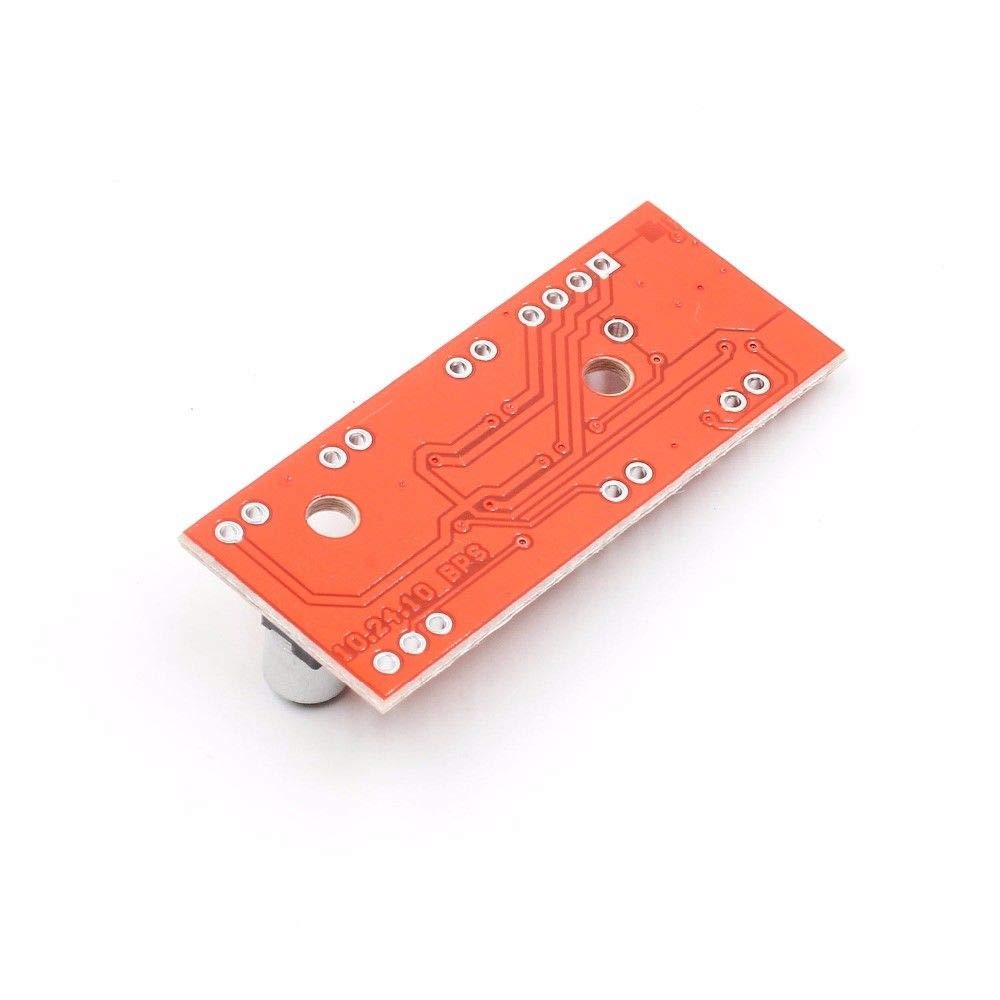

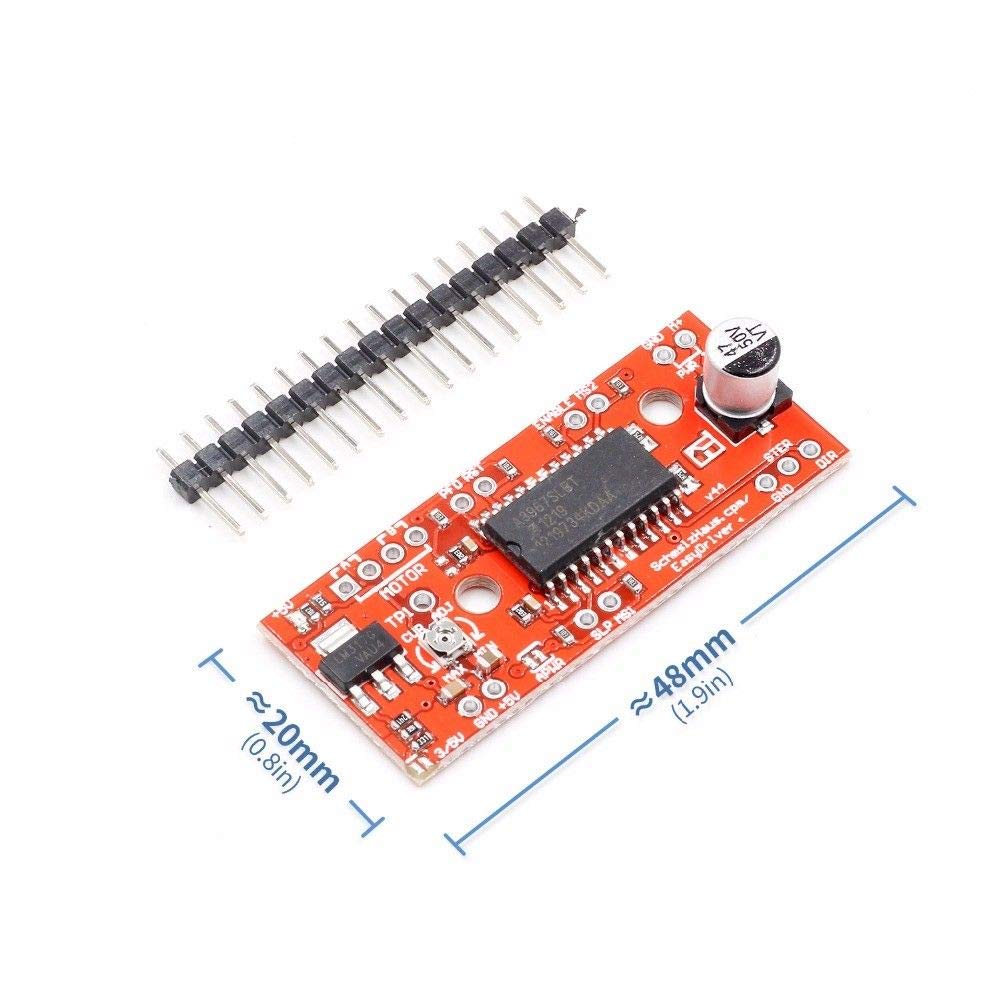

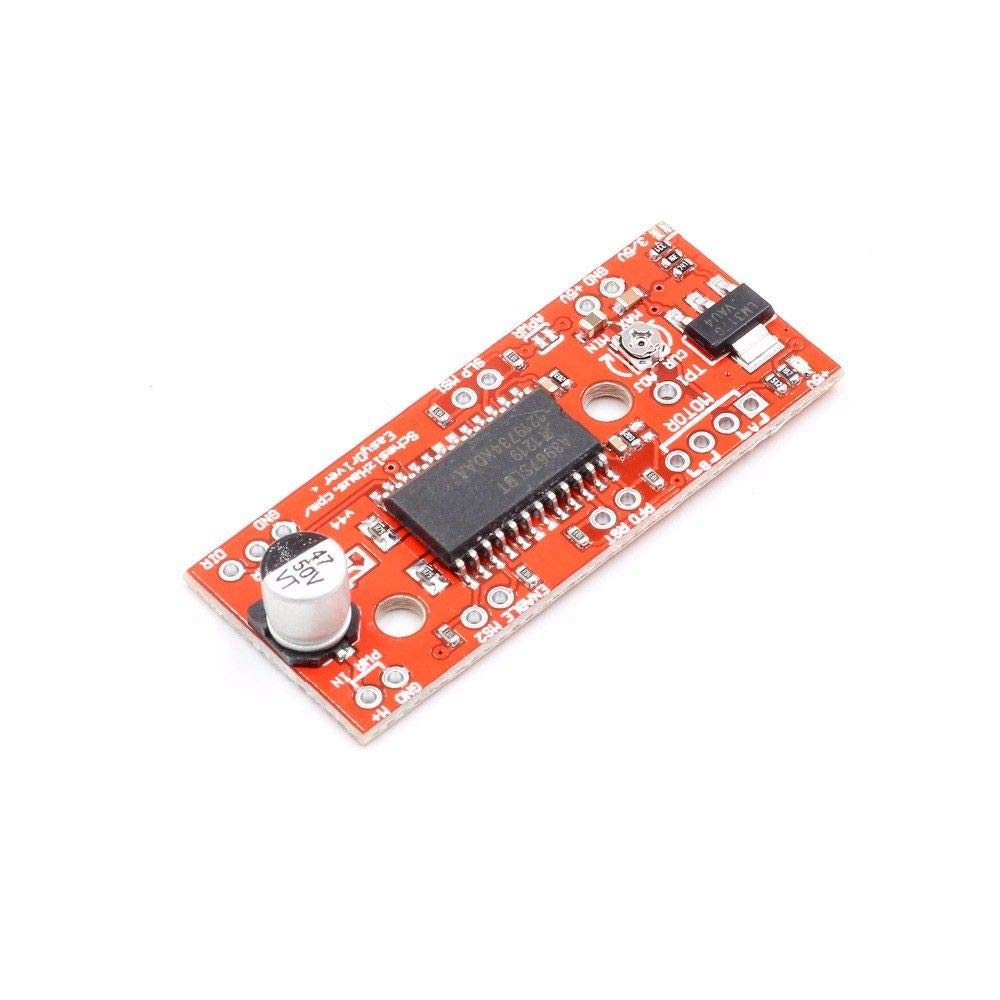

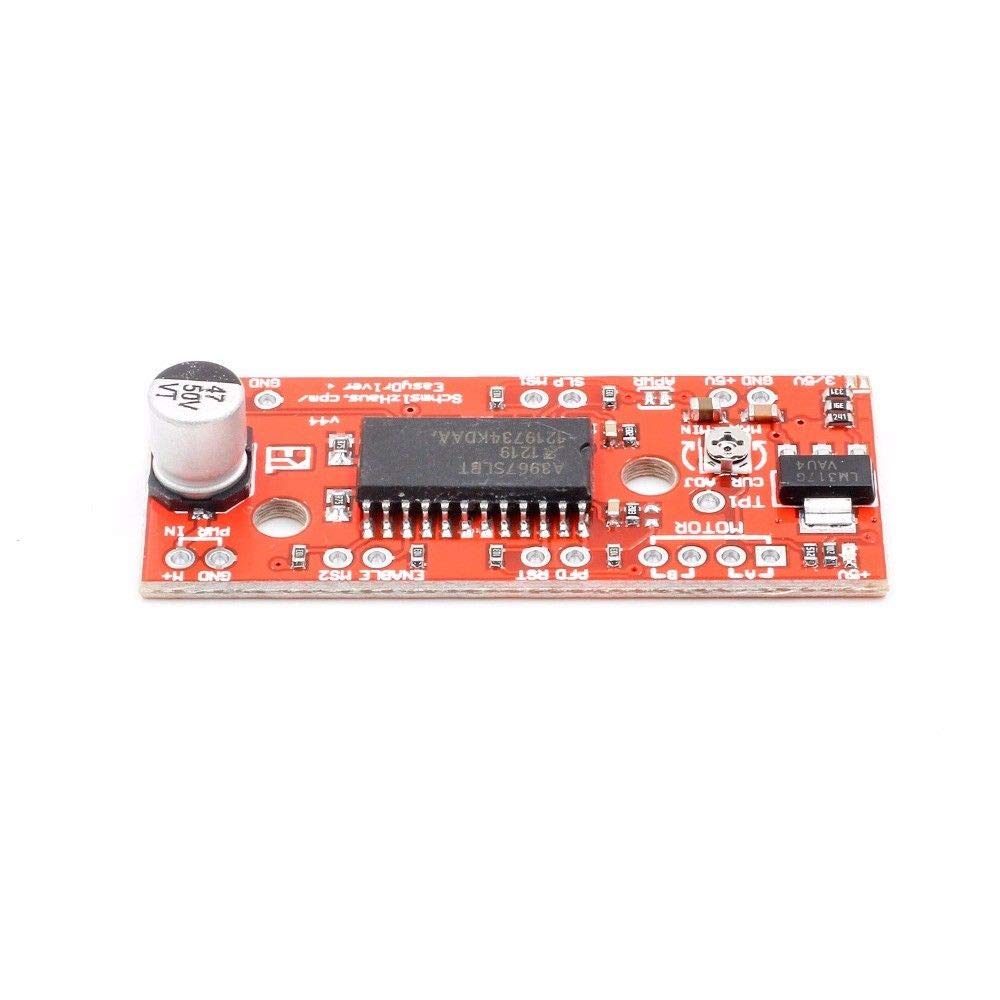

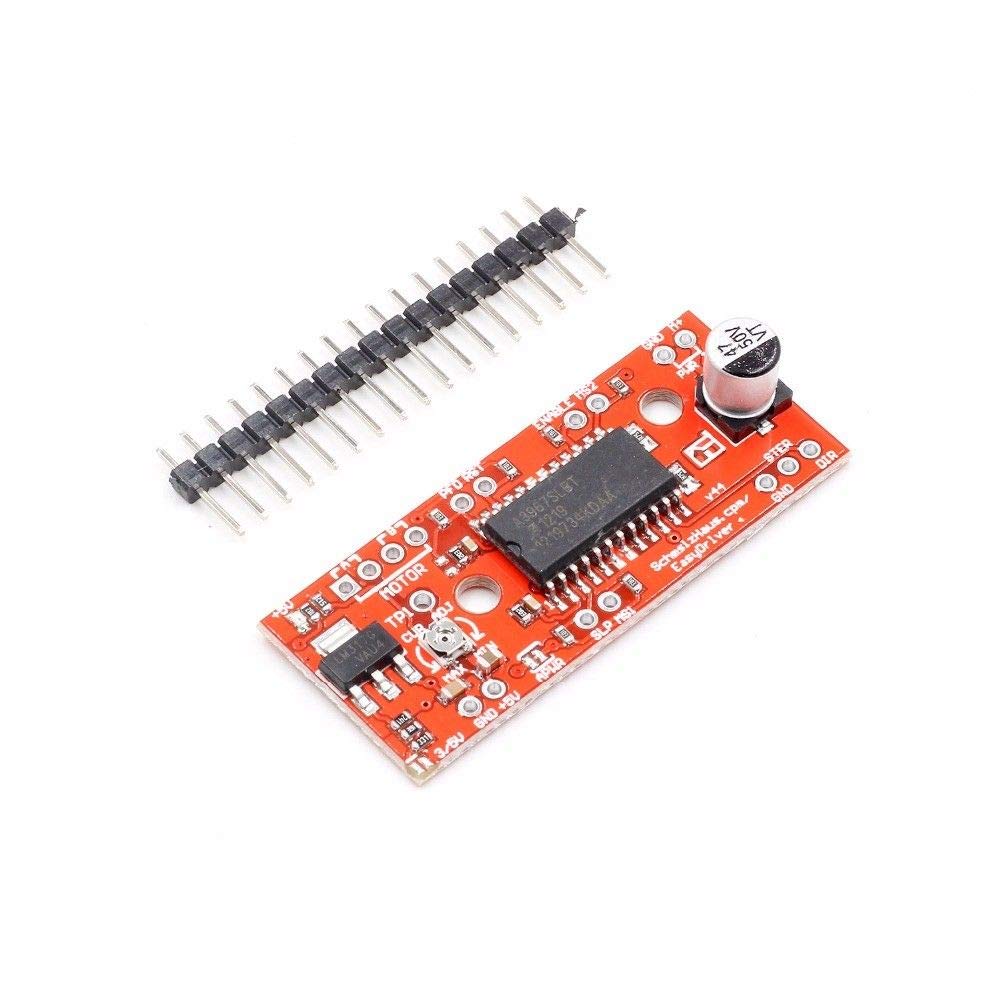

TECNOIOT 2pcs A3967 EasyDriver Stepper Motor Driver V44 Development Board

• 【A3967】 EasyDriver Stepper Motor Driver V44 for the 3D printer of the Arduino development board
• 【Easy operation】 The pitch angle of the stepper motor is generally defined with parameters or a number of steps, the general revolution of the motor is divided into 200 steps, which is the pitch angle of 1.8 degrees, the function of EasyDriver subdivision with one step, this subdivision of the driver board 8 segments, that is, each step of the engine is subdivided into 8 small steps, this can be more precise control, that is, EasyDriver at 1600 steps to complete a full rotation of 360 degrees.
• 【Easy compact design The EasyDriver is an easy-to-use stepper motor controller, compatible with anything that can generate a digital pulse of 0 to 5V (or a pulse of 0 to 3.3V if soldering SJ2 closed in the EasyDriver). EasyDriver requires a 7V to 30V power supply to power the motor and can power any motor voltage step by step.
• 【High performance】 The EasyDriver has a built-in voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and obtain precision motor control. EasyDriver manages bipolar motors. and motors wired as bipolar. That is to say. Stepper motors of 4.6 or 8 cables. In this version (v4.4) we have corrected the silk error in the minimum / maximum setting.
• 【Compatible】 Compatible with stepper motors of 4, 6 and 8 cables of any voltage. Adjustable current control of 150mA / phase to 750mA / phase. Power range from 7V to 30V. The higher the voltage, the higher the torque at high speeds.

x2pcs A3967 EasyDriver Stepper Motor Driver V44 for Arduino Development Board 3D Printer DESCRIPTION: Stepper motor step angle is usually defined with parameters or a number of steps, the general motor revolution is divided into 200 steps, which is the step angle of 1.8 degrees, EasyDriver subdivision function with a step, this driver board subdivision 8 segments, that is, each step of the motor is subdivided into 8 small step, this can be more precise control, ie EasyDriver to 1600 steps to complete a full 360 degree rotation. The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V.Connect a 4-wire stepper motor and a micro controller and got precision motor control!EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.On this version (v4.4) we fixed the silk error on the min/max adjustment. MS1 and MS2 pins broken out to change micro stepping resolution to full, half, quarter and eighth steps (defaults to eighth).Compatible with 4, 6, and 8 wire stepper motors of any voltage.Adjustable current control from 150mA/phase to 750mA/phase.Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds. Specifications: Main color: Red Board size: 47 x 20mm Pin header size: 51 x11mm Net weight: 7g Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC. PACKET CONTAINS: 2pcs x A3967 module 2pc x Pinheads
