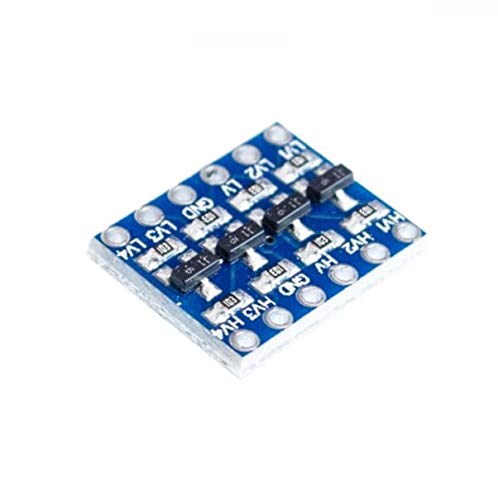

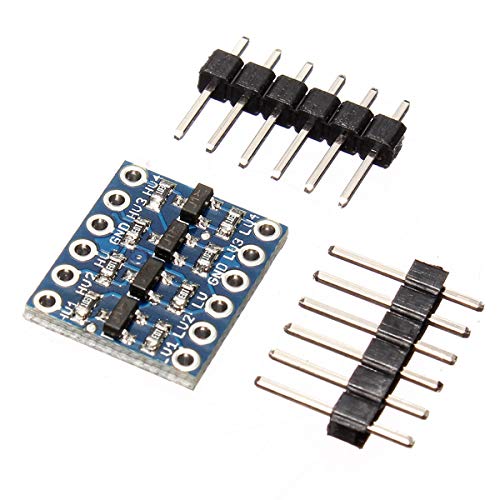

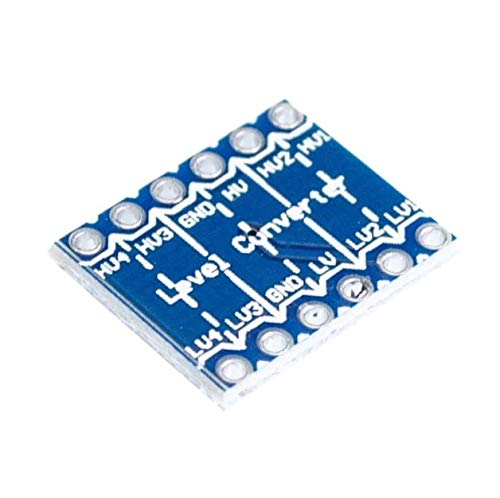

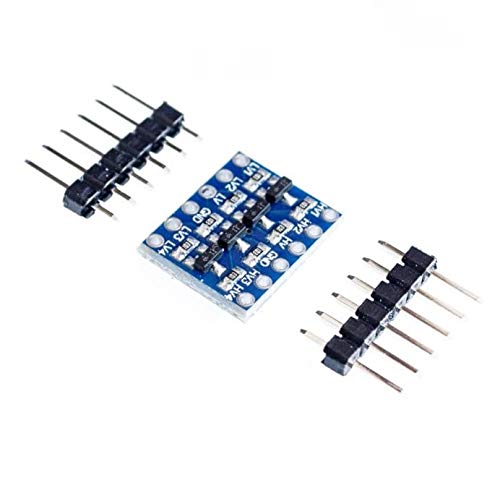

TECNOIOT 10pcs 4 Channel IIC I2C Logic levels Converter Bi-Directional Module 5V to 3.3V

• 【Logic niveles Converter】 3.3 V 5 V TTL niveles Bi-directional transferencias
• 【Design compact】 When MCU and 3.3 V device Module is Connected, 5 V and 3.3 V TTL niveles Mutual transferencia is very convenient
• 【Compatible】 Can be directly used and put on the Breadboard
• 【Module size】Approx. 1.5 cm x 1.5 cm

x10pcs IIC I2C Logic Level Converter Bi-Directional Module 5V to 3.3V Description: If you’ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. This bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. You can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side. The level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the ‘HV’ pin, low voltage (3.3V for example) to ‘LV’, and ground from the system to the ‘GND’ pin. Especificaciones: -4MOS tube to achieve four 3V and 5V level of two-way conversion -With anti-reverse polarity power input protection, integrated 3.3VLDO, and provide external current is not greater than 150mA -With power indicator light, a job and not a glance -Can achieve UART, IIC, 1-wire, SPI and other 3V-5V bus signal level of Bi-Directional conversion Package Contains: 10pcs x IIC I2C Logic Level Converter Bi-Directional Module
