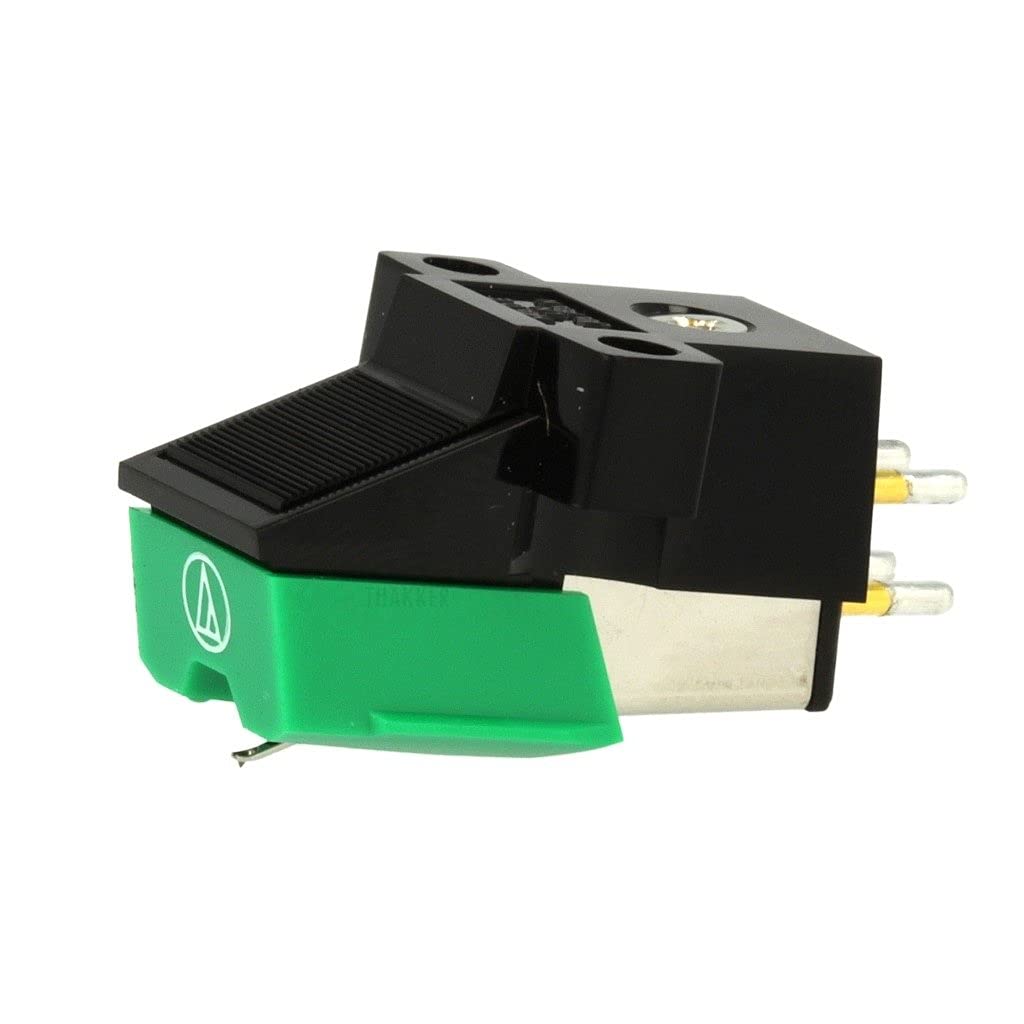

Technika Audio at 95 mm Phono Cartridge

• Type: MM Fixing: Half-inch mount Output voltage: 3,5mV bei 1kHz, 5cm/sec. Amplifier-connection: Phono MM Frequency range: 20-20.000Hz Compliance: 6,5 x 10 – 6 cm/dyne (100 Hz) Material: diamond, bonded Stylus type: elliptical 0.4 x 0.7 mil Tracking force range: 1,5-2,5g Tracking force, recommended: 2,0g Recommended load resistance: 47 kOhm Recommended load capacitance: 100-200pF Weight: 5,7g Dimensions: 17,2 (H) x 17,0 (W) x 30,5 (L) mm

Audio Technica AT95e Cartridge & Stylus Hifi Elliptical, New Original UK sourced Audio Technica AT95E Cartridge Top performing Budget HI FI Cartridge with proven High quality performance fitted Elliptical Stylus Suitable for Hi-Fi applications... Supplied with screws and data sheet SPECIFICATIONS audio-technica AT95E Phono Cartridge Specifications Output voltage at 1000 Hz, 5cm/sec. 3.5 mV Channel balance within 2.0 dB Channel separation at 1 kHz > 20 dB Frequency response 20-20.000 Hz Dynamic compliance (x10-6 cm/dyne) 6.5 Static compliance (x10-6 cm/dyne) 20 Load resistance 47 kOhms Load capacitance 100 - 200 pF Stylus type 0.4 x 0.7 mil elliptical diamond stylus Tracking force range 1.5 -2.5 g Tracking force, recommended 2.0 g (20 mN) Vertical tracking angle 20° Coil impedance at 1kHz 2.8 kOhms Coil inductance at 1kHz 400 mH Recommended load resistance 47 kOhms Cartridge colour, body/stylus Black/Green Cartridge weight 6.5 g Dimensions (mm) L 30.5 x W 17.0 x H 17.20 Replacement stylus unit ATN95E See my other listings if you want this item mounted on generic silver or black Headshell suitable for most popular Japanese origin turntables
