Techly IDATA HDMI-EA74K HDMI Audio Extractor LPCM 7.1 4K UHD 3D Black

• It extracts the audio signal from an HDMI source
• Enables 4Kx2K resolutions and 3D reproductions
• Supports audio HDMI high bit rate (HBR)
• Incoming and outgoing can use HDMI cables with up to 15 metres in length 1080p 8-bit resolution or 10m to 1080p 12bit

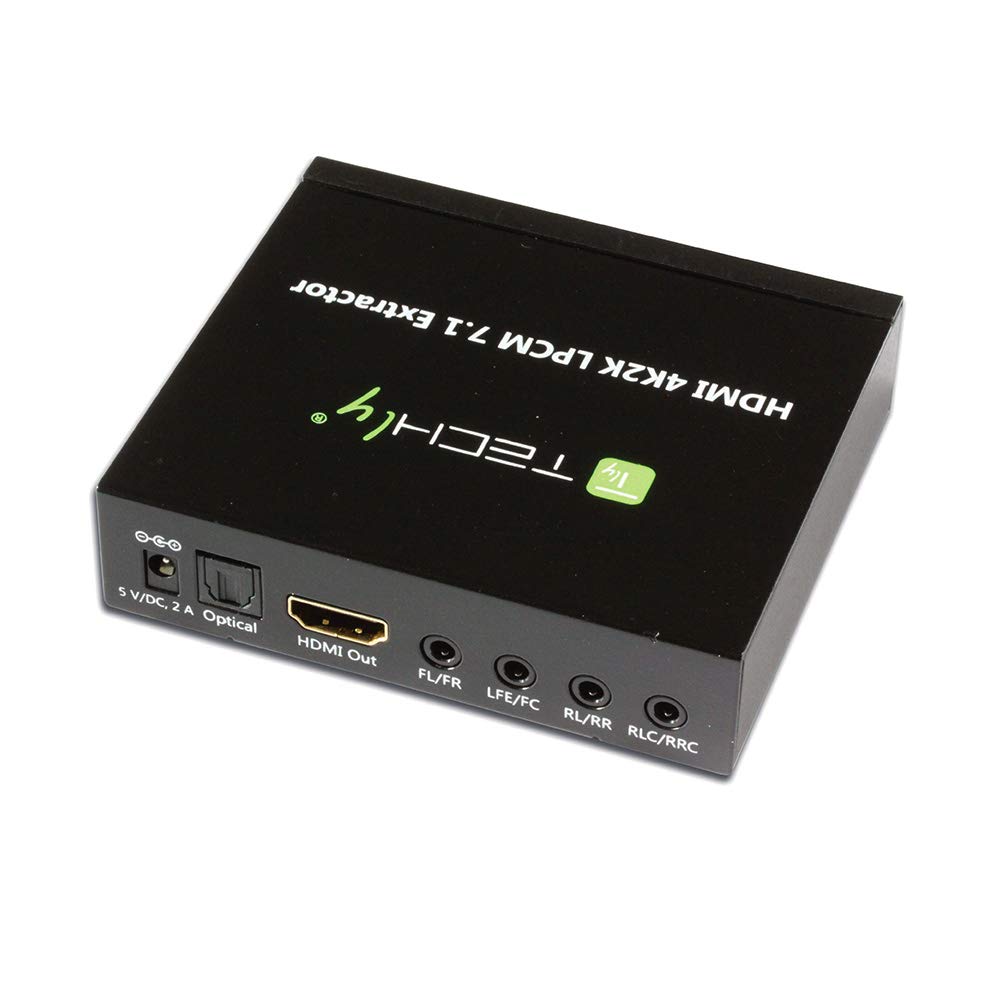

Product Description • It extracts the audio signal from an HDMI source. • Supports HDMI audio sampling rates up to 192 kHz • Supports optical audio sampling rate S/PDIF audio up to 192 kHz • Supports 4 outputs 3.5 inch multi-channel analogue audio. • Enables 4Kx2K resolutions and 3D reproductions • Meets HDMI, HDCP 1.2 and DVI 1.0 • Supports Audio HDMI High Bit Rate (HBR) • No HDMI ports for receiving audio on analogue and optical outputs • Incoming and outgoing can use HDMI cables up to 15 metres in length 1080p 8-bit resolution or 10m to 1080p 12bit • Supports EDID audio function between LPCM 7.1CH, TV EDID (external) and audio bitstream • Supports CEC bypass • Black colour Technical specifications: • Video bandwidth: 300Mbps / 9Gbps • Input ports: 1 x HDMI • Output ports: 1 x HDMI, 1 x Optical, 4 x 3.5 inch jack socket • HDMI audio sampling frequency up to 192 kHz • SPDIF optical audio sampling frequency up to 192 kHz. • HDMI audio format: LPCM 2 / 5.1 / 7.1CH, 5.1 channel Dolby Digital 2 ~, ~ 2 5.1 channel DTS, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio • Audio in optical format: 2CH LPCM, Dolby Digital 5.1 CH2 ~, ~ 2 and DTS 5.1CH • Audio format L/R: 4 x output phone jack format; 7.1 CH analogue audio • Power supply including 5V 2A Box Contains Techly HDMI Audio Extractor LPCM 7.1 4K UHD 3D
