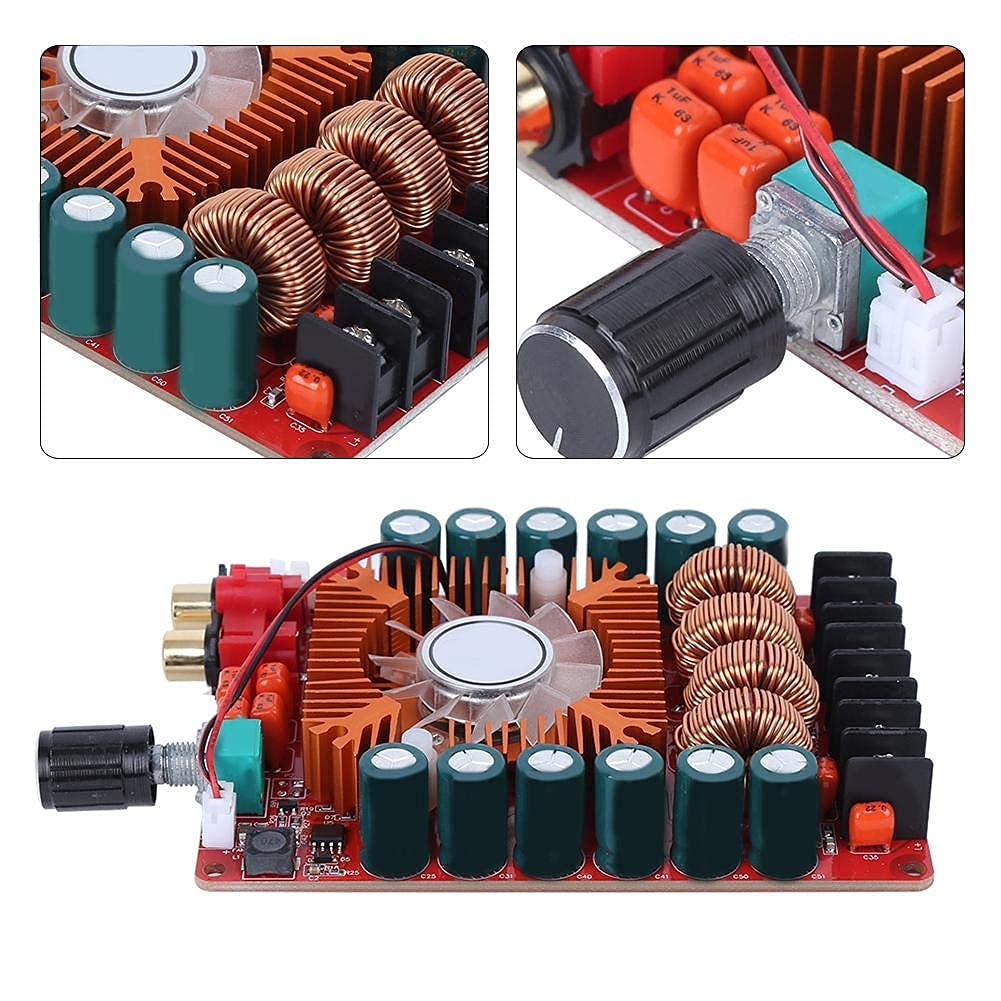

Fafeicy TDA7498E Audio Amplifier Board Module, 2 * 160W 15-36VDC Dual Channel Stereo BTL Mono,Temperature-Controlled Forced Air Cooling Heat Dissipation

• Stereo Double Sound Output: The power amplifier board has built-in double-channel stereo processing capabilities, which can bring rich layers and wide sound field stereo sound experience to your audio system.
• Intelligent Temperature Control Heat Dissipation: It adopts temperature control forced air cooling design, automatically adjusts the fan according to the working temperature.

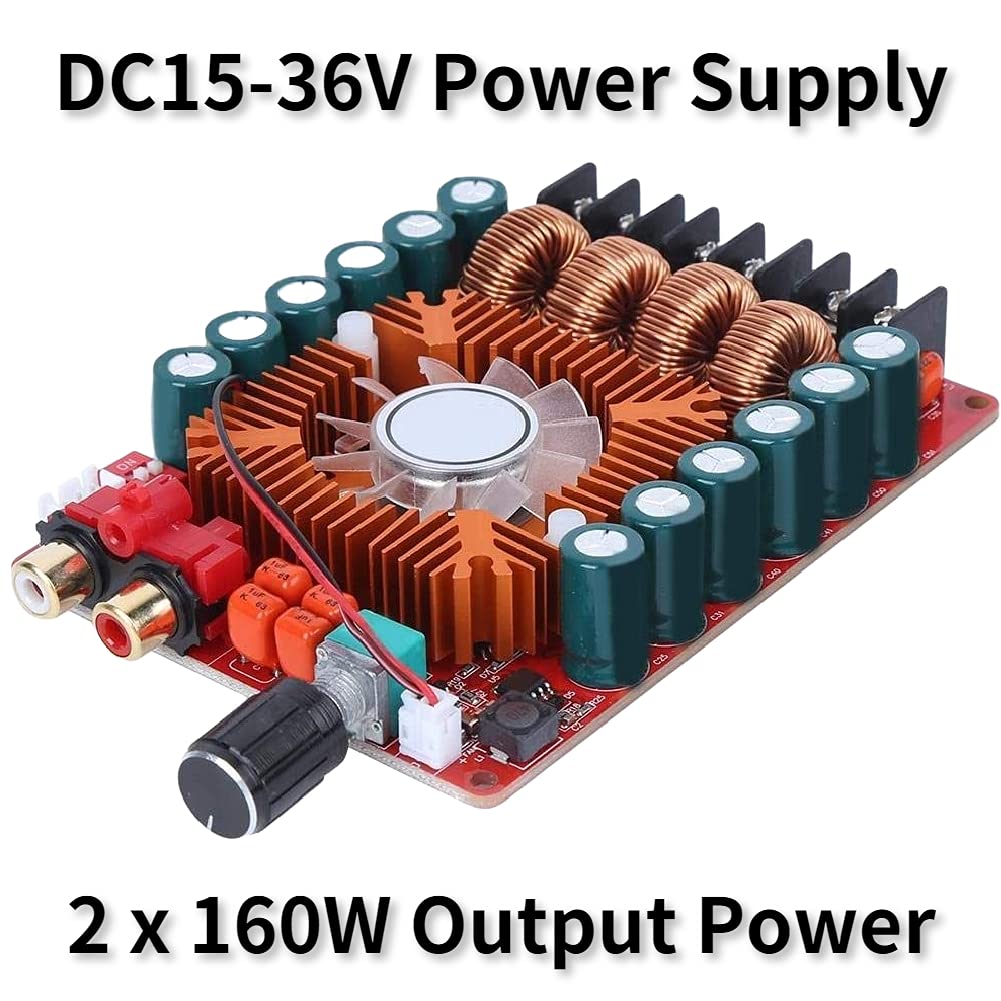

• Wide Voltage and Efficient Drive: This digital power amplifier board supports 15-36VDC wide range DC voltage input, and has reverse polarity protection.

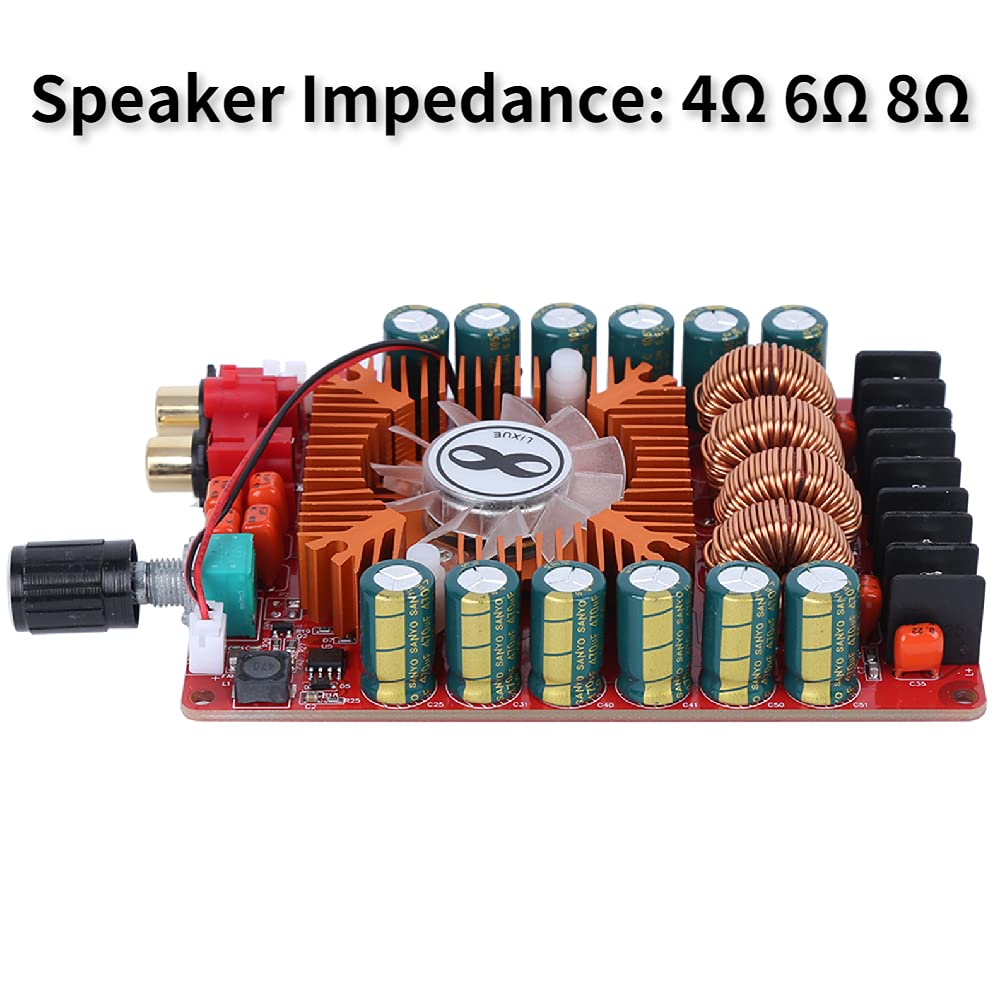

• Strong Adaptability: This digital power amplifier board is compatible with a variety of common speaker impedances such as 4Ω, 6Ω, and 8Ω, and can flexibly match speakers of different specifications.

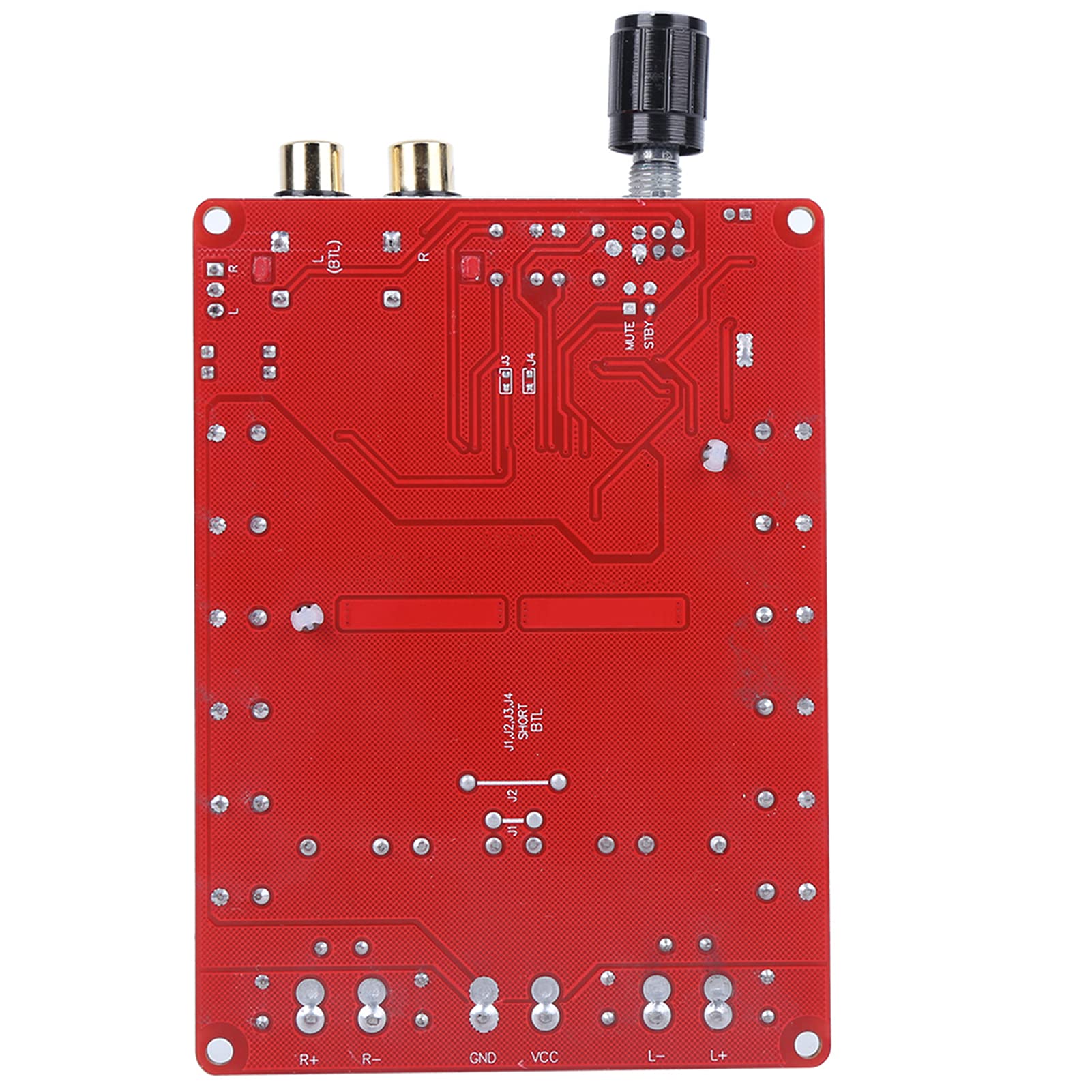

• Flexible and Optional Mode: Supports BTL (bridge push-pull) working mode, which can provide higher output power than the normal mode under specific loads, meeting the scenes with higher requirements for volume or bass effects.

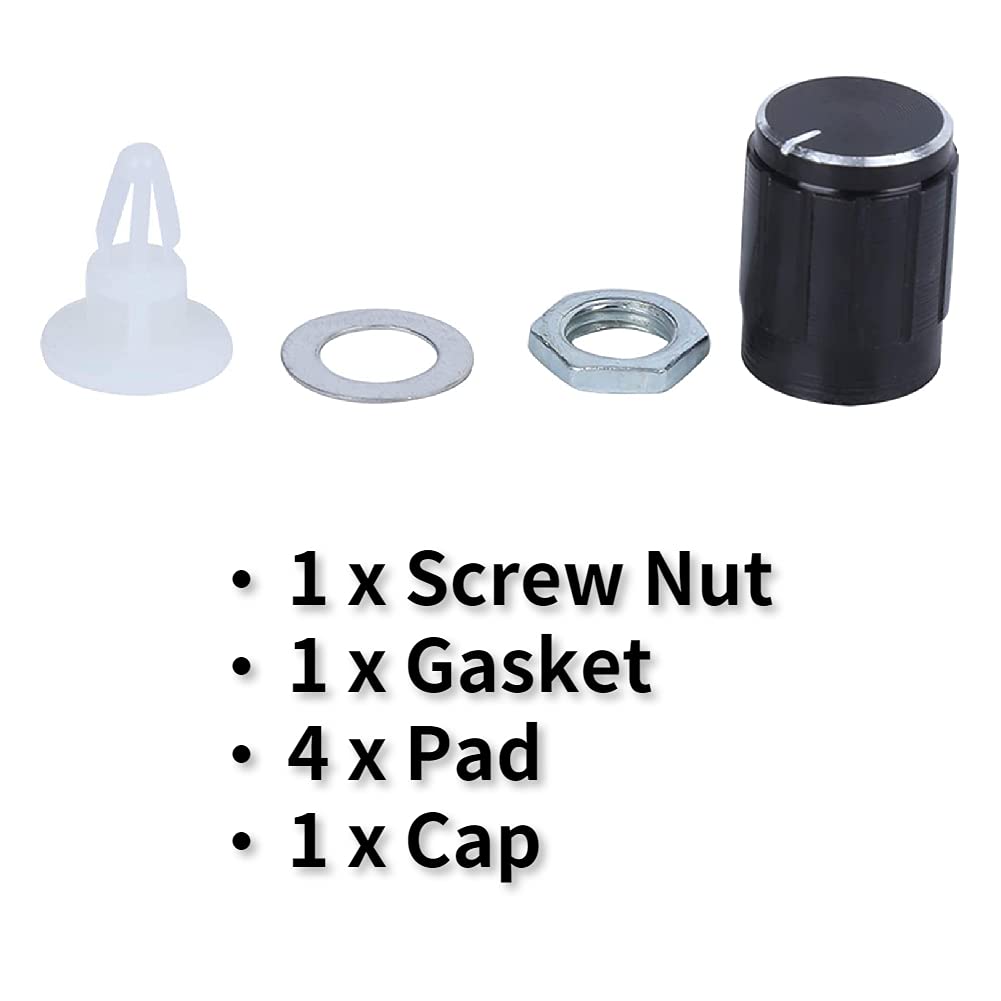

Specification: Condition: 100% brand new Item Type: Digital Power Amplifier Board Material: PCB. Colour: as shown in the picture. Chip: Original TDA7498E chip Output power: 2X160W Operating voltage: 15-36VDC (DC input with reverse polarity protection) Speaker impedance: 4Ω, 6Ω, 8Ω Heat dissipation method: temperature controlled forced air cooling Work efficiency: 85% BTL: Support Package list: 1 x TDA7498E Digital Power Amplifier Board 3 x screws. 3 x gasket. 4 x pads. 1 x cap.
