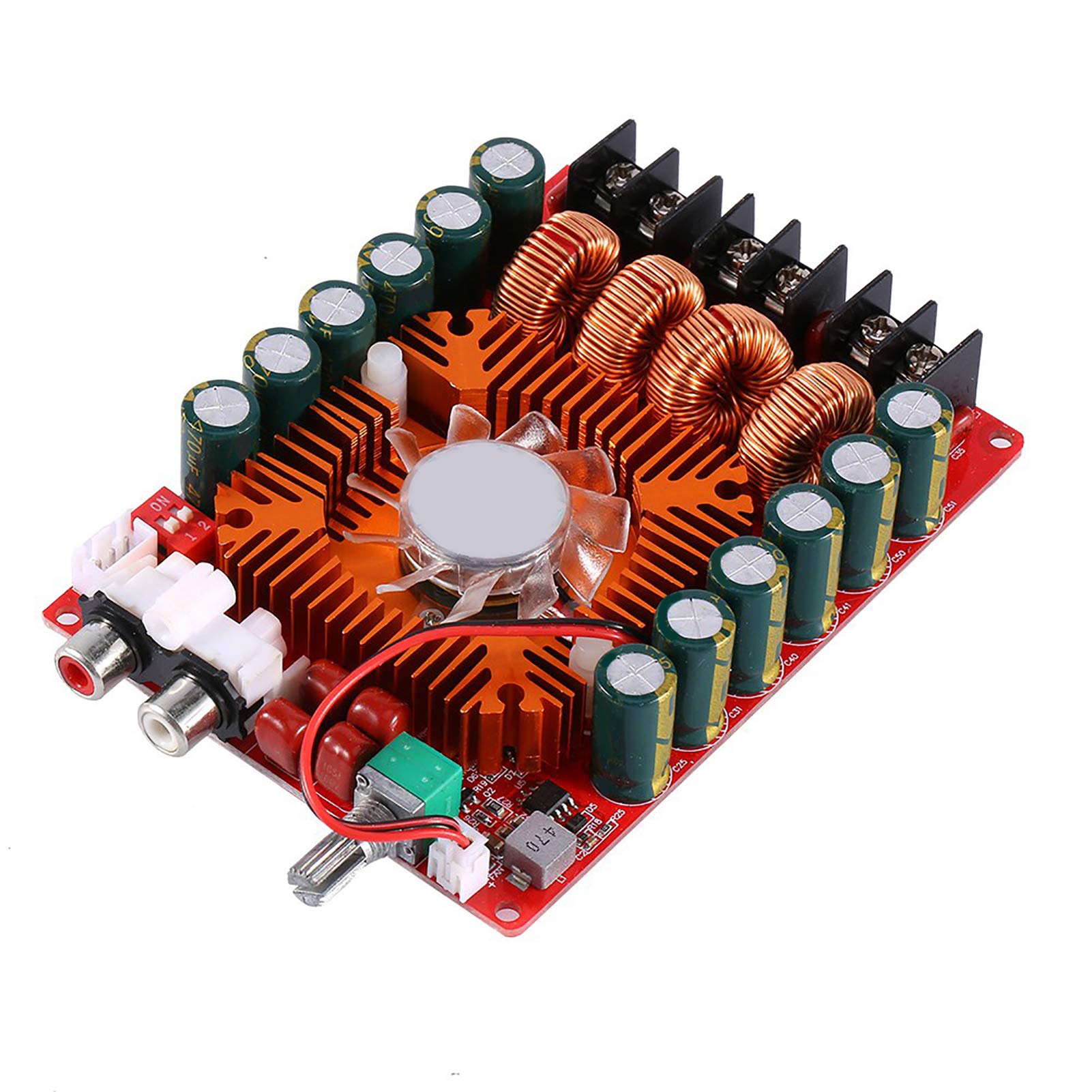

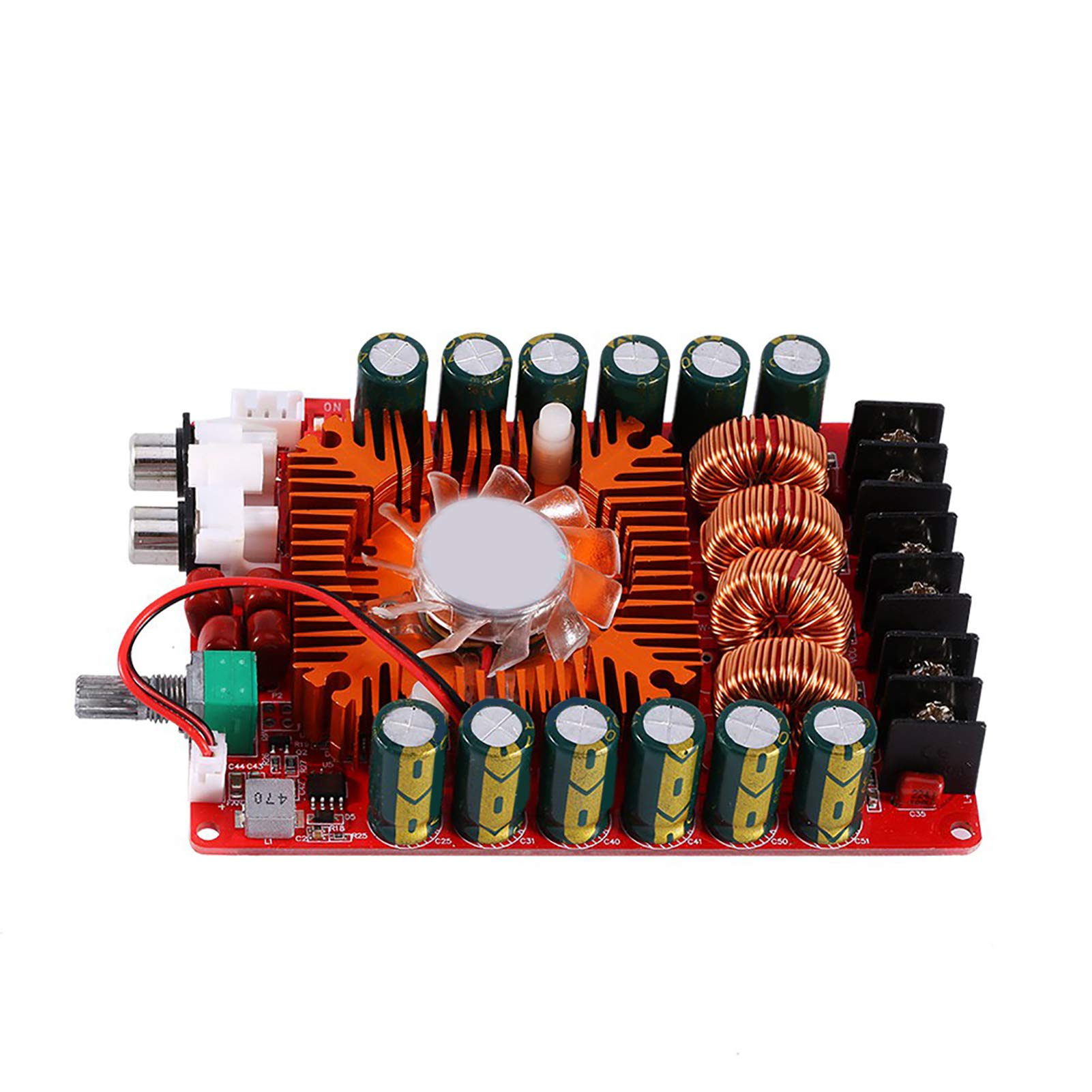

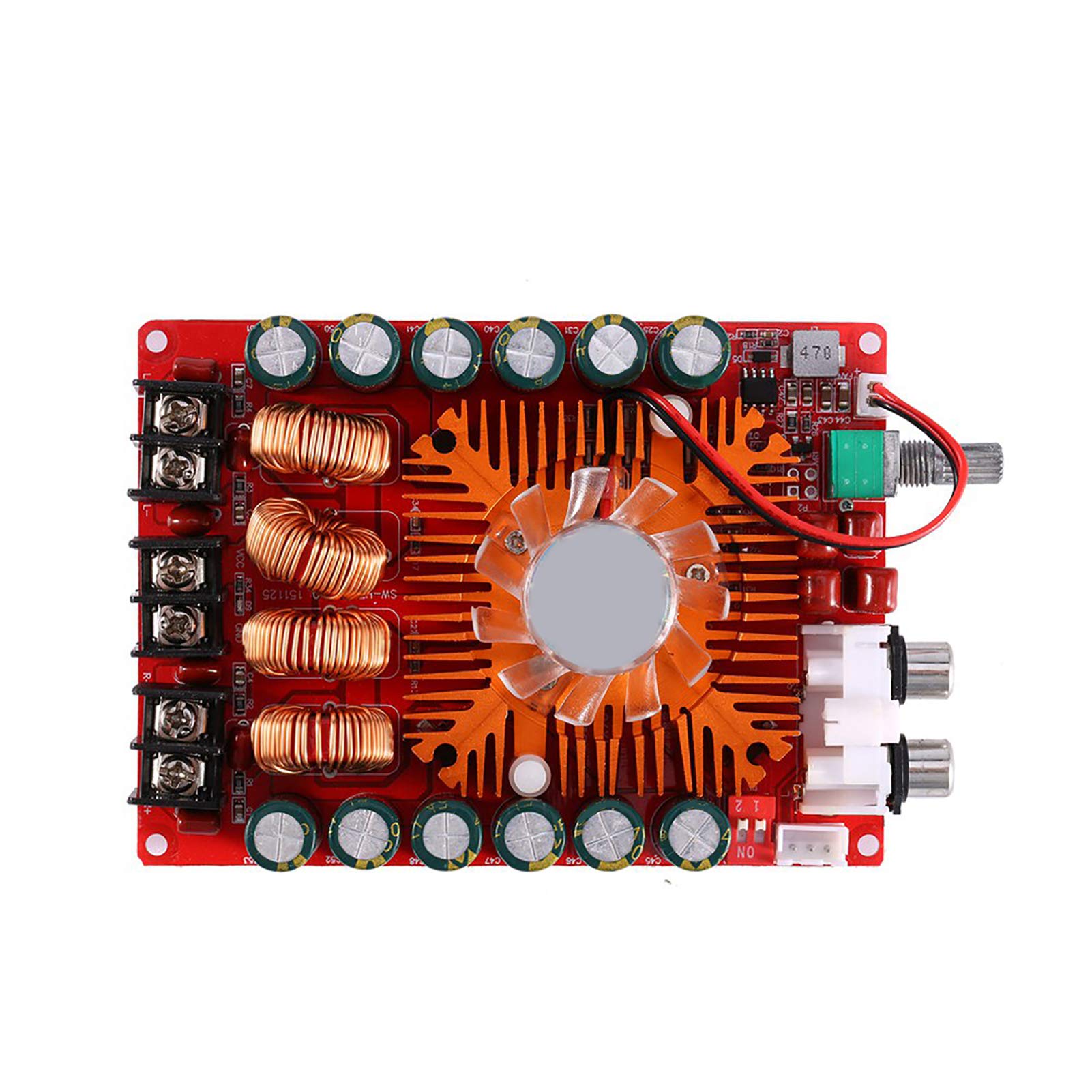

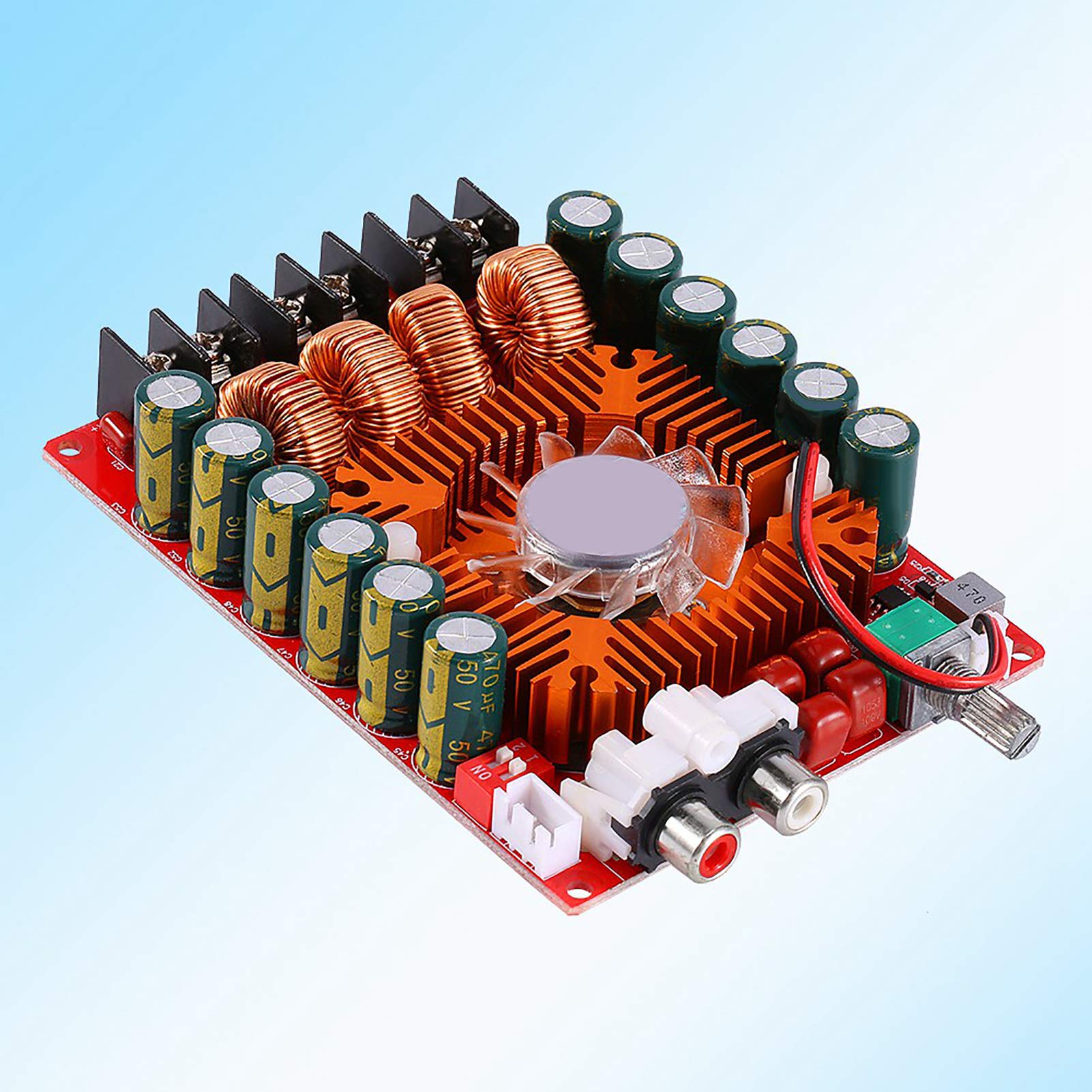

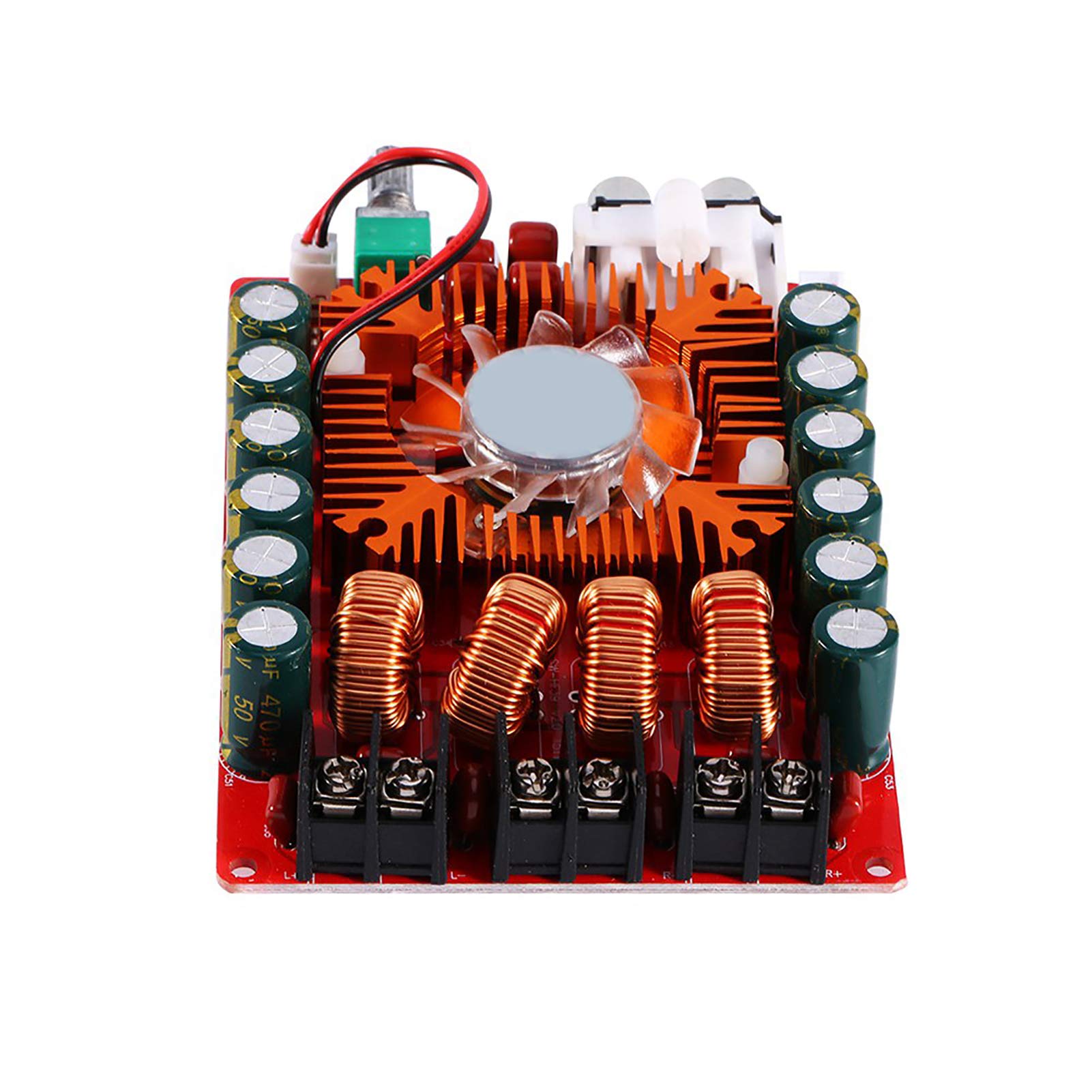

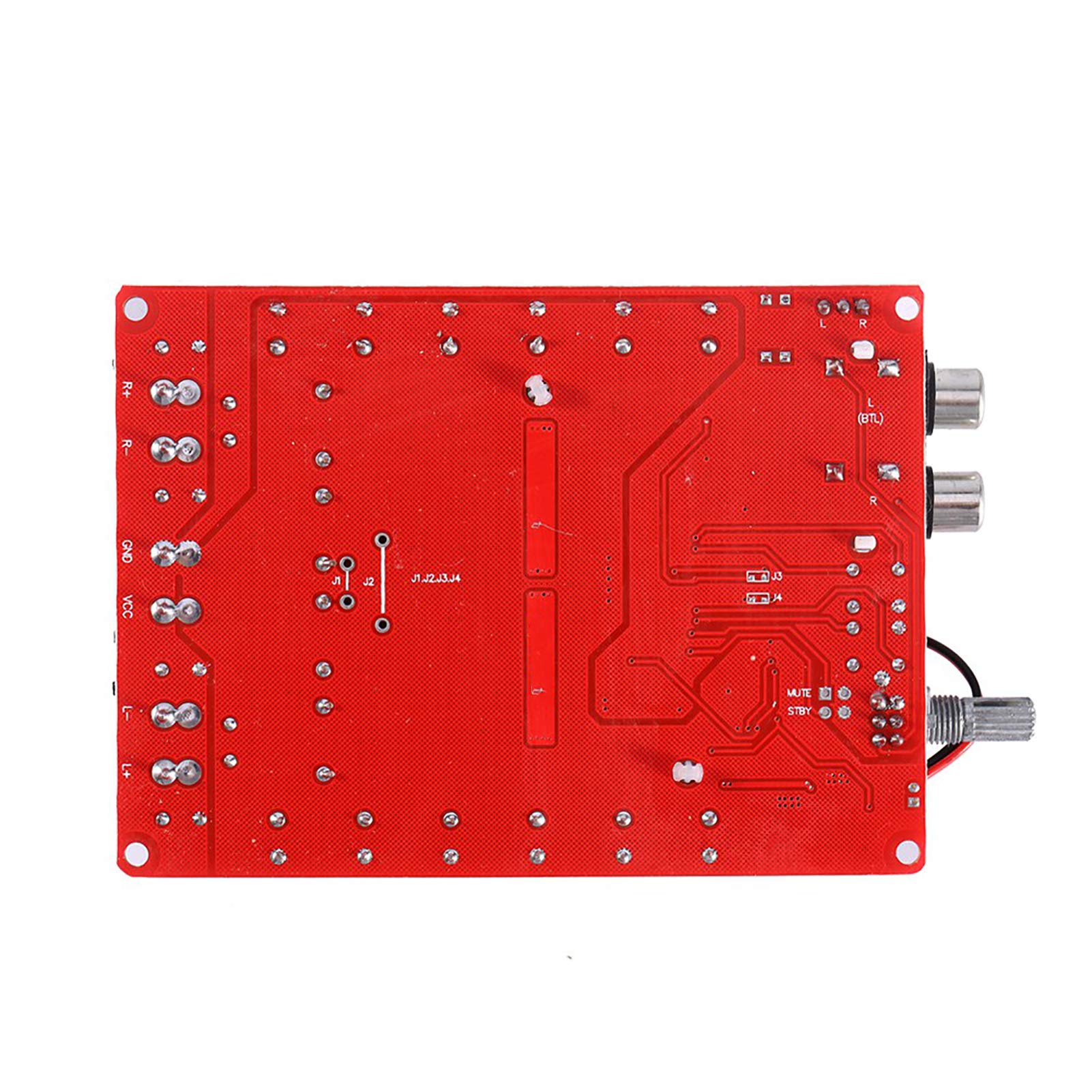

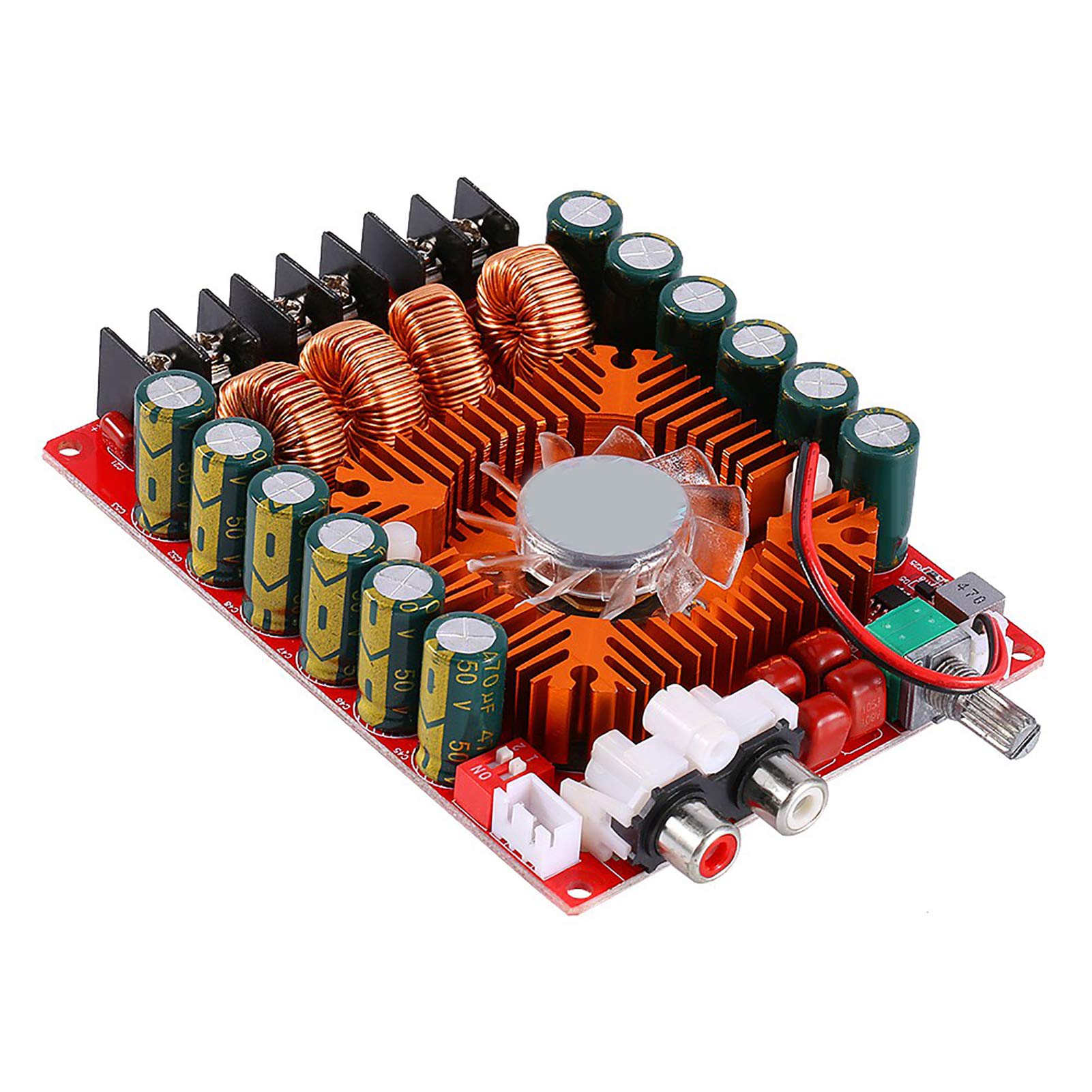

TDA7498E 160W+160W Audio Power Amplifier Board Module High Power Dual Channel Audio Receiver

• HIGH OUTPUT: High output power digital amplifier, 2 x 160W .
• DC 15-36V: DC 15-36V power supply, with reverse polarity
• COOLING FAN: When temperature of heat sink rises to a certain extent, the cooling fan will work .
• BTL MODE: This audio receiver support BTL mode, 36V 3ohm for single channel with 220W output.
• GOOD SOUND QUALITY: Sound quality is very good and it can drive 4/6/8 ohm speakers.

Description Description: Sound quality is very good and it can drive 4/6/8 ohm speakers. It has sufficient and high power output 2 x 160W. It supports BTL mode and when heat sink temperature rises to a certain extent, the cooling fan will work. Specifications: Amplifier Chip: TDA7498E Working Voltage: DC 15-36V(Recommend 32V, 8A) Output Power: 2 x 160W Number of Channels: Two-channel Stereo Efficiency: 85% Applicable Speaker Impedance: 4/6/8ohm(8ohm is the best) PCB Board Size: 108 x 78mm / 4.25 x 3.1" Weight: 172g(approx.) Package includes: 1 x Digital Amplifier Board Note: 1. Please allow 1-3mm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
