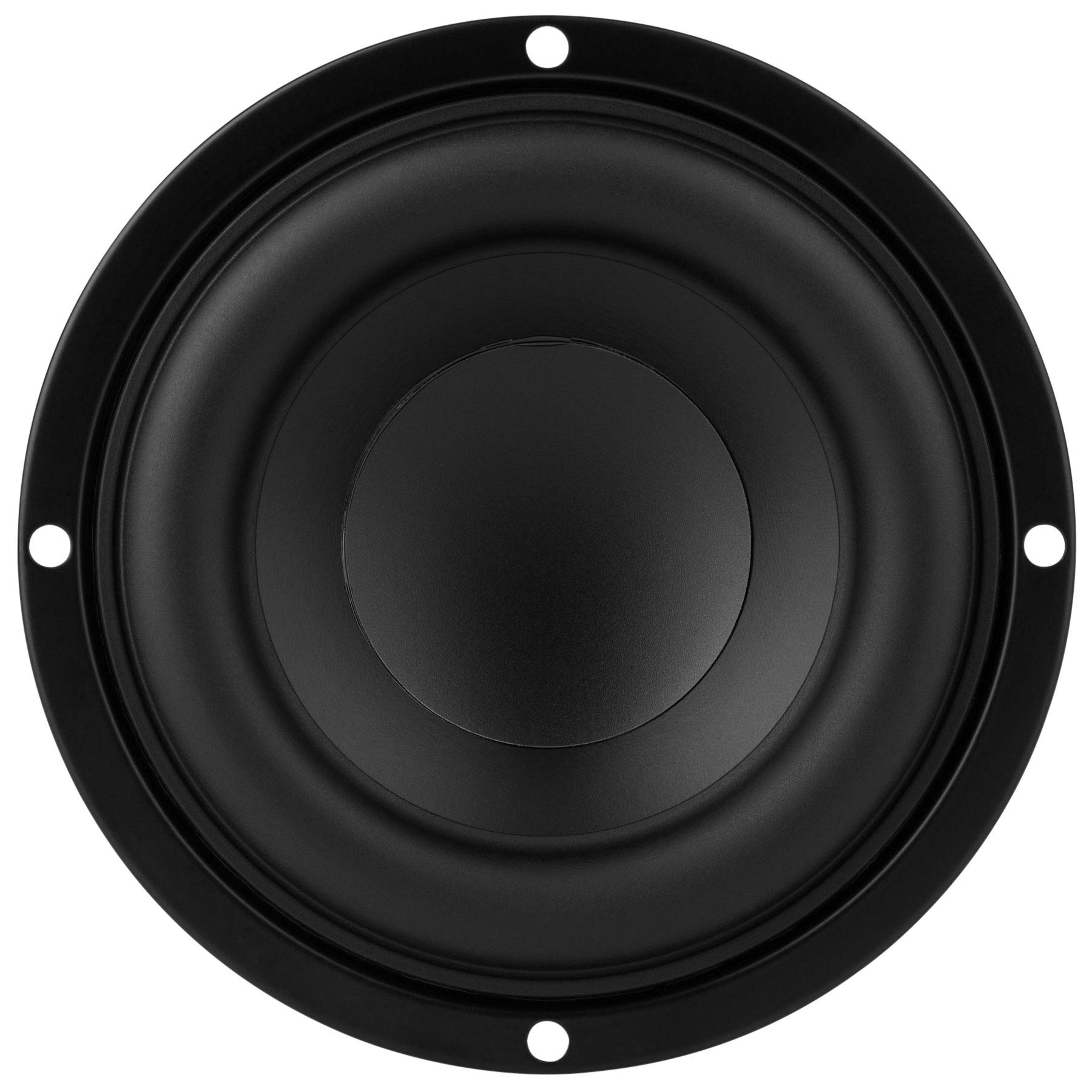

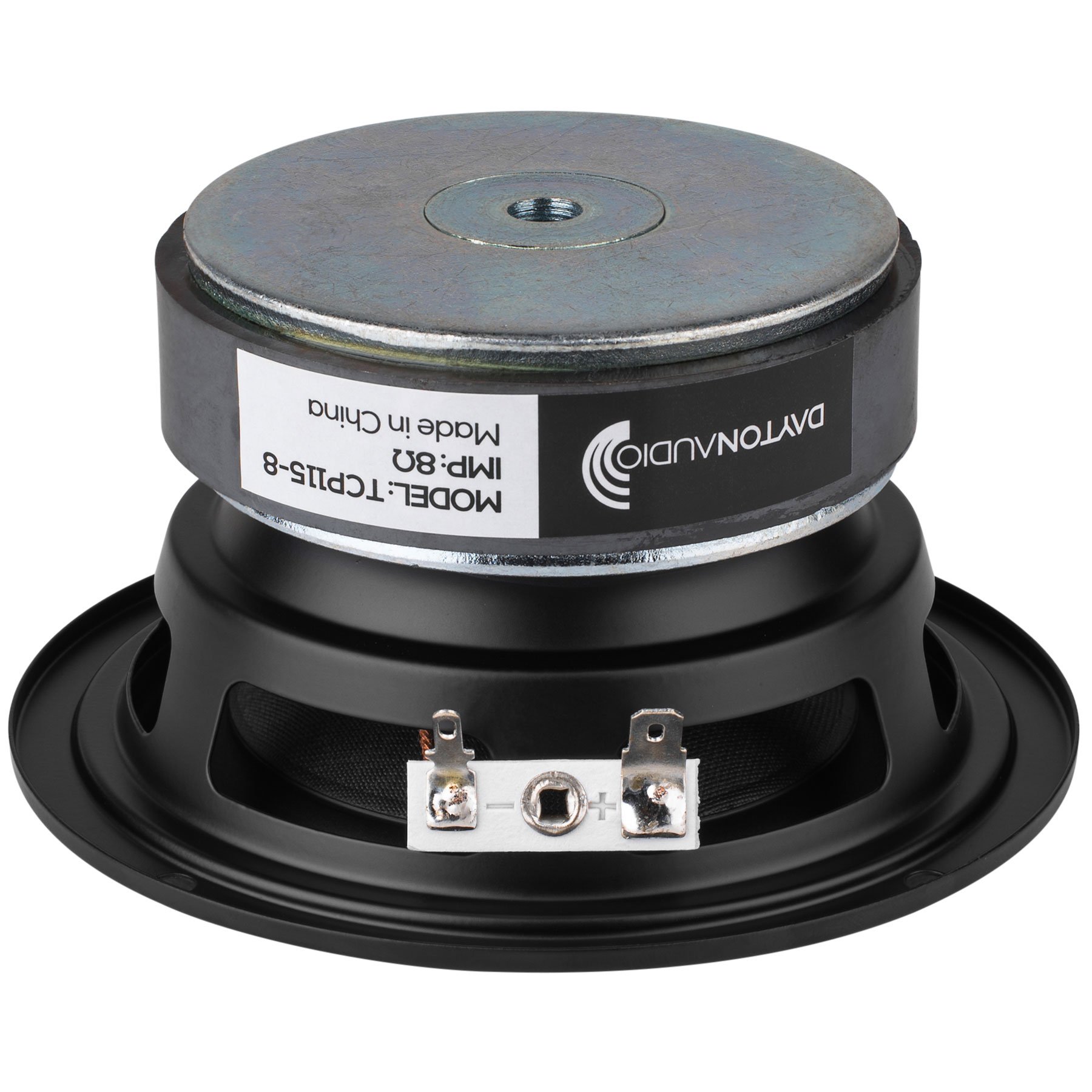

DAYTONAUDIO TCP115-8 4" Treated Paper Cone Woofer

• Powerful motor for efficiency and compact enclosure
• 1"" diameter 4-layer voice coil improves power handling and low frequency response
• Aluminum former keeps voice coil cool for high power handling
• Extended pole piece creates symmetrical magnetic field for lower distortion
• Cosmetic low-profile mounting flange looks good without flush mountin

Quick Overview With high excursion options and low Fs, the Dayton Audios TCP115-8 can produce a surprising amount of bass for a 4-inch woofer. In addition to its low frequency performance, this driver also performs very well in the midrange, making this driver ideal for use in smaller 2-way designs. PRODUCT HIGHLIGHTS Powerful motor for efficiency and compact housing, 1 inch diameter, 4-layer voice coil improves load capacity and low frequency response. Aluminum shaper keeps voice coil cool for high load-bearing capacity. Extended pole piece creates symmetrical magnetic field for lower distortion. Cosmetic flat mounting flange looks good without flush mounting. Product Manuals / Spec Sheets / Downloads Dayton Audio TCP115-8 Specification Sheet Dayton Audio TCP115-8 Data Files AddThis Share Buttons Share on Facebook Share on Twitter Share on MoreAddThis 2 Product Description The TCP115-8 combines a large motor, 1 inch 4-layer voice coil, ventilated. A betbeta and a betvengeful rubber surround to use its 4 mm Xmax. This combination of features makes it a very versatile driver that can be used as a bass driver in a small 2-way system, a center channel or even portable Bluetooth speakers. Product Details Model Number TCP115-8 List Price -- Color Black Unit of Measure Each UPC 848791004971 Warranty - Parts 5 Year Warranty - Work 5 Year Product Shipping Weight (lbs.) 2.33 Speaker Type Woofer Nominal Diameter 4" Power (RMS) 40 Watts Power (Max) 80 Watts Continuous Program Power - Impedance 8 Ohm Sensitivity 81.9 dB at 2.83 V/1 m Frequency Response 55 - 6 000Hz Voice Coil Diameter 1" Weight -- DC Resistance (Re) 7 ,8 ohohm swCoil inductance (Le) 1.9 mH resonant frequency (Fs) 59.2 Hz mechanical Q (Qms) 2.3 electromagnetic Q (Qes) 0.54 total Q (Qts) 0.43 membrane mass Inc. Air load (Mms) 10.16 g moving mass of the membrane (Mms) md) -- Mechanical compliance suspension (Cms) 0.71 mm/N surface of cone (Sd) 50 cm² displacement (Vd) -- BL product (BL) 7.4 Tm conformity equivalent volume (vas) 2.52 litres maximum linear deflection (Xmax) 4 mm Driver Mechanical Losses (Rms) -- Cone/Diaphragm Material Treated Paper Entry/Output Diameter -- Surf Round Material Rubber Voice Coil Wire Material CCA Voice Coil Former Aluminum Basket/Frame Material Steel Magnetic Material Ferrite Overall Outer Diameter 4.6 Inches Overall Depth 2.35 Inches Baffle Cutout Diameter 3.75 Inches # Mounting Holes 4 Mounting Hole Diameter -- Bolt Circle Diameter 10.8 Product weight:
