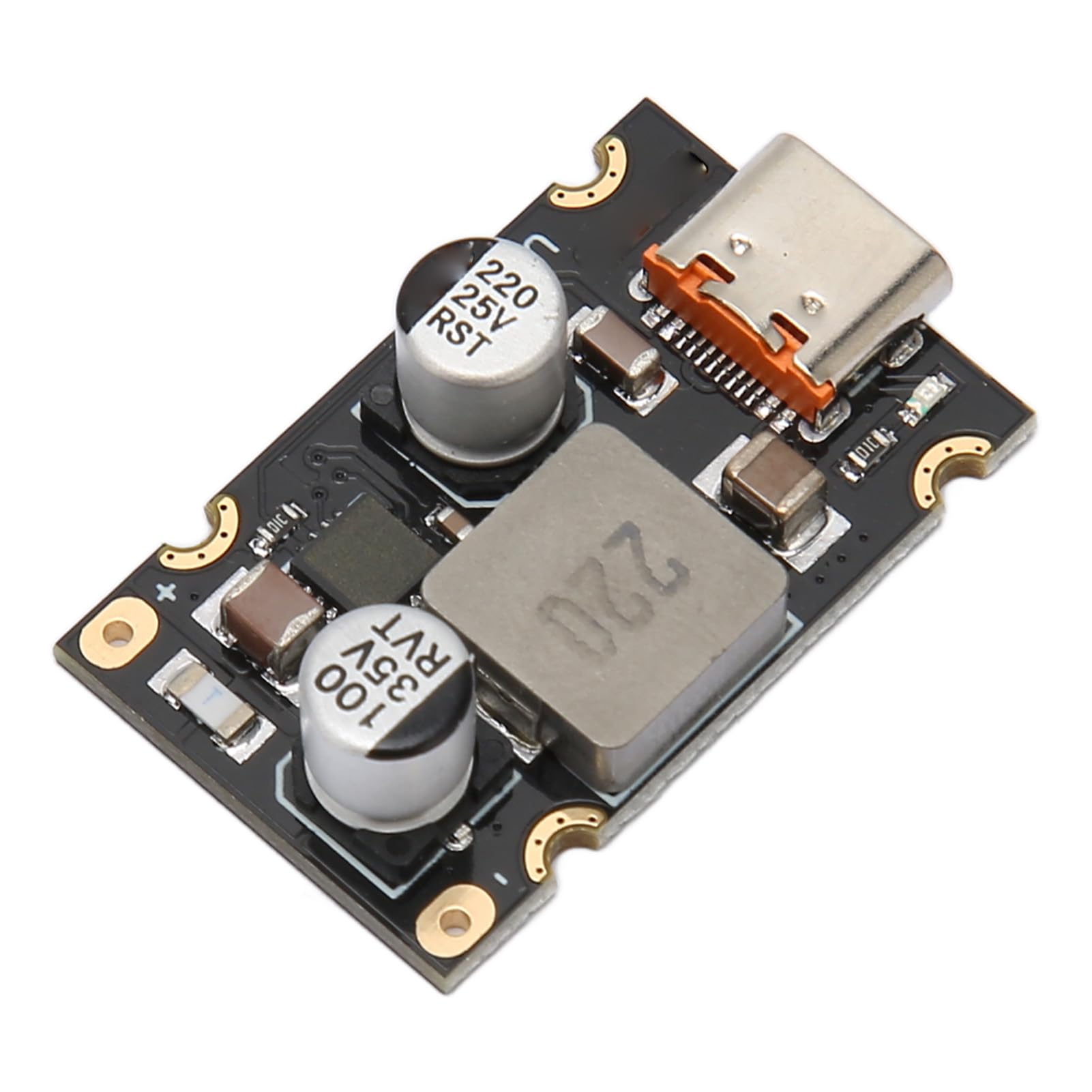

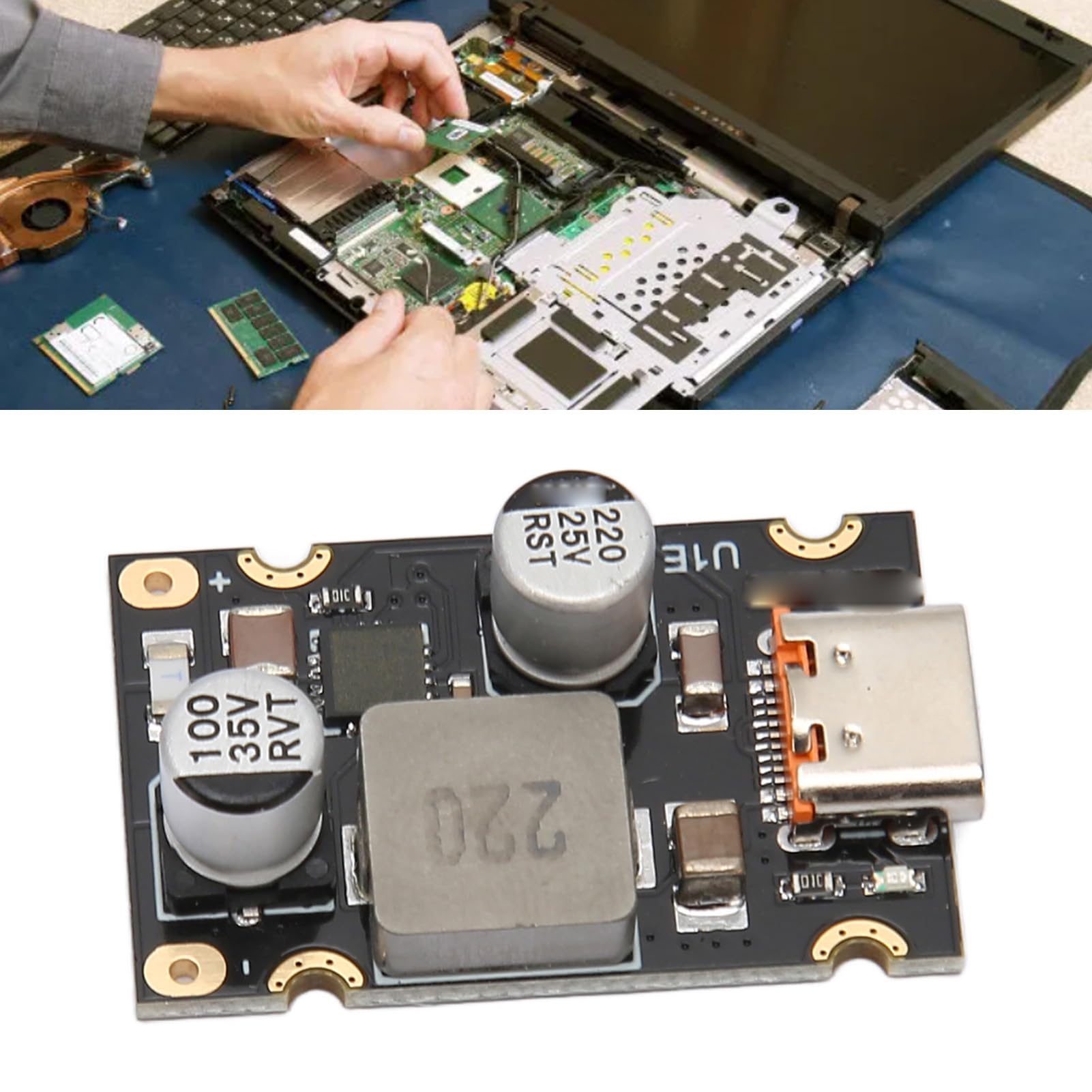

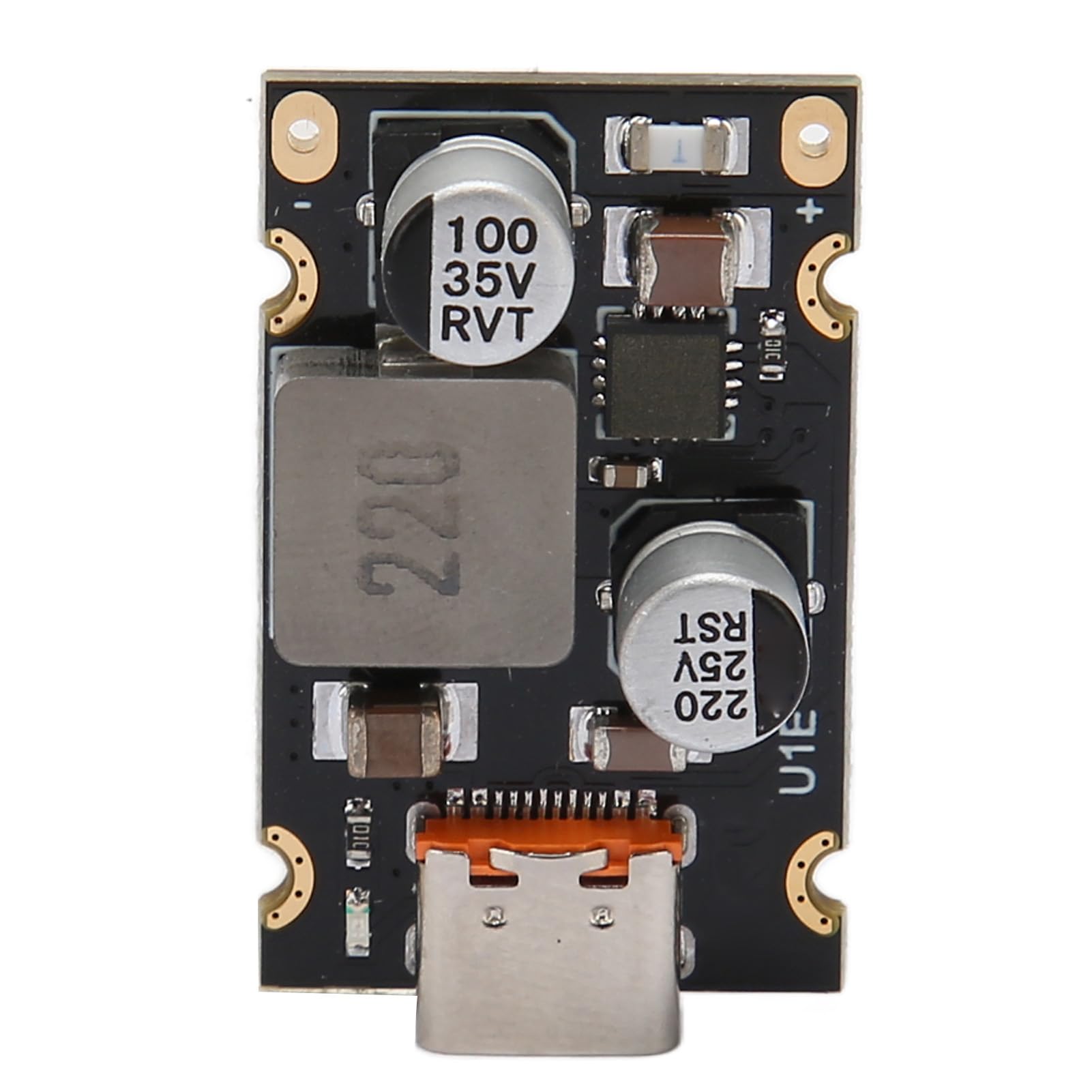

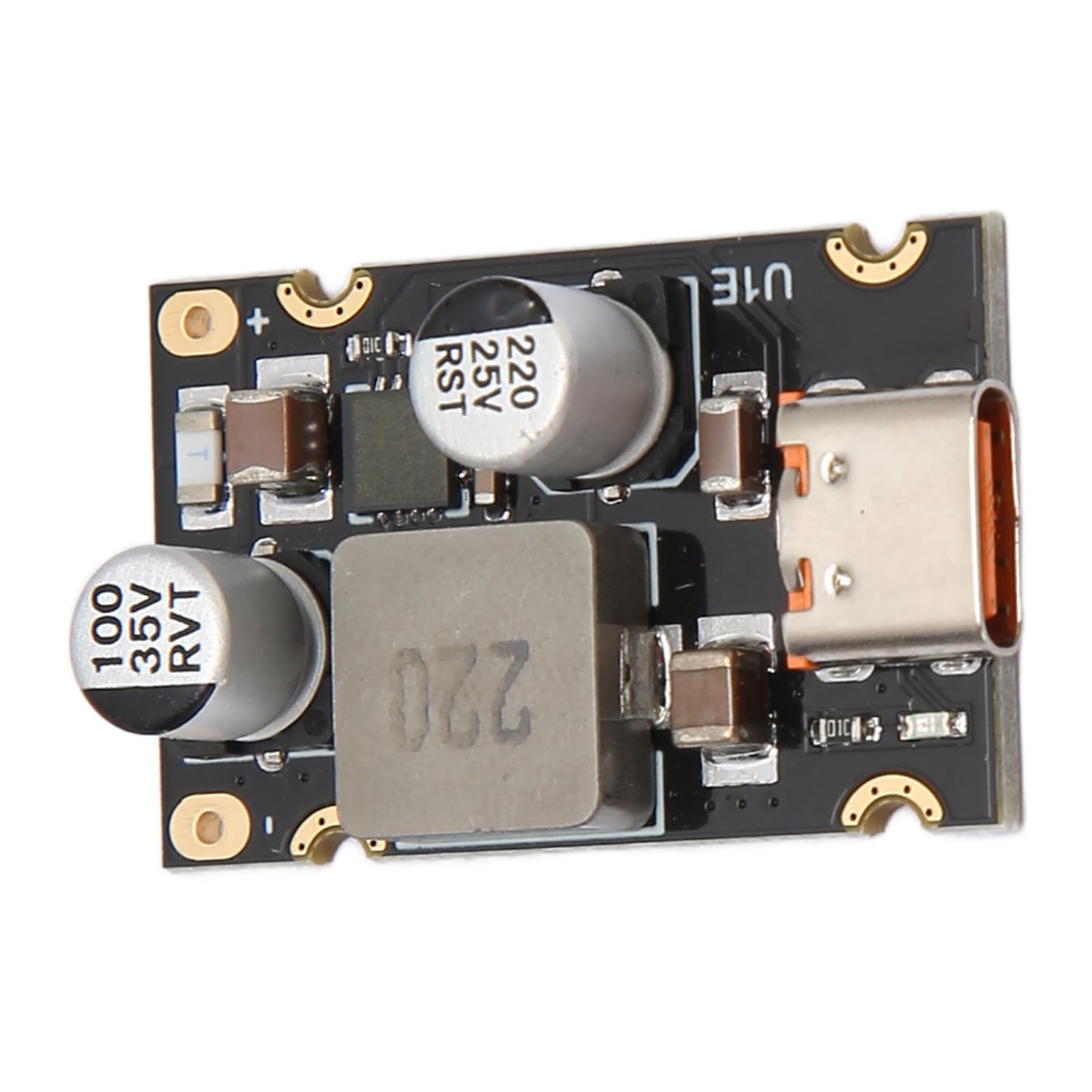

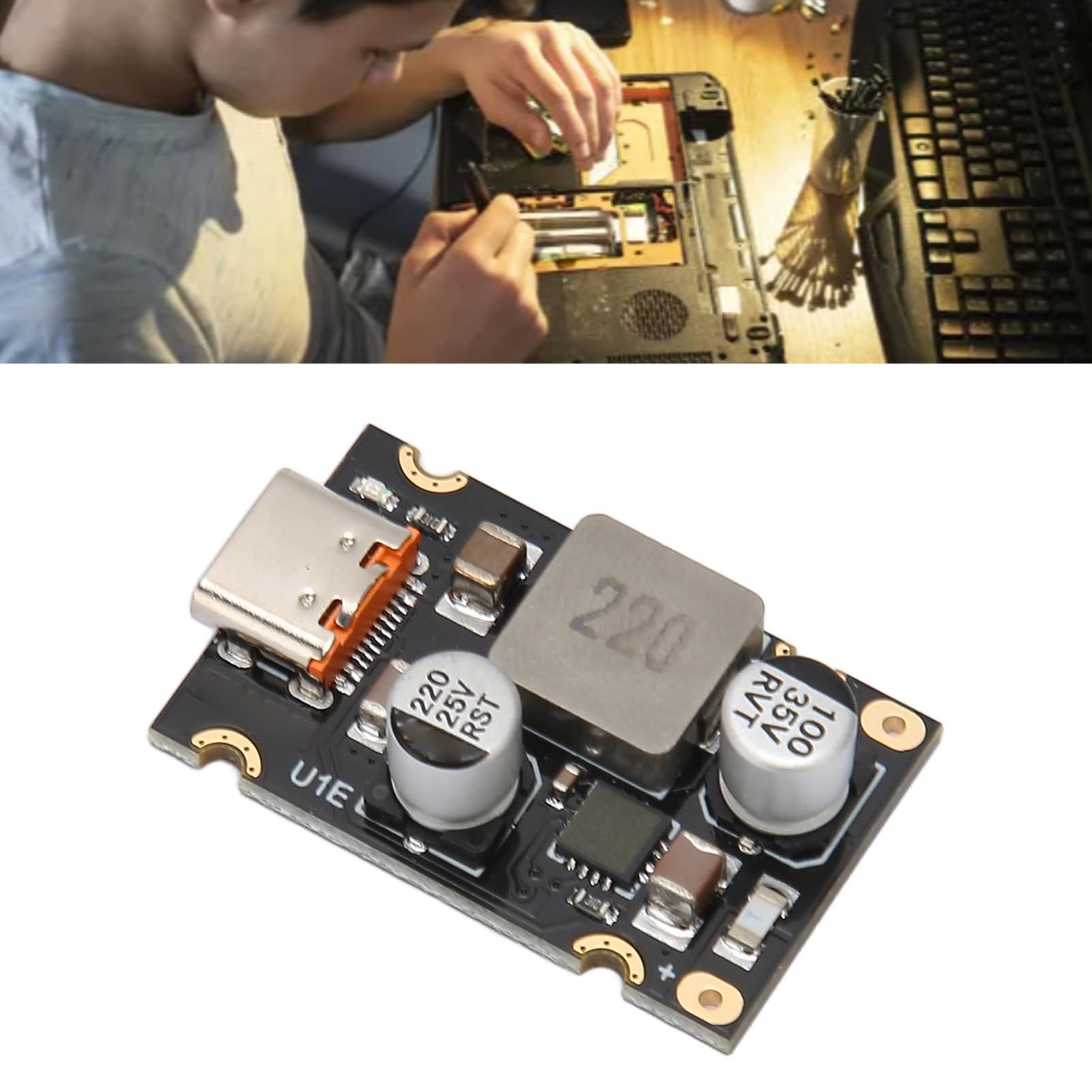

Tangxi PD65W Fast Charging Module, 5V3A 9V3A 12V3A 20V3.25A to USB C PD3.1 QC3.0 Charging Circuit Board for Phone Fast Charging

• SUPPORT VOLTAGE: Support 5V 9V 12V 15V 20V fixed voltage output (does not support voltage step).

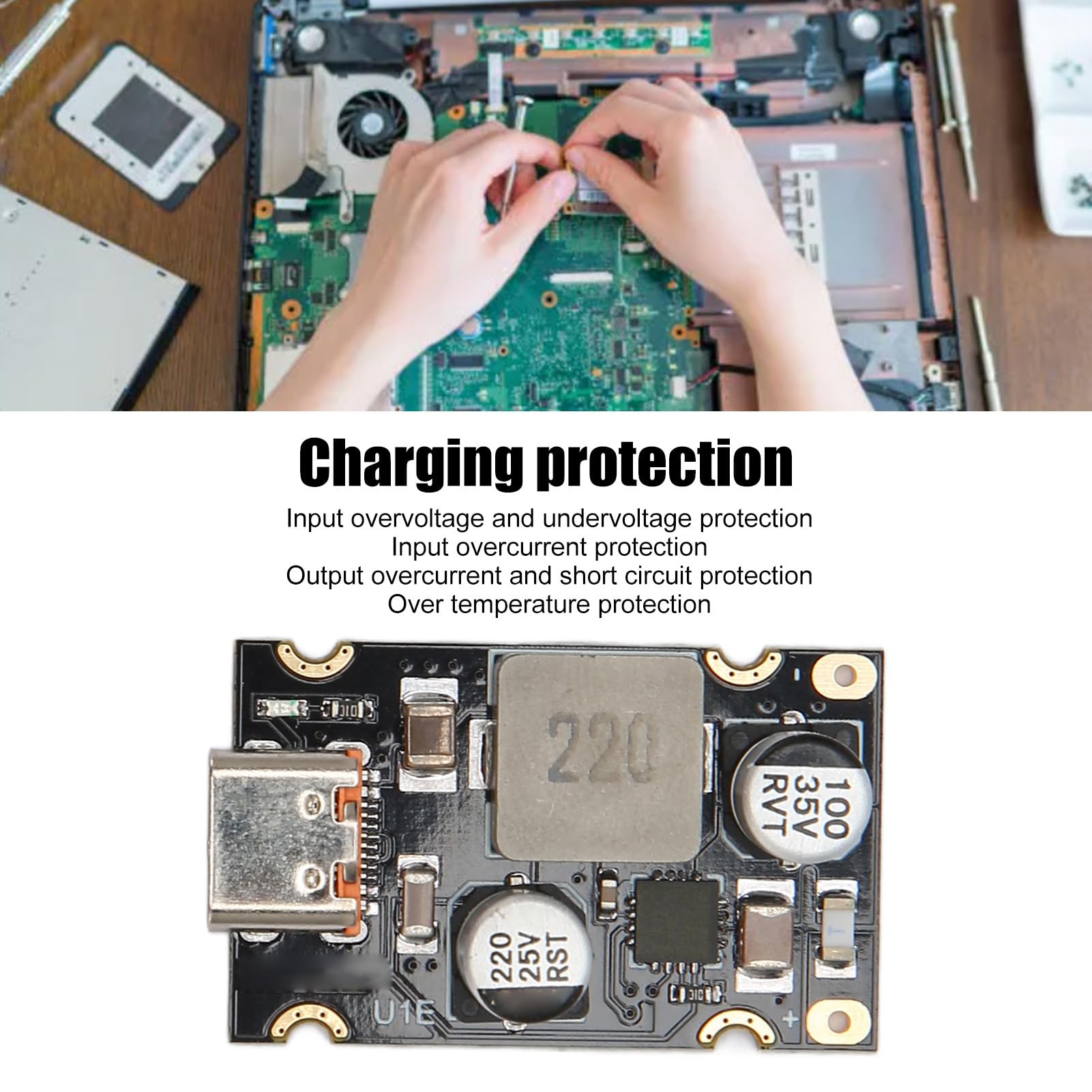

• CHARGING PROTECTION: Input over voltage and under voltage protection, input over current protection, output over current and short circuit protection, and over temperature protection for the whole machine.
• APPLICABLE OBJECTS: Welding DC line heat shrink tubes can be used for charging laptop computers PD mobile power.
• VOLTAGE ADJUSTMENT: Adjust the tilt switch to control the voltage output according to the table on the back of the module.

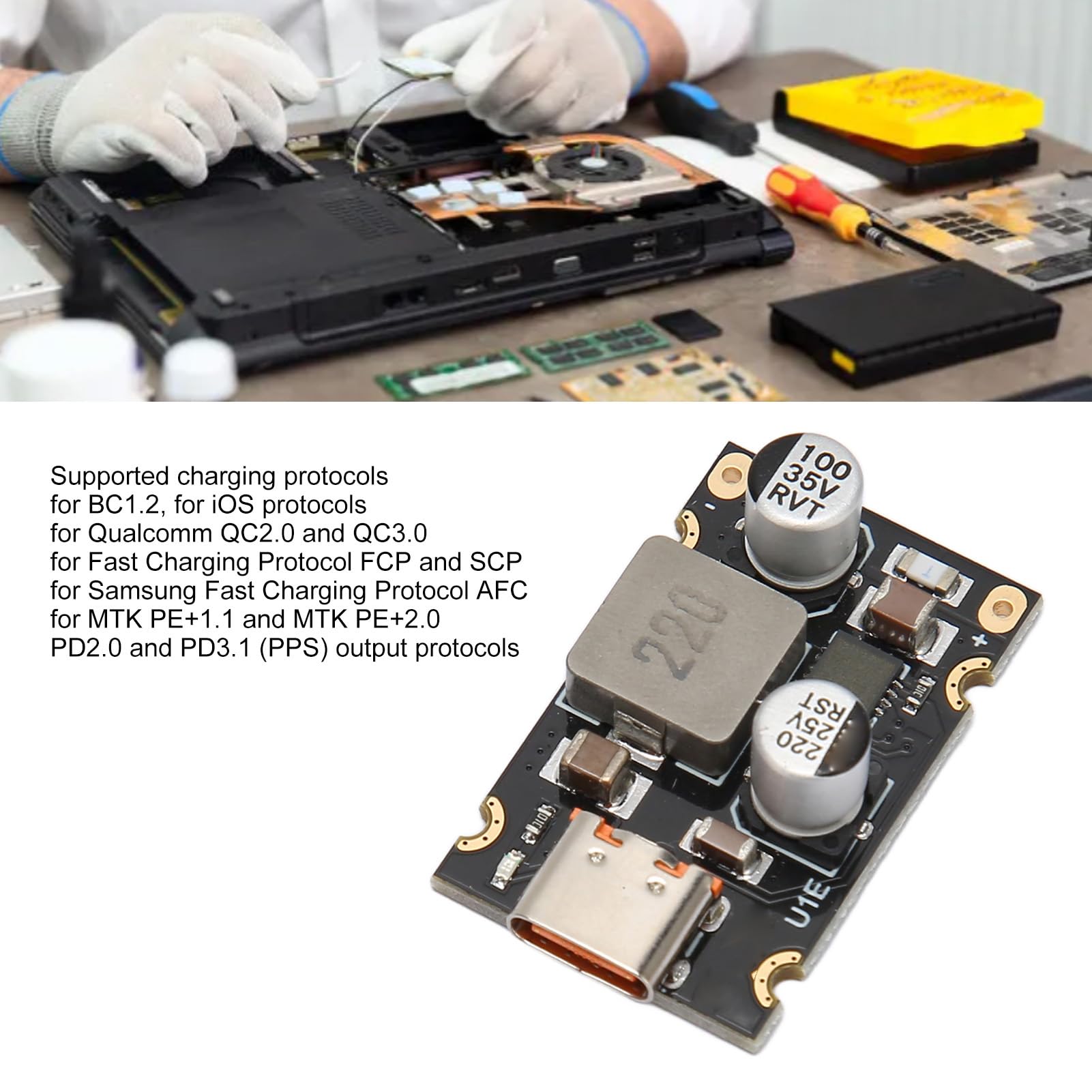

• SUPPORTED CHARGING PROTOCOLS: for BC1.2, for iOS protocol, for Qualcomm QC2.0 and QC3.0, for fast charging protocol FCP and SCP, for Samsung fast charging protocol AFC, for MTK PE+1.1 and MTK PE+2.0, PD2.0 and PD3.1(PPS) output protocols.

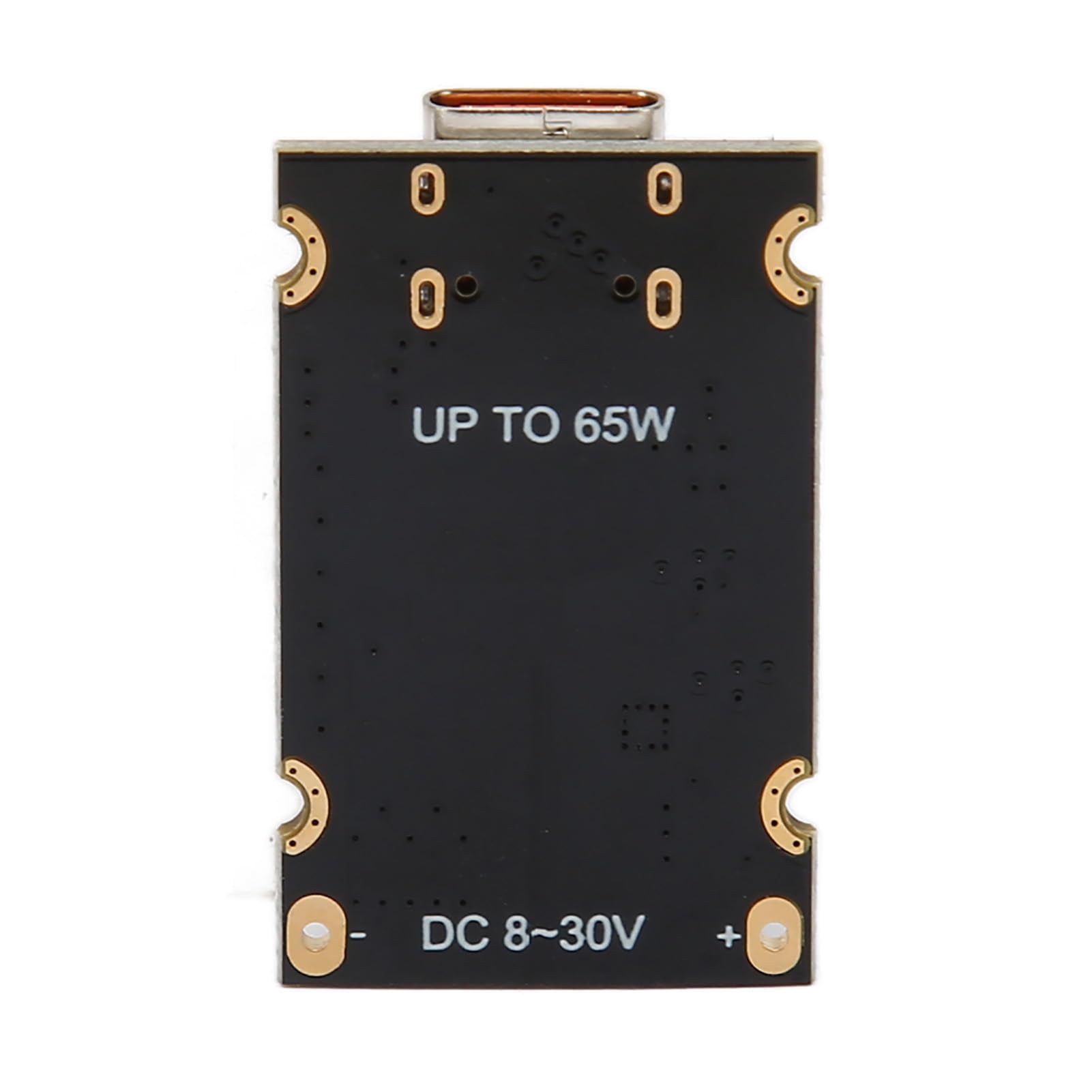

Spec: Item Type: Fast Charging Module Material: PCB Input Voltage: DC 8‑32V Output Voltage: Automatically Adjusted Between 3.3‑21V When Connected to Type C Compatible Powered Devices (input Voltage Should Be Higher Than Output Voltage, Input Voltage Should Be Higher Than 20V If You Want to Trigger 20V Fast Charging) Output Power: Maximum 65W (5V3A, 9V3A, 12V3A, 20V3.25A, Etc.) Conversion Efficiency: 92%‑97%. Output Voltage Ripple: No Load Current: packing list: 1 x Fast Charging Module
