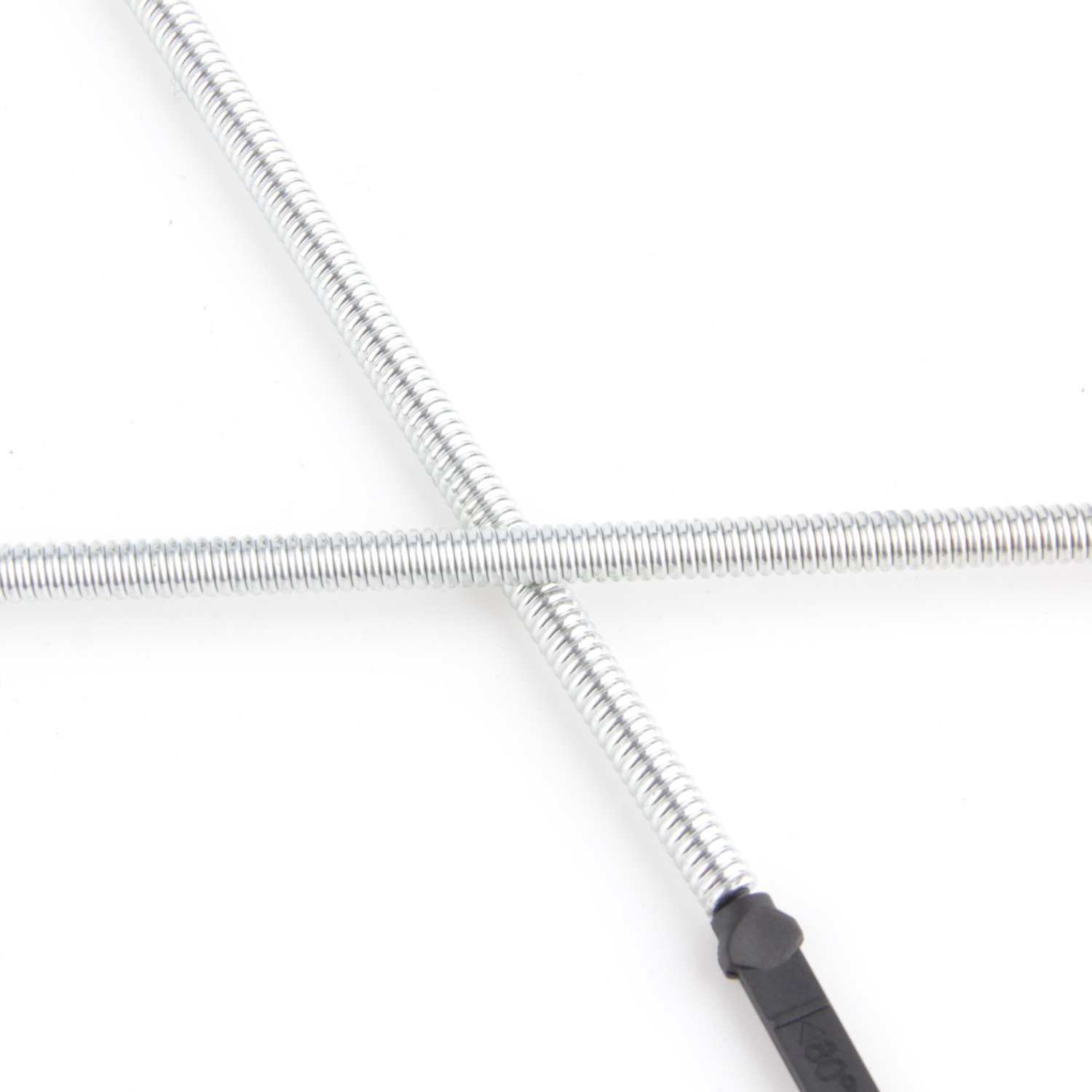

TAKPART Transmission Fluid Dipstick Tool 1220mm

• Length: 48 inch / 1220mm
• Material: Galvanization and Plastic
• Fits Mercedes Benz with electronic transmission 722.6
• Designed to measure the oil level of transmission

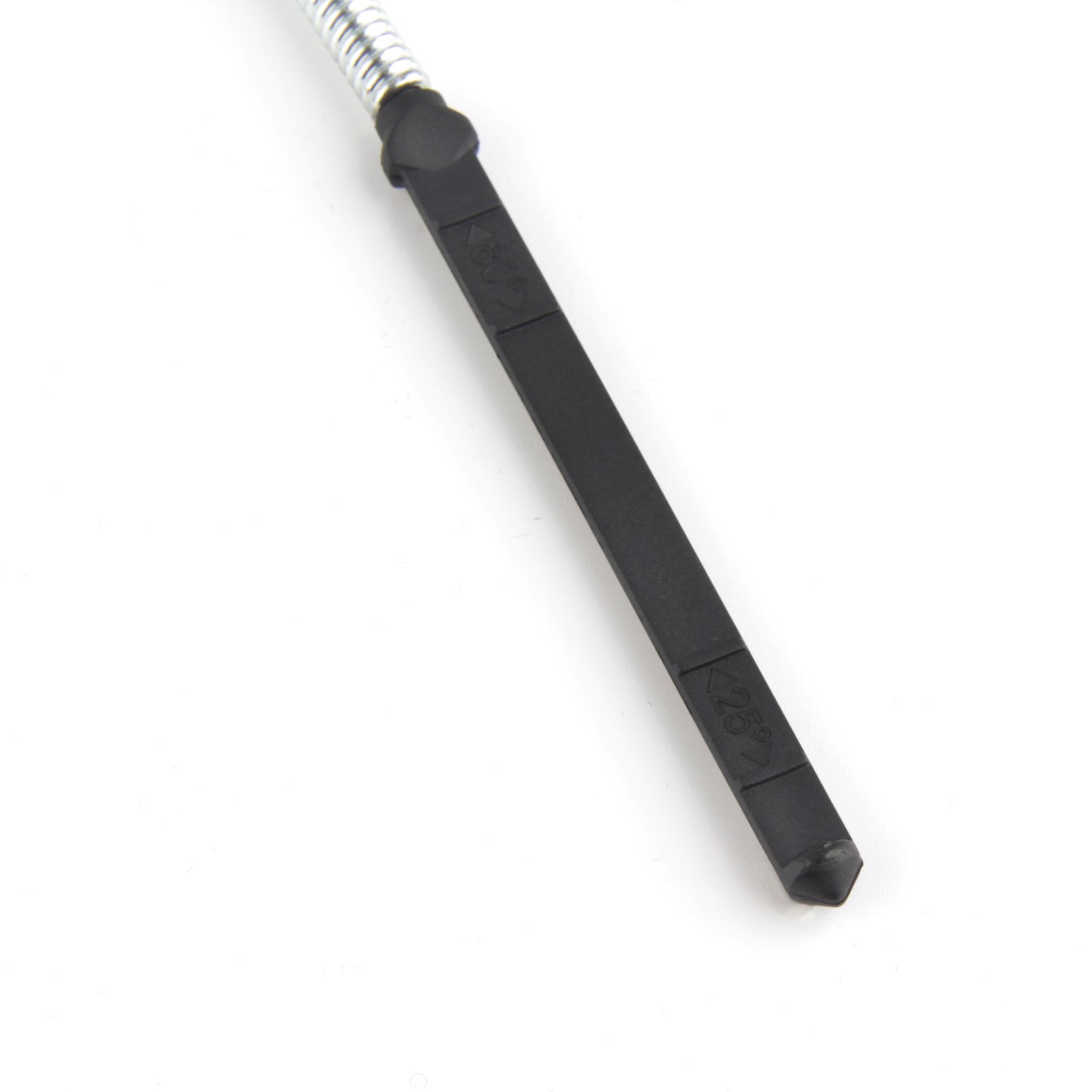

• Range of the graduations on the fluid end (plastic dipping end) are 25 (low) to 80 (high)

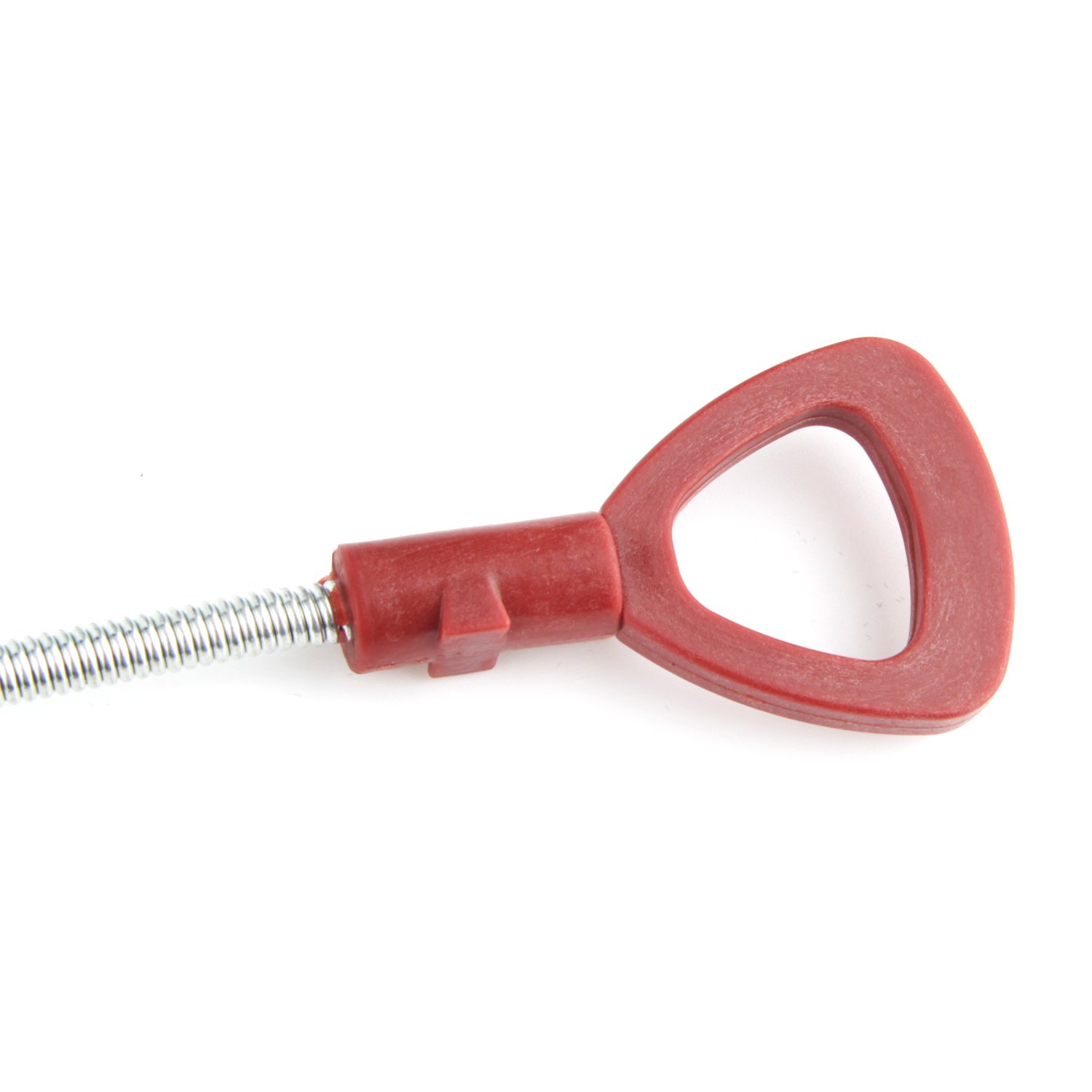

SPECIFICATIONS: Total Length: 48 inch / 1220mm Handle Length: 2.5inch / 63mm Tail Length: 3.1inch / 80mm Applicable Transmission: M-Benz 722.6 Part numbers: 140589152100 /168589012100 INSTRUCTIONS: Insert into dipstick tube until the tool bottoms out, this tool may be longer than the tube itself. DO NOT leave tool inside the dip stick tube when finished with level check. The oil level is normal if the dipstick keep 20-30cm longer than the level. Insert the dipstick to the bottom when the transmission is about 80 degrees centigrade, the oil level is normal if the value is between 25-80. VEHICLES COMPATIBILITY: For most Benz 1996-1997,2004-2005, C230, E430, S55, SL320, SL500, SL55, S320, S420, S430, S500, ML320, ML430, ML500, etc.
