Taiss/Electromagnetic Relay JQX-12F 2Z AC 220V Coil 8 Pin 30A DPDT 2NO 2NC Power Relay, with Wire Terminal LJQX-30/2Z AC220V

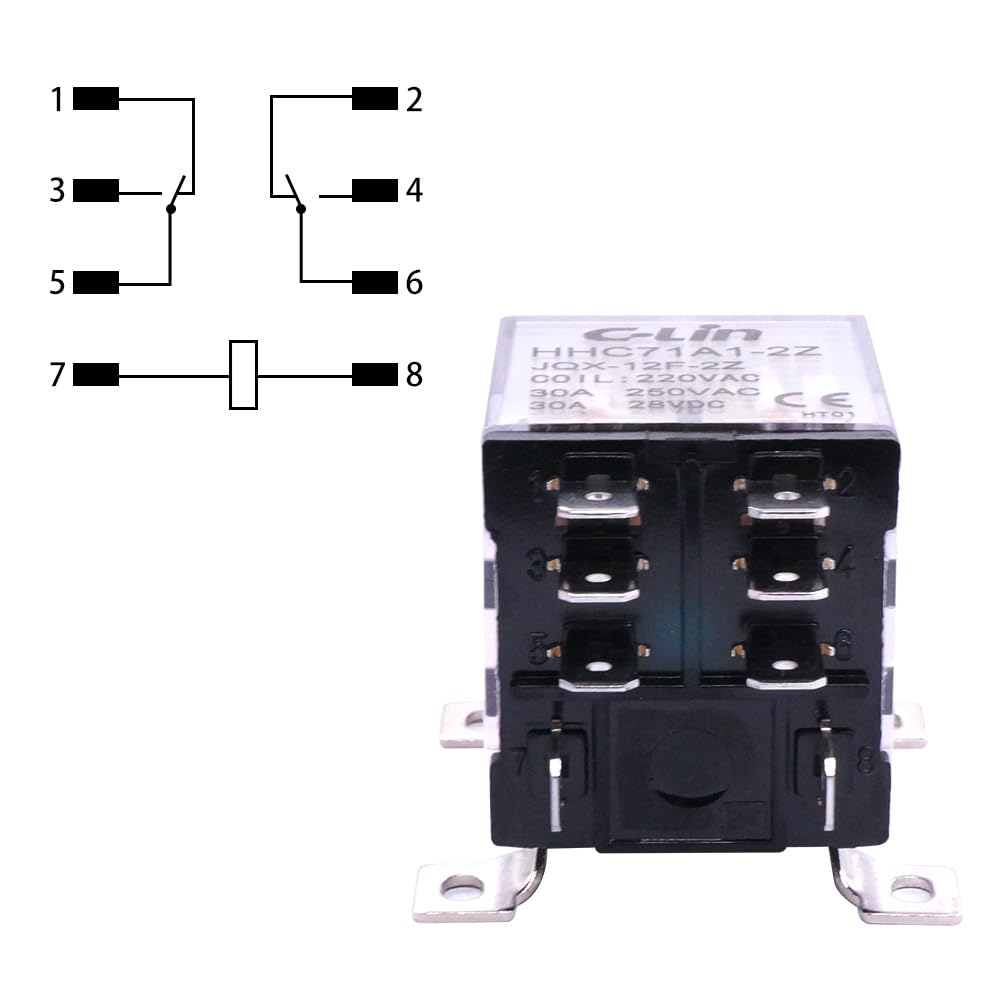

• Product Name : Power Relay;Model : JQX-12F-2Z; Contact : DPDT 2NO+2NC
• Pin Number : 8; Coil Voltage : AC 220V; Contact : 30A 250V AC / 28V DC

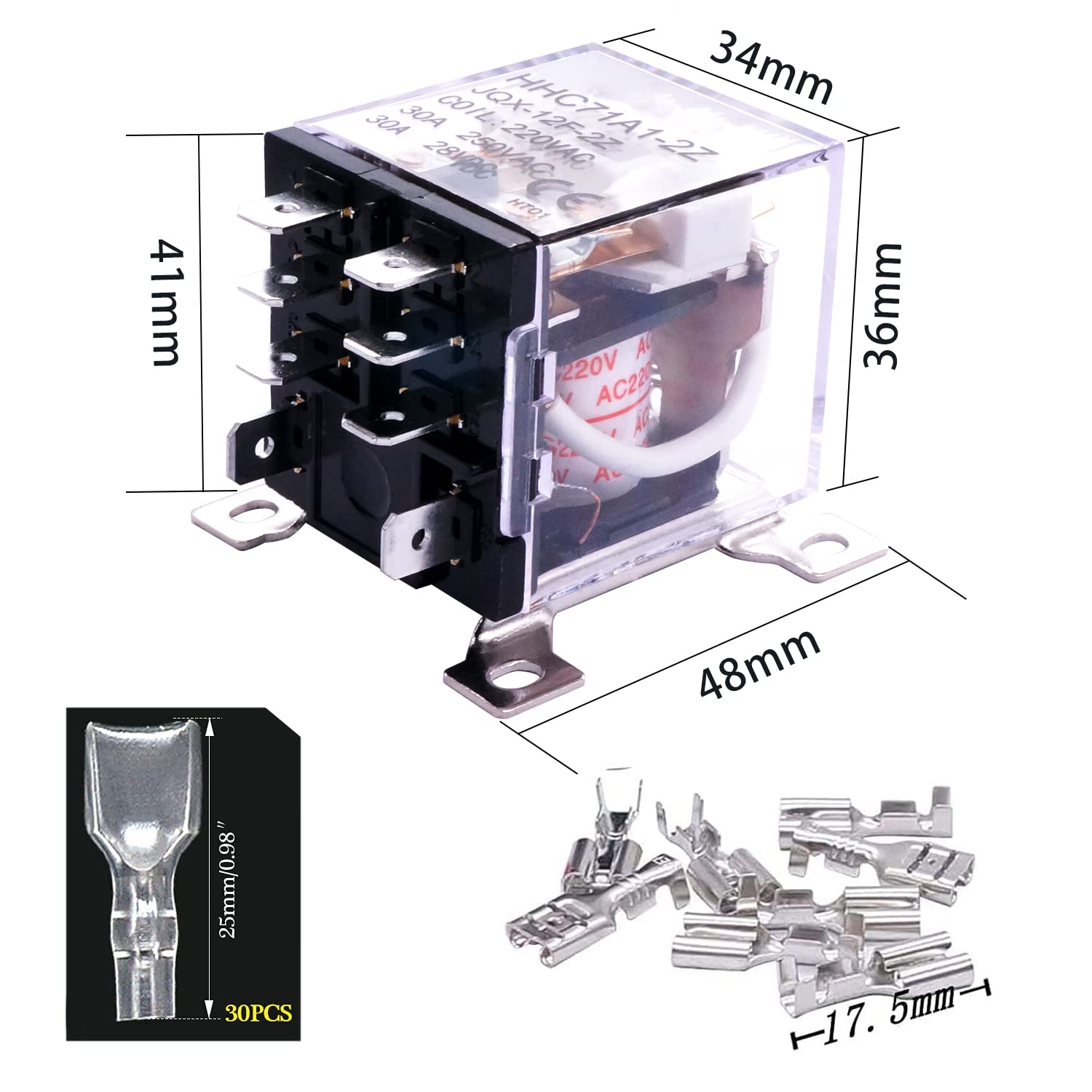

• Body Size(not included pin) : 3.5 x 3.3 x 4cm / 1.4" x 1.3" x 1.6" (L * W * T);Total Height : 4.8cm / 1.6";Installing Hole Size : 0.48 x 0.35cm / 0.19"x 0.14"(L*W)
• Installing Hole Distance(center) : 3.85 x 3.78cm / 1.52" x 1.49"(L*W);Material : Plastic, Metal;Color : See the Picture
• Weight : 93g;Package Content : 1 x Power Relay+ 8 x Wire Crimp Terminal

This Relay Exquisite workmanship ,Quality assurance for 1 years. If there are quality problems within 1 years, you can send us email. We will send you new ones .Features: 8 pins DPDT, with coil voltage AC 220V, contact capacity AC 30A 250V and DC 30A 28V. The JQX-12F 2Z General Purpose Relay can adjust automatically, protect and transform the electric circuit. Widely used in the remote control, communication, automatic control system, electronic equipment, etc.
