Taiss/DC 12V LED indicator Electromagnetic Coil Relay 14 Pins 10A DPDT 4NO+4NC with Socket Base、DIN Rail Aluminum、screw YJ4N-GS DC 12V

• This Electromagnetic Power Relay Exquisite workmanship ,Quality assurance for 2 years.If there are quality problems within 2 years, you can send us email. We will send you new ones .
• Product Name : Electromagnetic Relay;Model No. : YJ4N-GS;Socket Model No. : YJF14A-E; Wiring description For example: 1,5,9 This contact, 5 and 9 are normally open, and 1 and 9 are normally closed.
• Coil Voltage : DC 12V;Contact Capacity : Contact Capacity;5A 250VAC /28VDC : 5A 250VAC /28VDC
• Type : 4PDT 4NO+4NC ;Number of Terminals : 14;Mount Rail Type : 35mm DIN Rail Fixing Mount Hole Size : 6 x 4mm/0.24" x 0.16"(L*W);Total Size (Approx.) : 68 x 29 x 65mm/2.7" x 1.1" x 2.6"(L*W*H);Shell Material : Plastic .

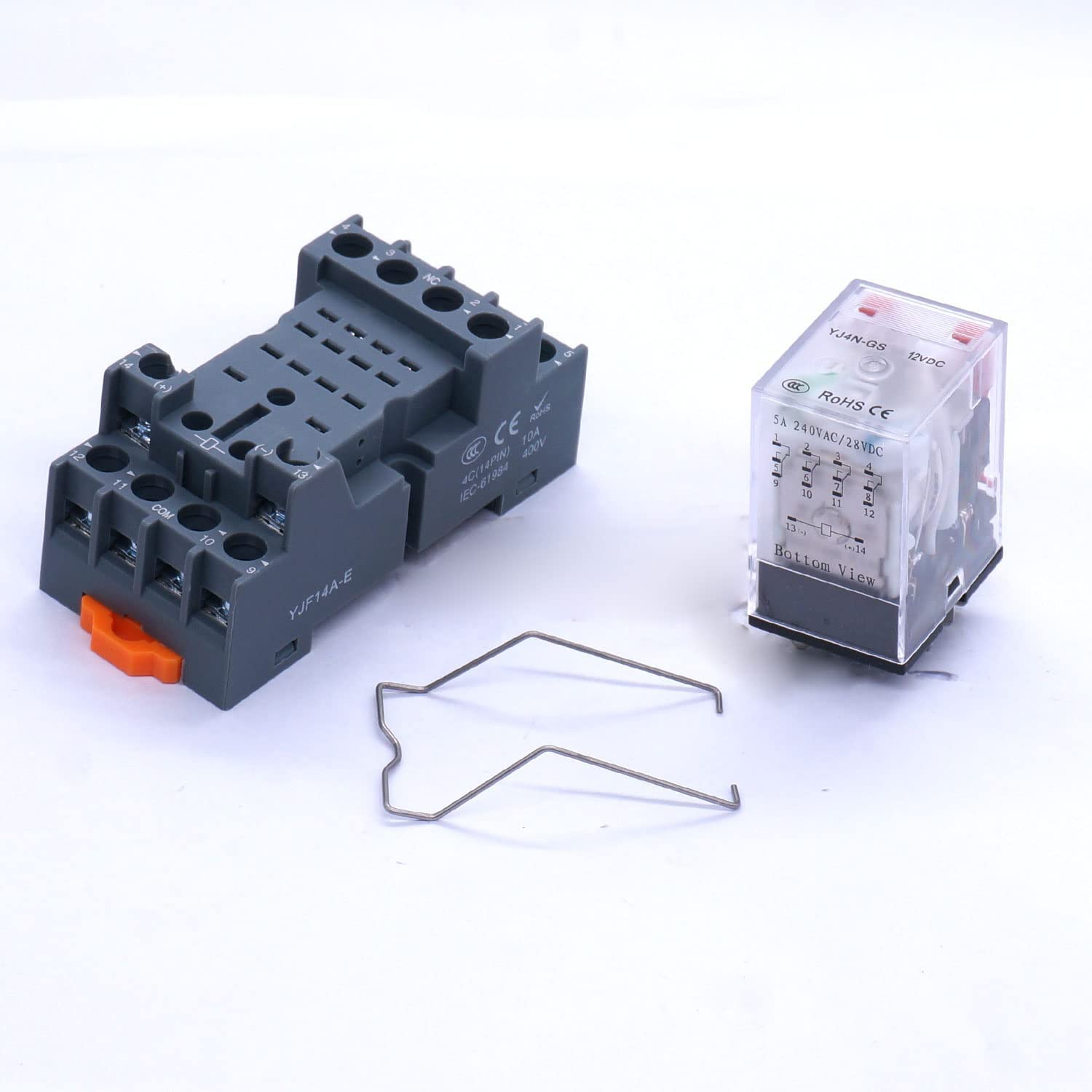

• Main Color : Black, Clear ;Net Weight : 81g;Package Content : 1 x Electromagnetic Relay + 1 x Socket + 1 x Base hook

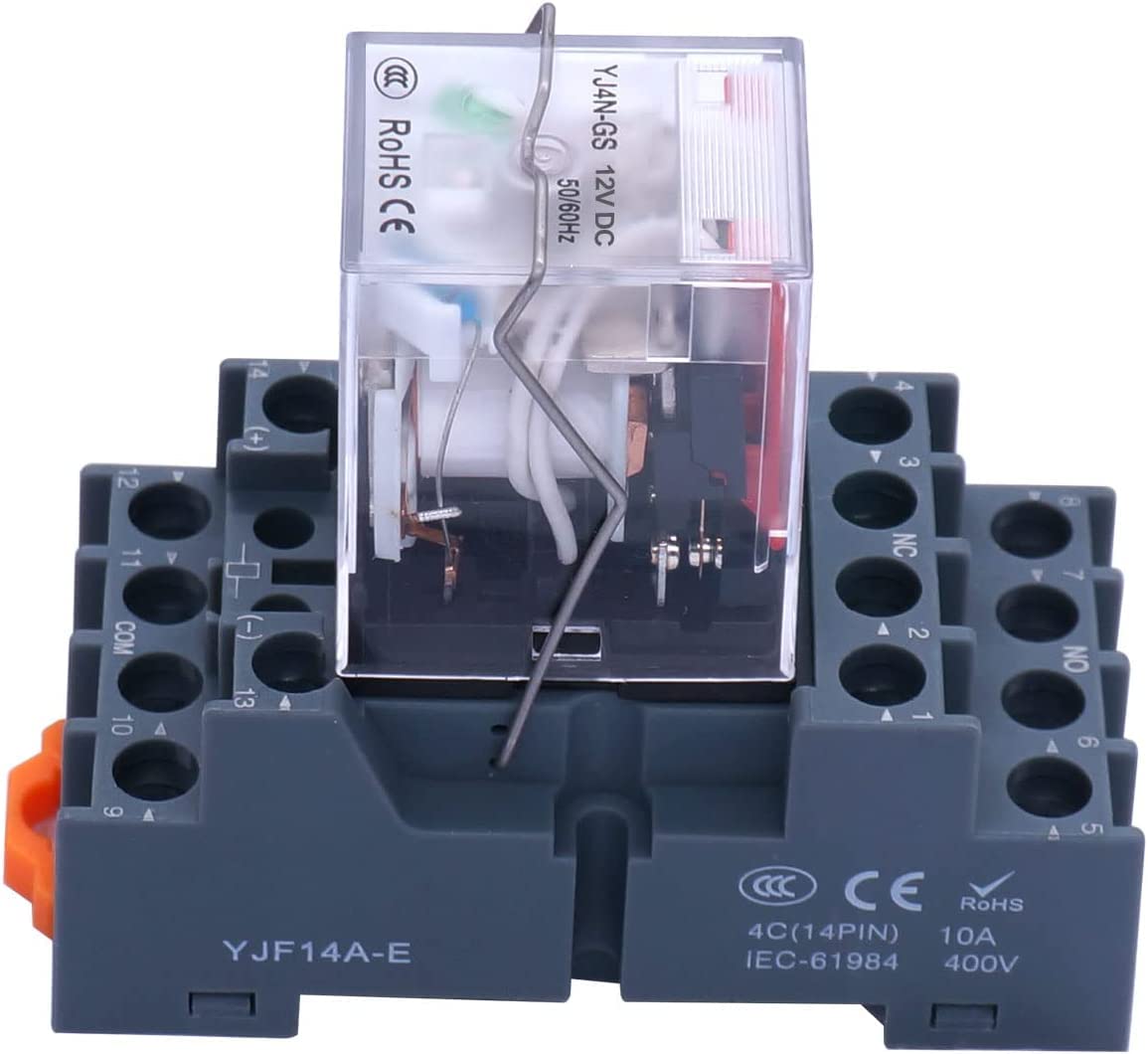

Wiring description: 5,6,7,8, normally open contacts, 1,2,3,4, normally closed contact, 9,10,11,12, common point, 13,14, the coil voltage contact of the relay. There is a wiring diagram on the product. For example: 1,5,9 This contact, 5 and 9 are normally open, and 1 and 9 are normally closed. 14 Terminals, 4PDT 4NO 4NC type, plastic housing, built in green indicator light. Can adjust automatically, protect and transform the electric circuit. Used widely in the remote control, communication, automatic control system, electronic equipments, etc. If there are quality problems within 3 years, you can send us email. We will send you new ones .
