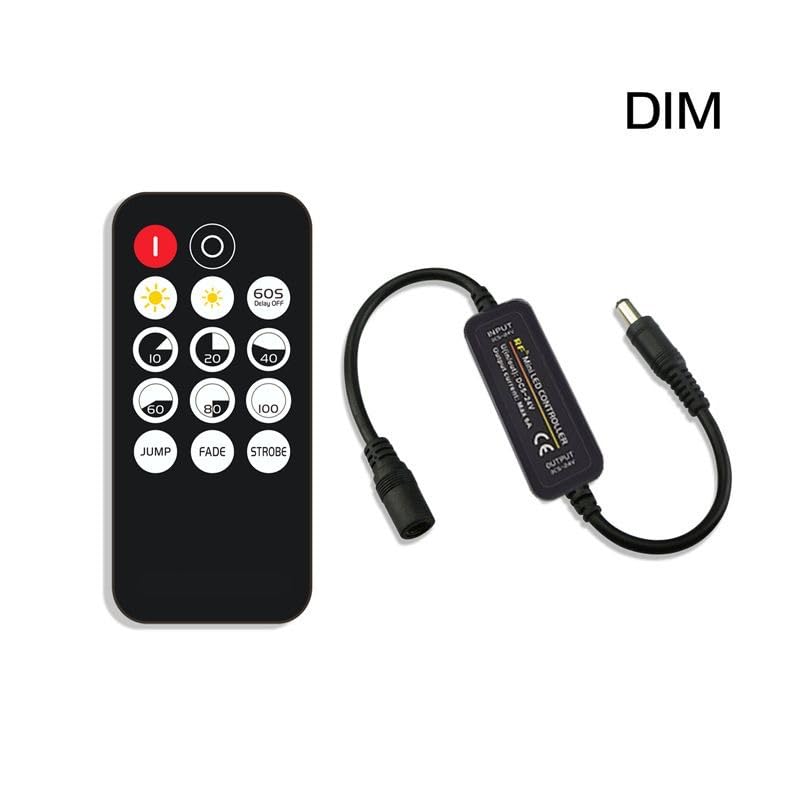

Taikuwu Mini Single Color RF Dimmer Controller 14 Keys for FCOB 3014 5630 5730 3528 LED Strips DC5/12/24V Switch Brightness Mode Effect Mode Wireless LED Dimmer Controller

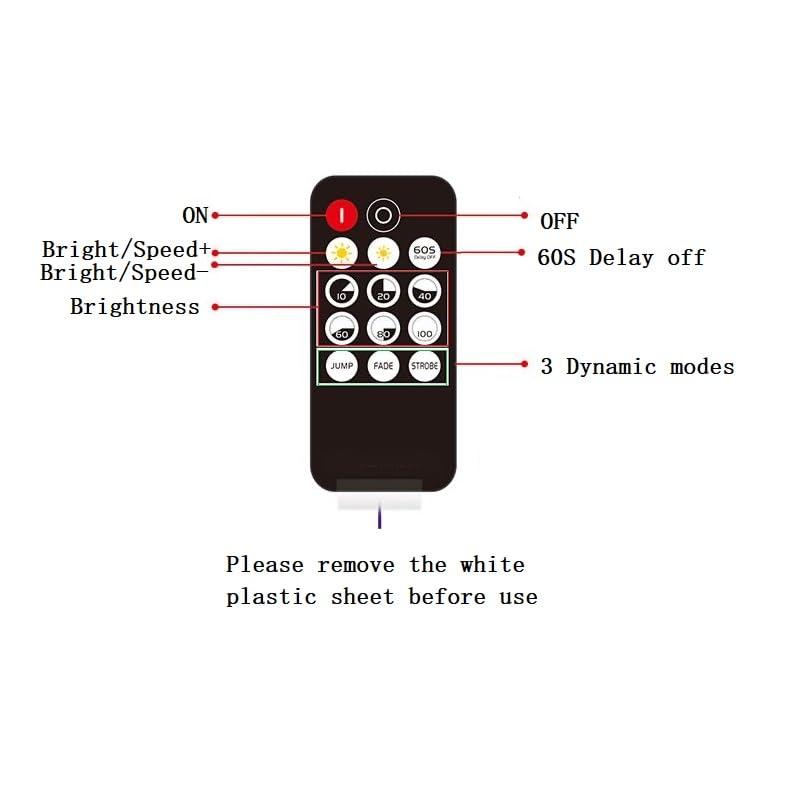

• Two ways to adjust the brightness, one is to select the brightness quickly, and the other is to select the brightness of the general version./The brightness from 10% to 100%, providing optimal dimming, suit for different romantic atmospheres.
• In open areas within 20 meters, the controller can be invisible, no need to point to the controller.
• Dynamic mode: 3 built-in types (Jump ,Fade, Strobe).
• Input voltage：DC5V/DC12V/DC24V; Output current：<2A/CH max:6A. (DC12V LED strip, please use D12V power supply)
• Applicable site: TV table, counter, night table, bathroom etc.Applicable light led counter lights, strip light,cabinet light,puck lights etc.

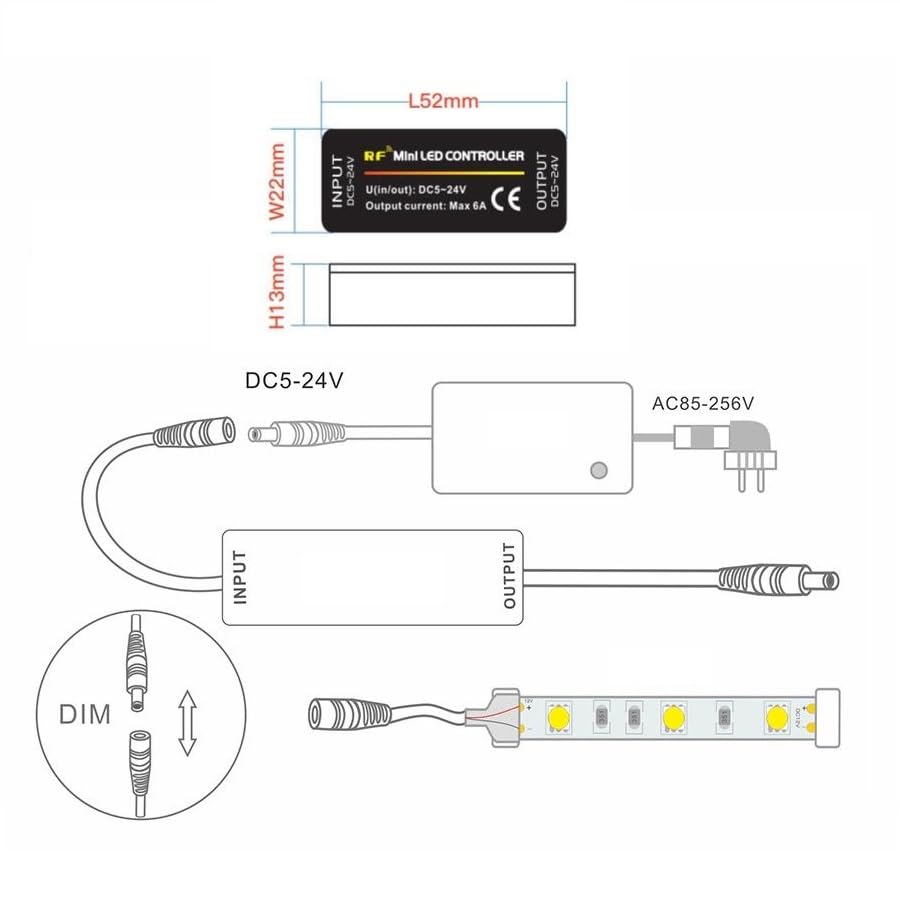

RF dimmer 14 keys controller Working temperature: -20-60℃ Input voltage：DC5V/DC12V/DC24V Connection mode：Common anode Static power consumption：<0.5W Output current：<2A/CH max:3A Output power: Max: 5V:<30W,12V:<72W, 24V:<144W Dimmer ranges: 1%-100% Controller size: L55.7*W16.6*H10.7mm DC connector size: 5.5*2.1mm Mode List Mode 1:Jump Mode 2:Fade Mode 3:Strobe You can quickly choose the brightness of the light according to your needs. Package includes: 1x dimmer controller 1xconnector 2xDC connector
