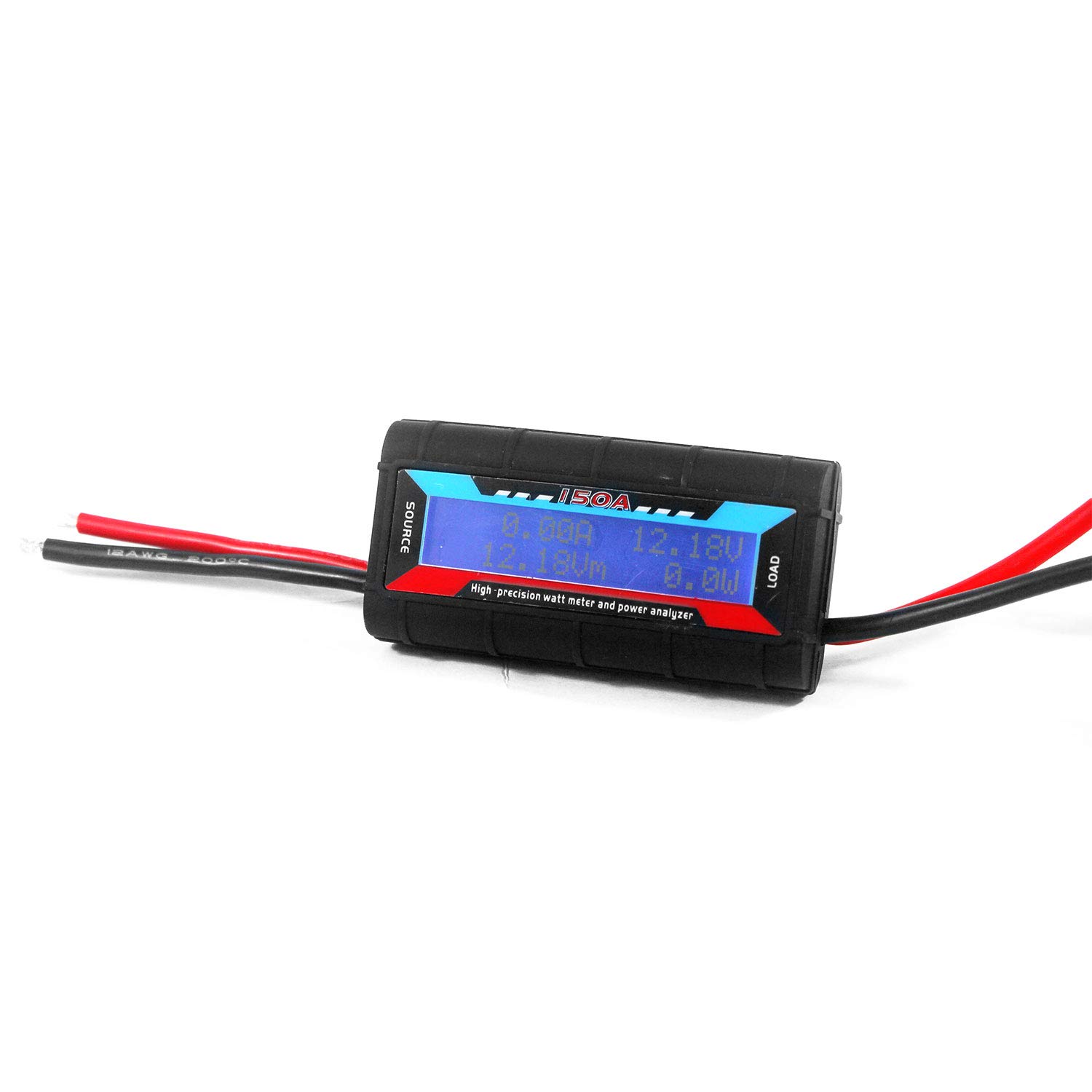

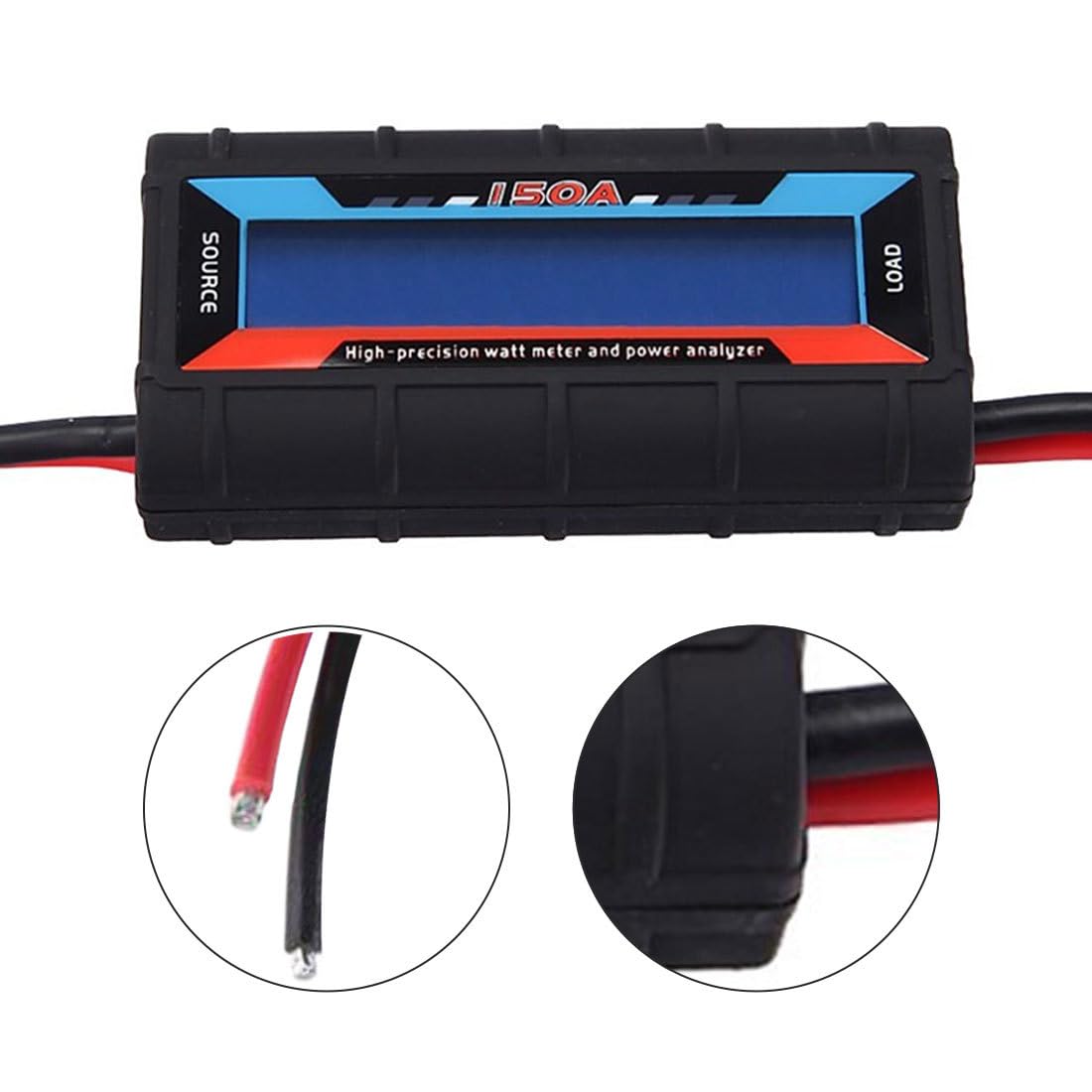

Taikuwu 150 Amps High Precision Power Analyzer Watt Meter Battery Consumption Performance Monitor with LCD Backlight for RC, Battery, Solar, Wind Power

• Digital LCD Screen Display: easy to read the LCD provides clear digital reading, the wattmeter will continuously provide the real-time reading of amperes, volts, and watts after connection
• Provides 8 Electrical Readings: Current (A), Voltage (V), Watts (W), Amp-hours (Ah), Watt-hours (Wh), Peak Amps (Ap), Minimum Volts (Vm), Peak Watts (Wp)

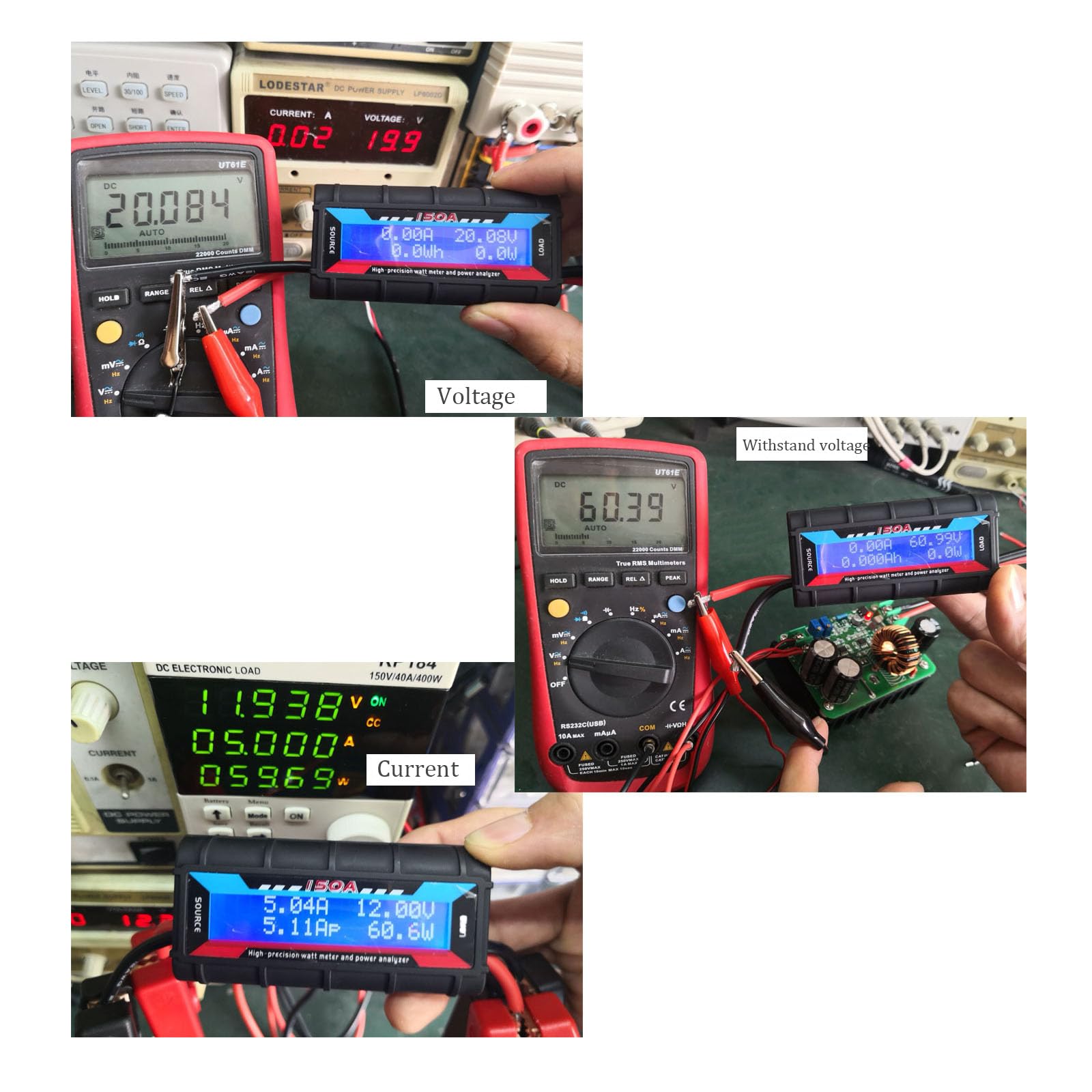

• High Precision: Measures 0-150 Amps, Resolution 0.01 Amps. Measures 0-60 volts, Resolution 0.01 volts. 0 - 6554W, resolution 0.1W. 0 - 65Ah, resolution 0.001Ah. 0 - 6554Wh, resolution 0.1Wh

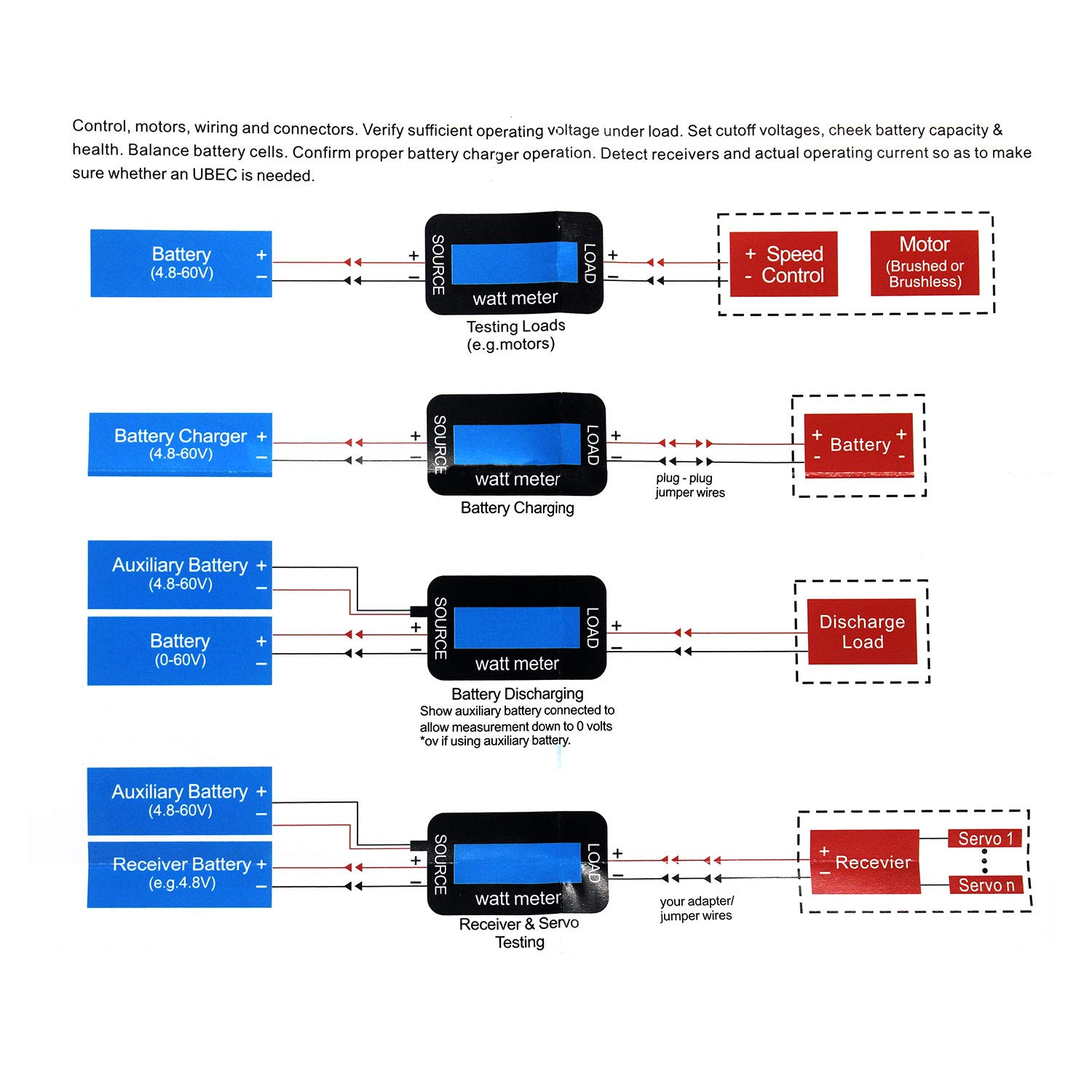

• Multi-functional tool: verify that there is sufficient working voltage under load. Prevent peak current from damaging batteries, ESC, motors, wiring, and connectors.Verify correct battery charger operation (connect your battery and charger)
• Function: Individual cells are balanced. Set the cut-off voltage and check the battery capacity. Detect the receiver and the actual operating current to determine whether UBEC, etc

Main Feature: Working voltage: 0 to 60 Volts. Easy To Use: Requires no configuration or programming. Digital LCD screen: Easy to read LCD screen provides clear number readings. Real Time Reading: The Watt Meter will continuously provide real time readings of the amps, volts, and watts after connection. (All Measurement screen value are updated every 0.4 second) Specifications: Operates from 4.8-60V Measures 0-150 A, resolution 0.01A 0-60 V, resolution 0.01V; 0-6554W,resolution 0. 1W; 0-65 Ah, resolution 0.001AH; 0-6554 Wh, resolution 0.01wh; 16x2, backlit LCD display; Packing including: 1 * 0-60V 150A Watt Meter and Power Analyzer. 1 * User Manual
