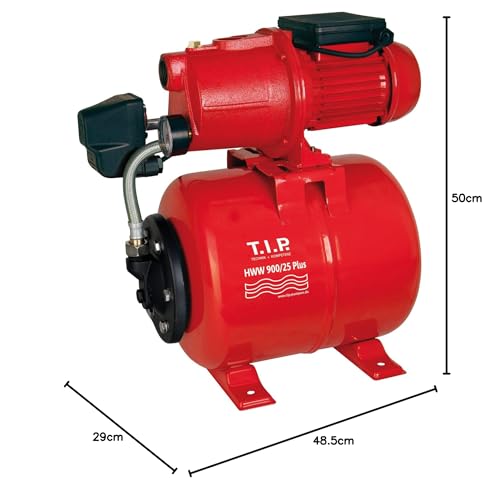

T.I.P. 31300 HWW 900/25 Booster Pump

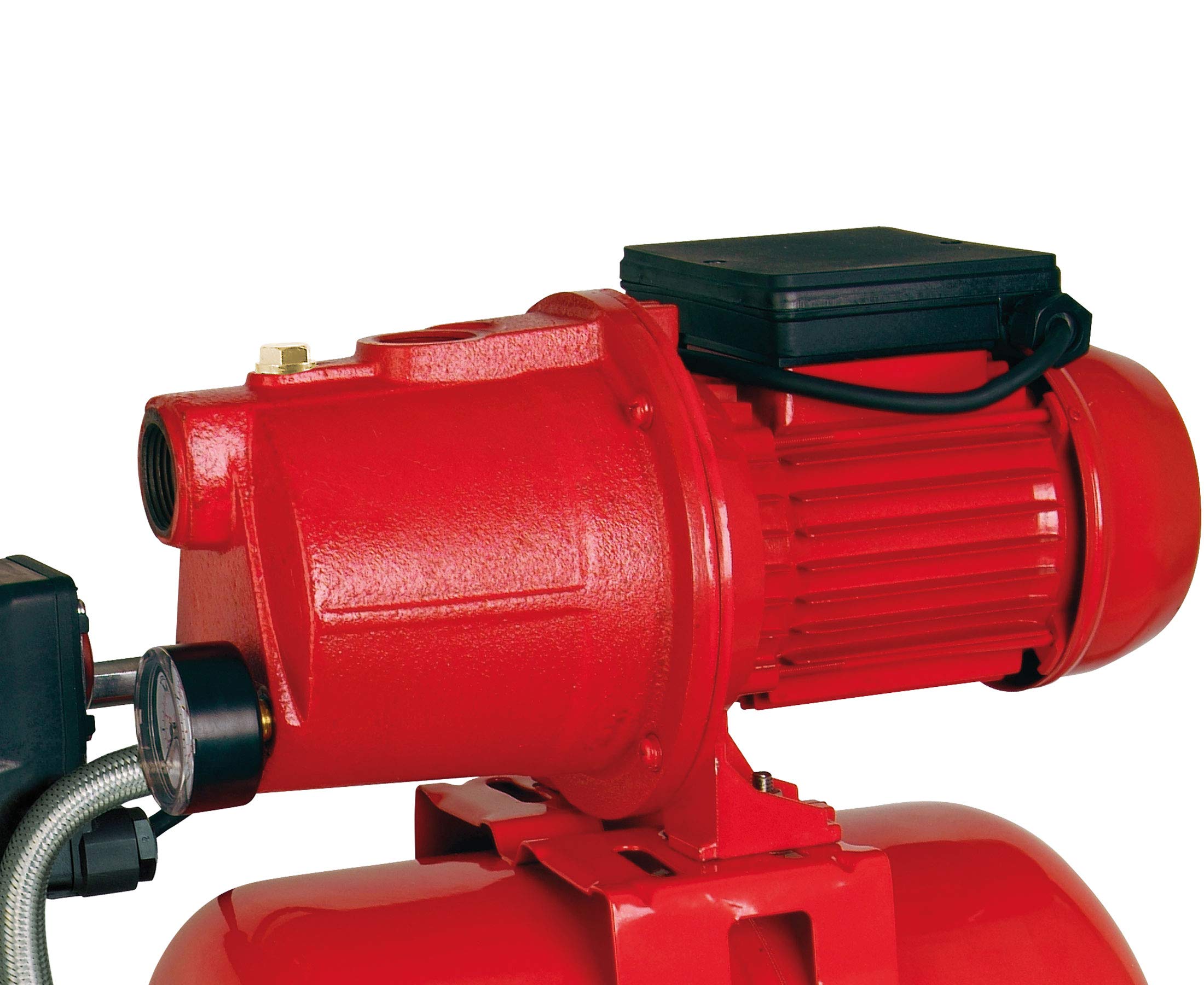

• - Thanks to its especially robust technology and equipment, the HWW 900/25 is a proven product in the area of booster pumps. The heavy cast iron pump housing guarantees extremely smooth-running, quiet, and efficient operation.
• - It may be used for operation of a sprinkler or as a pressure increasing system. Features a maintenance-free capacitor motor with thermal overload protection and food-safe membrane

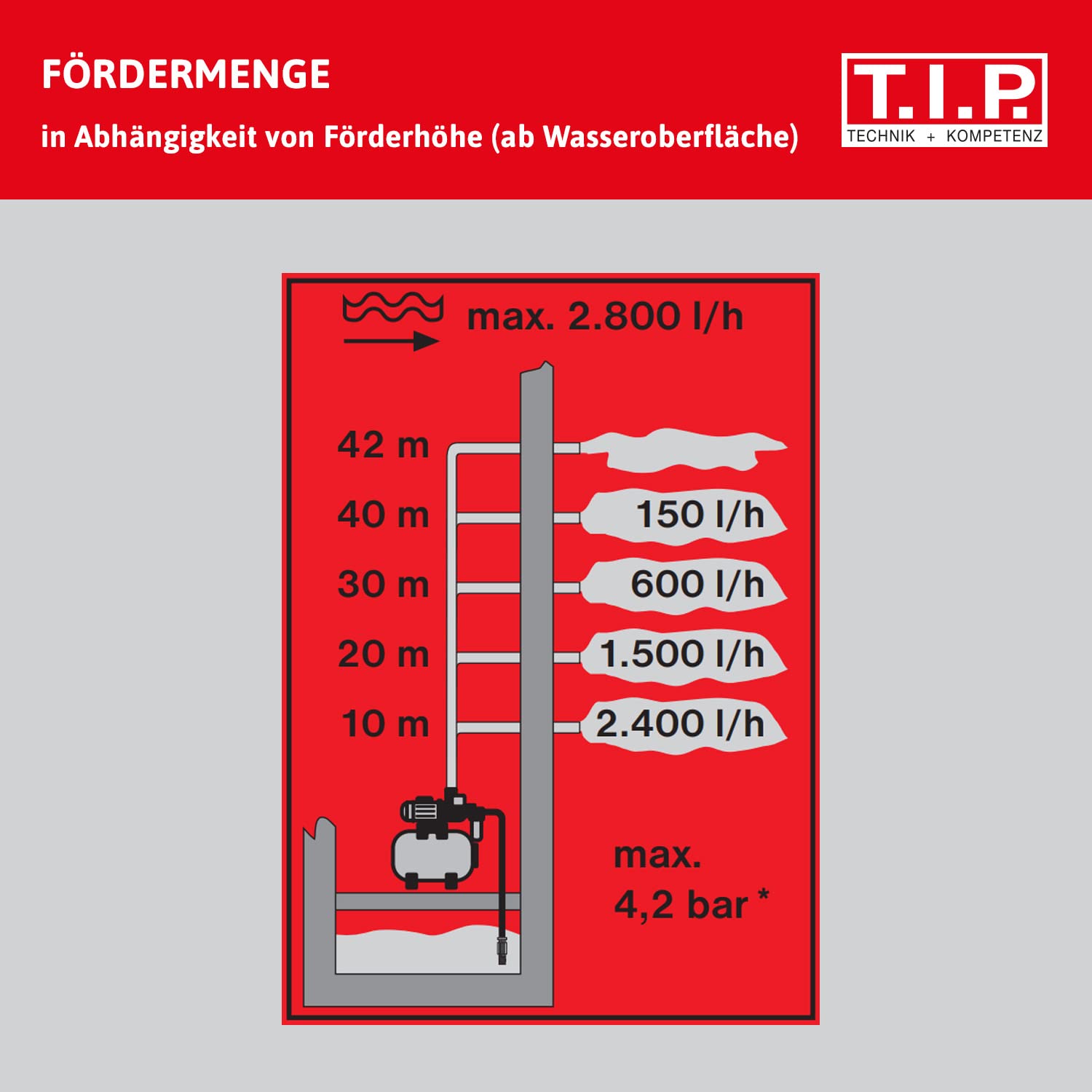

• - Motor output equal to 600 watt with a maximum pressure head of 42 m (max. 4.2 bar)
• - Maximum flow rate is 2,800 l/h
• - Maximum suction height at 9 m

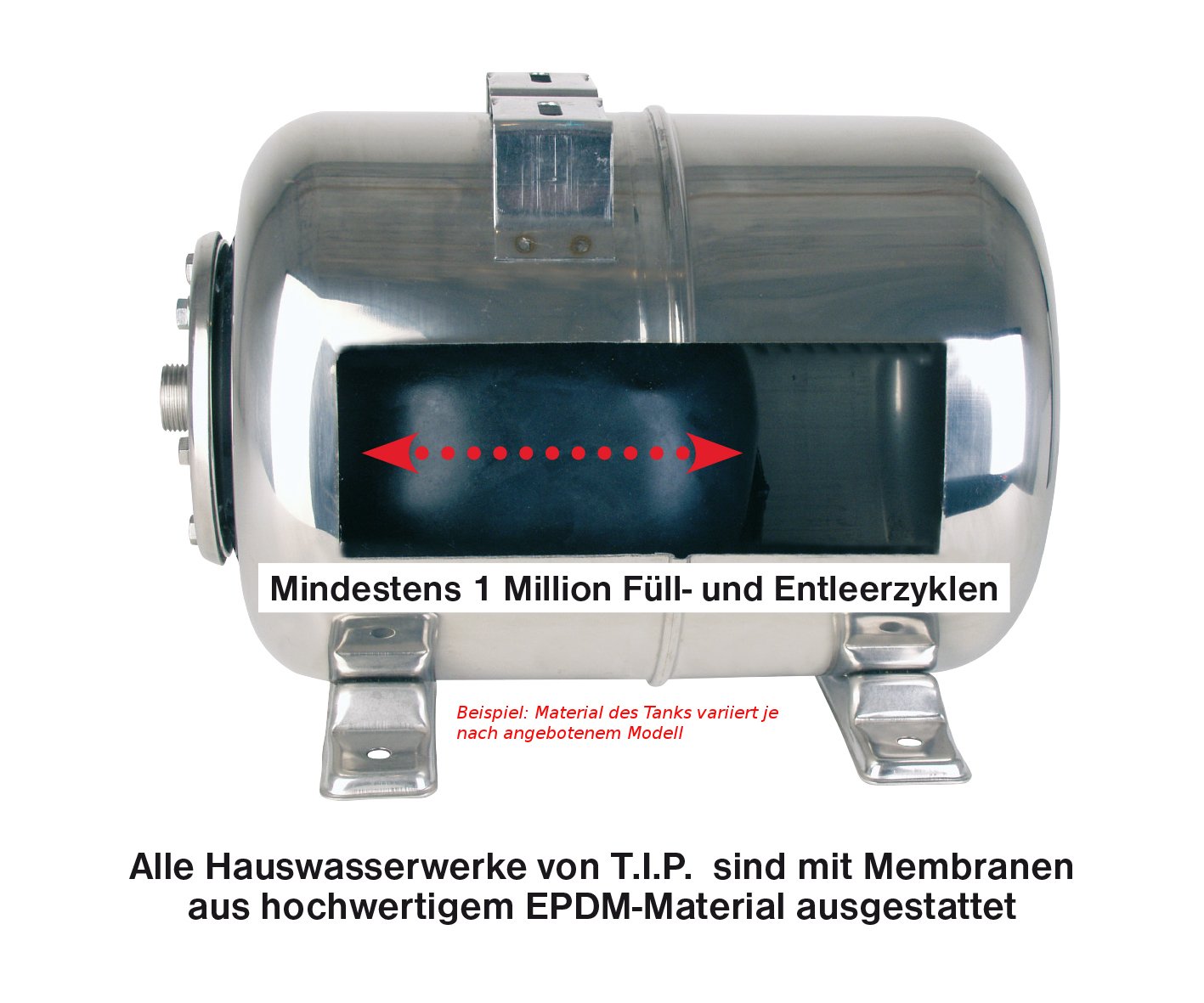

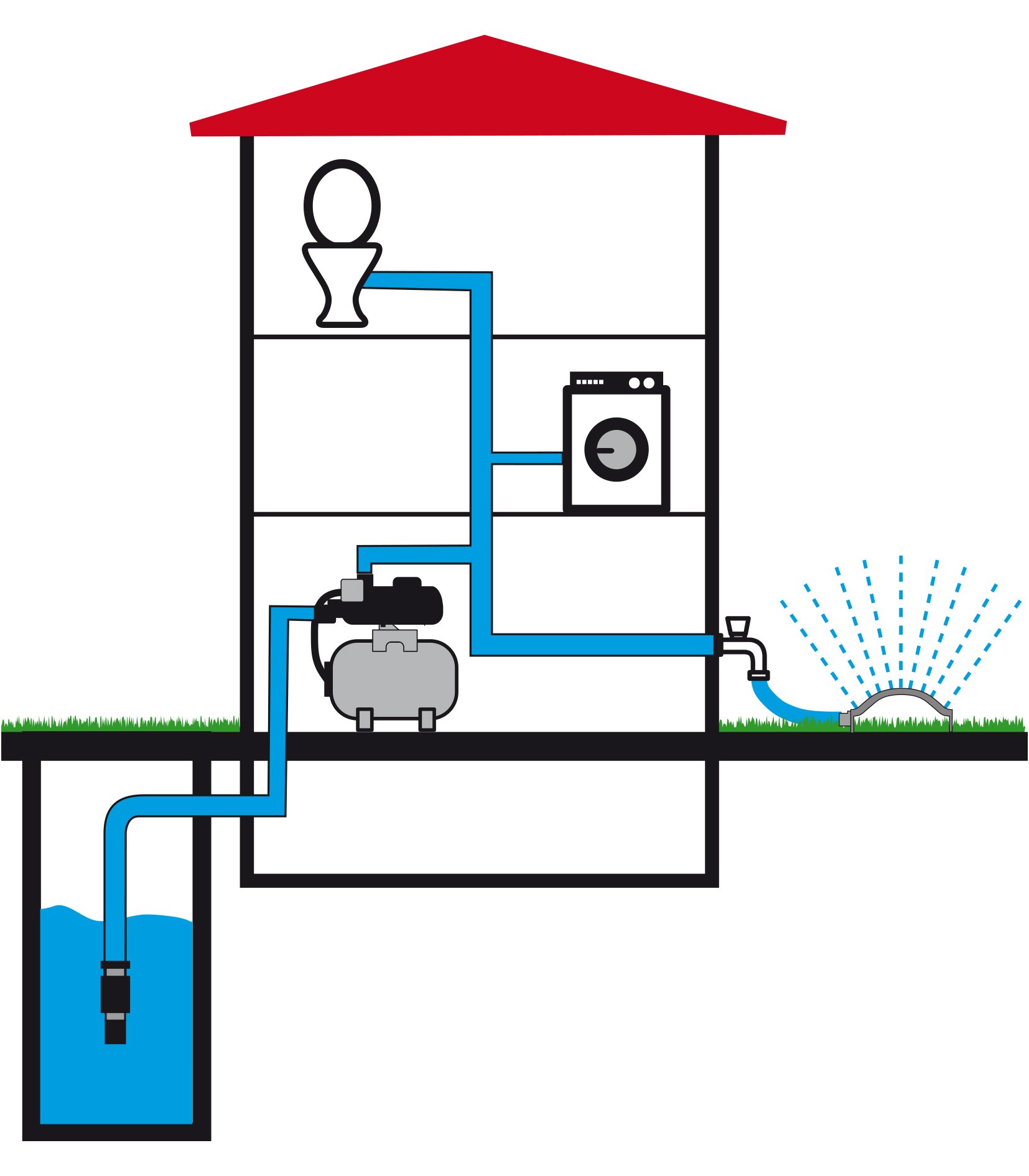

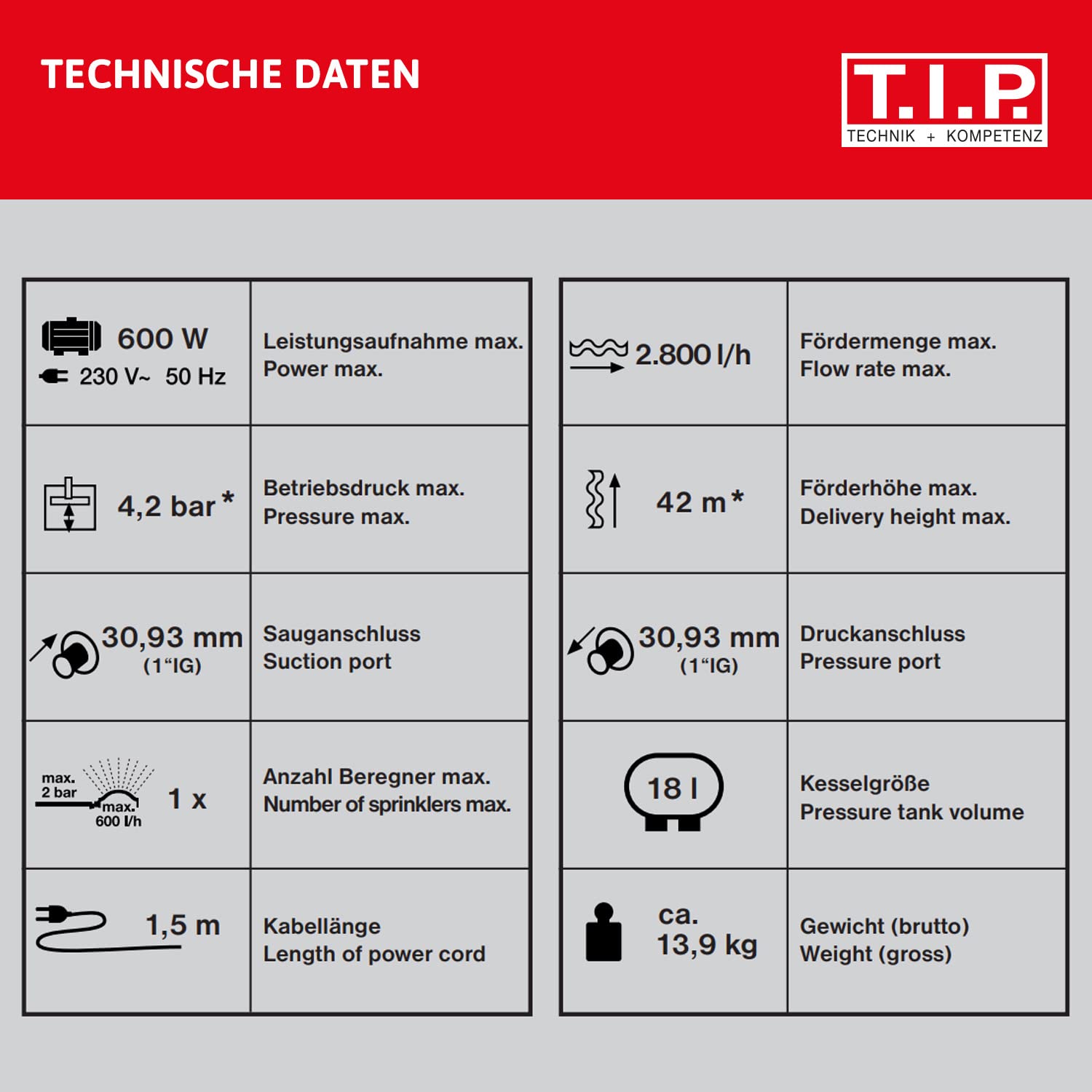

T.I.P. HWW 900/25 booster pump - extremely robust design featuring cast iron pump - Self-aspirating, powerful 600 watt pump with jet hydraulic system and thermal overload protection - High flow rate of up to 2,800 l/h and high pressure of up to 4.2 bar - Very robust and smooth-running pump housing consisting of solid cast ironing - 18-litre steel pressure vessel. - Including food-safe membrane - suitable for drinking water - For pumping clarified water at constant pressure - For automatic household supply of service water from wells and cisterns, for watering gardens, and automated sprinklers - Ideally suited for increasing pressure via installation in the existing water network 10-year T.I.P. replacement part guarantee - request replacement parts service conveniently online Performance data Motor: 600 watt Max. pressure head: 42 m Max. flow rate: 2,800 l/h Max. pressure: 4.2 bar Max. suction lift: 9 m> Pressure vessel volume: 18 litres Pump housing: cast iron Pressure vessel housing: Steel Max. fluid temp.: 35° C Suction connection: Ø 30.93 mm inside thread (1") Pressure connection: Ø 30.93 mm inside thread (1") Connection cable: 1.5 m H05RN-F Max. number of sprinklers: 1 Technical design Maintenance-free capacitor motor with thermal overload protection< Pressure switch for exact pressure value Integrated manometer Food-safe EPDM membrane
