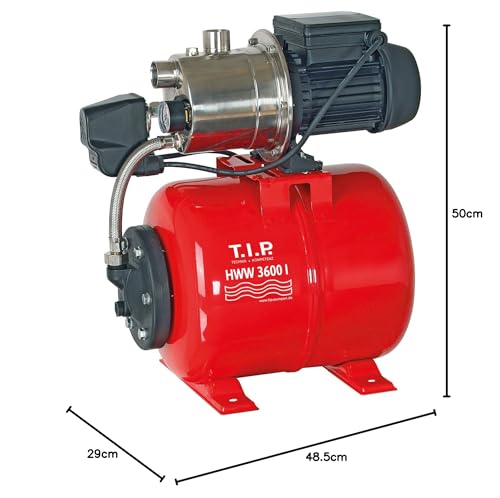

T.I.P. 31188 HWW 3600 I Booster Pump

• - High-performance, compact all-round model for a broad range of applications - ideal for automatic household water supply from wells and cisterns, for watering gardens, automatic sprinklers, and for utilization of rain water
• - Self-aspirating pump equipped with jet hydraulic system and stainless steel pump housing, 18 l pressure vessel featuring high-quality EDPM membrane and maintenance-free capacitor motor with thermal overload protection.
• - Motor output at 650 watt with a maximum pressure head of 40 m (max. 4.0 bar)
• Maximum flow rate of 3,600 l/h
• -Maximum suction lift at 9 m

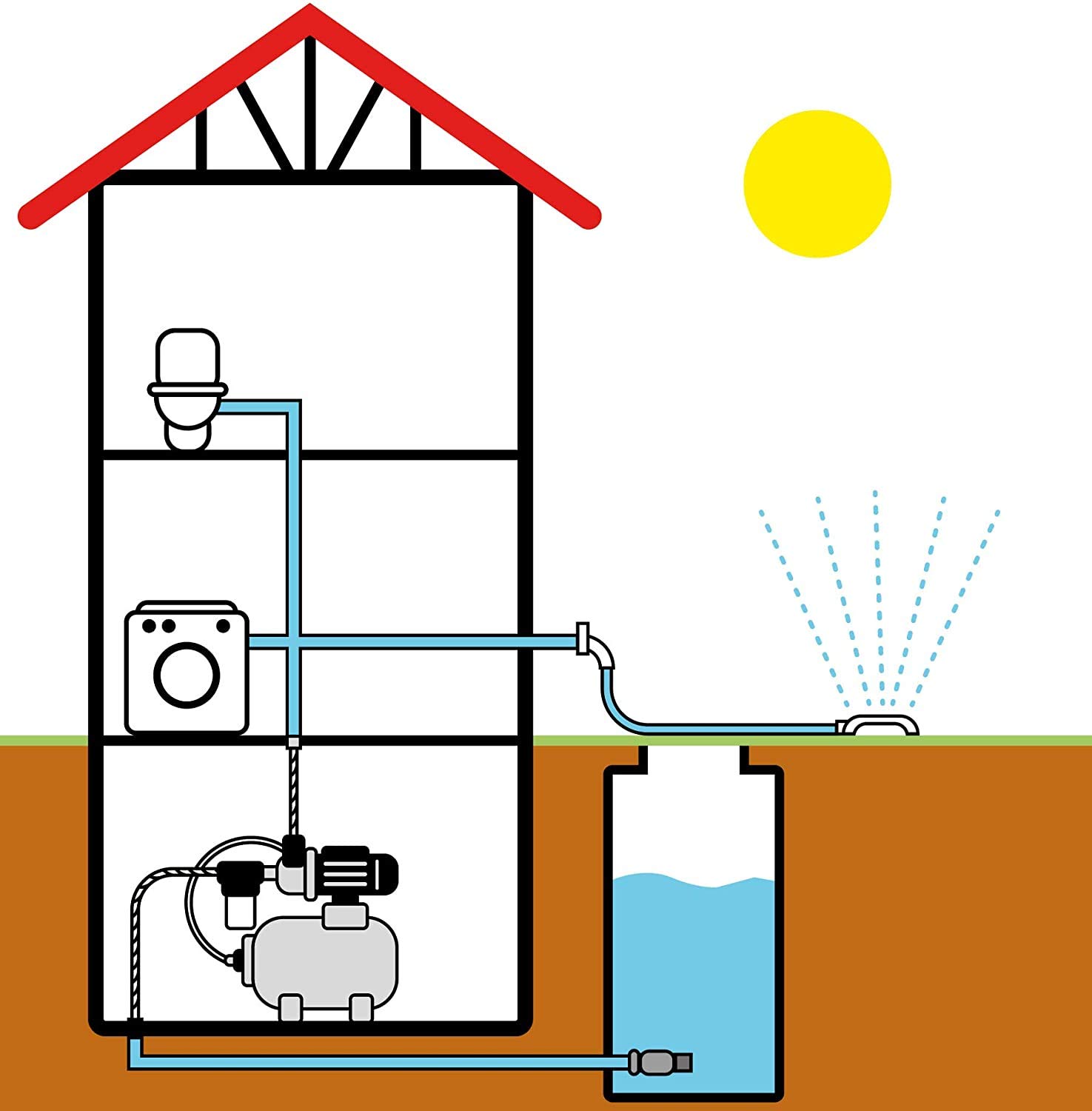

The HWW 3600 I is a powerful, compact all-round domestic water system model that is suitable for a wide range of applications: ideal for automatic domestic water supply with domestic water from wells and cisterns, for garden irrigation, automatic irrigation and for rainwater use. Equipped with stainless steel pump housing, 18 litre pressure boiler with high-quality membrane made of EDPM. and maintenance free and maintenance free conator motor with thermal overload protection. Technical data: motor: 650 watts. Maximum discharge head. : 40 m / 4.0 bar flow rate max. 3,600 l/h suction height max. 9 m pump housing: stainless steel pressure vessel / volume: steel / 18 l pressure connection: IG, 30.93 mm (1 inch) suction connection: IG, 30.93 mm (1 inch) temperature max. Medium: 35 °C Connection cable: 1.5 m / H05RN-F flow rate and discharge head: 35 m - 350 l/h 30 m - 1,050 l/h 20 m - 1,950 l/h 10 m - 3,100 l/h The flow rate of a pump depends mainly on the delivery height. The term 'discharge height' refers to the height difference between water surface and water extraction. The table above conveys the performance of the domestic water system HWW 3600 I at different delivery heights. With a discharge head of 20 metres, for example, this pump can expect a flow rate of 1,950 litres per hour. Maximum number of irrigators: domestic water systems are very suitable for operating irrigation systems - such as irrigators. This model is suitable for connecting max. 2 x sprinklers. This specification is based on the following standard values: water flow at the sprinkler: approx. 600L/H Water pressure on the sprinkler: approx. 2 bar. Suction height: max. 5 m. The term 'suction height' refers to the height difference between the water surface and the pump.
