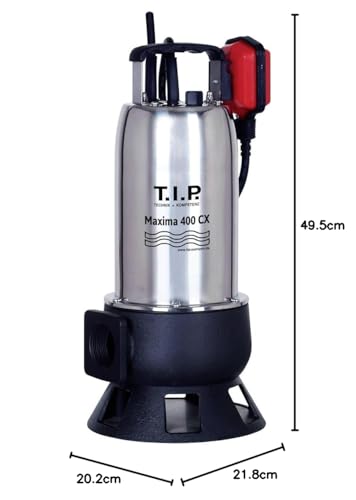

T.I.P. 30140 Maxima 400 SX Submersible Dirty Water Flood Pump, up to 24000 l/h Flow Rate

• - As a specially designed construction pump the MAXIMA 400 SX is characterized by outstanding robustness and an extremely high flow rate
• - Since pumps used in construction and wastewater pits are subject to the highest standards, the hydraulic housing and the nearly indestructible running wheel consist of cast iron.
• - Motor output at 950 watt with a maximum pressure head of 9 m (max. 0.9 bar)
• - Maximum flow rate of 24,000 l/h
• - Maximum immersion depth of 7 m

T.I.P. Maxima 400 SX wastewater immersion pump max. flow rate 24,000 l/h The top model in the high-quality and especially robust Maxima series is designed as a construction pump with outstanding power. Stainless steel pump housing and motor shaft. Thermal overload protection and automatic activation/deactivation protect the pump against damage due to overheating. Featuring VORTEX running wheel system against plugging in the pump. Solid, low-wear cast iron running wheel. For pumping clarified or severely fouled water with grain size up to 35 mm. Specially designed for extreme and universal applications: For draining garden ponds, construction and wastewater pits, swimming pools and cisterns, wastewater sewers, and emergency drainage in case of flooding. Technical data Motor: 950 watt Max. flow rate: 24,000 l/h Max. pressure head: 9 m Max. grain size: 35 mm Min. suction level: 40 mm Pump housing: Stainless steel/cast iron Max. fluid temp.: 35° C Max. immersion depth: 5 m Pressure connection: 45.48 mm inside thread (1 ½') Connection cable: 10 m Cable type: H07RN-F Weight (total): 12.2 kg Pressure head and flow rate 8 m - 30 l/min - 1.8 m³/h 7 m - 80 l/min - 4.8 m³/h 6 m - 130 l/min - 7.8 m³/h 5 m - 180 l/min - 10.8 m³/h 4 m - 225 l/min - 13.5 m³/h 3 m - 260 l/min - 15.6 m³/h 2 m - 302 l/min - 18.1 m³/h 1 m - 345 l/min - 20.7 m³/h The flow rate of a pump mainly depends on the pressure head. The table above indicates the performance level of the Maxima 400 SX wastewater immersion pump at different pressure heads. Example: If water is pumped from a depth of 2 metres, then a flow rate of 302 litres per minute or 18.1 cubic metres per hour can be expected for this pump.
