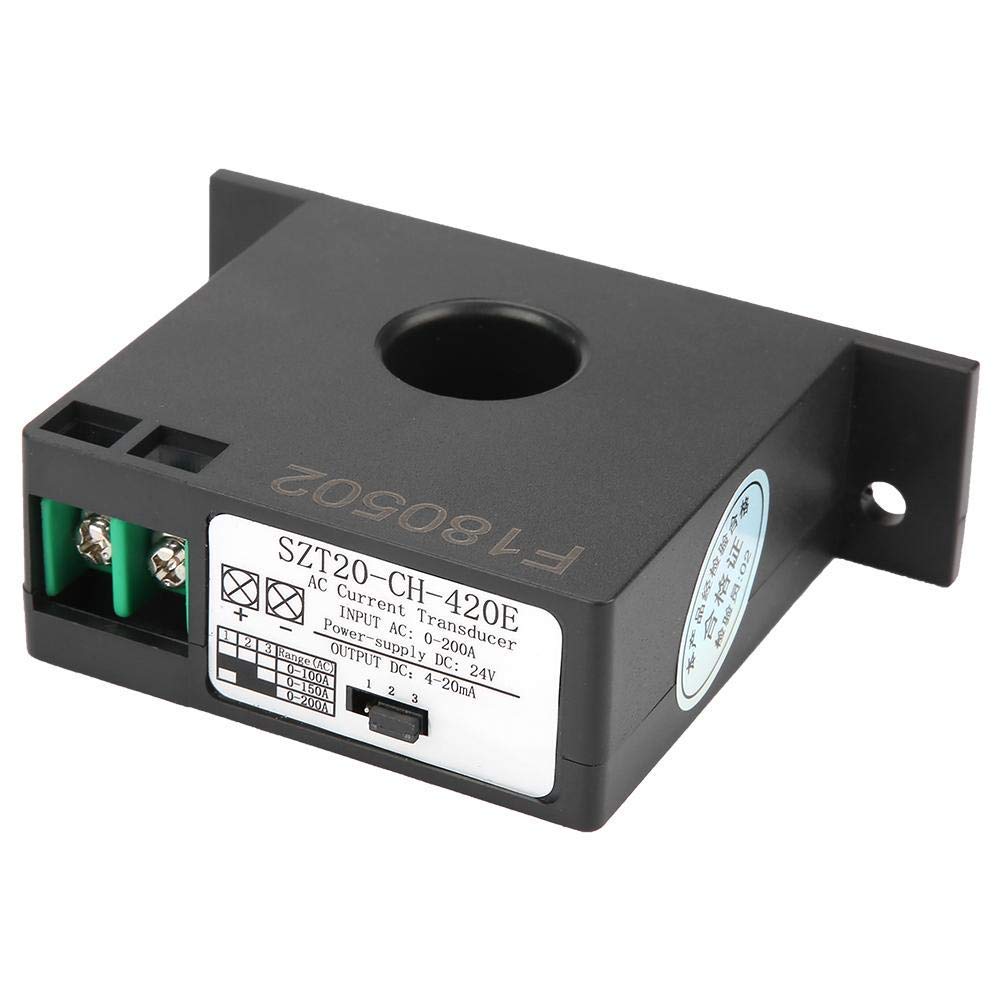

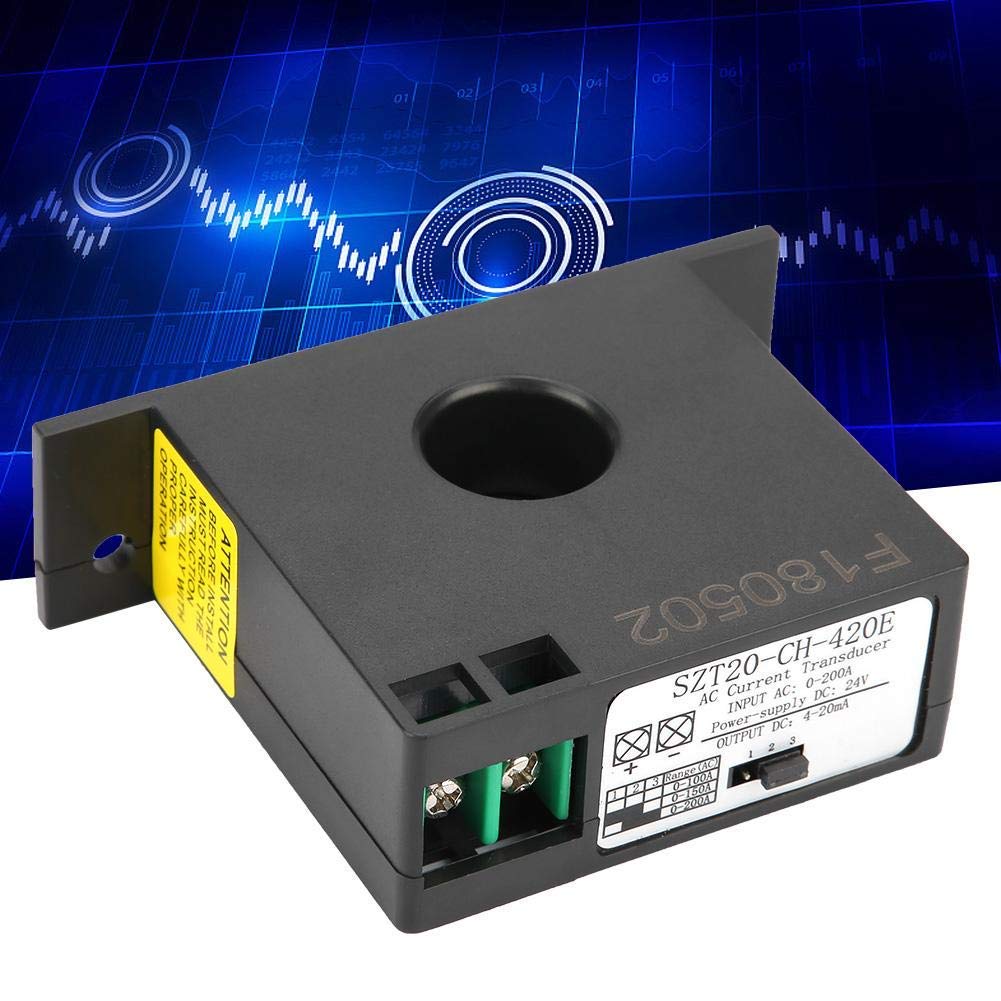

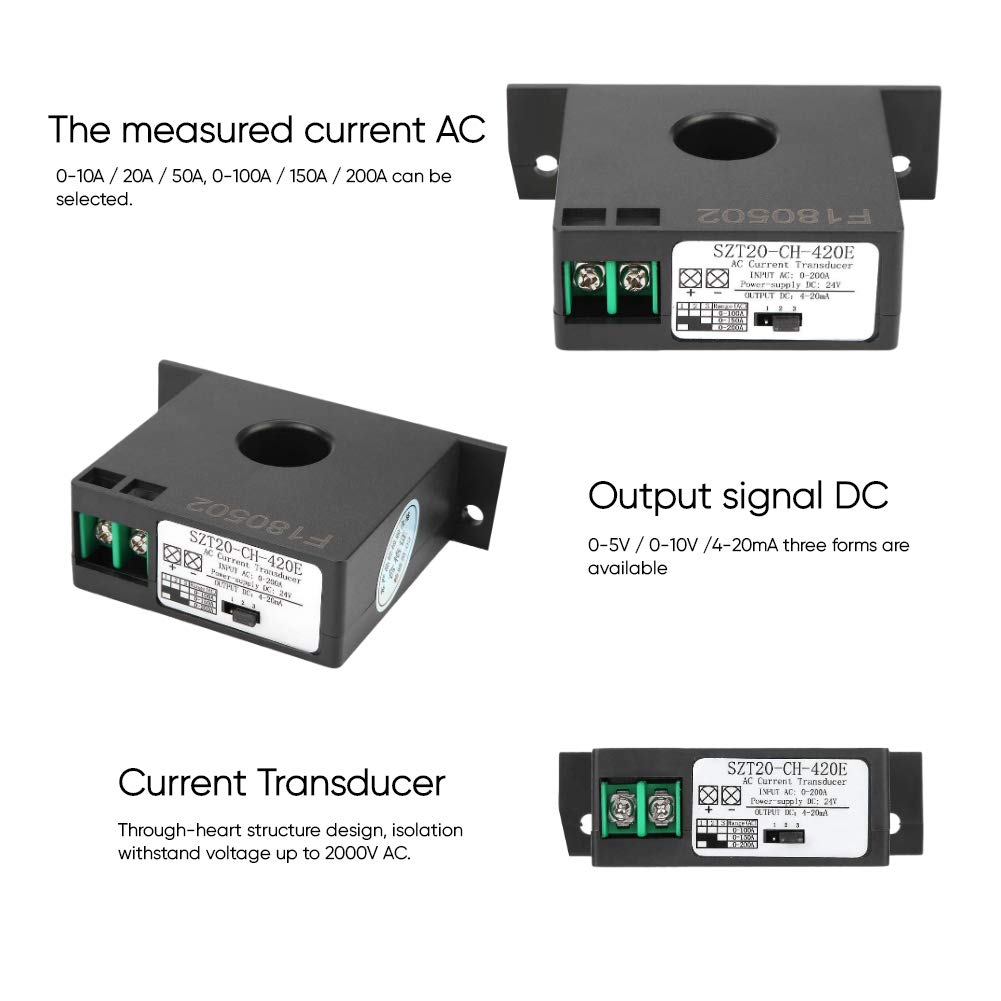

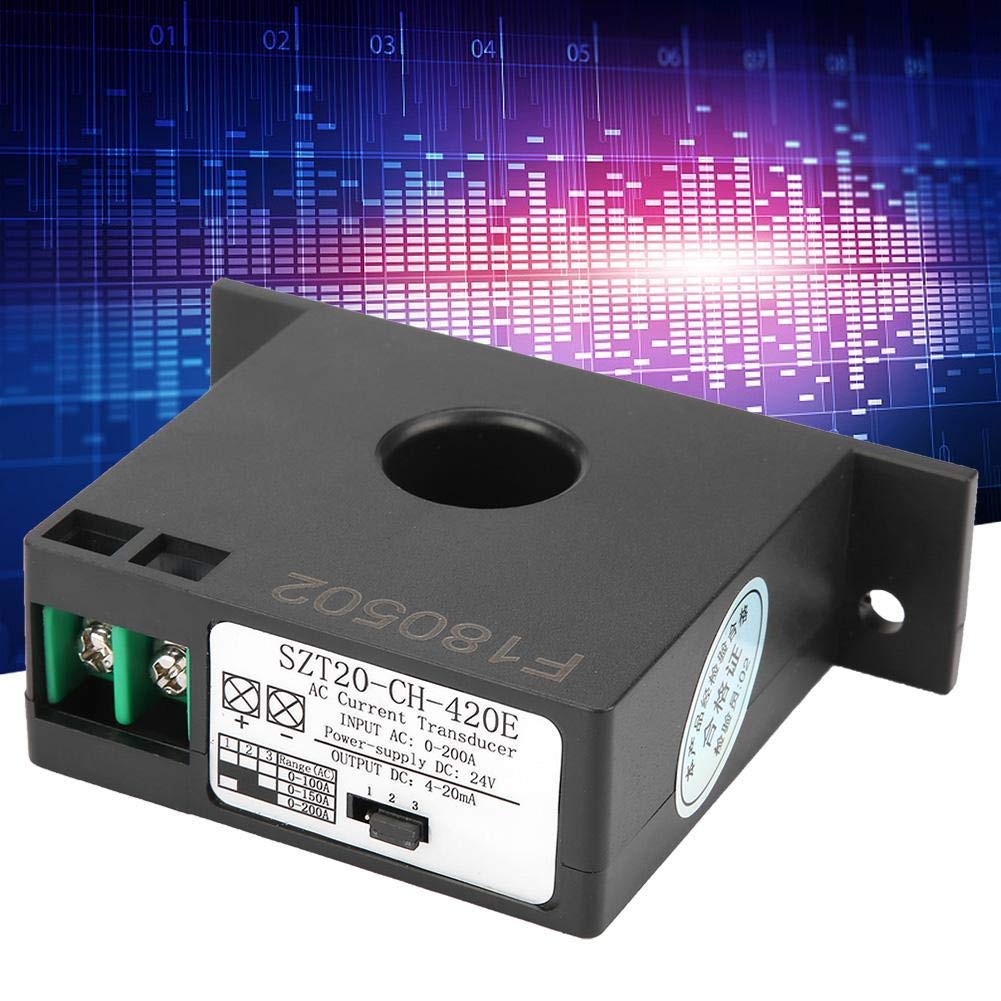

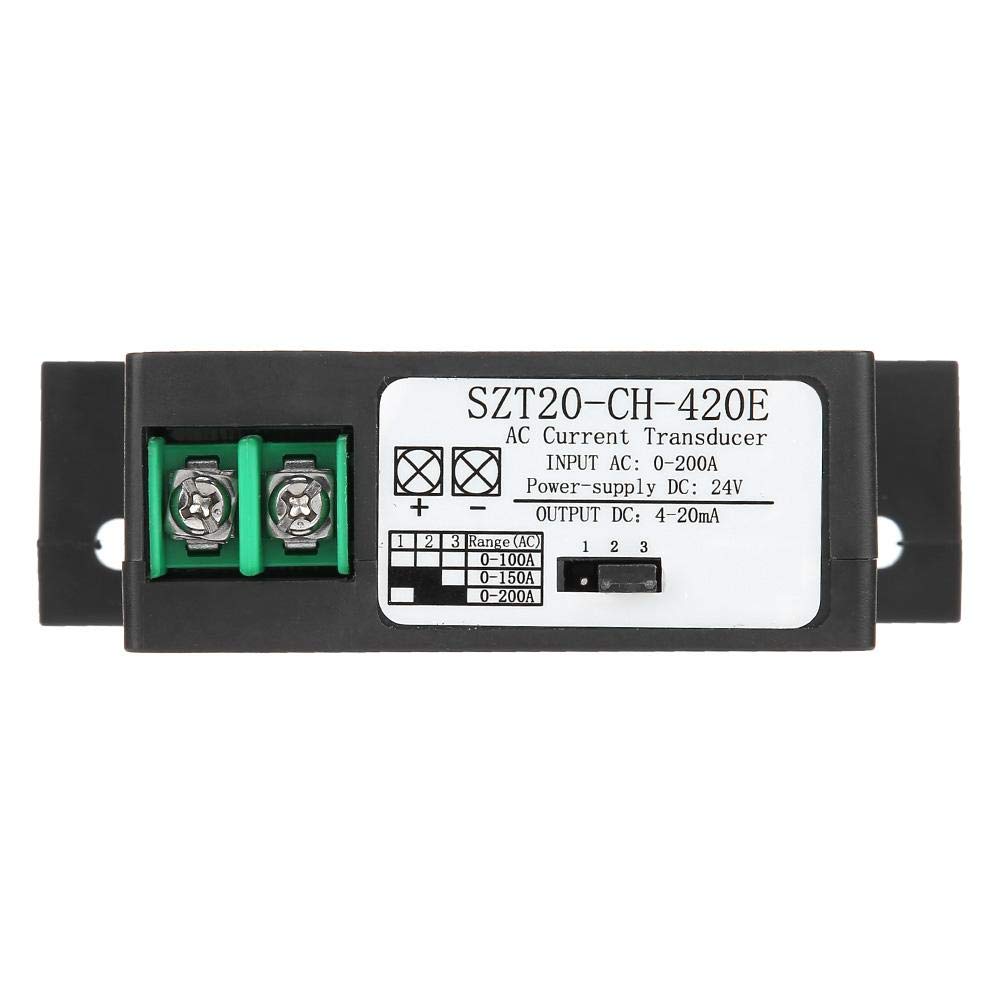

SZT20-CH-420E Current Transducer, measuring current AC 0-10A / 20A / 50A, 0-100A / 150A / 200A,Three Forms Output Signal DC 0-5V / 0-10V /4-20mA

Specification: Product Name: AC Current Transmitter Model: SZT20-CH-420E Power supply: Voltage output type, self-power supply does not require external current. Current output type requires external DC: 24V ± 10% Input feedthrough current (AC): 0-10A / 20A / 50A (SZT15 series) 0-100A / 150A / 200A (SZT20 series) Output Type (DC): Voltage output type: 0-5V/10V Current output type: 4-20mA Switch on minimum: 0.5±0.2A (round type) 1.5±0.2A (clamp type) Maximum current through current: 200%, the feed current cannot exceed 200% of the rated value Power consumption: ≤1W Tape: ≤1% Accuracy: ±1% Maximum leakage current: ≤0.1mA Linearity: 10%-100% Response time: ≤200ms Through the heart wire diameter: 0.35-20mm Working temperature: -20-60 °C Working humidity: 5-95% (no condensation) Housing material: self-extinguishing material ABS (Cycolac 94v-0) Insulation withstand voltage: 2000VAC 50/60Hz 1min Package list: 1 * AC Current Transducer
