Switian 3590S-2-103L B10 Kohm Rotary Wire Wound Precision Potentiometer, Precision Multi turn Wirewound Potentiometer, Adjustable Resistor Counting Dial Rotary Knob

• Product name : potentiometer; model : 3590S-2-103L 10K ohm m
• Type : multiple circles rotary potentiometer; Turns : 10
• Power: 2W ; Resistance Tolarance : +/-5%; Linearity : +/-0.25%

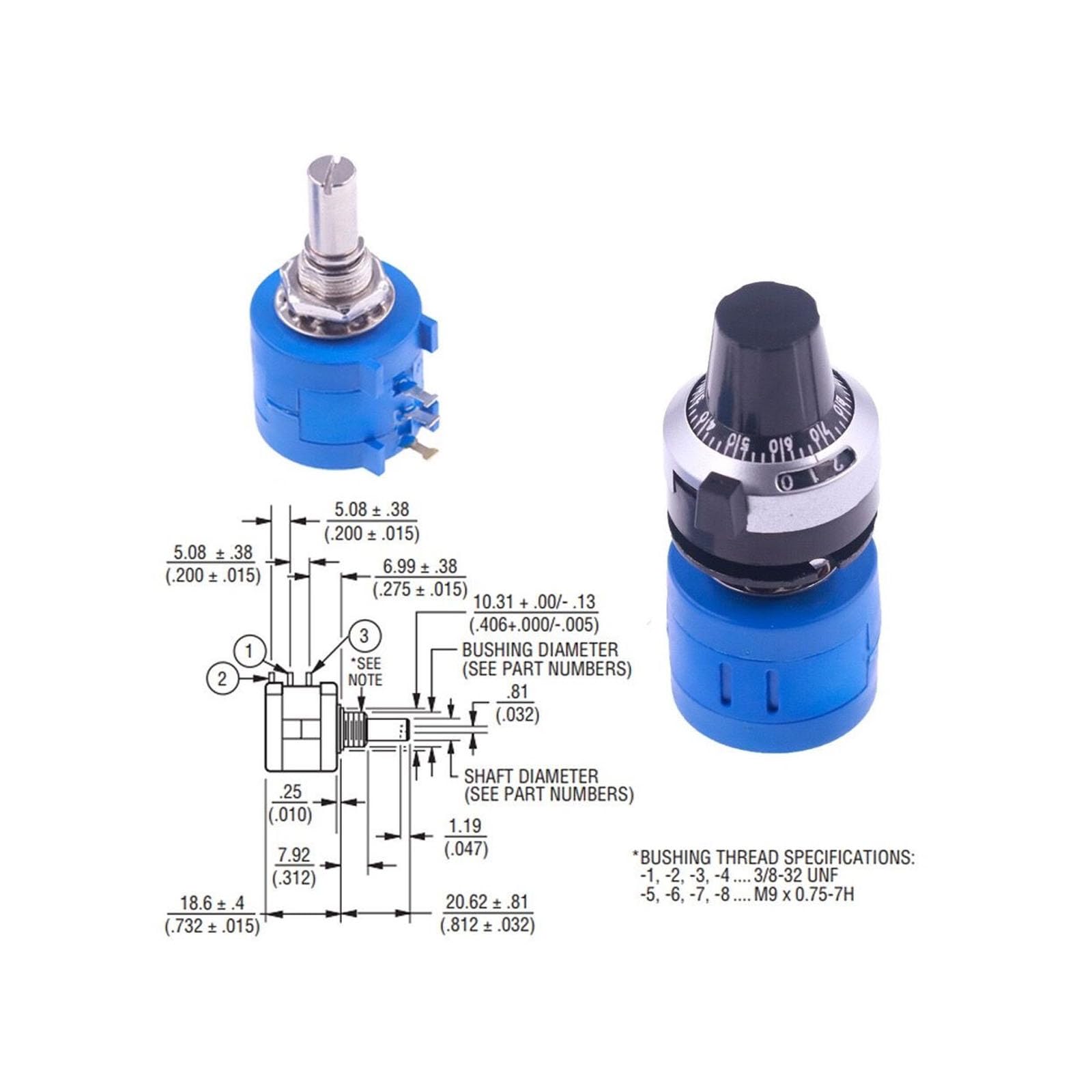

• Shaft Diameter : 6.35 x 10mm/ 0. 25" x 0. 4"(D*l); Threaded Diameter : 9mm/ 0.35";Body Size(No Include Shaft) : 22 x 19mm/ 0.9" x 0.7" (D*H);Total Length : 48mm / 1.9"
• This Multiturn Potentiometer is widely used to adjust timer, speed, temperature in all kinds of equipments.Potentiometers can stabilize your voltage; Adjust the voltage (including DC voltage and signal voltage) and current

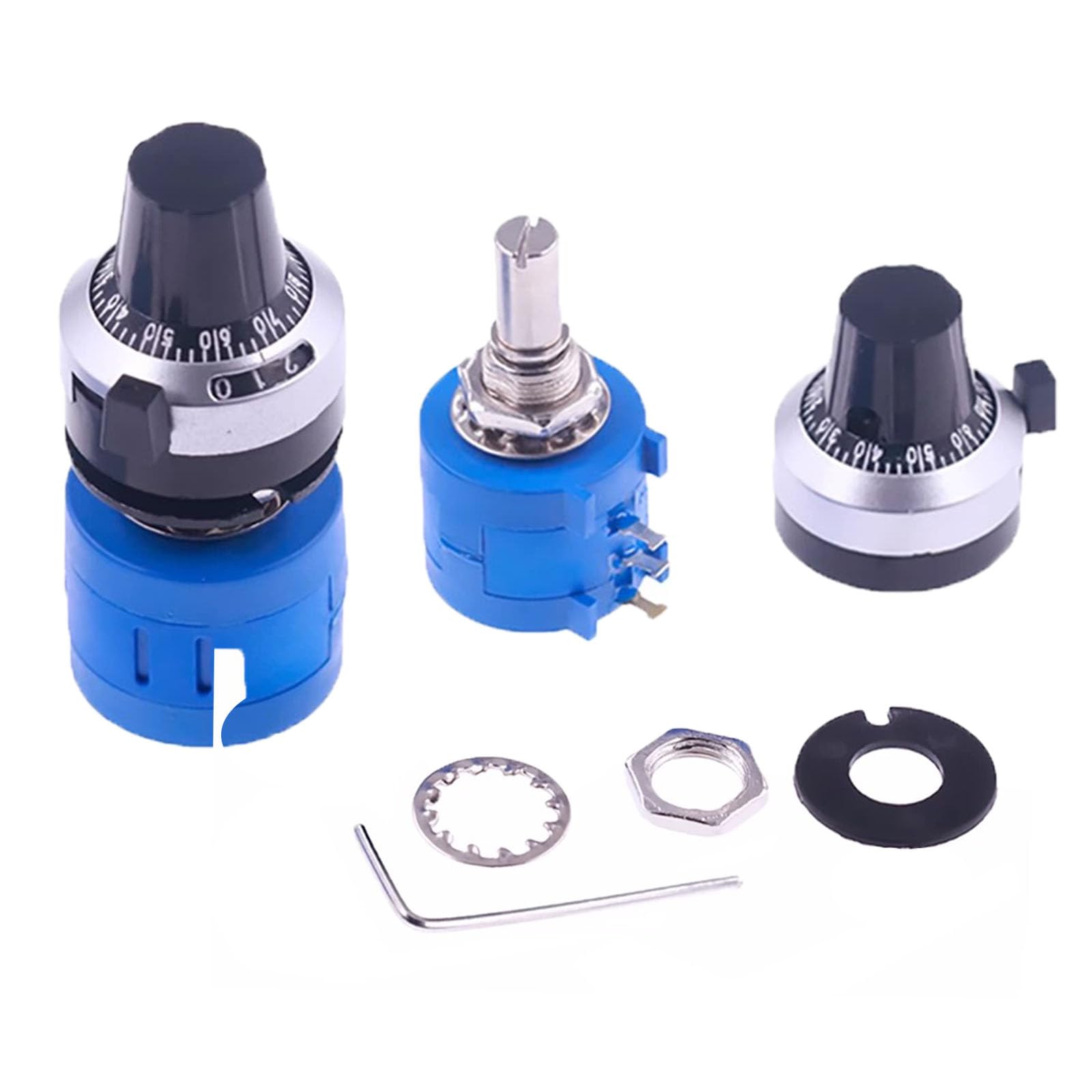

Feature: Product Name : Wire Wound Potentiometer Model : 3590S-2-103L Type : Rotary Shaft Turns : 10 Resistance Value : 10K Ohm Resistance Tolarance : +/-5% Linearity : +/-0.25% Shaft Diameter : 6.3mm/1/4" Threaded Diameter : 9mm/ 0.35" Body Size(No Include Shaft) : 22 x 18mm/ 0.9" x 0.7" (D*H) Total Length : 40mm/1.6" Color : Blue package content : 1 x Potentiometer 10K 1 x Counting Dial Rotary Knob
