Switch Relay,DC 4V 5V 6V 7.4V 9V 12V Wireless Relay Remote Control One Key Switch Receiver + Transmitter

• STRONG PERFORMANCE Our wireless switch can penetrate walls, floors and doors, and the receiver can be controlled independently and interference- at any position within a re distance with non-directional wireless coding technology. Flexible configuration of quantity and operating mode.
• Safe to Use The wireless remote control switch is easy to use and safe, working voltage: DC4V-DC12V; Maximum load: 10A; Working current: 70-130mA; Wireless control; Working current: 70-130mA. Easy to use, learn, re-learn and control.
• Convenient to use: this light switch remote control adopts a small volume and the performance is stable and re with flexible operation, small size, high reception sensitivity and low power consumption.
• Working Principle This type of RF remote transmitter and receiver is a wireless remote control switch (receiver) with learning code, which can be easily adapted to the transmitter (remote control).
• Wide applications: the wireless RF switch is a widely used learning code, ranging from simple household remote control to autonomous control, e.g. For DIY work, LED lights, lamp beads, Christmas tree steps, light control switches etc.

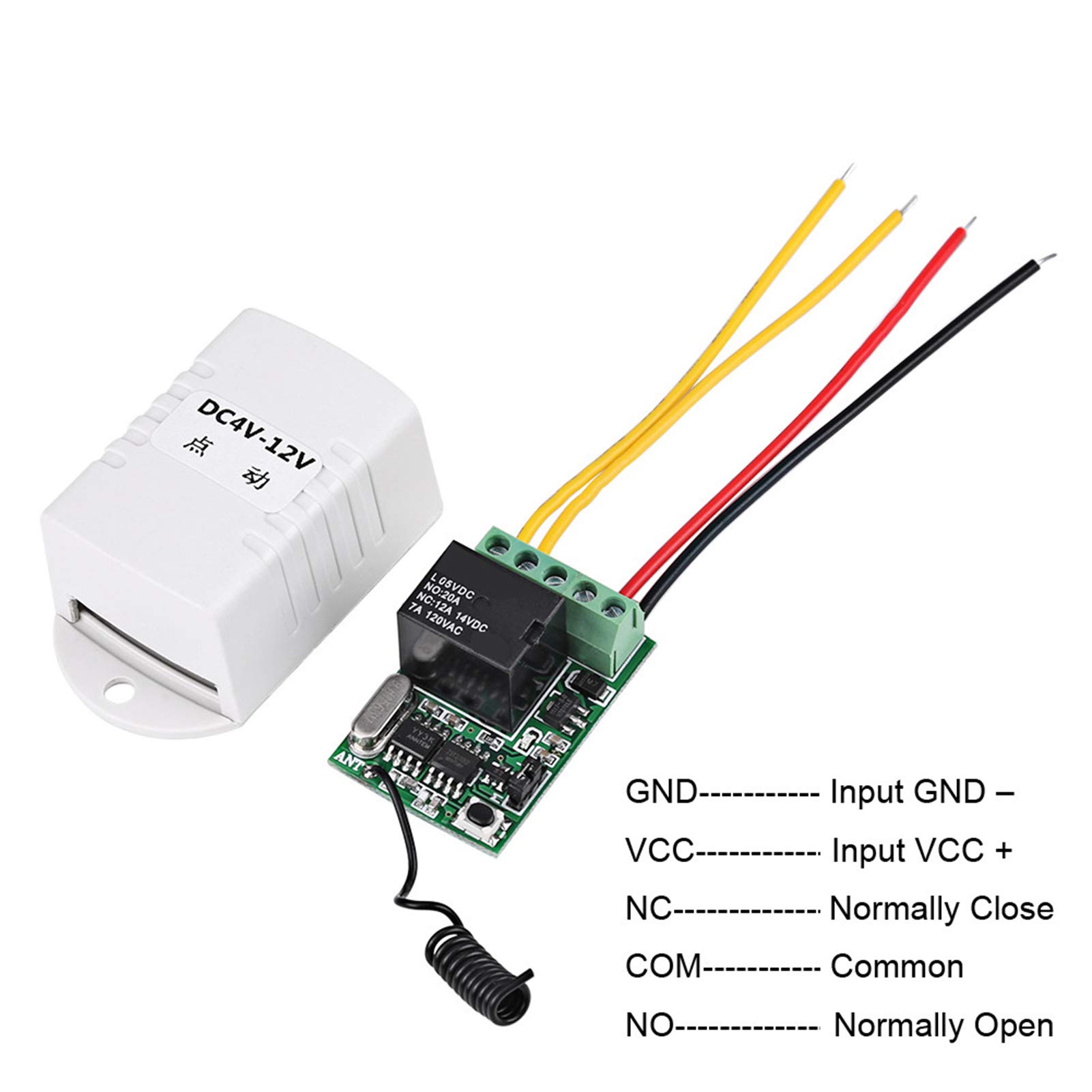

Specifications: Operating voltage: DC4V 12V (DC4V 4.5V 5V 6V 7.4V 9V 12V). Standby Current: 7-9mA Working current: 70-130mA Relay standard: 20A (14VDC 12A 120VAC 7A) Max. Load: 10A (better load is less than 7A) Learning code: learning button to add a transmitter Working mode: instantaneous toggle, set by jumper. Compatible: for computer mainframe Size: approx. 43 x 30 x 22 mm / 1.69 x 1.18 x 0.87 inches. Remote control size: approx. 60 x 30 x 12 mm / 2.36 x 1.18 x 0.47 inches. Quantity: 1 piece. Package weight: 50g Package includes: 1 x Relay Remote Control Switch 1 x transmitter. (Other items in the picture are not included) Momently----Press and hold----ON, release----OFF. Switch ---- Press Once ---- ON. Press again ---- OFF. GND ---- Input GND - VCC----Input VCC + NC----Normally closed. COM----General No. Normally open. Release code: Press the learning button of the receiver and hold it for about 5 seconds until the LED indicator of the receiver changes from ON to OFF, which means that the code has been deleted. Learning code: Momentary/Switch Mode: Press the learning button of the receiver, the LED indicator of the receiver flashes slowly, which means you switch to the learning state, press the transmitter button, the LED indicator of the receiver flashes 2 times fast and then flashes slowly, which means that the learning was successful. Press the learning button again to turn off the LED indicator, which means that the learning is complete. Note: Please note that the new type and old type of this product are sent at random, and make sure you do not mind before ordering.
