Swallows OZJ4 HDMI Matrix 4X4 , 4K HDMI 4 In 4 Out Matrix HDMI 2.0 Matrix Switcher 4x4 Ports 4K@60Hz Support 4K Dolby Vision HDR HDCP 2.2 Support Remote Control(Gray blue)

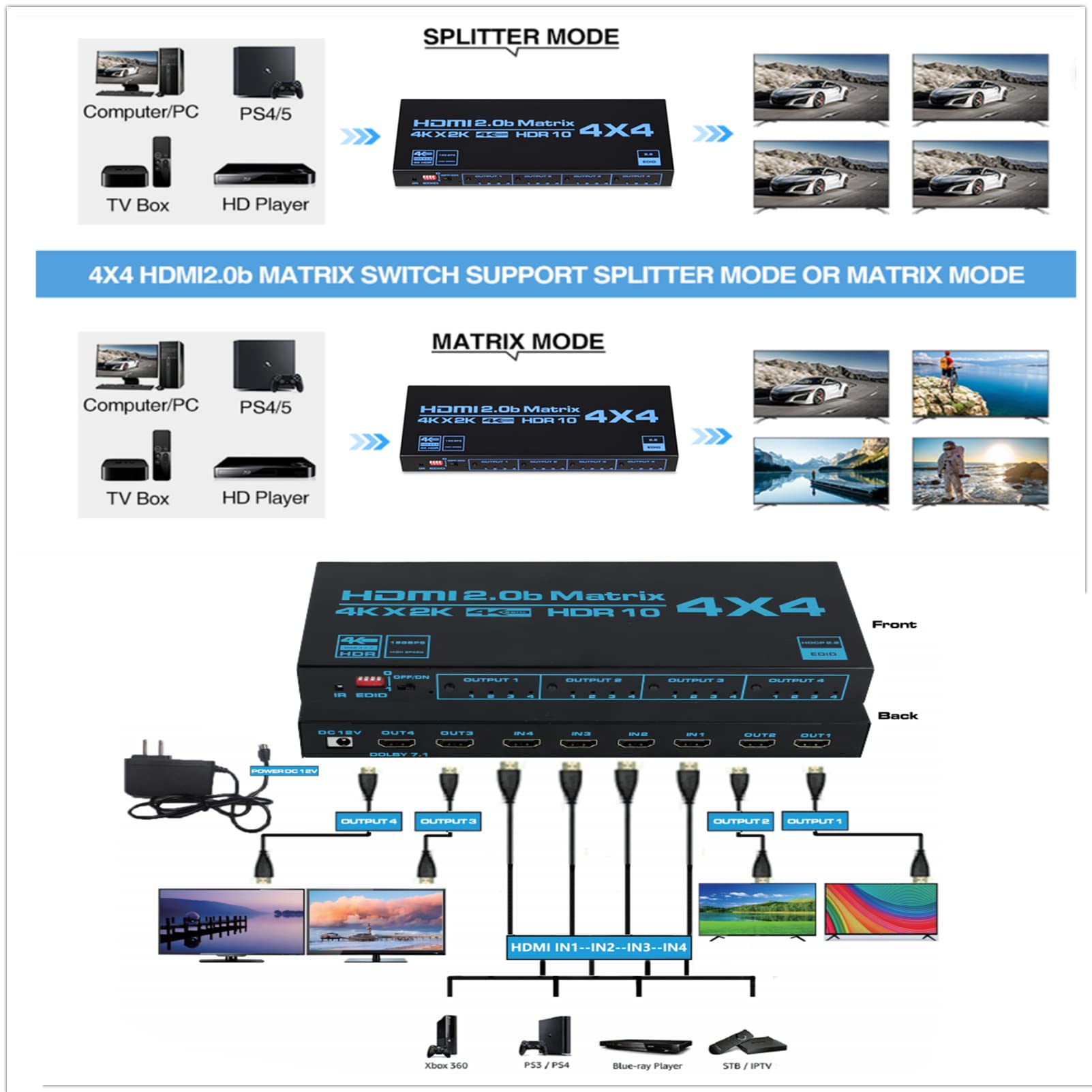

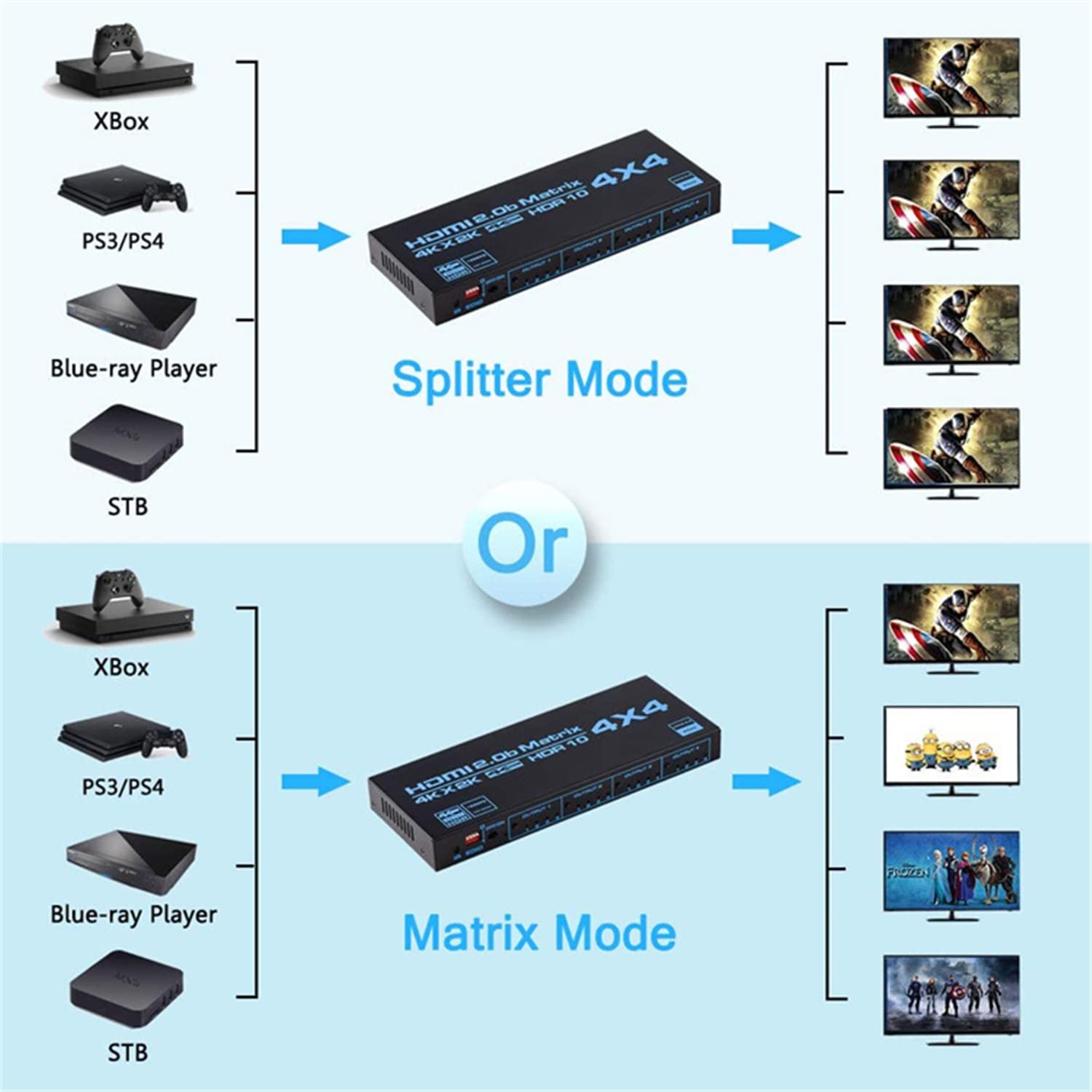

• * Matrix function: Four HDMI output ports independently select any one of the four HDMI inputs to achieve different display.
• *Distribution function: Assign any HDMI input to 1/2/3/4 HDMI signal synchronous output to achieve the same display.

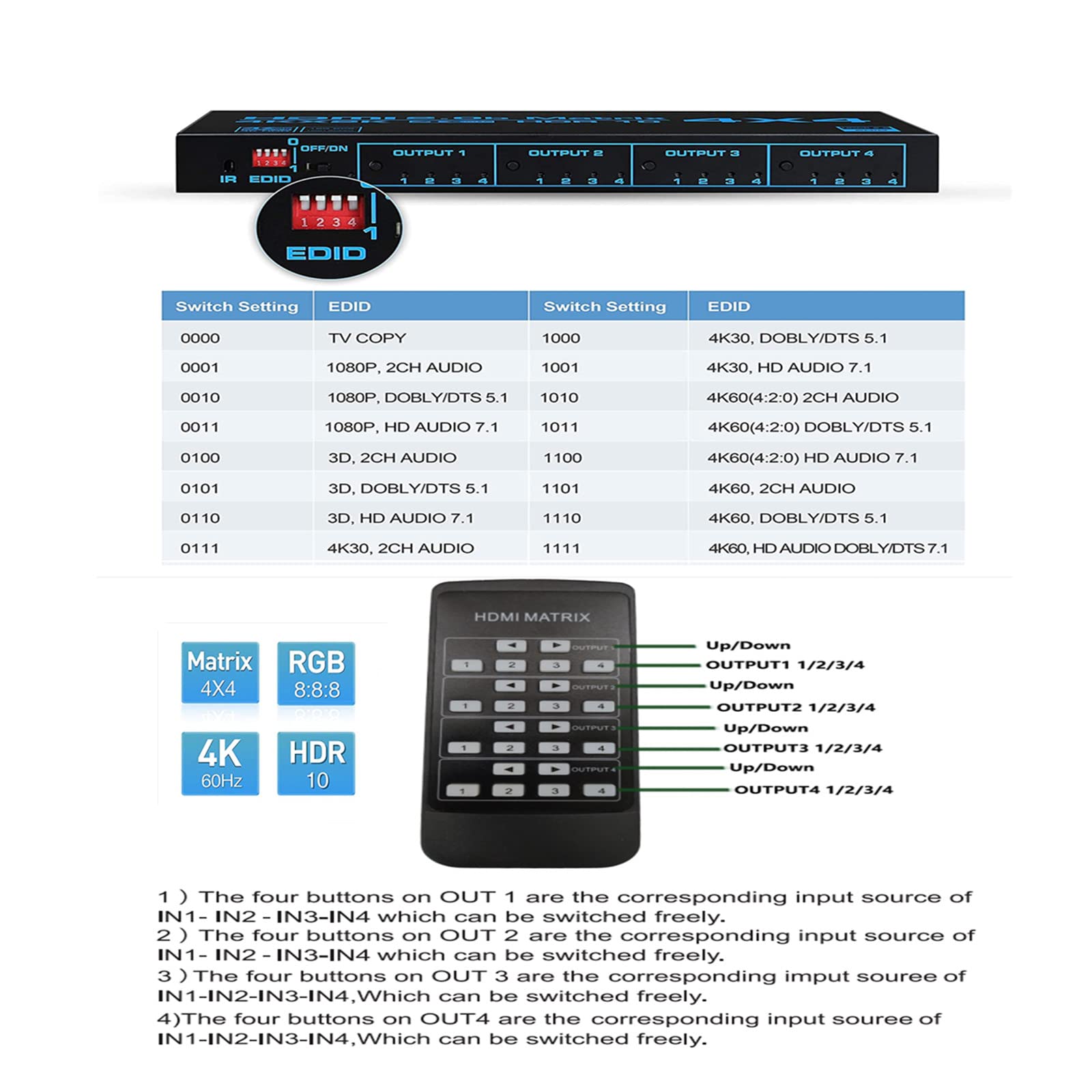

• *Support ultra-clear 4K*2K@60Hz(YUV444/RGB888), not only 4Kx2k@24/25/30Hz; support 3D, according to actual needs, turn the EDID switch to select the corresponding 3D video and audio format. Automatic recognition The highest resolution of the output device, actively reducing the resolution, perfectly matching the 1080P power amplifier and projection.
• *Support HDMI version: support HDMI2.0b, backward compatible with HDMI1.0, HDMI1.3, HDMI1.4; support HDCP version: HDCP2.2 backward compatible with HDCP1.4; support audio: support PCM, DTS, AC-3 , Dolby Panorama (only HDMI port support) and HD audio.
• *Support lossless output, that is, the separated audio does not affect the HDMI output, the input and output are exactly the same,> Support video resolution 480/576/720/1080/4Kx2K@24/25/30/60Hz.

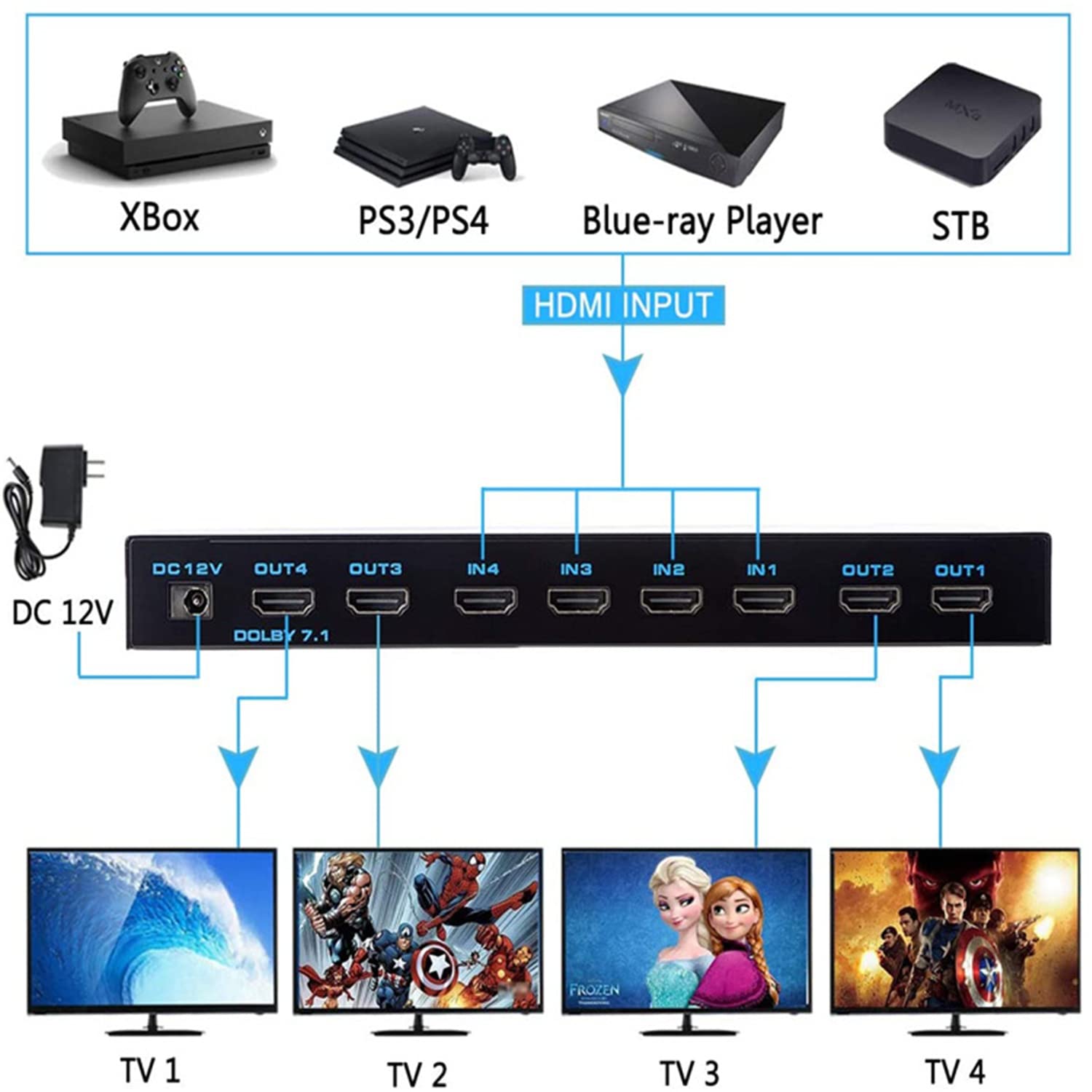

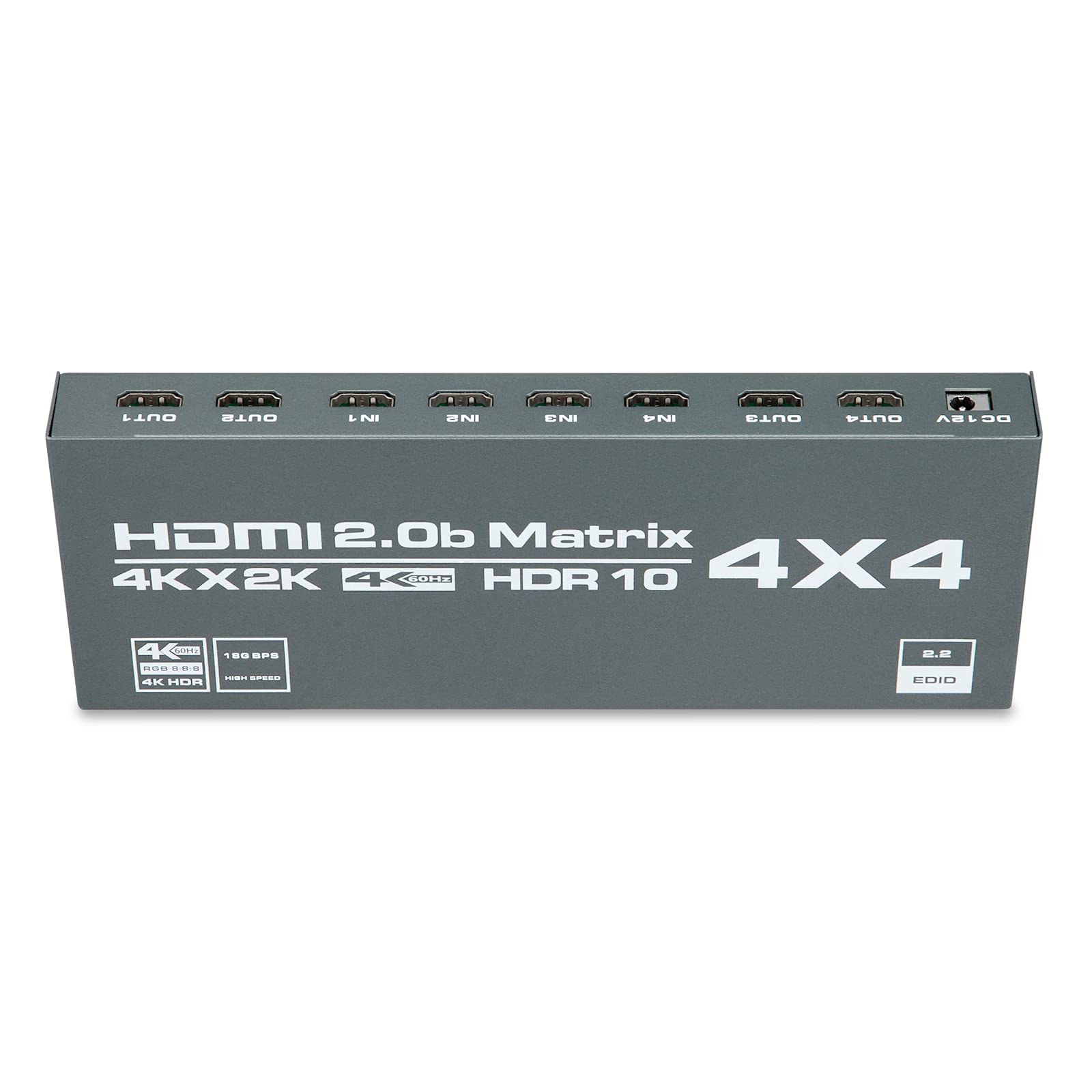

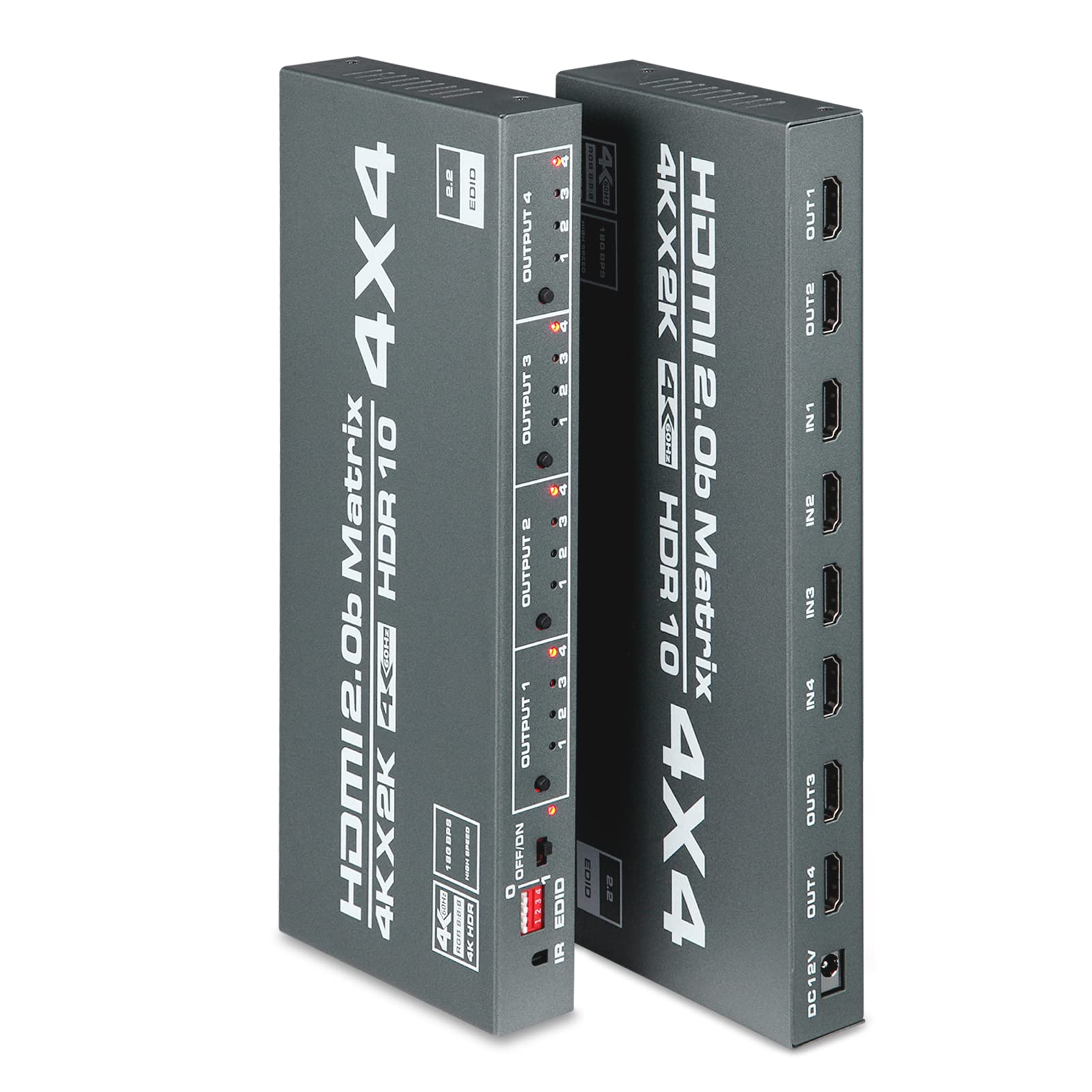

HDMI Matrix Switch 4x4, 4K HDMI Matrix Switcher Splitter 4 In 4 Out Box with EDID Extractor and IR Remote Control The 4 in 4 Out HDMI Matrix Switch allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors.It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc. Specifications - Product Type:HDMI Matrix 4x4 - Interface Type: 4 HDMI in, 4 HDMI out - Color: Black - Power Supply: DC 12V. - Dimension (LxWxH): 230*90*25mm Support HDR10/HDR10+; support 4K60Hz Dolby Vision; support remote control and panel switch switching; (Note: Dolby Vision/Dolby Panorama requires TV support.) Features - Support HDMI 2.0b HDCP 2.2 - Support 3D video format - Support highest resolution up to 3840*2160/60Hz YUV4:4:4 - Support 18Gbps data rate and tmds clock up to 600Mhz - Support deep color 8/10/12/24bit - 4 HDMI inputs switch and split to 4 HDMI displays - Input cable distance: <8m AWG26 HDMI2.0b standard cable - Output cable distance: <8m AWG26 HDMI 2.0bstandard cable Package contents 1x HDMI Matrix 4X4 1x 12V power adapter 1x IR Remote Control 1x User Manual Note: Instruction of Buttons and LED: 1. Instruction of LED: IN1-IN2 IN3-IN4 indicator is the corresponding input sources out from OUT1 or OUT2 or OUT3 or OUT4. 2. Operation of Buttons: OUT1 or OUT2 or OUT3 or OUT4. is used to switched the corresponding input source out from OUT1 or OUT2 or OUT3 or OUT4
