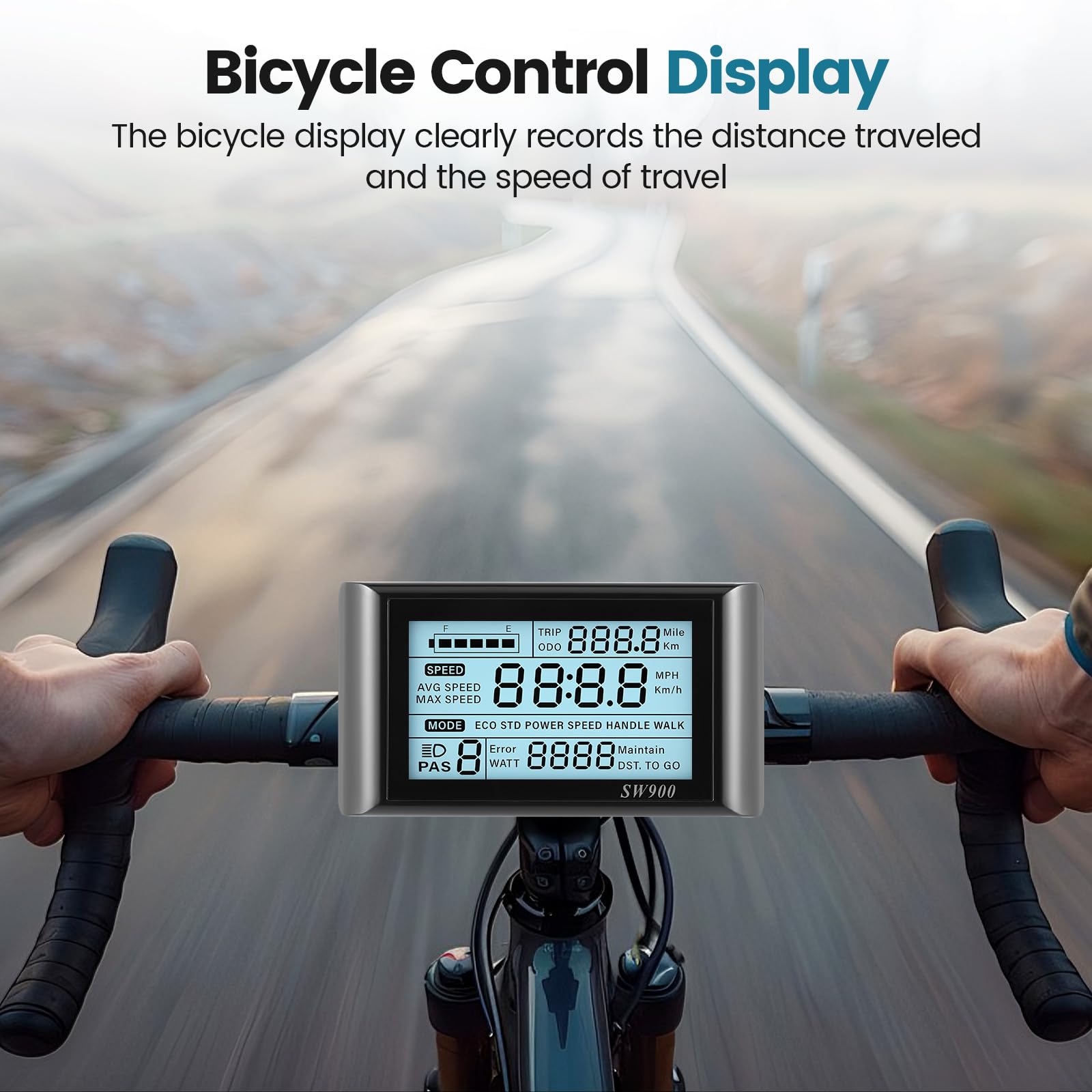

SW900 EBike Display, Electric Bike LCD Display Meter 24V 36V 48V E Bike Screen Control Panel Bicycle Speedometer with 5 Pin, Waterproof Plug, Fits Various Communication Protocols

• 【MULTIFUNCTIONAL】: The SW900 ebike screen is the ultimate dashboard for your electric bike. It supports input voltages of 24V, 36V, 48V, making it compatible with a variety of electric bike voltage configurations for user convenience. Suitable for handlebars with a diameter of 22.2mm / 0.9 inches, it is an ideal accessory for electric bikes, pedal bikes, and more. With a wide range of customizable settings, it optimizes your electric bike riding experience.

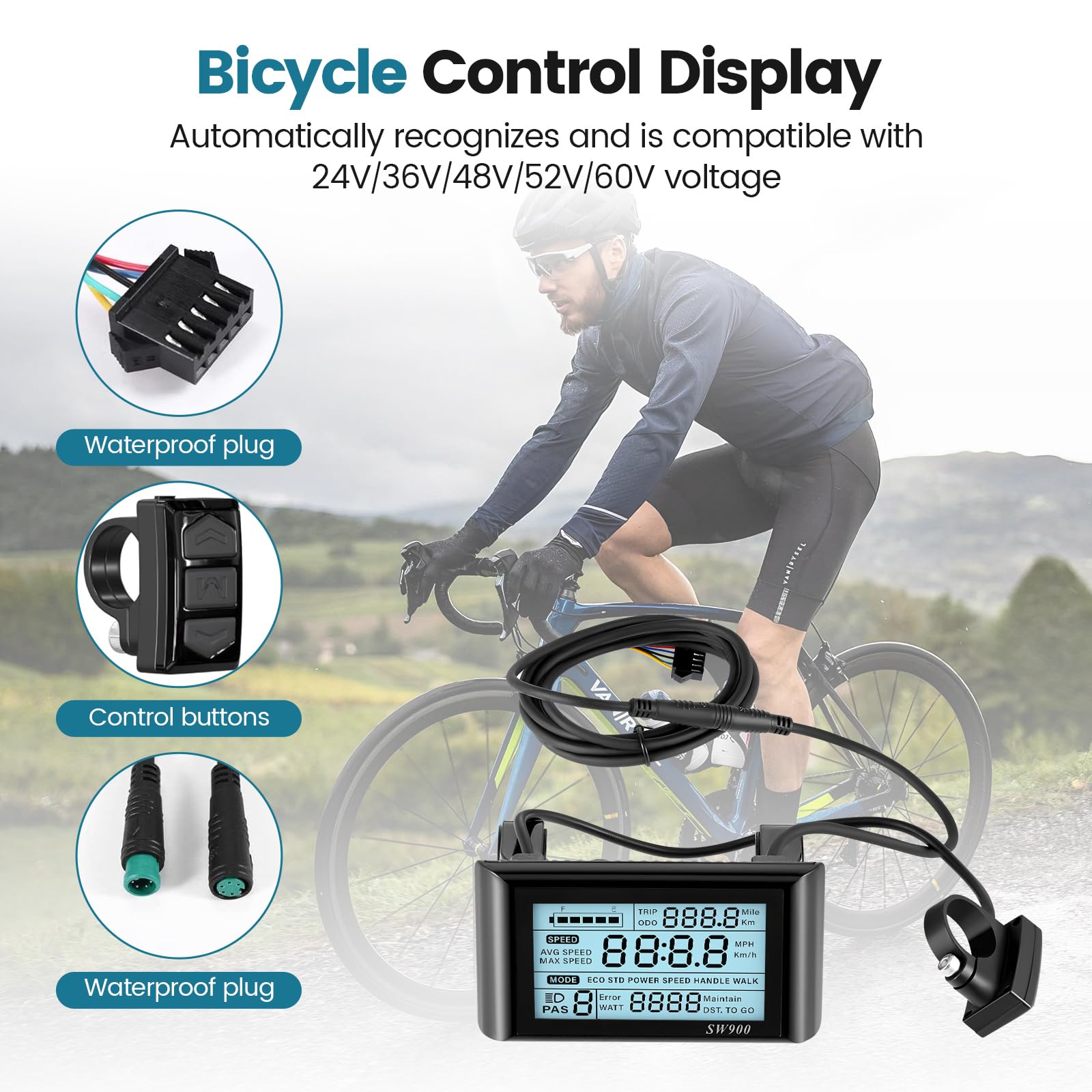

• 【COMPATIBLE COMMUNICATION PROTOCOLS】: Our SW900 display screen is compatible with various common electric bike controller communication protocols. Users can select different protocols through settings. Compatible communication protocols include 2#, 5S, KDS, Sine wave, DC MOTO, OMD and YF. Not compatible with KT or Sabvoton protocols. It features a flat 5-pin male connector for connecting to the controller, with an inline circular green 5-pin waterproof Juliet connector for added stability. Note: The controller and e-bike panel may have different interfaces and protocols. This product fits 5-pin interfaces. Confirm compatibility before buying.

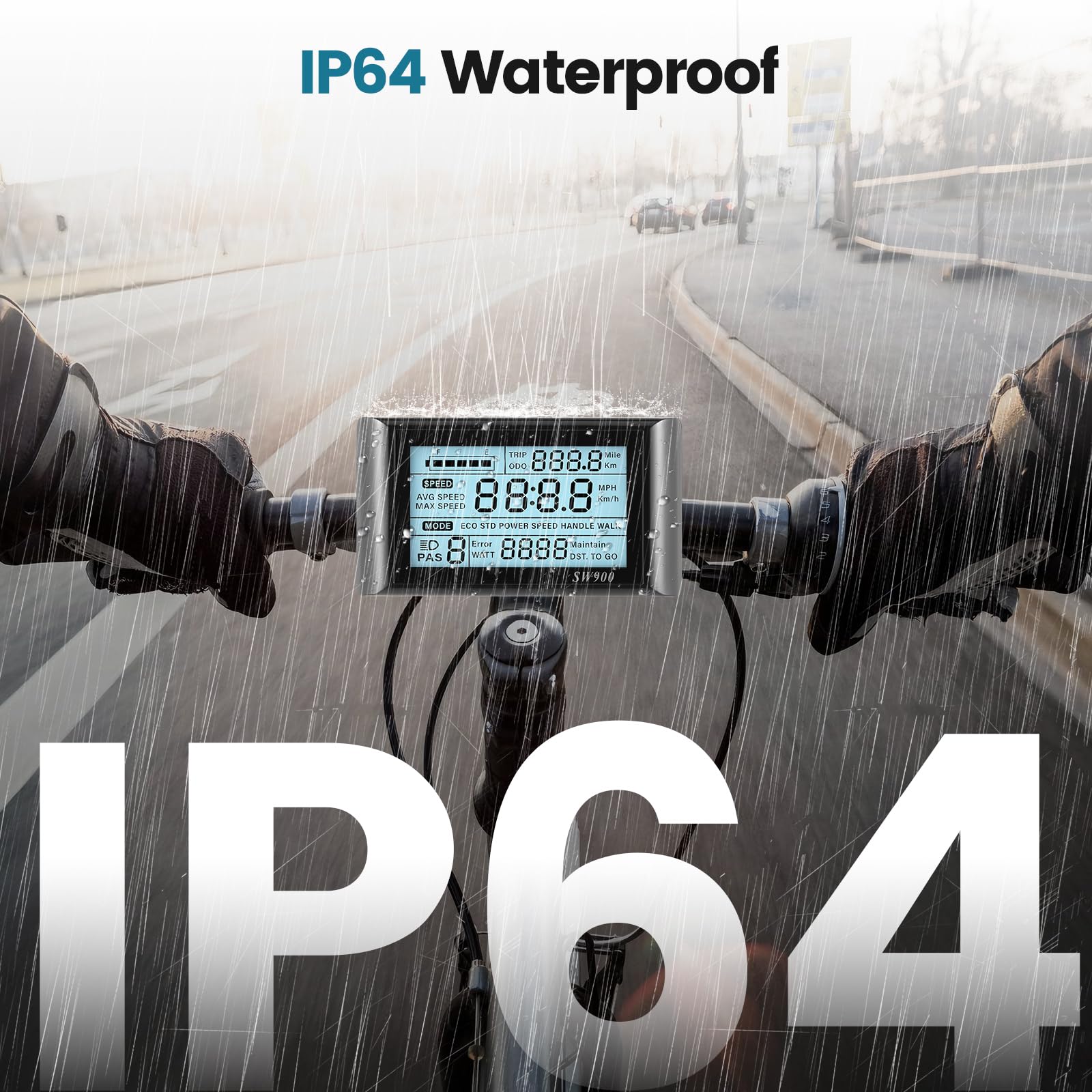

• 【DURABLE MATERIAL】: This LCD meter monitor is made from high-quality ABS material, with an IP64 waterproof rating. You can ride in the rain with confidence, as it is lightweight, waterproof, and durable, able to work stably in different outdoor environments for extended periods, prolonging its lifespan. The backlight function and 3 screen brightness adjustments provide good visibility for day and night riding.

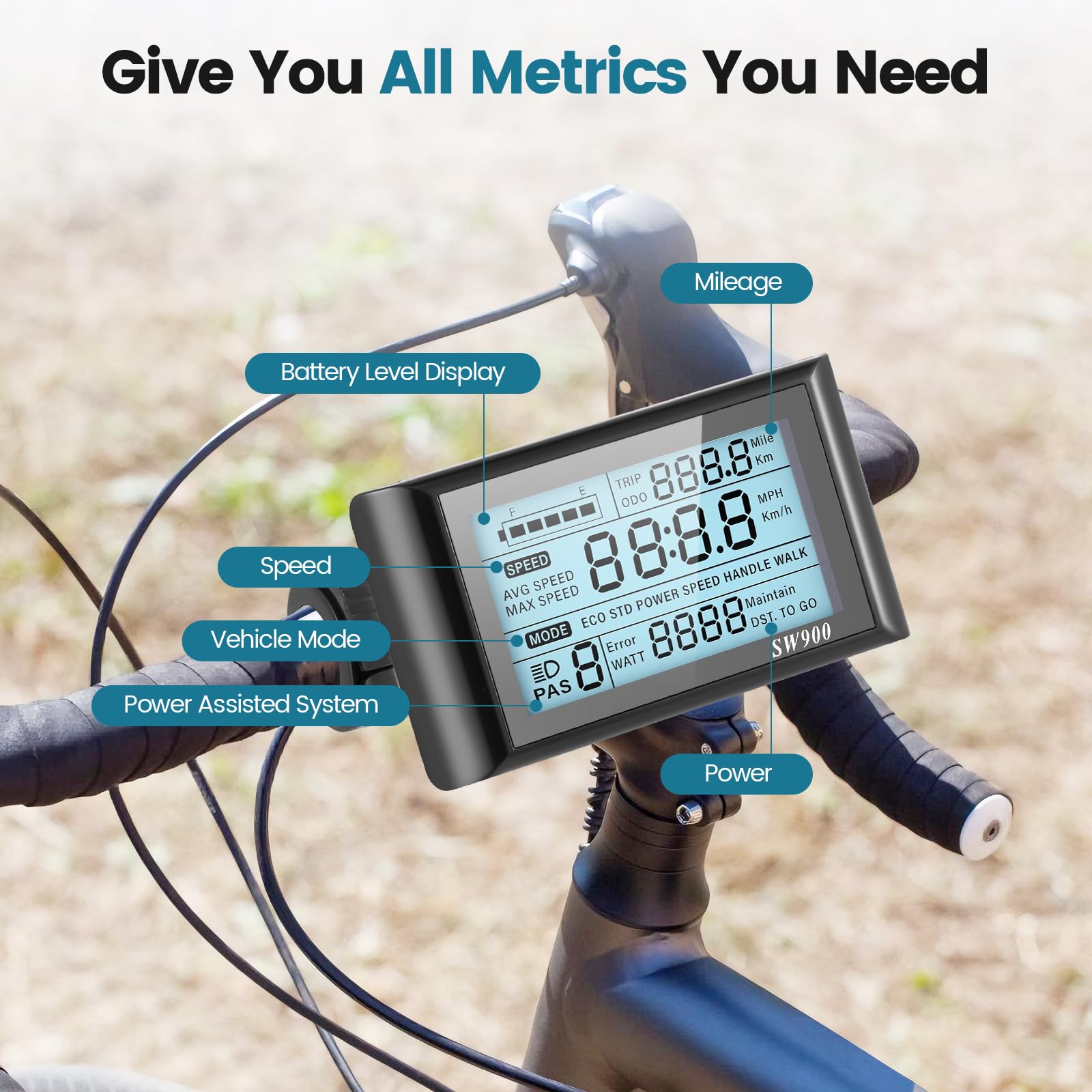

• 【CUSTOMIZABLE SETTINGS】: The SW900 electric bike display screen has a large 3.4*2.4 in panel, offers 19 customizable settings, such as speed, mileage, wheel diameter, speed limit, speedometer magnet number, battery level, mode, and more. This allows you to optimize your bike's performance based on riding style and terrain. Long-press the M key to enter the settings homepage, short-press to enter the next setting, and use the up and down keys to adjust parameter values.

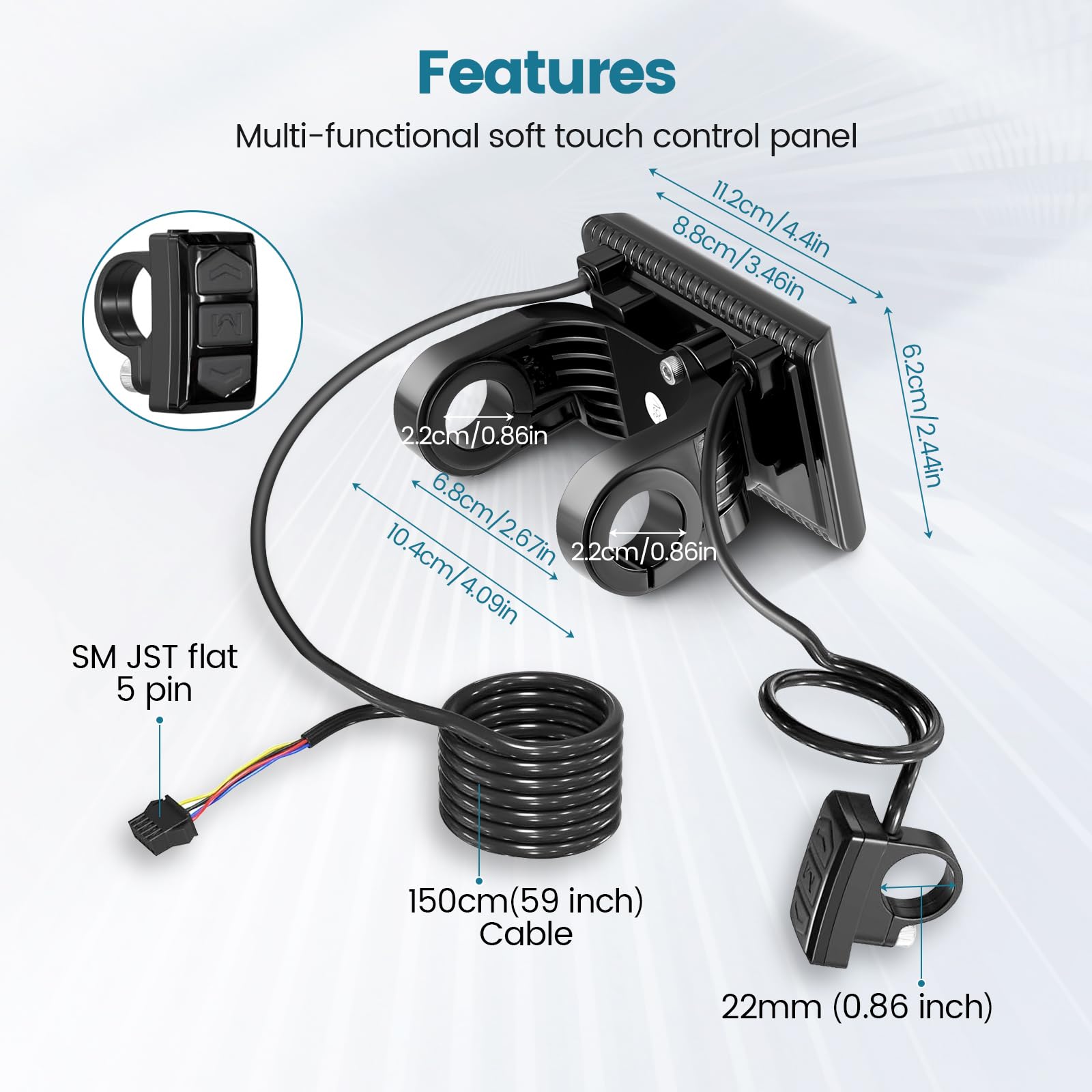

• 【USER-FRIENDLY OPERATION】: The SW900 comes with a complete user manual to help you understand the new display screen and make settings. With a 150cm cable length, it is suitable for various installations. You can fine-tune the SW900 electric bike display screen to enhance your riding experience and ensure optimal bike performance. Simply follow the instructions to connect the display screen to the controller and make your settings choices to start using it.
• Note: The product supports input voltages of 24V, 36V, and 48V. Match this setting to your battery voltage. If you have a 52V or 60V battery, use the 48V setting. The product's default factory voltage is set at 36V. Please manually adjust the parameters according to the actual voltage during use to ensure they match. Failure to do so may trigger voltage protection and result in error messages.

SW900 Settings: P01: Brightness Setting Range: 1, 2, or 3 Description: 1 is the dimmest, 3 is the brightest. P02: Speed Unit Options: KPH or MPH Description: KPH for kilometers per hour, MPH for miles per hour.(Note: Please set speed parameters as per instructions. Product supports MPH display, but it needs manual setup. Default is KPH if NOT set.) Warm note 1: Tire pressure affects speed accuracy. Low pressure can make displayed speed 8%-10% higher. Inflate tires to fix. Warm note 2: ±1km/h speed error is normal due to riding conditions. It’s not a precision issue. P03: Battery Voltage Matching Options: 24, 36, 48 Description: Match this setting to your battery voltage. If you have a 52V or 60V battery, use 48. P04: Sleep Timer Options: 0 or 1 Description: 0 to disable the sleep timer; 1 to enable it, and the bike will turn off automatically after one minute of no motion. P05: Pedal Assist & Throttle Levels Options: 0, 1, 2 0 = 1-5 levels 1 = 1-9 levels 2 = 1-3 levels P06: Wheel Size Range: 27.5, etc. Description: Adjust according to your actual wheel size. For example, if you have a 29" wheel, change it to 29. This ensures accurate speed readings. P07: Motor Magnet Count Options: 46 or 1 Description: 46 magnets are common for brushless, gearless hub motors (e.g., 1000W, 1500W, 2000W, 3000W). Set to 1 if your motor is geared. P08: Speed Limit Range: 0-50 km/h Description: 50 means no speed limit. In non-communication mode (controlled by the display), the display will cut off PWM output if the actual speed exceeds the set speed and will automatically turn it back on when the speed drops below the set speed, with a speed tolerance of ±1 km/h (only applicable to PAS). In communication mode (controlled by the controller), the actual speed will match the set speed, with a random error of ±1 km/h (applicable to both PAS and throttle). Note: These values are based on kilometers. When switching from kilometers to miles, the speed value on the screen will automatically convert to the correct miles, but if you do not change the speed limit setting from kilometers to miles, it will not match the actual speed limit in miles.
