SUPYINI Parallel Rail Guide System, Woodworking Track Saw Guide Rail Joining Set, Aluminum Alloy Circular Saw Track Set Fixed

• Aluminum Alloy: The parallel guide rail is made of premium aluminum alloy material, with high hardness and good durability. The parallel guide rail has a smooth surface, is not easy to bend or break, and can be used with confidence.

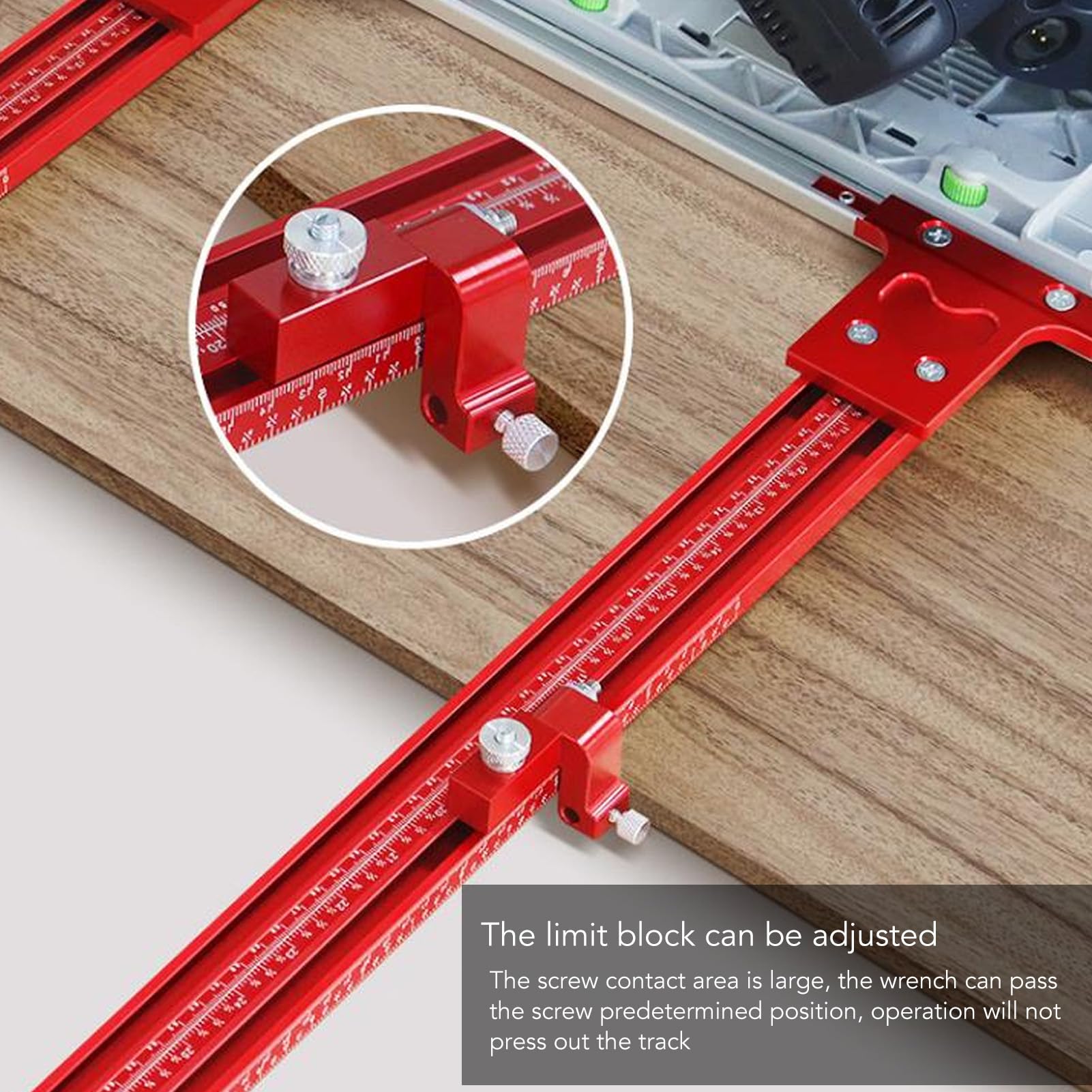

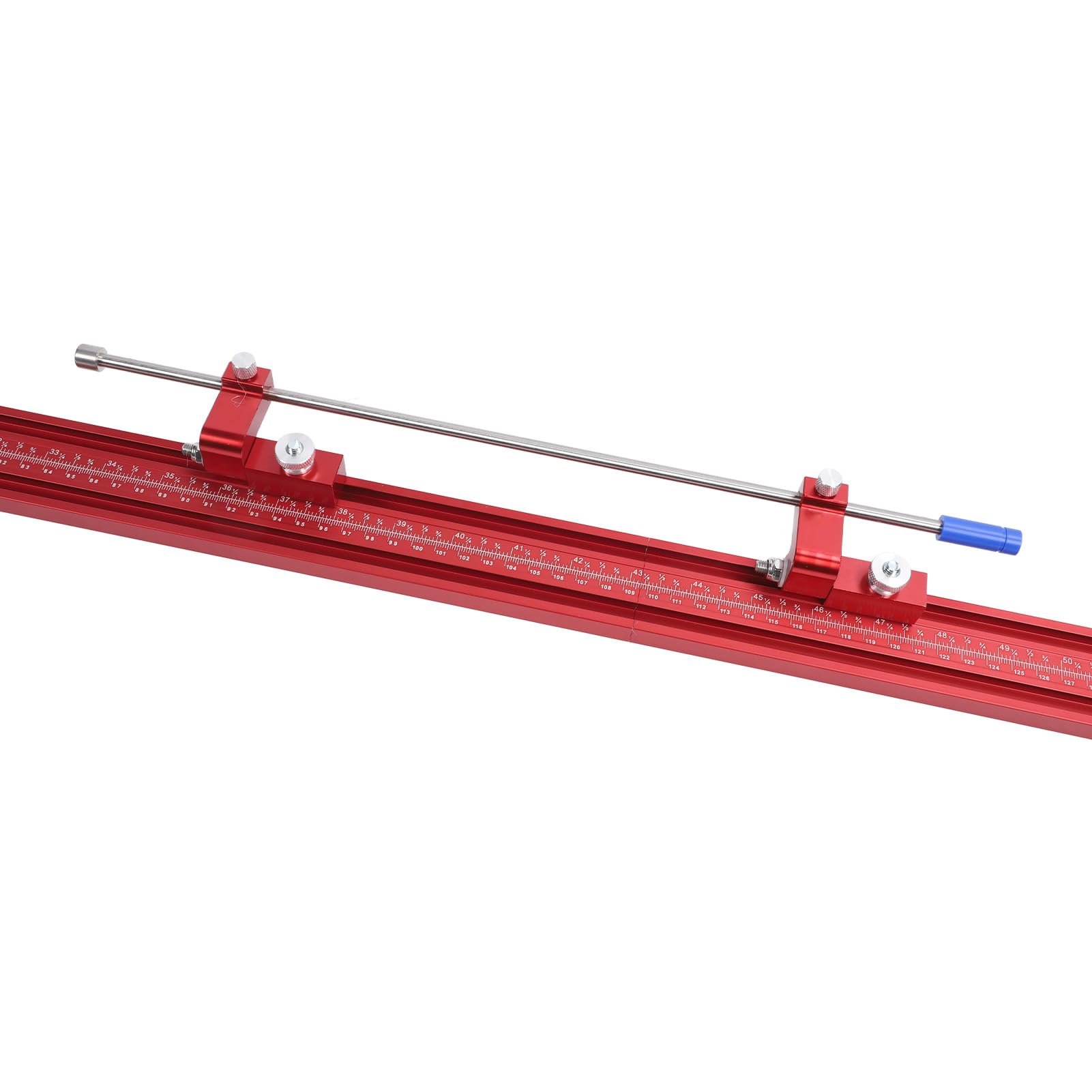

• Easy Adjustment: The limiter and guide rail of the parallel rail can be adjusted. The rail section can be connected to form the maximum rail. The stop of the parallel rail is adjustable. First loosen the large screw and then the small screw to adjust the limit block left and right.
• High in Accuracy: This aluminum alloy parallel rail adopts a splicing type rail slide, with a large screw contact area. The wrench can pass through the screw to estimate the position, and the rail will not protrude during operation. The scale on the tool are clear and the measured values are easy to read, adding more convenience for reading and work.

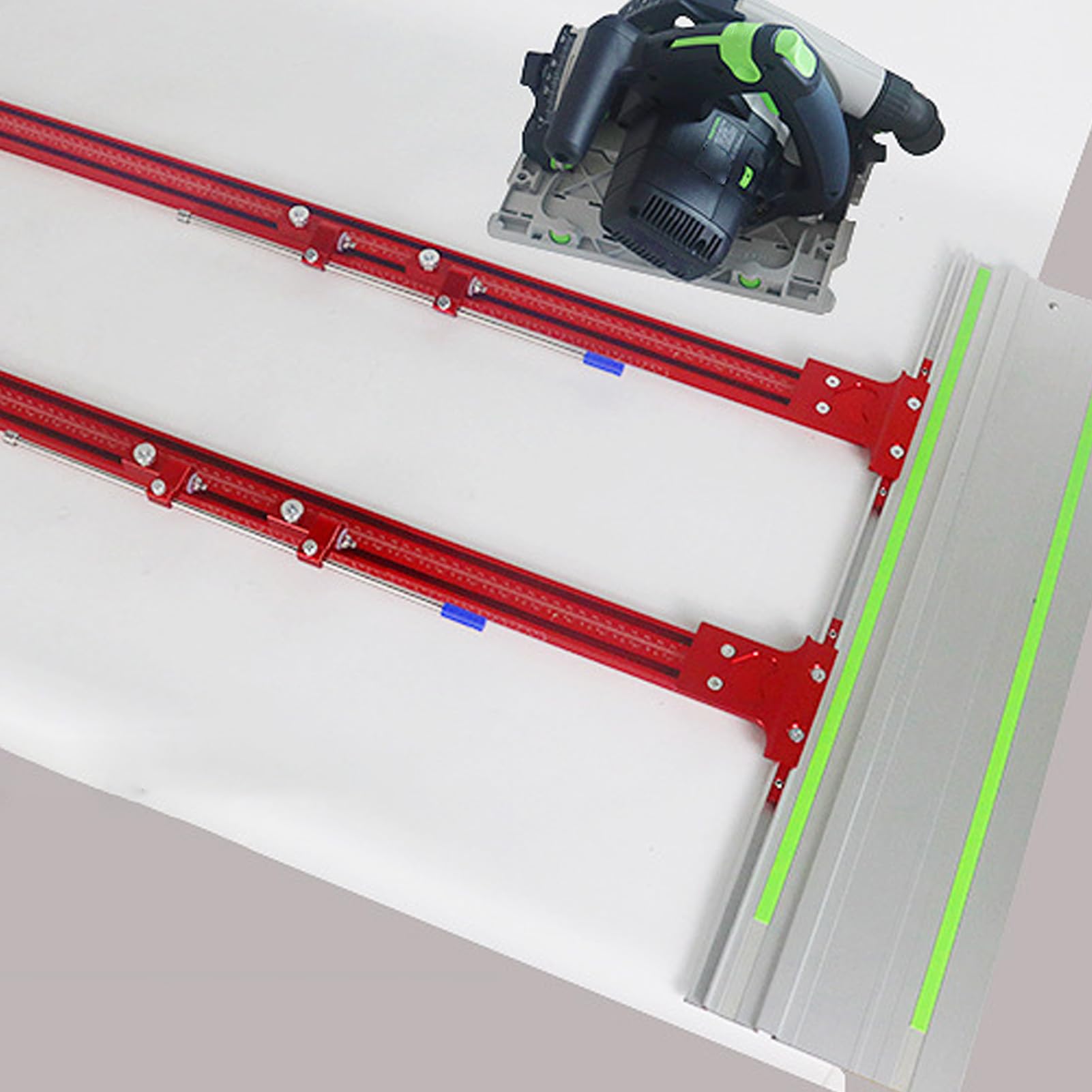

• Wide Application: Aluminum parallel guide rails guide wood during sawing and securely and easily wrap and quickly clamp onto the guide rails on planers, forming machines, table saws, or log pickers to achieve safe and high accuracy cutting.
• Reasonable Design: The back plate is smooth without jamming to improve your work efficiency, and the locking design can fix the slicing distance with one key to reduce operation errors.

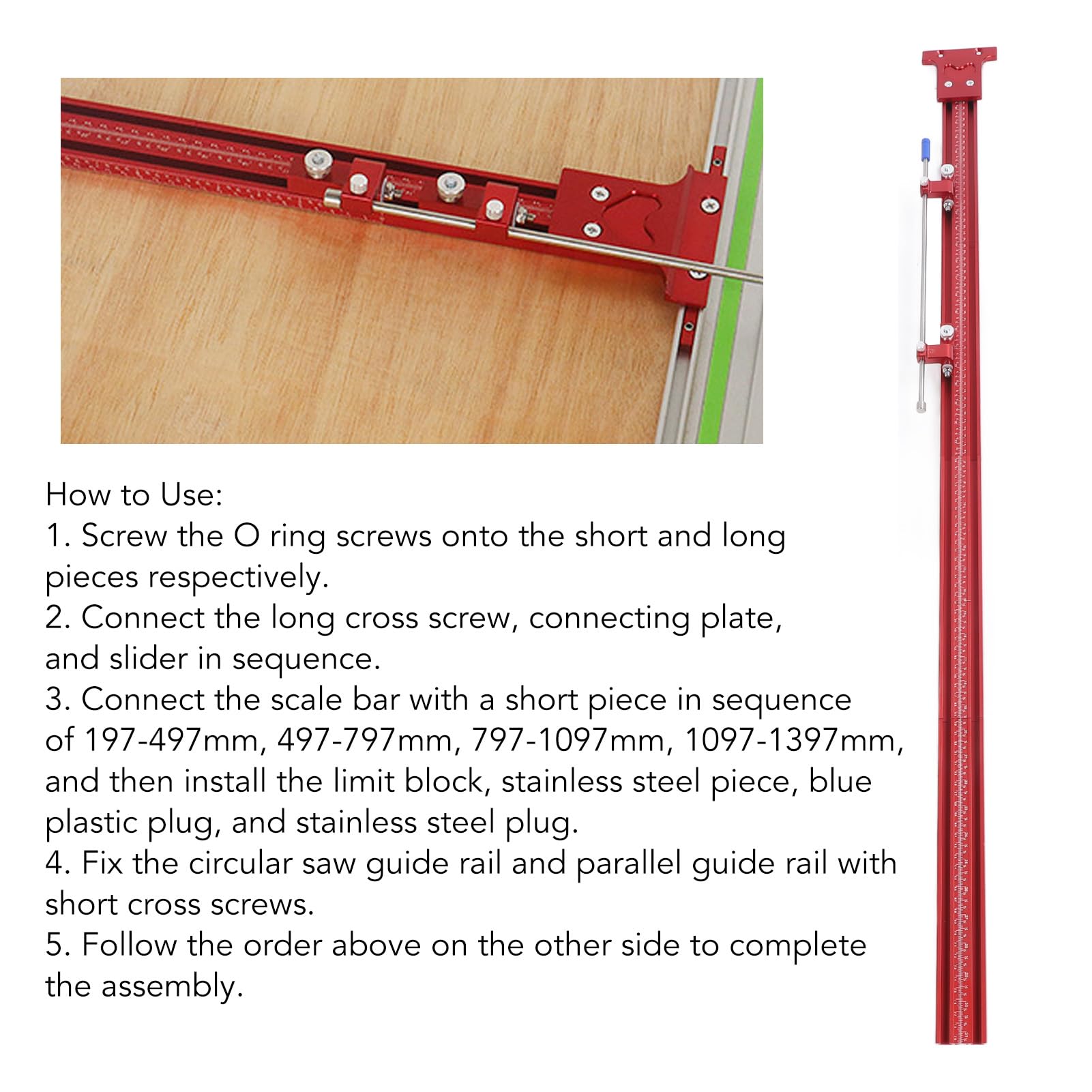

Specification: Item Type: Parallel Rail Guide System Material: Aluminum Alloy Rail Piece Length: Approx. 300mm / 11.81in Rail Clamp Angle: 90° How to Use: 1. Screw the O ring screws onto the short and long pieces respectively. 2. Connect the long cross screw, connecting plate, and slider in sequence. 3. Connect the scale bar with a short piece in sequence of 197‑497mm, 497‑797mm, 797‑1097mm, 1097‑1397mm, and then install the limit block, stainless steel piece, blue plastic plug, and stainless steel plug. 4. Fix the circular saw guide rail and parallel guide rail with short cross screws. 5. Follow the order above on the other side to complete the assembly. Package List: 8 x Guide Rail 2 x Connecting Plate 4 x Limiter 8 x Cross Screw 16 x O Ring Screw 8 x Sliding Bar 1 x Wrench 1 x Cross Key 2 x Sliding Rod 2 x Blue Plastic Plug 2 x Stainless Steel Plug 4 x Washer 1 x User Manual
