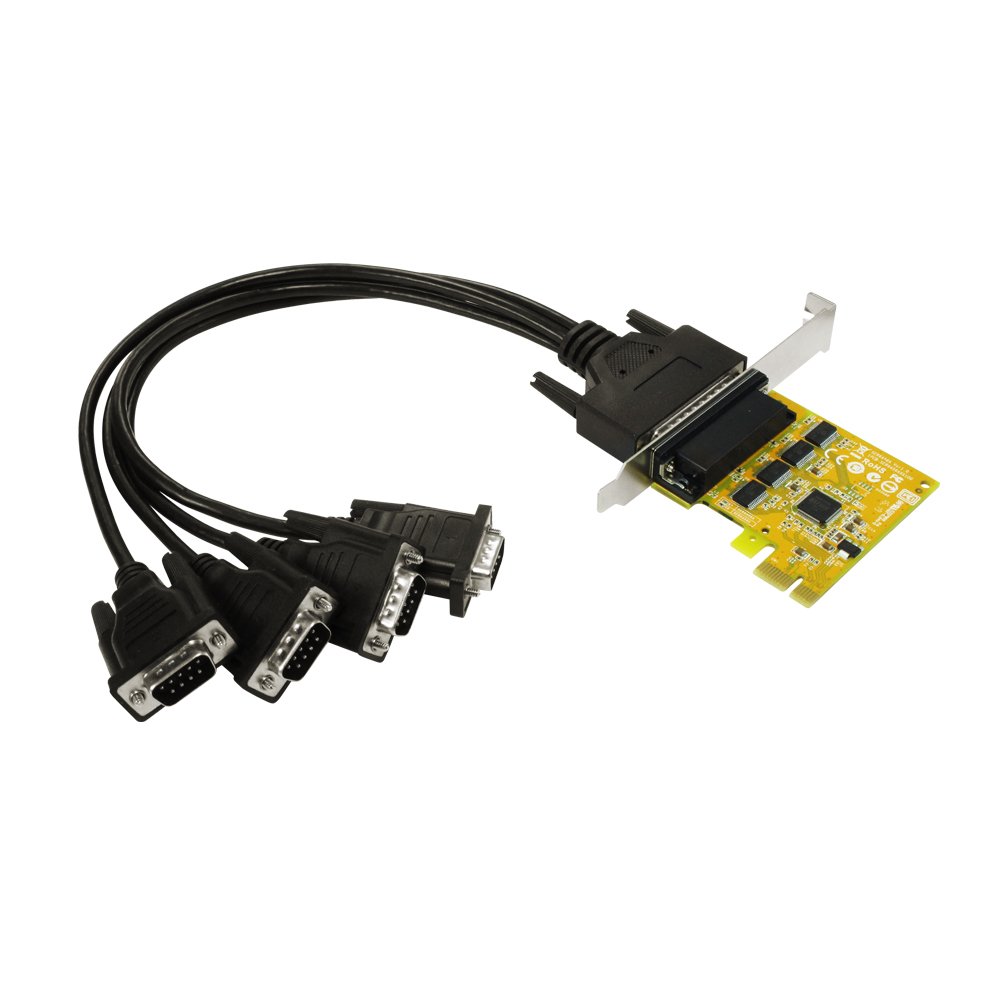

Sunix SER6456A 4-port RS-232 PCI Express Board

• Expands 4 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
• With high reliable SUNIX SUN2410 native PCI Express 16C950 UART controller.
• Designed to meet PCI Express Base Specification Revision 2.0.
• Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
• Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.

Built-in ± 15KV ESD protection for all serial signals, meets IEC1000-4-2 standard. Plug-n-Play, I/O address and IRQ assigned by BIOS. Certified by CE, FCC, RoHS, and Microsoft WHQL approval. Support Microsoft Windows, Linux, and DOS. Meets PCIe Rev 2.0. Compatibility: PCIe x1, x2, x4, x8 and x16 128-bytes onboard FIFO buffer compatible with 16C950 UART specification. SUNIX UART controller SUN2410 Interface RS-232 Controller SUNIX SUN2410 (16C950 UART Compatible) BUS PCI Express Spec 2.0, Single-Lane (x1) IRQ & IO Assigned by System Serial Communication Interface RS-232 No. of Port 4-port FIFO 128byte Hardware Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI Baud rate 50bps ~ 115.2Kbps Stop bit 1, 1.5, 2 Parity even, odd, none, mark, space Flow Control None, Xon/Xoff, RTS/CTS Protection ±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge PCB Connector DB44 Female Driver Support Windows Client XP/Vista/7/8.x/10 (X86/X64) Windows Server 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64) Windows Embedded Windows CE 4.2/5.0/6.0 XP Embedded / POSReady 2009 / POSReday 7 / Embedded System Linux Linux 2.4.x/2.6.x/3.x DOS DOS FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4 QNX QNX 6.3.2/6.4.0 Regulatory Approvals Hardware CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, RoHS Software Microsoft WHQL Windows Windows Client: XP/Vista/7/8.x/10 (X86/X64) Windows Server: 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64) Environment Operation Temperature 0 to 60°C (32 to 140°F) Operation Humidity 5 to 95% RH Storage Temperature -20 to 85°C (-4 to 185°F) Dimension PCB Dimension 65 x 69 mm Bracket Standard 121 mm Bracket Space 1
